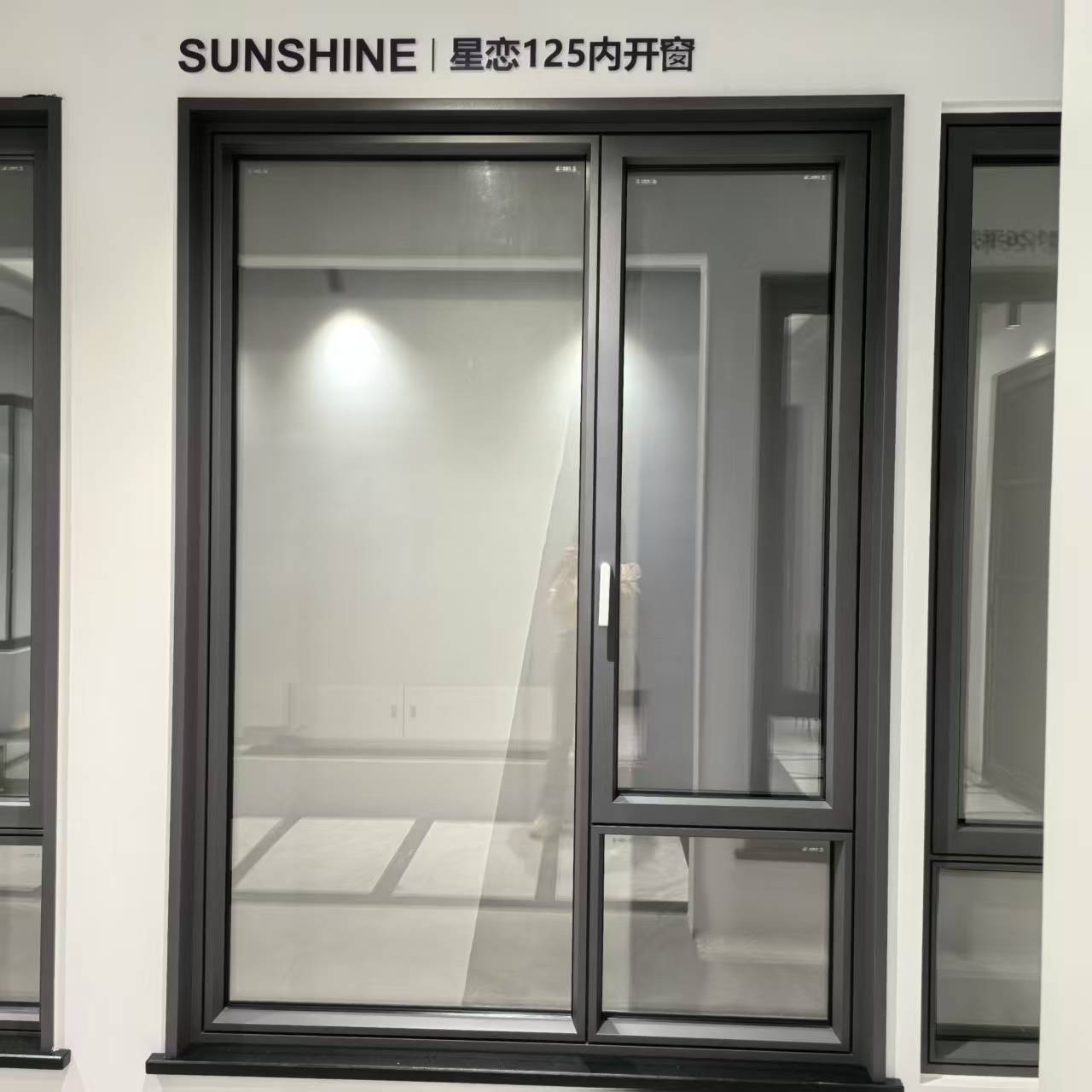

China Manufacturer Customized Aluminum Glass Roof Fixed/swing Window with Low-e Glass Star Love 125

Product parameters:

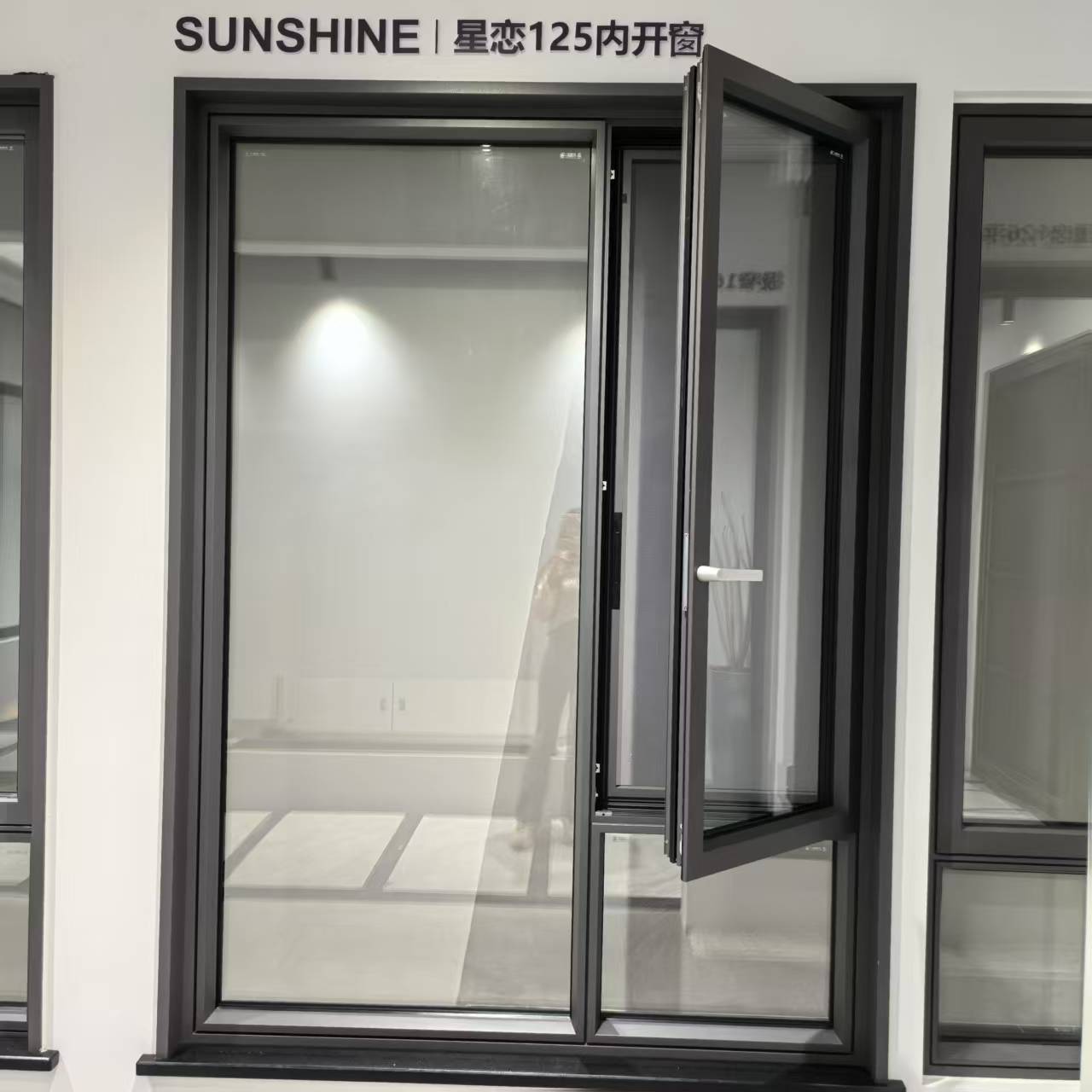

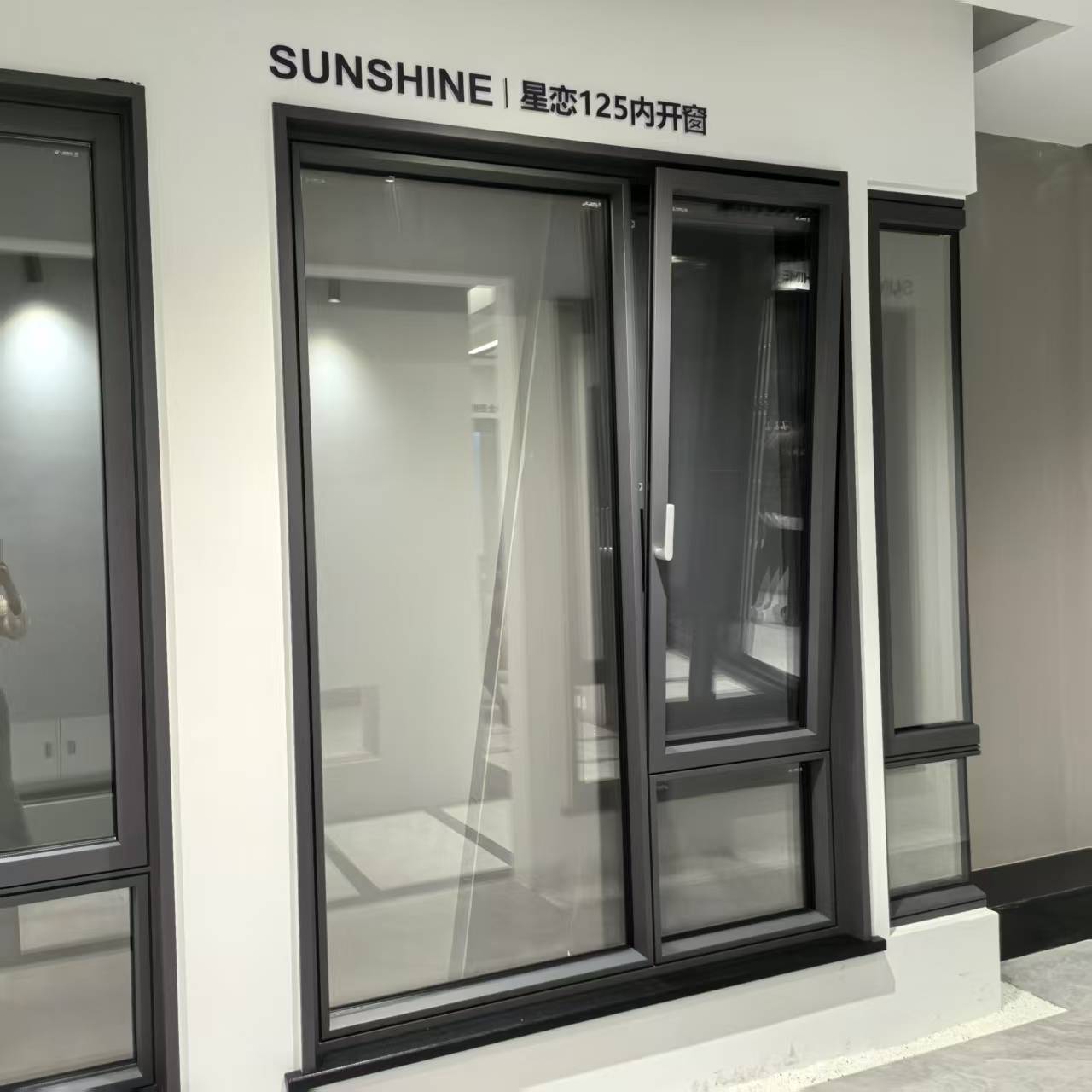

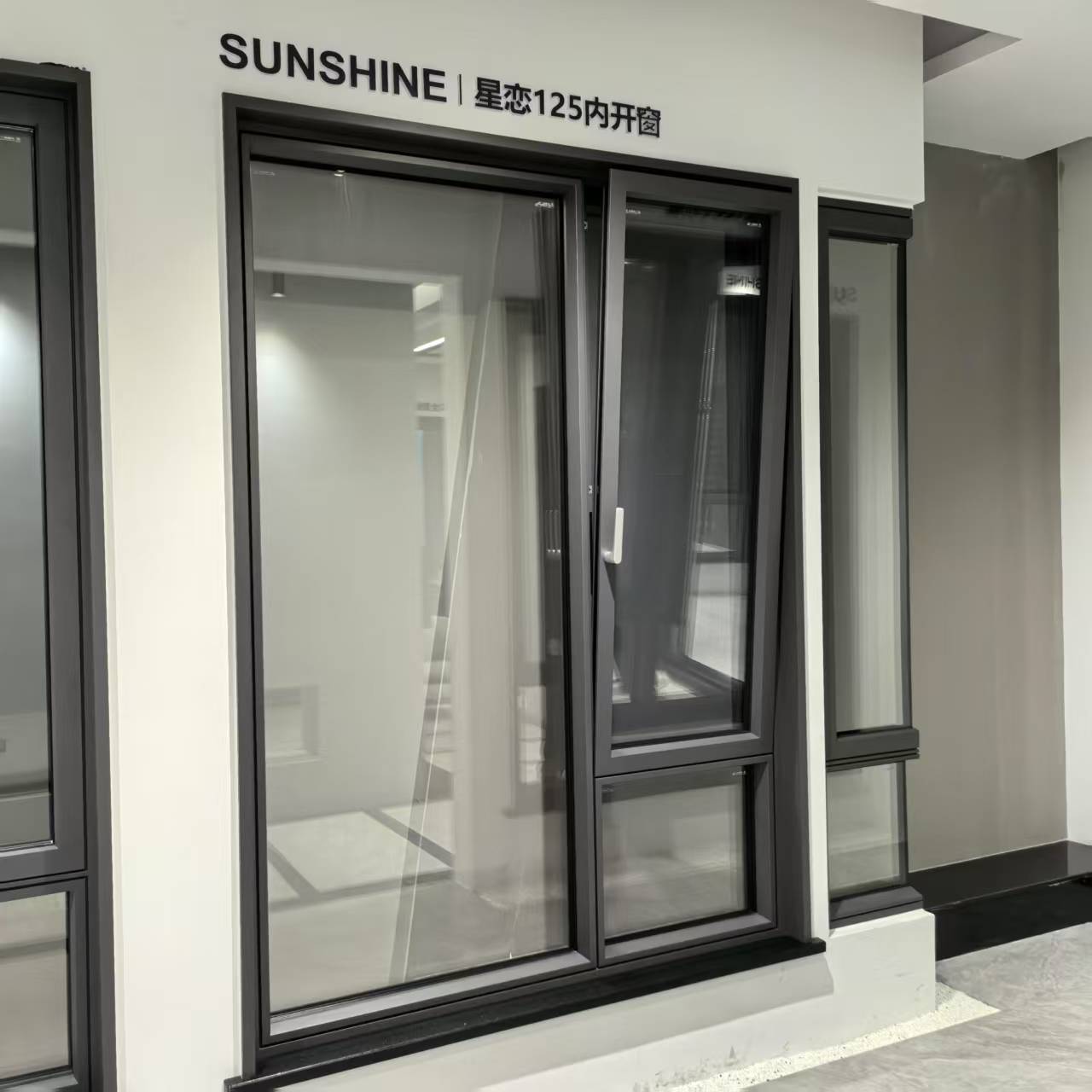

Glass fan with inward opening/inward opening and inward tilting+inward opening Mesh

Indoor frame visible surface 34mm

Outdoor frame visible surface 34mm

Indoor fan visible surface 64mm

Outdoor fan visible surface 64mm

Indoor total visible surface 125mm

The total thickness of the profile frame is 98mm

High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 1.8mm

Insulation strip width 29mm

Standard Configurations

Mesh 0.3 black diamond mesh

optional: high transparency mesh: brand/aperture/color

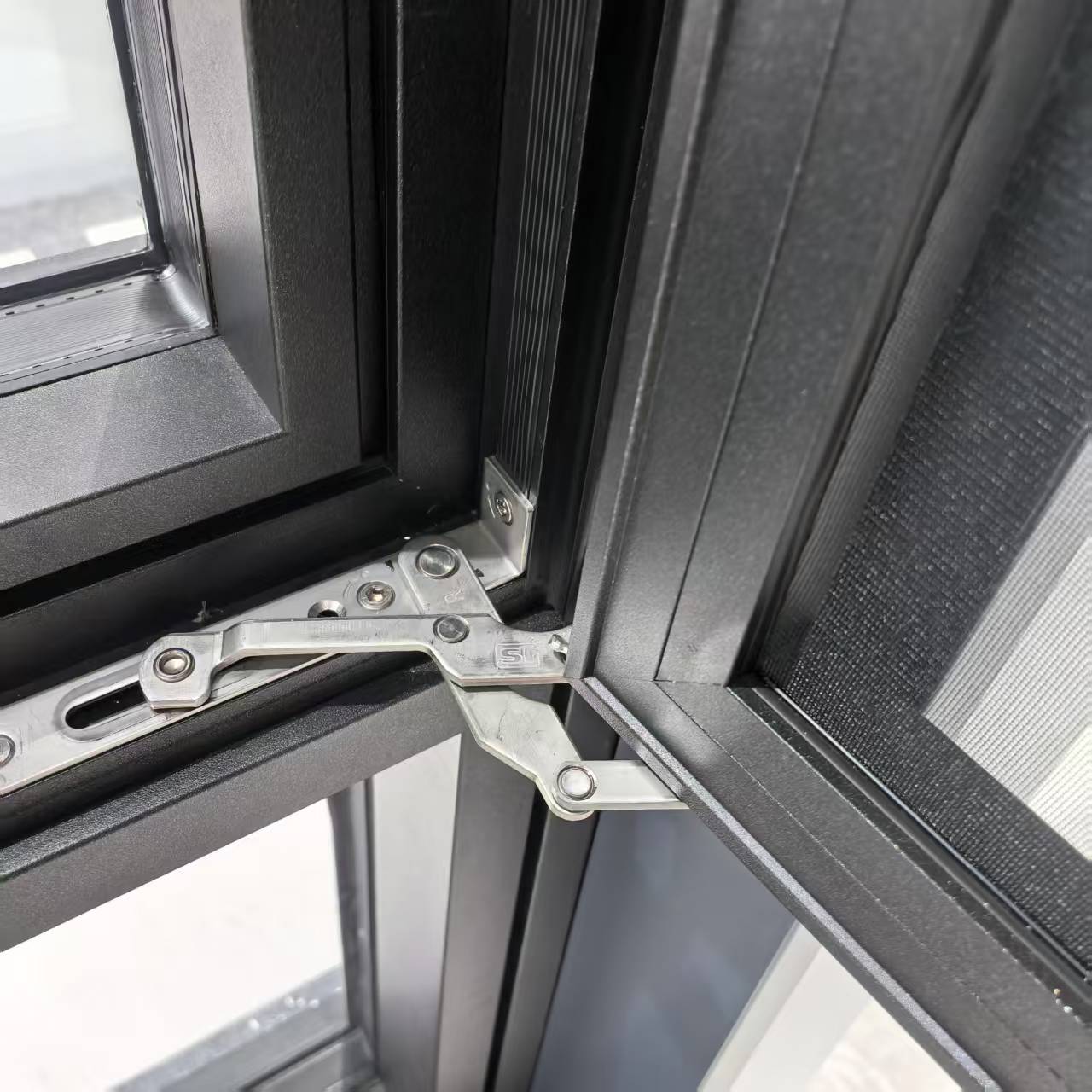

Hardware

Hardware brand: Chinese Brand/Imported

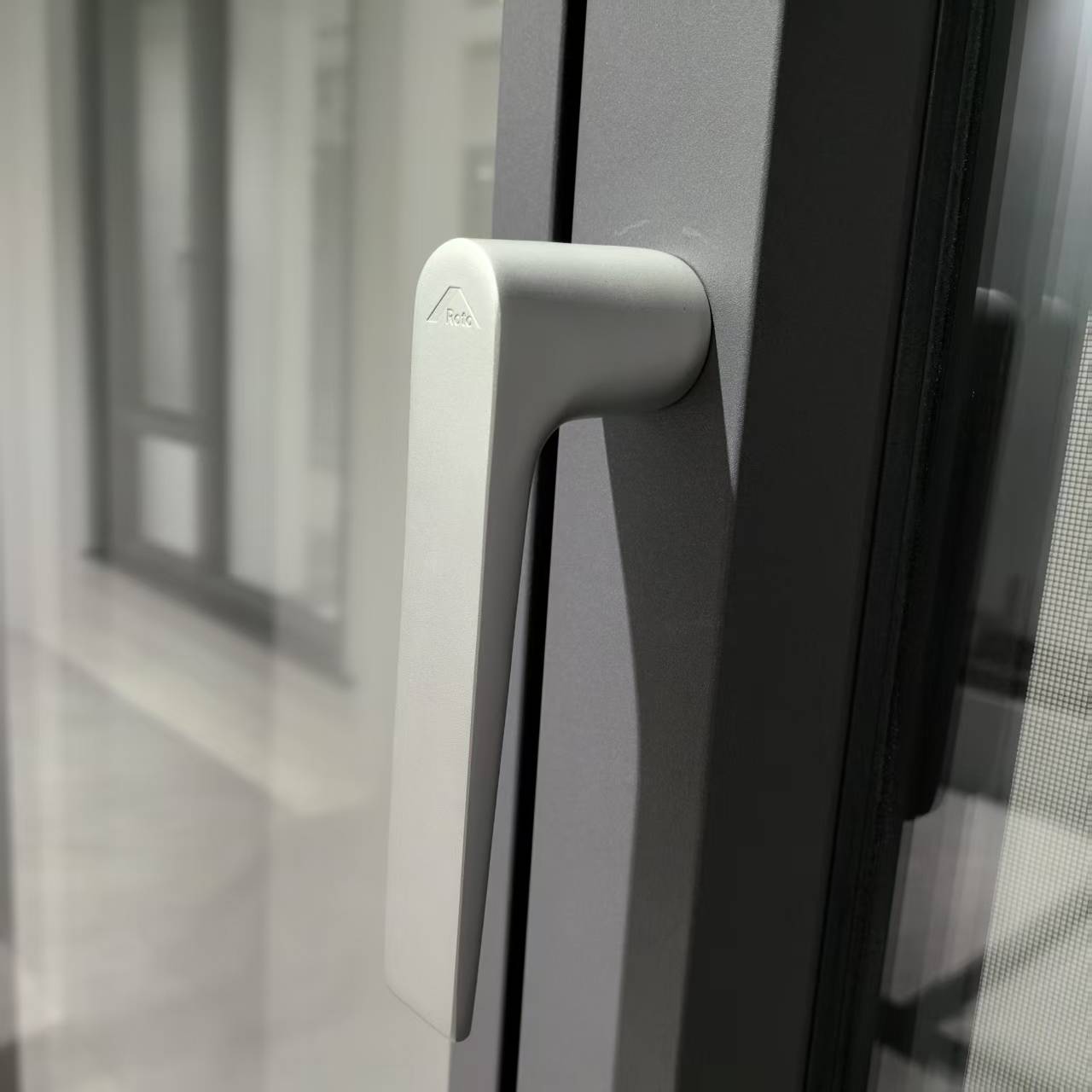

Handle: Hopo handle/

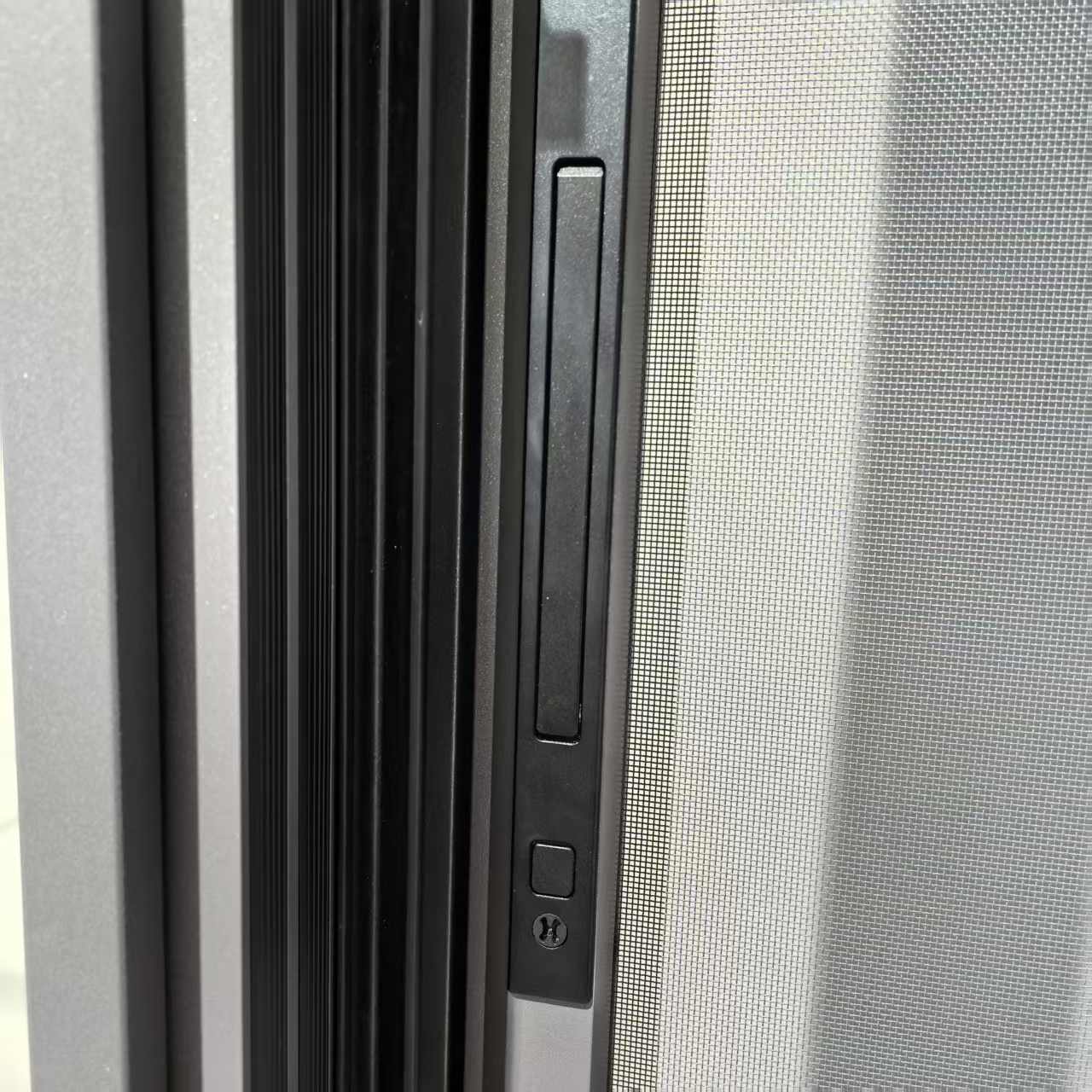

Window screen handle:

Transmission system: two-point lock

Upgrade Options:

Hands without base: Roto, Siegenia

3-point lock: Fan height 1300mm (recommended for coastal areas, floors above 30th floor, and fan height 1300mm optional)

Open size and maximum load-bearing capacity

Roto:

Fan width: 370-1300mm

Fan width: 530-2700mm

Maximum load capacity: 80kg

Maximum opening angle: 100 degrees/180 degrees

Siegenia:

Fan width: 500-1000mm

Fan width: 550-2400mm

Maximum load capacity: 80kg

Maximum opening angle: 100 degrees/180 degrees

Glass

Frame: Glass channel width: 49

Fan: Glass channel width: 47

Standard version width: 47

Aluminum spacer color: Silver aluminum spacer

Fixed glass: 5mm+12A+5mm+12A+5mm

Fan glass: 5mm+12A+5mm+12A+5mm

upgraded aluminum spacer color: black aluminum spacer

Surface treatment

Surface treatment method: fluorocarbon triple coating

Powder brand: Chinese Brand/Imported Monochrome/Regular Color

Upgraded Option: Double Color/Customized Color

Rubber strip brand: Chinese Brand/imported: Wingkay

Upgrade Options: to Haida

Line pressing, whole frame, line pressing

Process configuration

Craftsmanship features: full circle rubber strip, rounded corners, hidden anti backflow drainage, isotherm structure
