Galaxy Series 108 Casement Windows:
Double-bridge six-cavity structure, balanced equal-cavity stable structure design, enhances the strength of important stress-bearing parts
Refrigerator-grade filling foaming agent, sound insulation and heat insulation
Imported anti-leakage end face glue is used for the corner assembly, and the imported two-component corner assembly glue is injected into the mechanical corner assembly, which makes the angle connection more stable and fearless of bad weather; three seals, multiple protections
Separately controlled glass sash and gauze sash double inner opening structure, detachable, more convenient for cleaning and maintenance
Hidden drainage process uses special diversion pipe and diversion fixings
Drip line and independent drainage channel effectively solve rainwater backflow
The whole frame bevel pressing line process has a more three-dimensional sense and visual impact
The whole window frame sash is narrower and thinner, with simple and clear lines, and extremely fashionable and beautiful
The wall thickness is 1.8mm, and the hollow is equipped with 5mm+27A+5mm, which can be installed with electric blinds, sound insulation, noise reduction, and energy saving

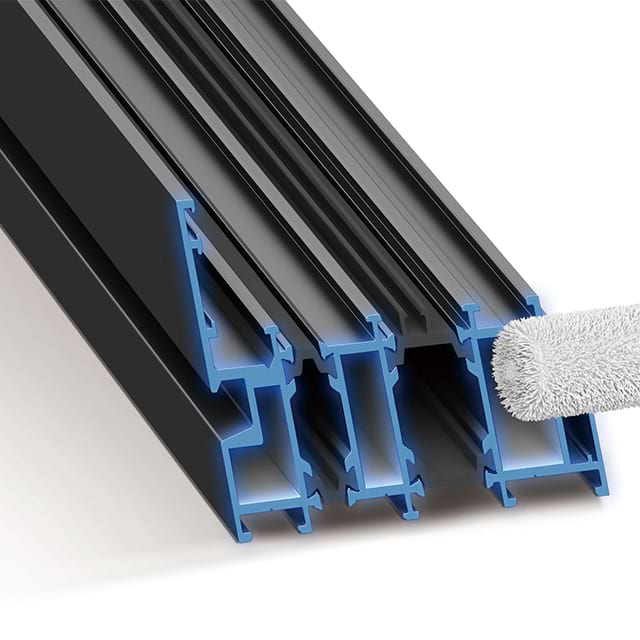

The unique double-broken bridge six-cavity structure of the system window and the balanced equal-cavity stable structure design can not only enhance the strength requirements of important stress-bearing parts, but also fill the cavity with refrigerator-grade insulation foam materials according to needs to further isolate temperature conduction.

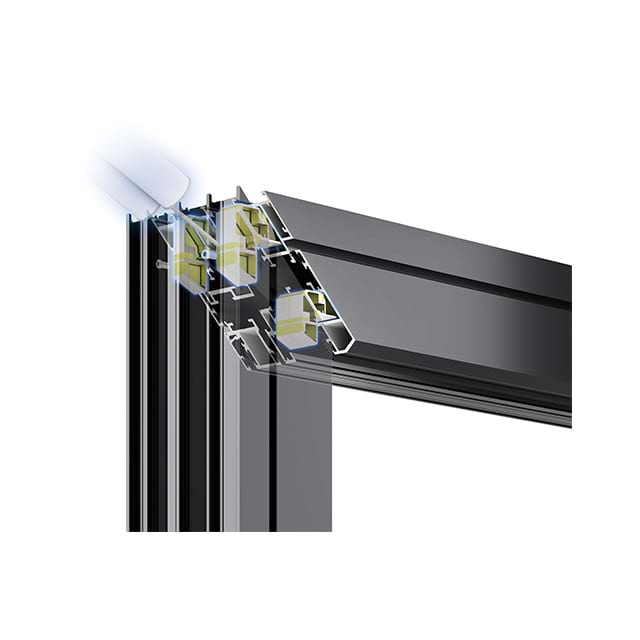

According to the European standard processing technology, the corner assembly adopts imported anti-leakage end face glue, and the mechanical corner assembly is injected with imported two-component corner assembly glue, which makes the angle connection more stable and fearless of bad weather. Three seals, multiple protections. The sub-controlled glass fan structure design, while the window screen is removable, is convenient for cleaning and maintenance of the window screen.

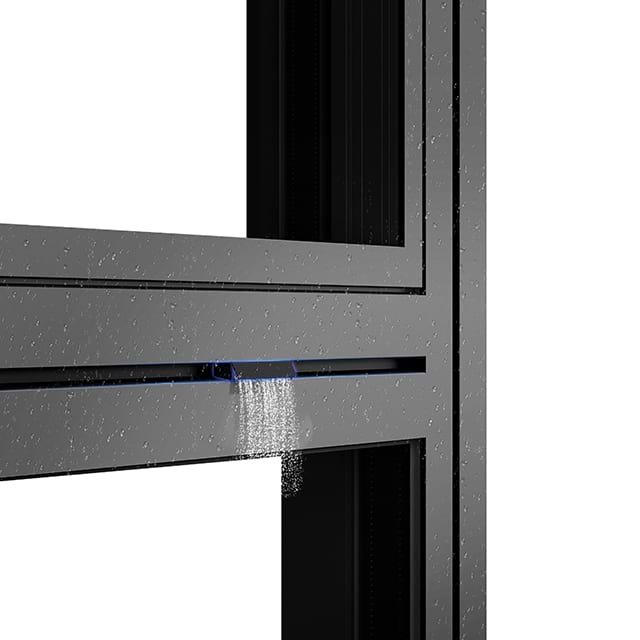

The upgraded internal drainage design, the hidden drainage process uses a special guide pipe and guide fixings. The drip line design and the independent drainage channel form a complete isobaric drainage structure, which effectively solves the problem of rainwater backflow and discharges it outdoors smoothly.

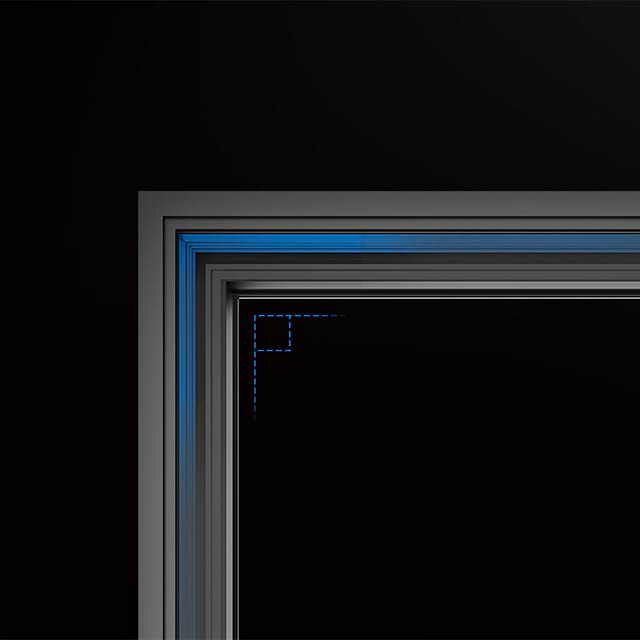

The latest industry-leading whole frame bevel pressing line technology is adopted. Compared with the traditional relatively flat pressing line, the bevel pressing line has a more three-dimensional sense and visual impact. The bevel treatment makes the whole window frame and sash look narrower and thinner, with simple and bright lines and great beauty. The wall thickness is 1.8mm and the hollow is equipped with 5mm+27A+5mm, which can be installed with electric blinds. The top-level hollow space is like an insurmountable natural moat, which brings the sound insulation, noise reduction, energy saving and other performances to the extreme.
| OEM Services | ||||
| Disposition | Standard Collocation Item | Additional Name | Addition Term | |
| Screen Window | No | Add Upgrade | High penetration network: brand/aperture/color | |
| Hardware | Hardware brand: Domestic/imported Grip: HOPPE grip / Screen handle: Transmission system: two point lock | Increase Equipment And Upgrade | Holding without base: Four-point lock: (Recommended for coastal areas, floors above 30 floors, fan superb 1800mm option) | |
| Opening Size And Maximum Load Bearing Capacity | Noto: Fan width: 370-1300mm Fan width: 530-2700mm Maximum load: 80kg Maximum opening Angle: 100 degrees /180 degrees | Silkia: Fan width: 500-1000mm Fan width: 550-2400mm Maximum load: 80kg Maximum opening Angle: 100 degrees /180 degrees | ||
| Glass | Frame: Glass groove width: Fan: Glass groove width: Standard plate width: Aluminum strip color: | Add Upgrade | ||
| Surface Treatment | Surface treatment: fluorocarbon three coating Powder brand: Domestic/imported Monochrome/regular color | Increase Equipment And Upgrade | Two colors/custom colors | |
| Adhesive Strip | Brand: Domestic/imported | Add Upgrade | ||
| Wire Compression | Add Upgrade | Press cables throughout the frame | ||
| Process Configuration | Fan: whole welded, not filled Frame: whole welded, fillable | |||
| Process Characteristics | The whole circle rubber strip, the whole cavity filling, rounded corners, floor drain type reverse drainage, isotherm structure | |||
Technical Specifications
Product parameters: Glass fan with inward opening and inward tilting+inward opening Mesh
| Indoor frame visible surface | 26.5mm |
| Outdoor frame visible surface | 63mm |
| Indoor fan visible surface | 63.5mm |
| Outdoor fan visible surface | 27mm |
| Indoor total visible surface | 90mm |
| The total thickness of the profile frame | 108mm |
| High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 1.8mm | |
| Insulation strip width | 25.3mm |
Product Standard Configuration（Applications included）
Mesh
0.3 black diamond mesh optional
high transparency mesh: brand/aperture/color, AMJ woven mesh 28 mesh
Hardware
Hardware brand: Roto
Handle: Hopo Handle/Roto
Window screen handle: customized
Transmission system: two-point lock
Upgrade Options:
Hands without base: Roto, Siegenia
3-point lock: Fan height 1300mm (recommended for coastal areas, floors above 30th floor, and fan height 1300mm optional)
Hardware
Hardware brand: Roto
Handle: Hopo Handle/Roto
Window screen handle: customized
Transmission system: two-point lock
Upgrade Options:
Hands without base: Roto, Siegenia
3-point lock: Fan height 1300mm (recommended for coastal areas, floors above 30th floor, and fan height 1300mm optional)
Open size and maximum load-bearing capacity
Roto
Fan width: 370-1300mm
Fan Height: 530-2700mm
Maximum load capacity: 80kg
Maximum opening angle: 100 degrees/180 degrees
Siegenia
Fan width: 500-1000mm
Fan Height: 550-2400mm
Maximum load capacity: 80kg
Maximum opening angle: 100 degrees/180 degrees
Glass
Frame: Glass channel width: 46.6
Fan: Glass channel width: 40
Standard version width: 40
Aluminum spacer color: Silver aluminum spacer
Fixed glass: 5mm+27A+5mm
Fan glass: 5mm+27A+5mm
upgraded aluminum spacer color: black aluminum spacer
Surface treatment
Surface treatment method: fluorocarbon triple coating
Powder brand: Chinese Brand/Imported Monochrome/Regular Color
Upgraded Option: Double Color/Customized Color
Rubber strip brand: Chinese Brand/importedWingkay
Upgrade Options: to Haida
Line pressing, whole frame, line pressing
Process configuration
Craftsmanship features: full circle rubber strip, rounded corners, hidden anti backflow drainage, isotherm structure
Features
Sunshine has been constantly innovating its product design, with fashionable and simple lines, flush frame and sash, 16° tilted surface, and frame and sash details. The R&D team has a spirit of craftsmanship and pursues every detail to the extreme; the whole window can be configured and upgraded according to the requirements of different users to meet the different needs of different users, giving users more choices and fully reflecting the pursuit of perfection.
Appearance: Redefine perfection, a new visual experience
Simplicity, design, texture, visual effects, quality... Through deep exploration of consumers' definitions and requirements for truly perfect products, and after continuous research and feedback, Yimi Sunshine has made another new innovation in product pursuit. The new appearance design has fashionable and simple lines, plus the design of flush frame and sash, 16° inclined surface, and frame and sash details. The R&D team has a spirit of craftsmanship and pursues every detail to the extreme; the entire window can be configured and upgraded according to the requirements of different users to meet the needs of different users, which fully reflects Yimi Sunshine's pursuit of perfection in the 108 series windows.
Design: Top pedigree, ultimate peak

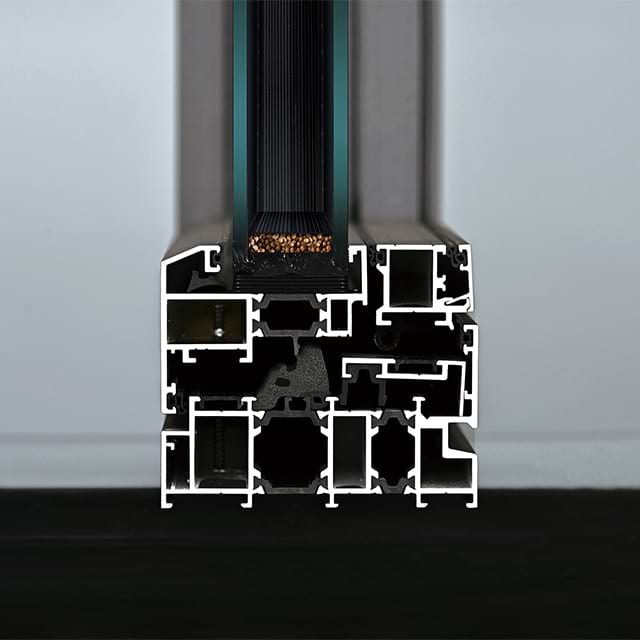

Double-broken bridge five-cavity design; 108 system windows perfectly inherit the highly acclaimed double-broken bridge 5-cavity pedigree, and the balanced equal-cavity stable structure design can not only enhance the strength requirements of important stress-bearing parts, but also fill the cavity with refrigerator-grade thermal insulation foam materials according to needs to further isolate temperature conduction.
According to the European standard processing technology, the corner assembly adopts German Guardian anti-leakage end face glue, and the mechanical corner assembly is injected with German Guardian two-component corner assembly glue, which makes the angle connection more stable and fearless of bad weather;
Three-way sealing, multiple protection; sub-controlled glass fan structure design, and the window screen is removable, which is convenient for cleaning and maintenance of the window screen;
Upgraded internal drainage design, hidden drainage technology uses special guide pipes and guide fixings. The drip line design and independent drainage channel form a complete isobaric drainage structure, which can effectively prevent backwind, waterproof, solve rainwater backflow, and discharge it outdoors smoothly;
Innovation: Brand-new design, sensory impact
Adopting the latest whole frame angle pressing technology in the industry, no need to apply glue on site, the construction is safe, simple and beautiful. Compared with the relatively flat pressing line of the traditional, the angle pressing line has a more three-dimensional sense and visual impact. The treatment of the bevel makes the whole window frame and sash look narrower and thinner, with simple and bright lines and great beauty.
Equipped with 5mm+27A+5mm hollow glass, the top-level middle space is like an insurmountable natural moat, which interprets the sound insulation, noise reduction, energy saving and other performances to the extreme.
Adopting the latest overall bending technology of the rubber strip in the industry, the rubber strip is more integrated. In addition, the sealing guide is overlapped with the window body, which can further improve the air tightness, water tightness and other sealing performance of the whole window while being more beautiful.
Details: Keep improving, meticulously crafted
16° frame tilt angle, in line with human visual aesthetics, not easy to accumulate dust, easy to clean.
New center support connection, using machine top screw with self-expansion connector technology, fully enclosed, stable center support connection, strong load-bearing capacity
27A top hollow configuration, extreme sound insulation, "quiet" comfort.
Use Japan imported Aimeijie high-transparency net, 48 mesh with very small spacing, high light transmittance, mosquito-proof, net surface load-bearing up to 150 catties.
