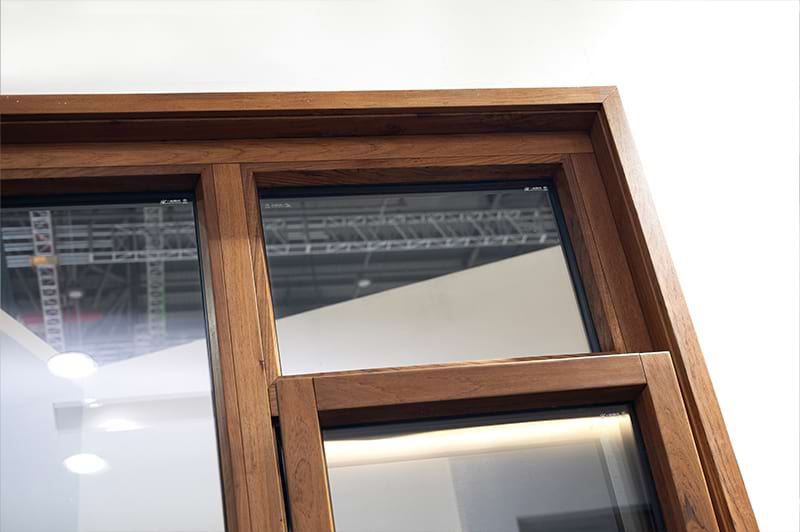

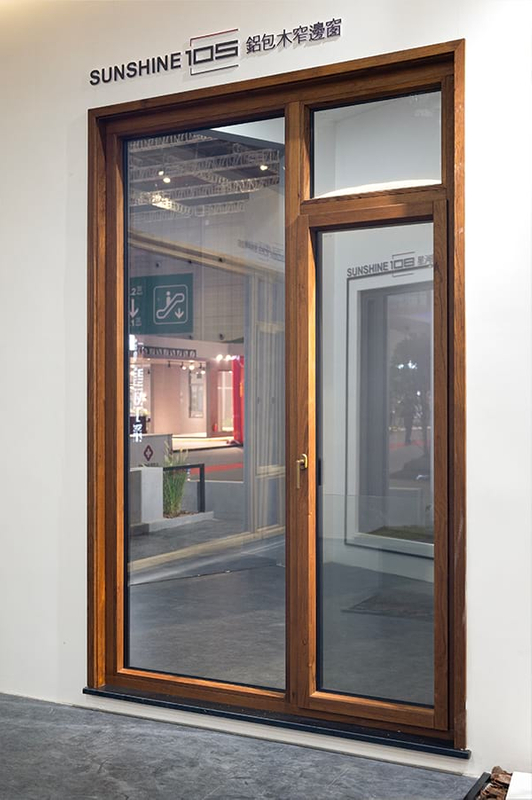

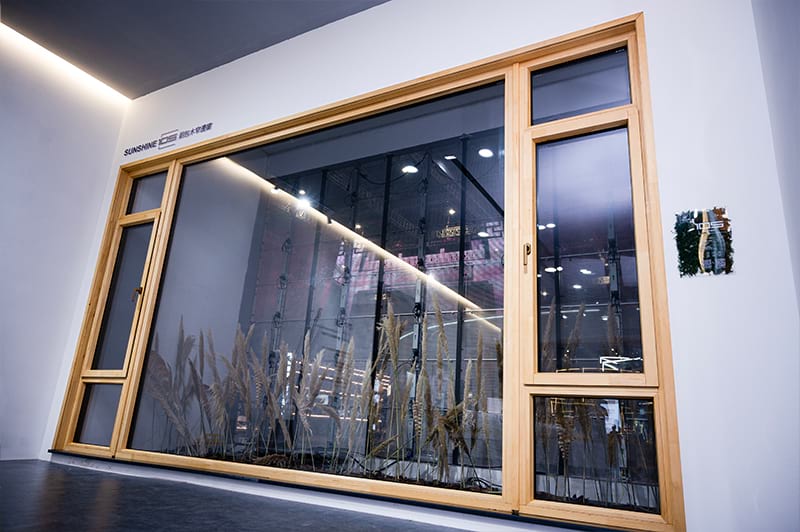

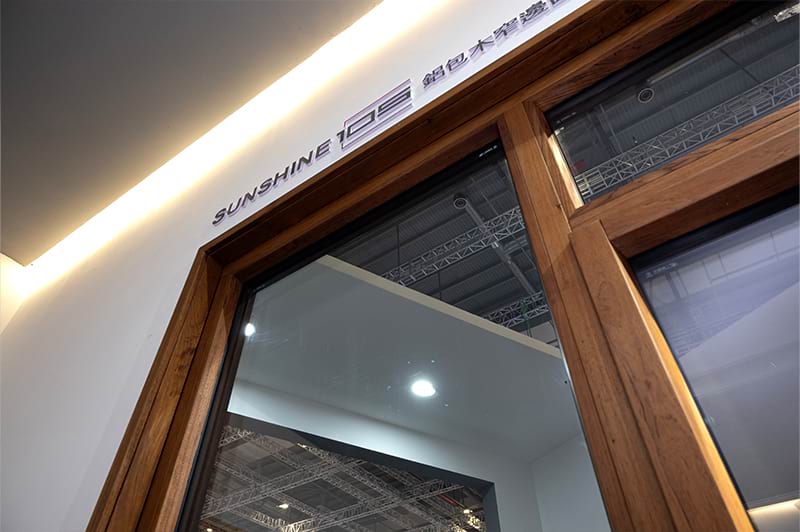

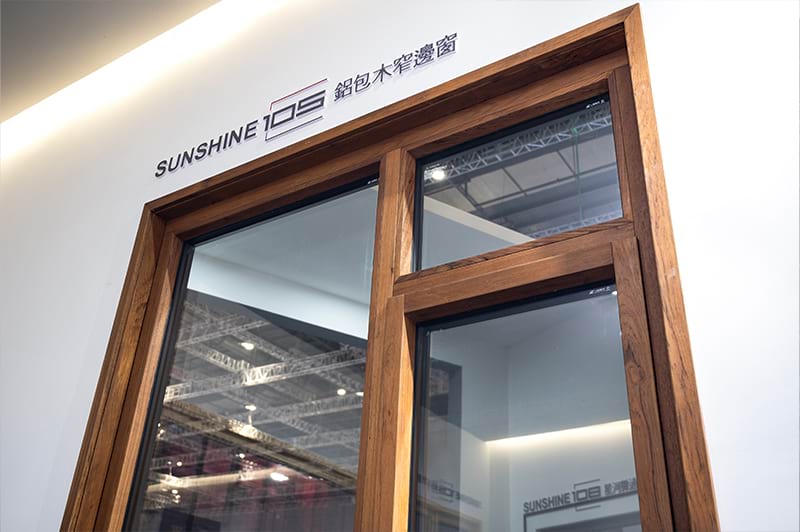

Aluminum Clad Wood 105 Inwards Casement Tilt and Turn Window
Experience the pinnacle of architectural fenestration with our premium aluminum-clad wood window. By pairing the undeniable warmth of natural timber with the unyielding resilience of aluminum cladding, this system delivers a dual-sensory experience—timeless elegance on the inside, uncompromising weather protection on the outside.
We source only the finest Australian redwood, hand-selected for its exceptional structural integrity. This material is renowned for its minimal knots, uniform base color, and high density. It offers outstanding hardness, strength, and earthquake resistance, ensuring your windows remain stable and warp-free for decades.
To safeguard this natural beauty, the wood is treated with a high-hardness wood wax oil extracted from pure Australian plant essences. This eco-friendly finish is non-toxic, odorless, and provides a 5-in-1 protective shield: insect-proof, anti-corrosion, waterproof, anti-discoloration, and crack-resistant.
Fully Automatic Seamless Splicing: We utilize advanced one-time molding welding technology. This eliminates structural gaps in the aluminum frame, drastically improving both water tightness and wind resistance.
Fortress-Level Security: The built-in multi-locking mechanism can accommodate up to 20 anti-theft locking points. The advanced rolling design and adaptive function guarantee maximum security without sacrificing the buttery-smooth feel of operation.
Engineered for flawless daily use, the window features premium European components:
Hinge/Glass Sash: Maco accessories with a Haobo handle.
Shutter Sash: Weihagen concealed handle with Runas sliding support.
Dual Operation Modes:
Choose between standard Inward Opening or Inward Tilting for optimal ventilation.
Inward Opening Size: Width 500–800mm / Height 600–1650mm
Inward Tilt Size: Width 500–1200mm / Height 500–2400mm
| Component | Specification |
|---|---|
| Frame Material | Solid Wood (Width: 62mm / Height: 81mm) |
| Sash Material | Solid Wood (Thickness: 78mm / Height: 81mm) |
| Standard Glazing | 5mm + 20A + 5mm Insulated Glass |
| Hardware System | Maco (Glass Sash) / Weihagen & Runas (Shutter Sash) |
| Security Design | Up to 20 Multi-point Locking System |
| Wood Treatment | Australian Plant Essence Wood Wax Oil |
Available Colors: White, White Oak, White Gold, Black Gold, Red Sandalwood, Teak, Amber.
✅ Authentic Australian Redwood – High density, minimal knots, exceptional stability.
✅ Eco-Friendly 5-in-1 Protection – Non-toxic wax oil resists water, insects, and cracking.
✅ Seamless Welded Frame – One-time molding for superior sealing and wind resistance.
✅ 20-Point Security – Advanced multi-locking points for ultimate peace of mind.
✅ European Hardware – Maco, Weihagen, and Runas for a premium user experience.
Luxury Villas: Elevates the aesthetic of high-end residential facades.
Bedrooms & Studies: Exceptional sound insulation and thermal comfort for quiet spaces.
Coastal Residences: Corrosion-resistant aluminum cladding and waterproof wood treatment withstand harsh weather.
Smart Homes: Compatible with modern interior designs while offering high-level anti-theft security.
