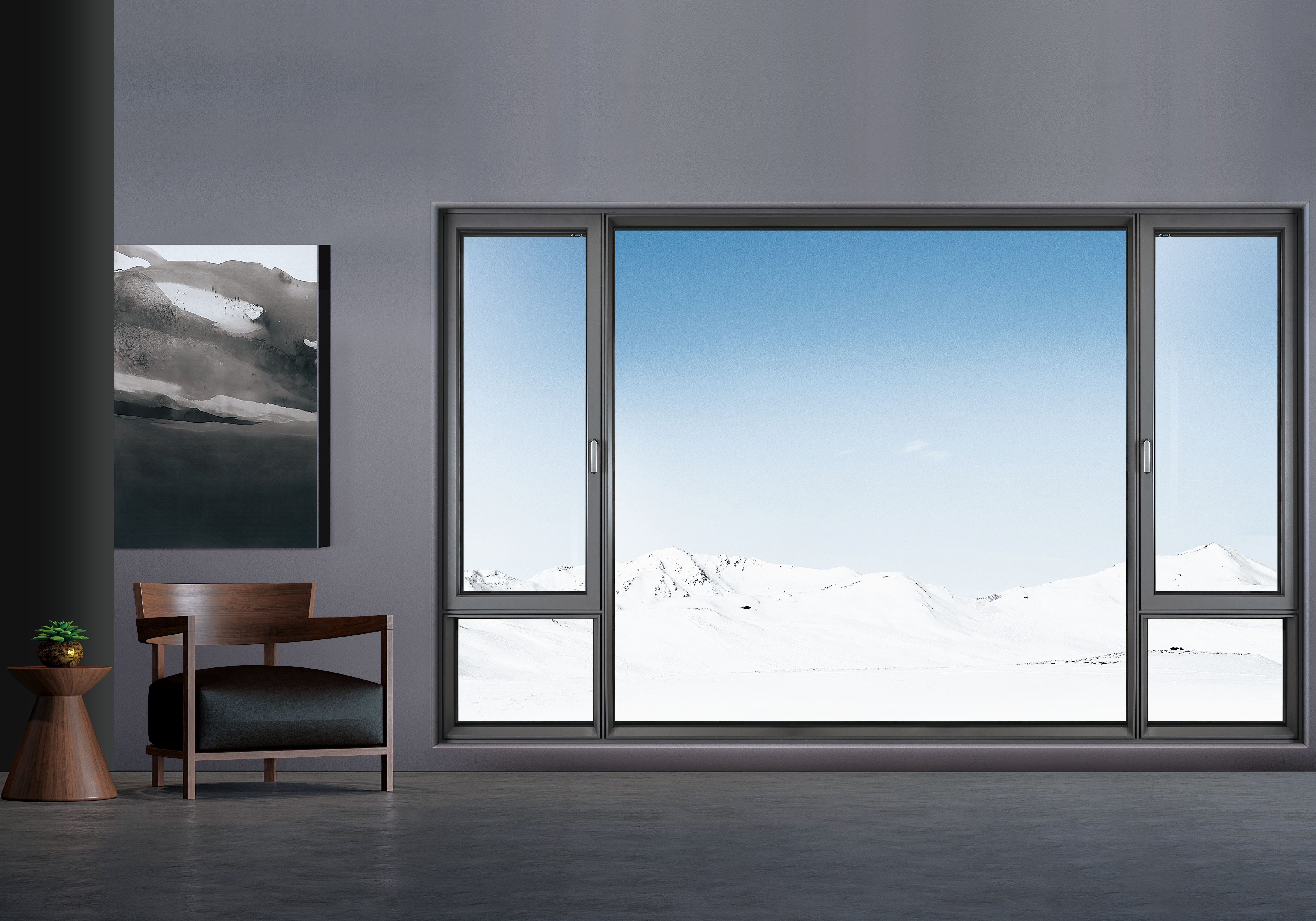

Galaxy 108 Inwards Casement Tilt and Turn Window

A great window should not interrupt the view; it should elevate it. The Galaxy 108 is defined by its Ultra-Narrow structural design. With a total indoor visible surface of just 90mm and an outdoor frame of only 63mm, it minimizes the visual footprint of the aluminum, transforming your window into an elegant, structural picture frame that maximizes natural light and panoramic vistas.
Here is a closer look at how the Galaxy 108 balances extreme minimalism with heavyweight performance.

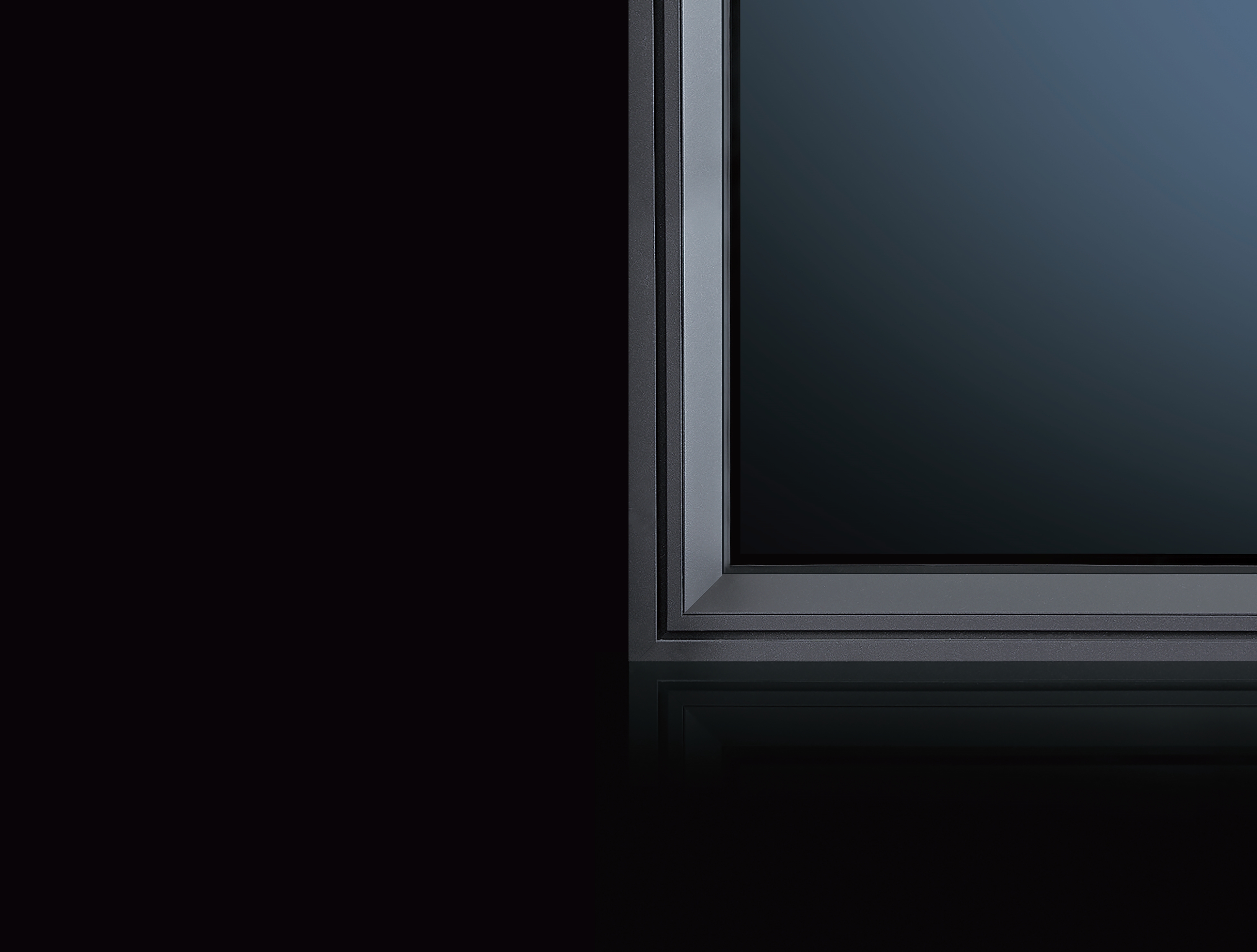

True Ultra-Narrow Profile

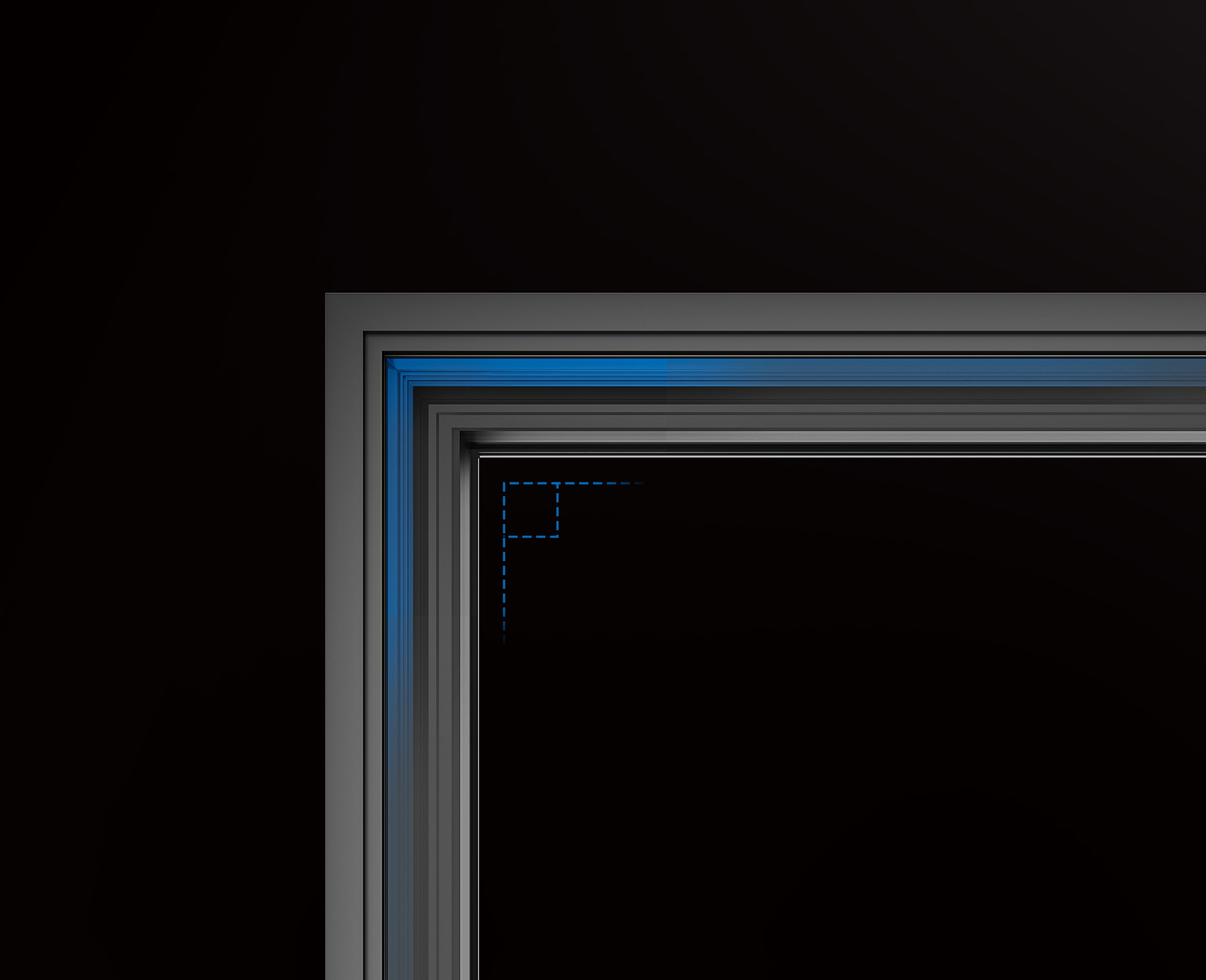

We pushed the boundaries of aluminum engineering. The indoor frame visible surface is a mere 26.5mm, and the outdoor fan is just 27mm. This means more glass, wider views, and an expansive, boundless feeling in any room.
Seamless Aesthetic Flow

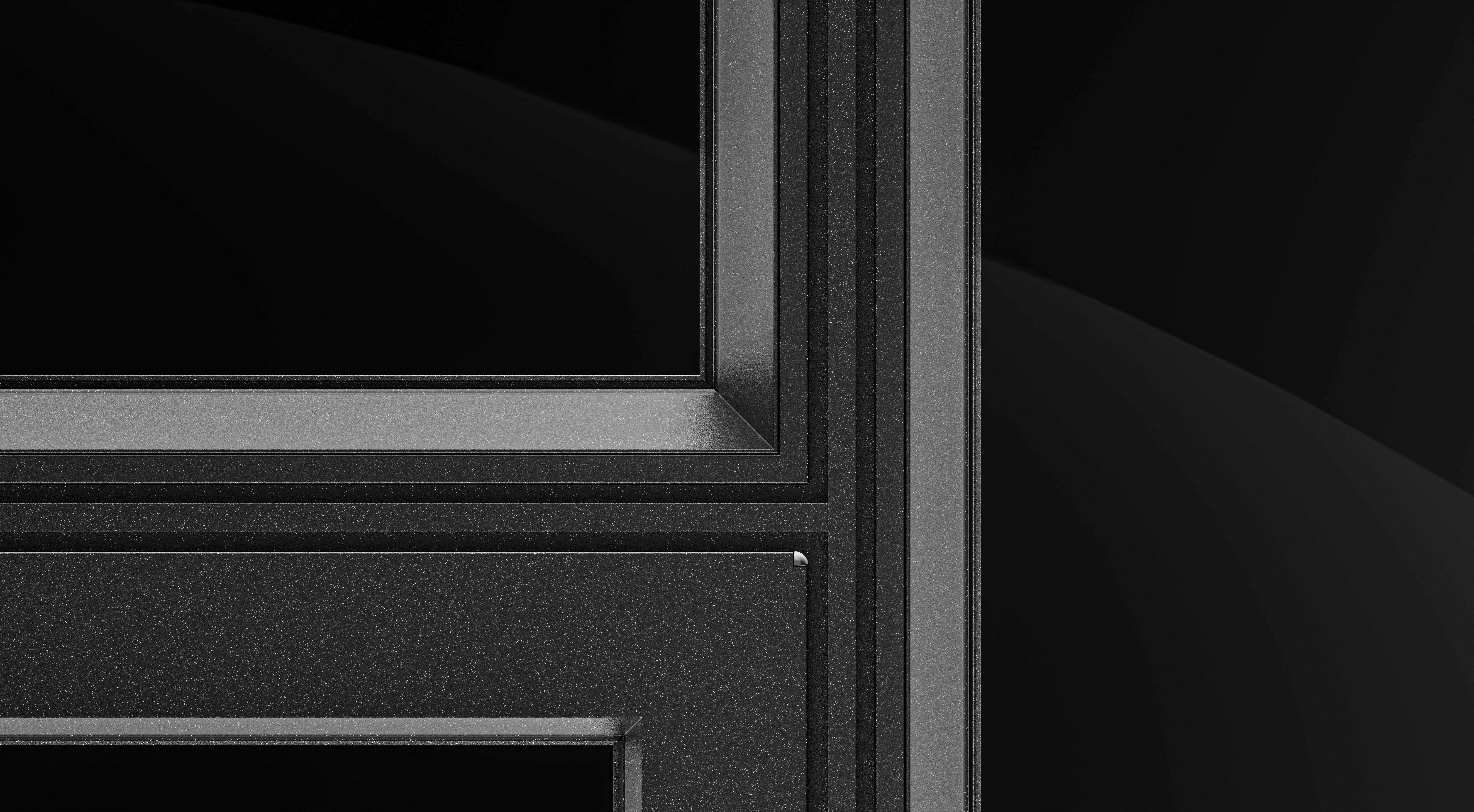

Designed for high-end facades, the system features a whole-frame line pressing design and rounded corners. Combined with the optional black aluminum spacers (replacing the standard silver), it creates a seamless, stealthy look that disappears into the architecture.
| Feature | Metric | What It Means for You |
|---|---|---|

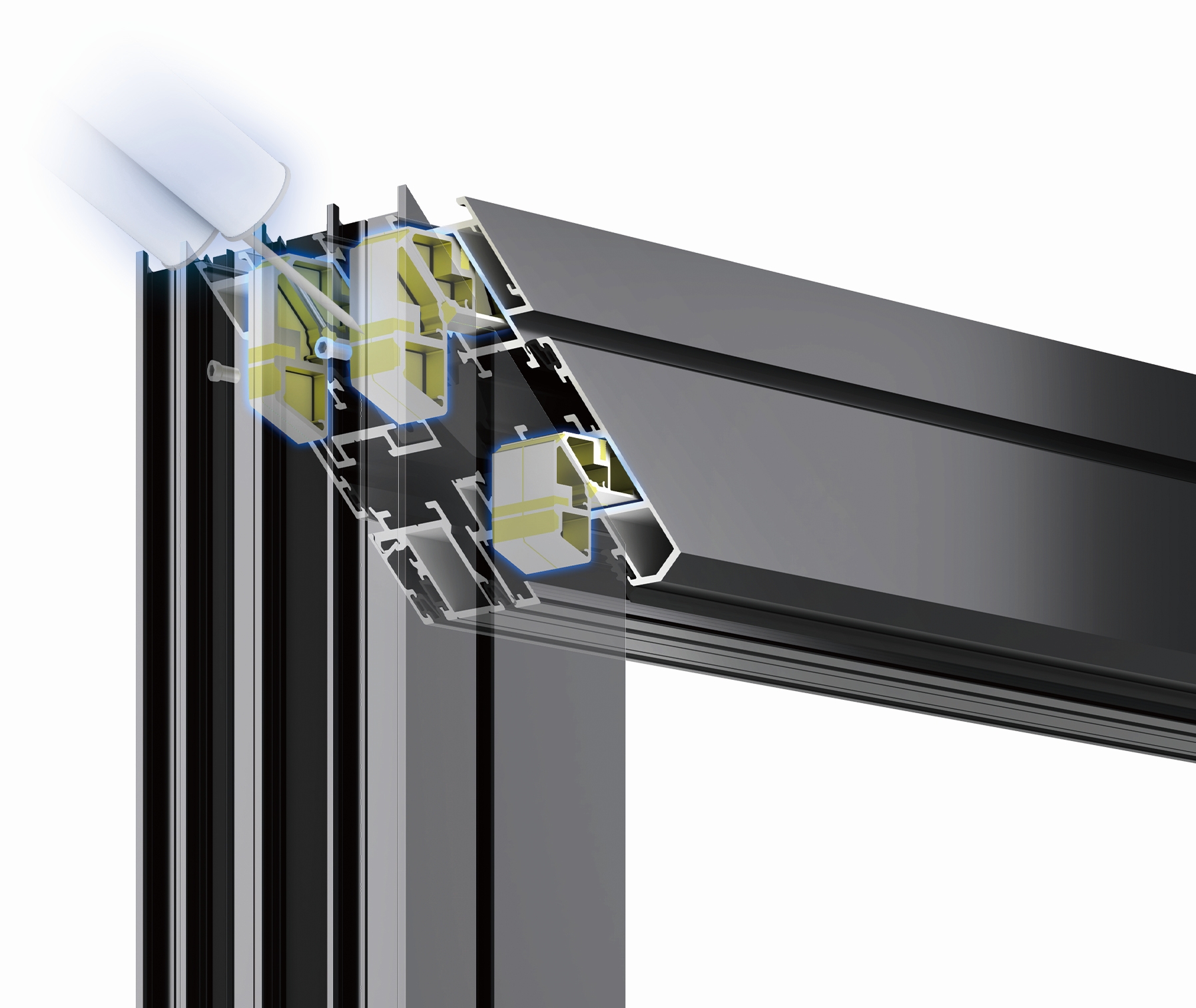

| Thermal Break | 25.3mm | The isotherm structure acts as a thermal shield, drastically reducing heat transfer and HVAC costs. |
| Glass Capacity | 5mm + 27A + 5mm | The massive 27mm air gap (far wider than the standard 12mm or 20mm) delivers outstanding acoustic and thermal insulation. |
| Load Capacity | 80kg | The hardware easily handles large, heavy glass panels without sagging. |
| Max Sash Size | Roto: 1300(W) x 2700(H) mm Siegenia: 1000(W) x 2400(H) mm | Allows for breathtaking, floor-to-ceiling glass designs in modern villas. |

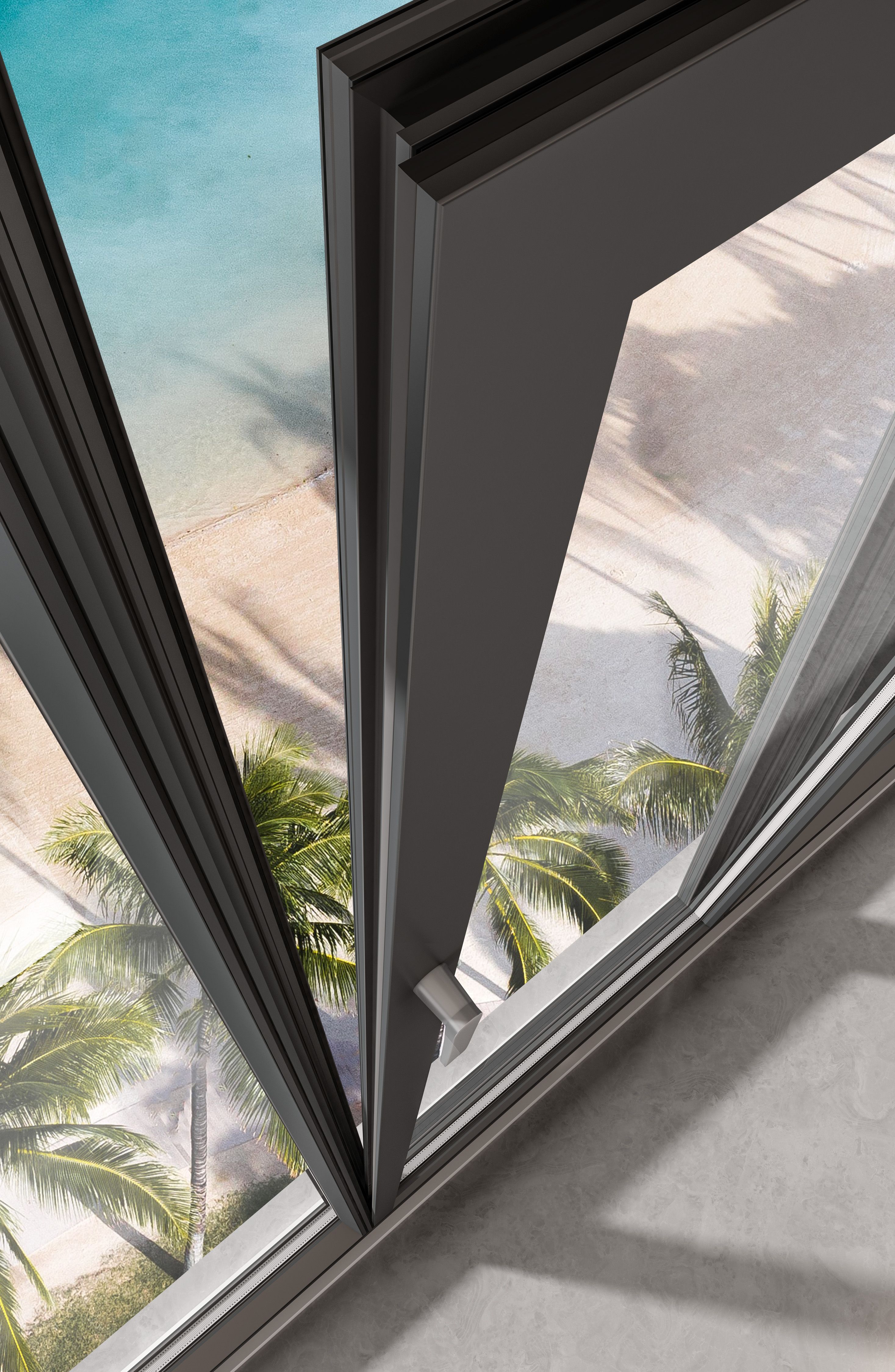

| Opening Angle | 100° / 180° | Flexible ventilation and easy access for cleaning. |
Premium European Hardware
Standard: Roto transmission with two-point locking, paired with Hopo handles.
Upgrades: For coastal areas or high-rises (floors 30+), upgrade to Siegenia base-less handles and a 3-point lock system for ultimate wind resistance and security.
The "Full Circle" Sealing System
A window is only as good as its seals. We use a full circle rubber strip (Wingkay standard, Haida upgrade) with a hidden anti-backflow drainage system. This prevents wind-driven rain from penetrating the frame while silently expelling water to the exterior.
Extreme Durability

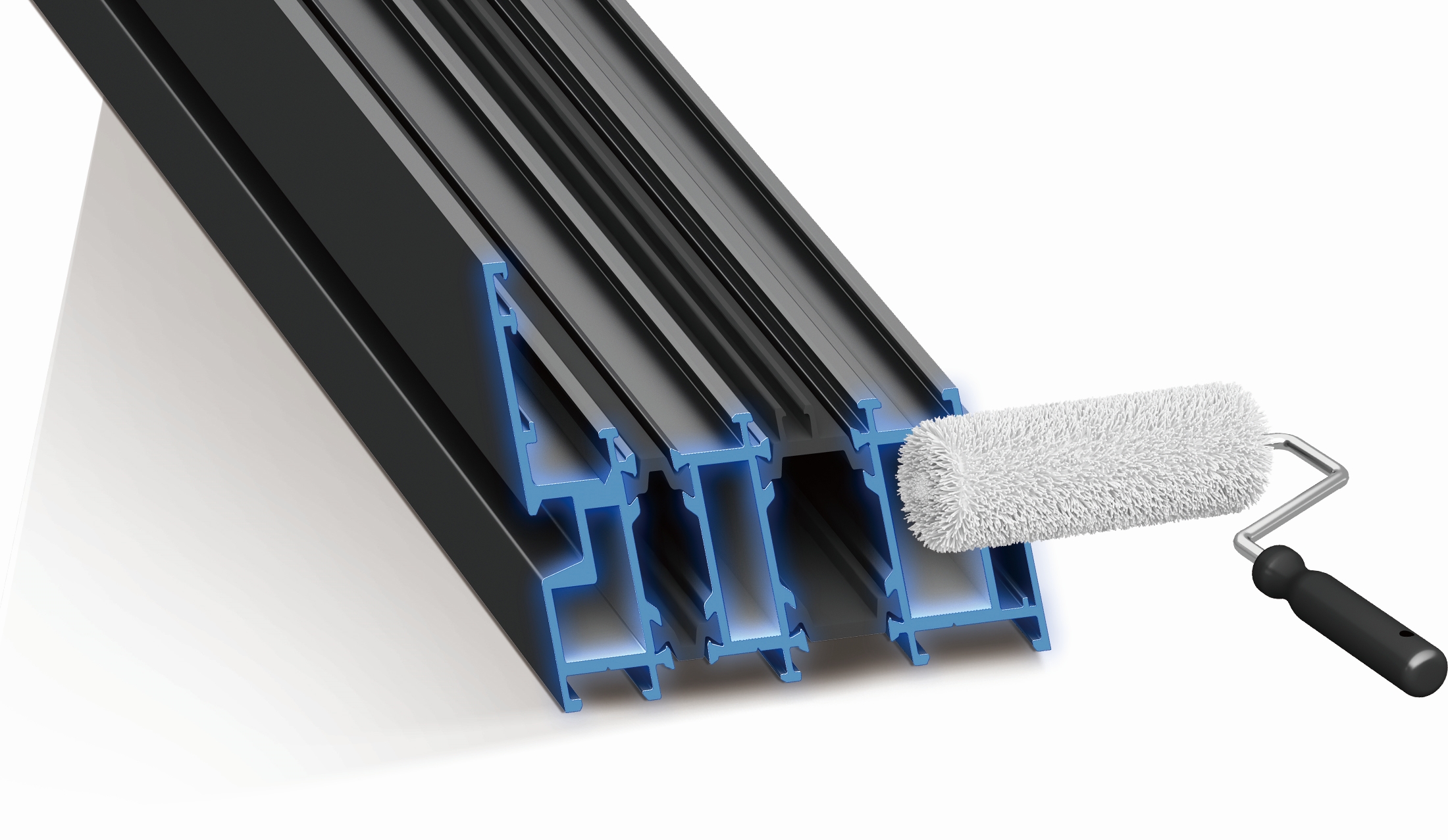

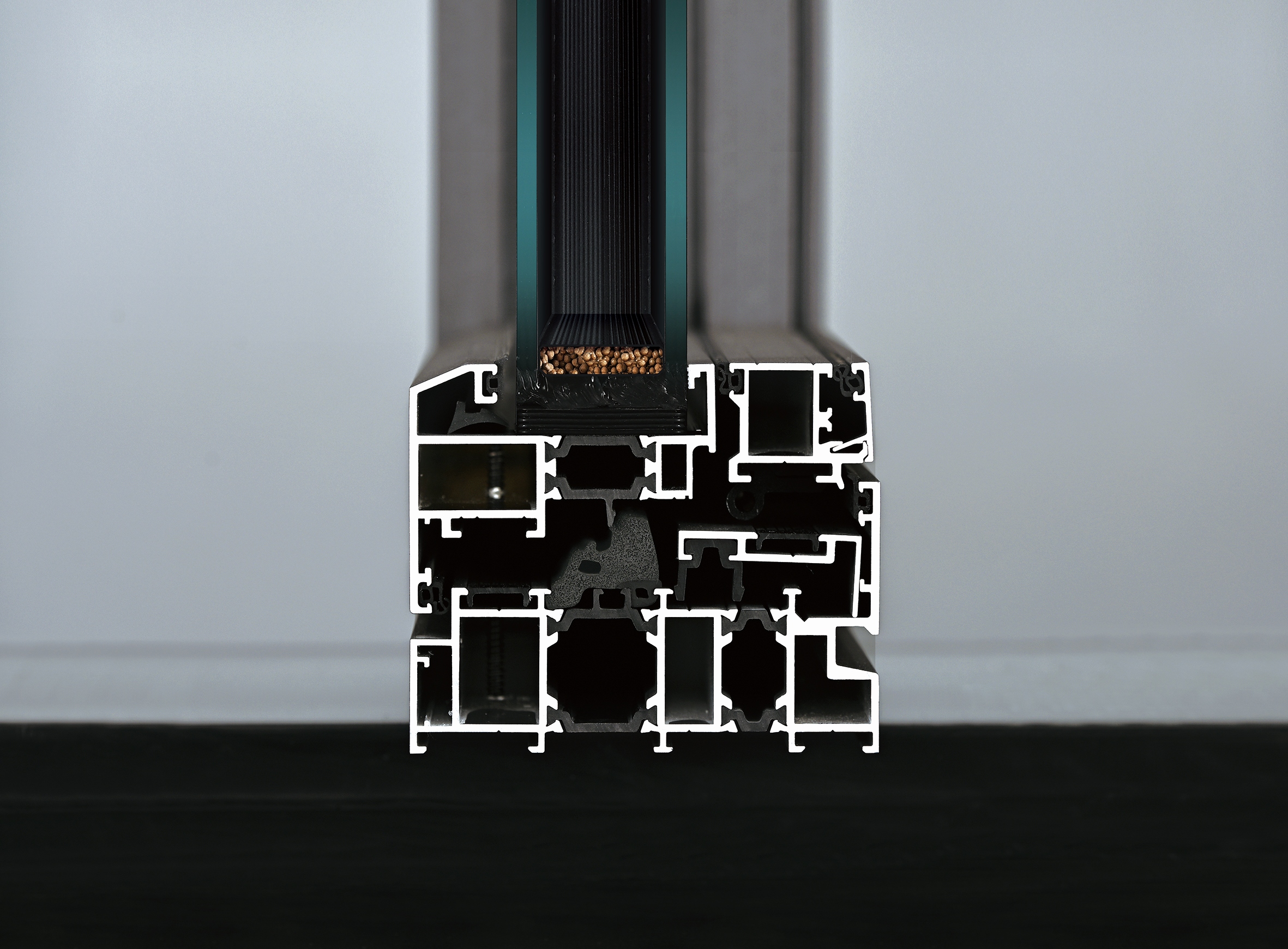

Constructed from high-precision 6063-T5 aluminum with a ≥1.8mm main wall thickness, the frame is finished with a fluorocarbon triple coating. This provides exceptional resistance against UV rays, salt spray, and severe weather, ensuring the ultra-narrow frames look pristine for decades.

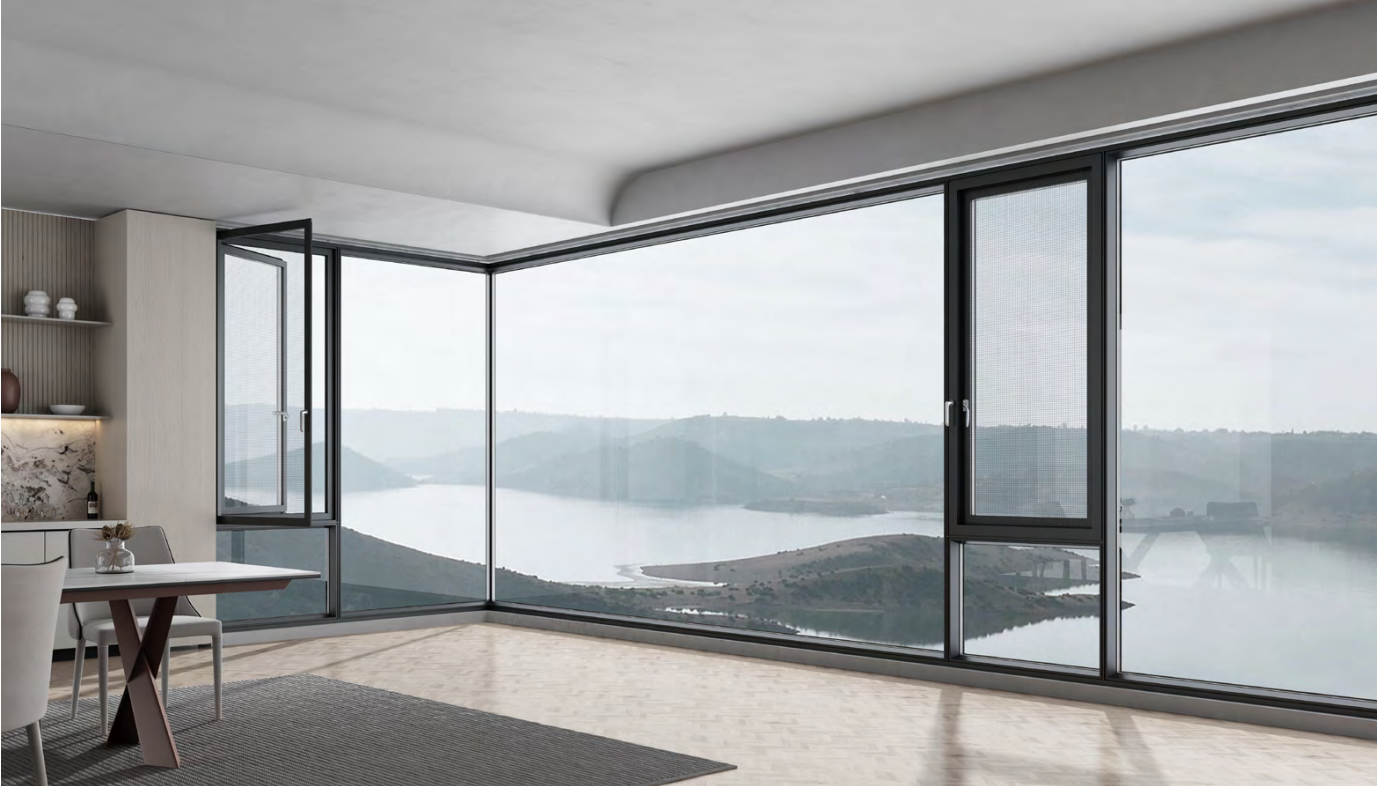

Modern Minimalist Villas: The ultra-narrow 108mm profile is perfect for large floor-to-ceiling glazing, keeping the focus on the landscape outside.
High-Rise Apartments: With Roto/Siegenia hardware and optional 3-point locks, it safely handles high wind loads while offering inward tilt for safe, draft-free ventilation.
Premium Offices & Hotels: Creates a quiet, thermally comfortable environment with a sleek, commercial-grade aesthetic.
Coastal Projects: The fluorocarbon finish, upgraded Haida seals, and optional 3-point lock defend against harsh salt and wind.
1. What makes the Galaxy 108 different from other narrow-frame windows?
The extreme visible surface (26.5mm indoor frame, 27mm outdoor fan) combined with a 27mm wide glass cavity provides an almost frameless look without sacrificing the 80kg load capacity.
2. What hardware brands are available?
Standard hardware is Roto (with Hopo handles). You can upgrade to Siegenia base-less handles and a 3-point lock system, which is highly recommended for high-rise or coastal installations.
3. How does the drainage system work with such a narrow frame?
It uses a hidden anti-backflow drainage design. Water is channeled through concealed internal paths and expelled outward, preventing leakage even in heavy storms.
4. Can I choose a different color for the aluminum spacer?
Yes. Silver is standard, but you can upgrade to black aluminum spacers to match dark frames for a highly unified, modern aesthetic.
