European Designer Designed Inwards Casement Window of Heat Insulation with T6063-T5 Aluminum Profiles

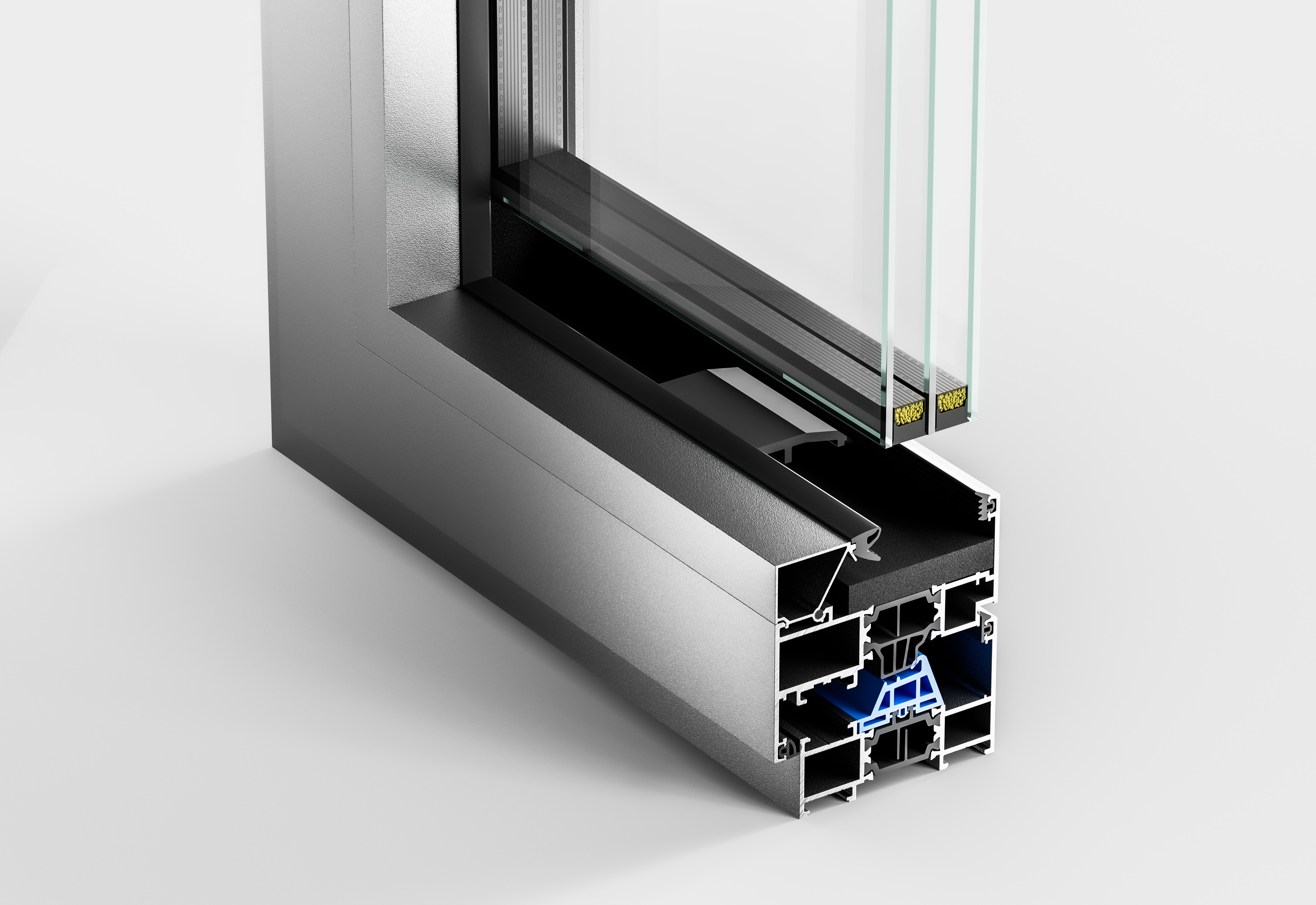

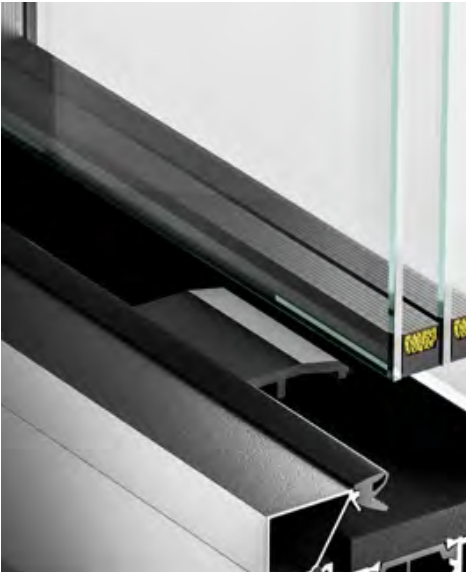

WINDOW SASH GLASS ADOPTS DEDICATED MATCHING SETTING-PLATEN

The fan glass adopts a special matching gasket to effectively reduce the deformation and angle loss of the window sash.

The fan glass adopts a special matching gasket, which can effectively avoid symmetrical installation of special matching gaskets on both sides of the glass, excessive embedding on one side, and exposed black edges on the other side; The window sash has been installed with glass, but it has deformed and fallen corners.

The dedicated matching gasket effectively avoids most installation problems.

WHOLE FRAME WELDED SEALANT STRIP

Ensure complete closed-loop sealing Multi channel closed-loop sealing, with a pressure nozzle rubber strip in the middle, using a full circle welded rubber strip to ensure a complete closed-loop seal and guarantee water tightness and air tightness. Achieve level 6 of water tightness and level 8 of air tightness for the entire window.

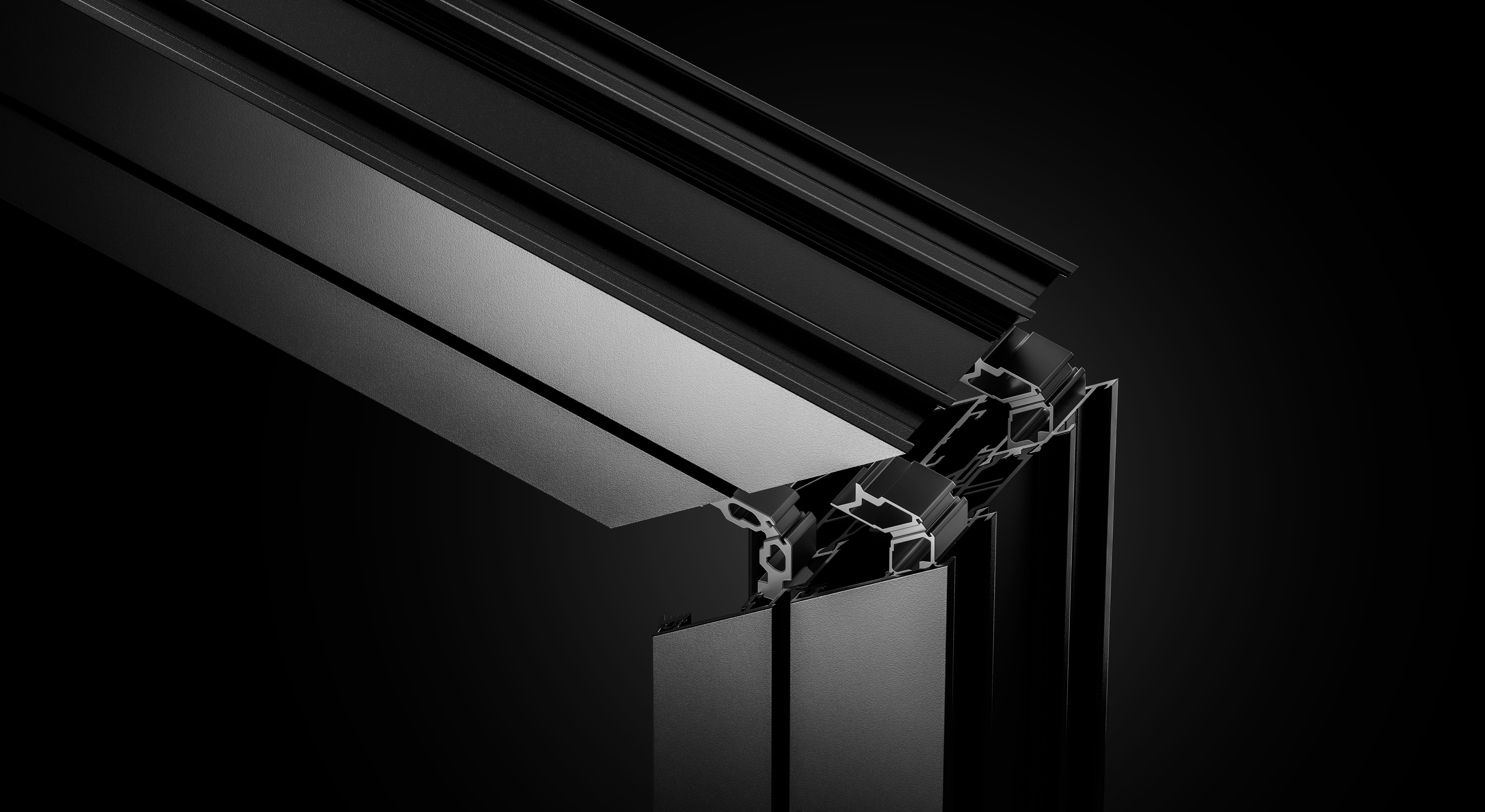

Cornor Connection-EUROPEAN STANDARD SYSTEM WINDOW TECHNOLOGY

Frame assembly

European standard system window technology

45 ° assembly, using the "screw corner code+glue injection" process, the corner code cavity adopts a rectangular closed cavity structure, with high connection strength and strong sealing.

Standard Configurations

Mesh /

Hardware

Hardware brand: Roto

Handle: Roto without base handle

Window screen handle: None

Transmission system: internal opening and internal reversing, single internal opening transmission

Upgrade Options:

No pedestal handle: Siegenia

3-point lock: Fan height 1300mm (recommended for coastal areas, floors above 30th floor, and fan height 1300mm optional)

Open size and maximum load-bearing capacity

Roto:

Fan width: 400-1000mm

Fan height: 600-2000mm

Maximum load capacity: 100kg

Maximum opening angle: 100 degrees/180 degrees, upgraded with additional equipment

Siegenia:

Fan width: 400-1000mm

Fan height: 600-2000mm

Maximum load capacity: 100kg

Maximum opening angle: 100 degrees/180 degrees

Glass

Frame: Glass channel width: 50.2

Fan: Glass channel width: 50

Standard version width: 50

Aluminum spacer color: Silver aluminum spacer

Fixed glass: 5mm+12A+5mm+12A+5mm

Fan glass: 5mm+12A+5mm+12A+5mm

Upgrade Options:

8mm+22A+8mm

10mm+20A+10mm

6mm+27A+6mm

6mm+1.4PVB+6mm+20A+8mm

Aluminum spacer color: black aluminum spacer

Surface treatment

Surface treatment methods: fluorocarbon grey, metal  grey, fluorocarbon coffee

Powder brand: Chinese Brand/Imported Monochrome/Regular Color

Upgraded Option: Double Color/Customized Color

Rubber strip brand: Chinese Brand/imported: Wingkay

Upgrade Options:

Line pressing: square line pressing

Process configuration

The craftsmanship features a classic European style structure with simple lines and stable structure; Adopting closed pressure line, high strength, not easily deformed.

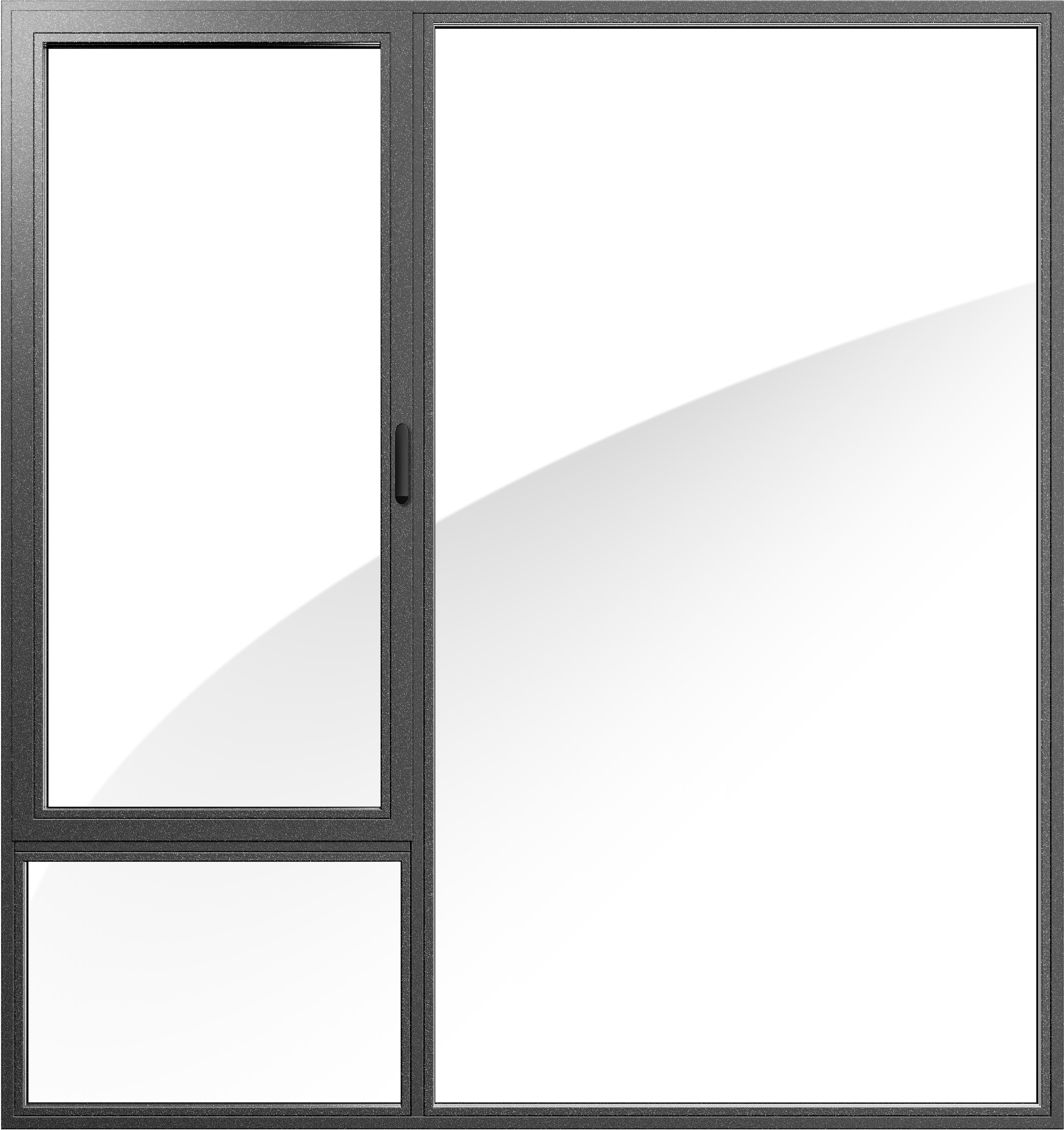

Product parameters: Glass fan with internal opening/internal opening and internal inverted window

Indoor frame visible surface 22.5mm

Outdoor frame visible surface 48mm

Indoor fan visible surface 68.4mm

Outdoor fan visible surface 42.9mm

Indoor total visible surface 90.9mm

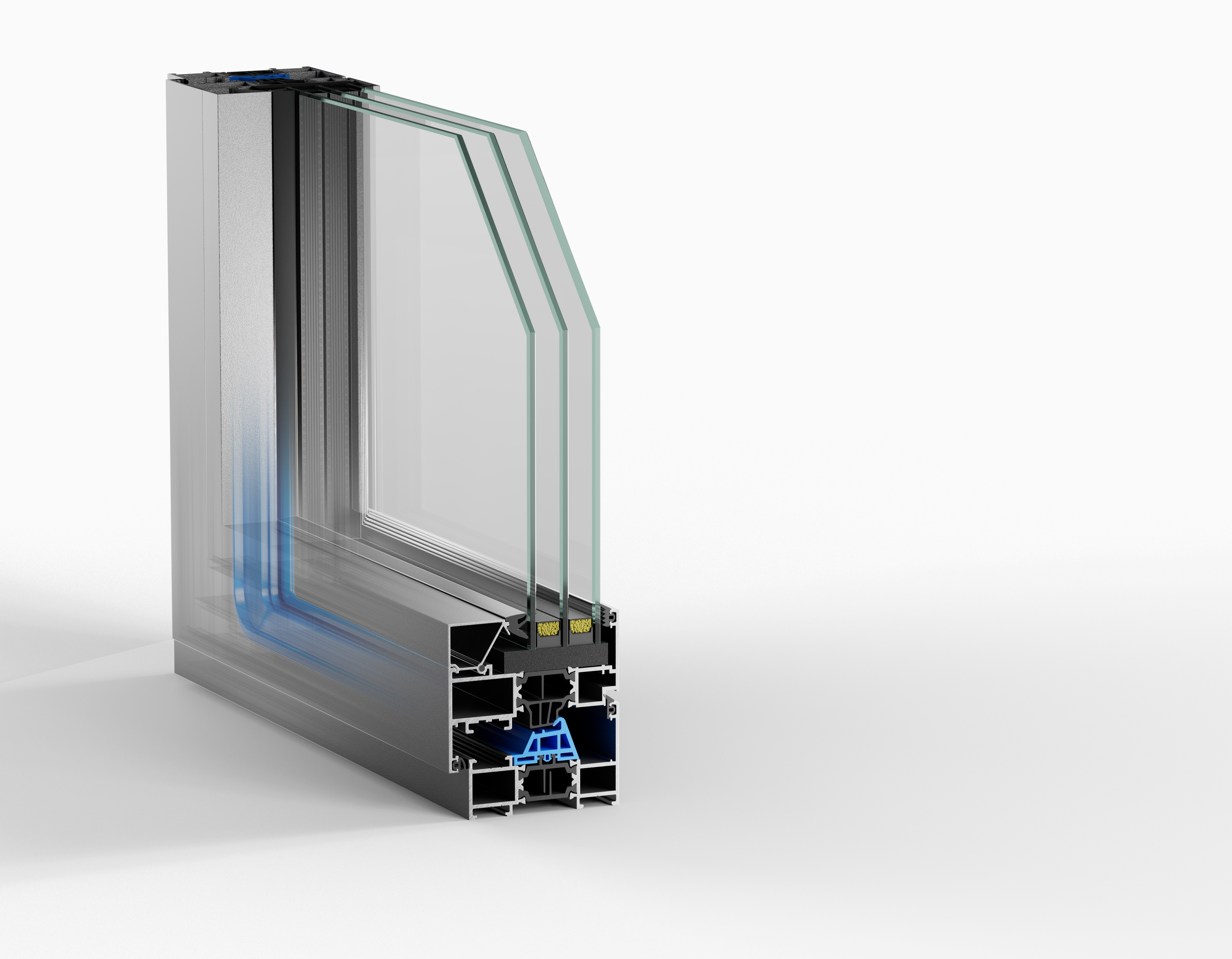

The total thickness of the profile frame is 84.8mm

High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 1.8mm

Insulation strip width 29mm

Design aesthetics: Combining modern minimalist style with classic elements, smooth lines and elegant shape.

Customization service: Provide one-to-one exclusive customization service to meet personalized needs.

Green and environmental protection: Use environmentally friendly materials to reduce environmental pollution and protect the health of your family.

Sound insulation and noise reduction: The multi-layer hollow glass design is used to effectively isolate external noise.

Insulation and heat insulation: High-quality thermal insulation aluminum profiles and multi-cavity structure improve insulation and heat insulation performance.

Safety protection: Equipped with high-strength hardware accessories and multiple anti-theft lock points to ensure home safety.

Waterproof and dust proof: The strict sealing system and drainage design prevent rainwater penetration and dust intrusion.
