| Quantity: | |
|---|---|
Perfect 40 Casement Door
| Disposition | Standard Collocation Item | Additional Name | Addition Term | |
| Screen Window | No | Add Upgrade | High penetration network: brand/aperture/color | |
| Hardware | Hardware brand: Domestic/imported Grip: HOPPE grip / Screen handle: Transmission system: two point lock | Increase Equipment And Upgrade | Holding without base: Four-point lock: (Recommended for coastal areas, floors above 30 floors, fan superb 1800mm option) | |
| Opening Size And Maximum Load Bearing Caacity | Noto: Fan width: 370-1300mm Fan width: 530-2700mm Maximum load: 80kg Maximum opening Angle: 100 degrees /180 degrees | Silkia: Fan width: 500-1000mm Fan width: 550-2400mm Maximum load: 80kg Maximum opening Angle: 100 degrees /180 degrees | ||
| Glass | Frame: Glass groove width: Fan: Glass groove width: Standard plate width: Aluminum strip color: | Add Upgrade | ||
| Surface Treatment | Surface treatment: fluorocarbon three coating Powder brand: Domestic/imported Monochrome/regular color | Increase Equipment And Upgrade | Two colors/custom colors | |
| Adhesive Strip | Brand: Domestic/imported | Add Upgrade | ||
| Wire Compression | Add Upgrade | Press cables throughout the frame | ||
| Process Configuration | Fan: whole welded, not filled Frame: whole welded, fillable | |||
| Process Characteristics | The whole circle rubber strip, the whole cavity filling, rounded corners, floor drain type reverse drainage, isotherm structure | |||
Product Parameters
Parameter | Value
Product Name: Perfect 40 Casement Door
Configuration: Single Opening / Double Opening
Indoor Frame Visible Surface: 54.5mm
Outdoor Frame Visible Surface: 17.5mm
Indoor Fan Visible Surface: 12.9mm
Outdoor Fan Visible Surface: 22.5mm
Indoor Total Visible Surface: 54.5mm
Profile Frame Total Thickness: 54mm
Material & Wall Thickness: 6063-T5 Aluminum (≥ 1.5mm)
Hardware Brand: Customized Hardware

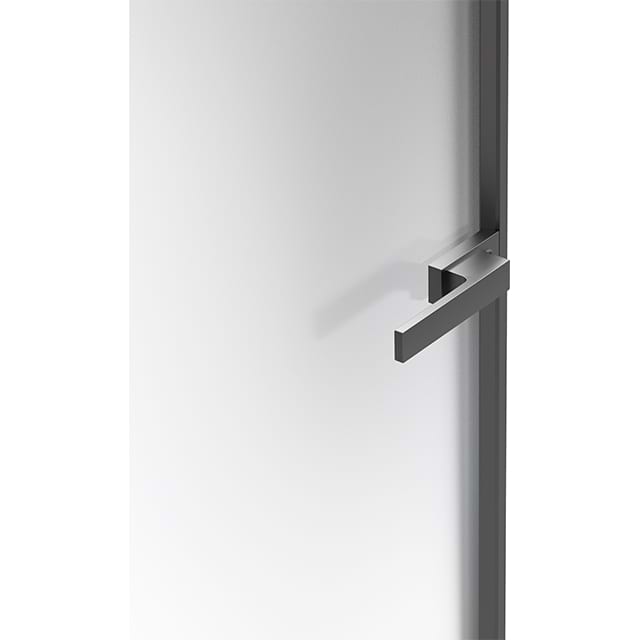

Handle: Customized
Locking System: Single Opening Standard / Dual Opening Upgrade Available
Max Fan Width: ≤ 1000mm
Max Fan Height: ≤ 2800mm
Maximum Load Capacity: 120kg
Maximum Opening Angle: 90 Degrees
Glass Channel Width (Fan): 11.5mm
Standard Glass: 8mm Tempered Glass
Surface Treatment: Matte Black, Pearl White, Fluorocarbon Pearl Blue Silver
Rubber Strip Brand: Chinese Brand / Imported (Wingkay)

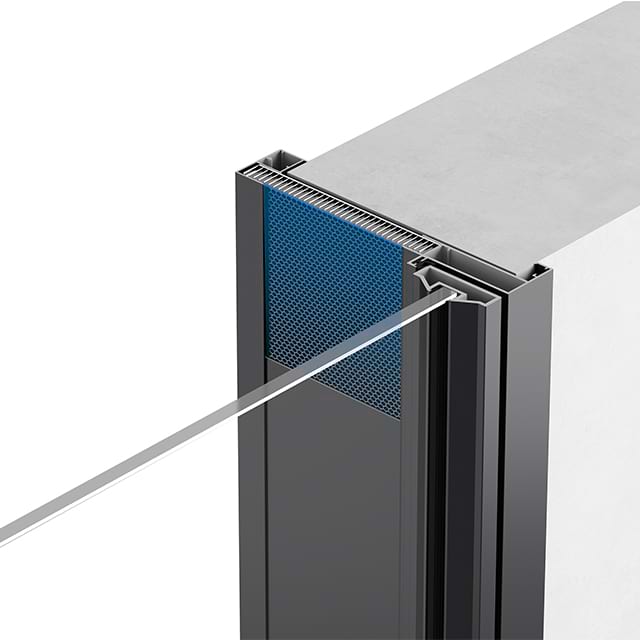

Process Features: Two-Dimensional Side Hidden Hinges, Ultra-Narrow Design, Embedded Rubber Strip, Hidden Gluing
Material: Aluminum Alloy
Engineering Solutions: 3D Model Design, Total Solution, Cross Categories Consolidation, Graphic Design
Design Style: Modern
Warranty: Over 5 Years
Certifications: FSC, CE, ISO 9001, SGS, AS2047
Product Description
The Perfect 40 Casement Door features an ultra-narrow design.
The visible surface is only 12.9mm for the indoor fan.
This maximizes the glass area.
It provides a clean and modern appearance.
The door uses high-precision 6063-T5 aluminum.
The main material wall thickness is at least 1.5mm.
The profile frame has a total thickness of 54mm.
This ensures structural stability.

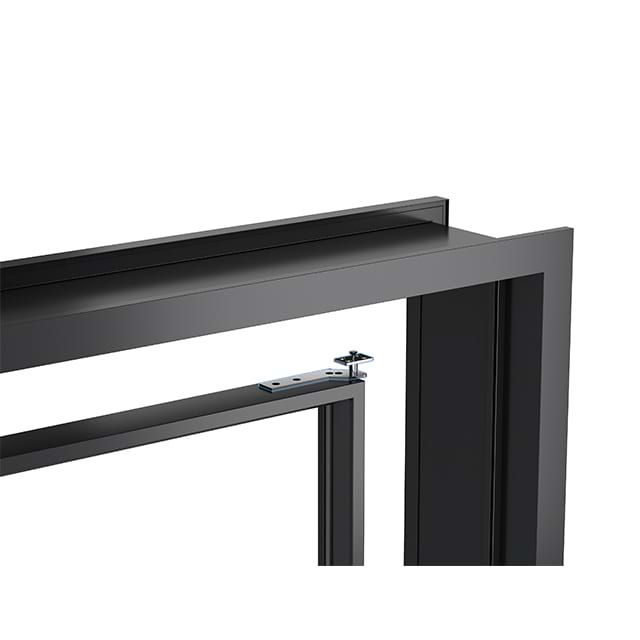

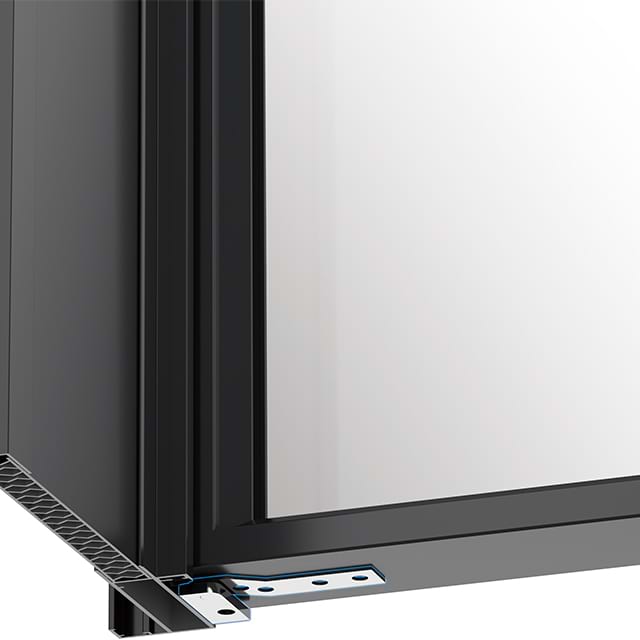

Two-dimensional side hidden hinges are used.
These hinges are concealed from view.
They create a seamless look.
The design is both beautiful and stable.
The door supports a maximum height of 2800mm.
The maximum width is 1000mm.
It has a load capacity of 120kg.
The opening angle reaches 90 degrees.
Standard glass is 8mm tempered glass.
Upgraded craft glass options are available.
The glass channel width is 11.5mm.
The surface treatment includes multiple options.
Matte black and pearl white are available.
Fluorocarbon pearl blue silver is also offered.
These finishes provide durability.
The door uses embedded rubber strips.
Hidden gluing improves the appearance.
This creates clean lines throughout.
Product Features
Ultra-Narrow Profile Design: Features a visible surface of only 12.9mm. This maximizes the glass viewing area. It creates a minimalist aesthetic.
Concealed Hinge System: Uses two-dimensional side hidden hinges. The hinges are not visible from the outside. This provides a clean and seamless appearance.
High Load Capacity: Supports door heights up to 2800mm. The maximum load capacity is 120kg. This allows for large door configurations.
Strong Aluminum Frame: Constructed from 6063-T5 aluminum. The wall thickness exceeds 1.5mm. This ensures long-term durability.
Clean Finish Details: Incorporates embedded rubber strips. Hidden gluing eliminates visible sealant lines. This maintains a smooth exterior surface.
Versatile Surface Options: Available in matte black, pearl white, and fluorocarbon pearl blue silver. Custom colors are available upon request.
Application Scenarios
Modern Residences: Ideal for villas and homes. The narrow profile complements contemporary architecture.
Commercial Interiors: Suitable for offices and hotels. It provides a clean transition between spaces.
Living Areas: Perfect for dining rooms and bedrooms. Large glass panels allow natural light to enter.
Retail Spaces: Applicable for showrooms and boutiques. The minimalist design highlights the interior.
Outdoor Connections: Designed for exterior walls. It connects indoor spaces to patios and gardens.
FAQ
1. What is the visible surface width of this door?
The visible surface of the indoor fan is only 12.9mm. The indoor total visible surface is 54.5mm.
2. What is the maximum size for this door?
The maximum fan width is 1000mm. The maximum fan height is 2800mm. The load capacity is 120kg.
3. What glass is used as standard?
Standard glass is 8mm tempered glass. Upgraded craft glass options are available.
4. Are the hinges visible from the outside?
No. The door uses two-dimensional side hidden hinges. They are concealed for a clean appearance.
5. What surface finishes are available?
Standard finishes include matte black, pearl white, and fluorocarbon pearl blue silver. Custom colors are available upon request.
6. Can this be configured as a double-opening door?
Yes. The door is available in both single-opening and double-opening configurations.
7. What certifications does this product hold?
It is certified with FSC, CE, ISO 9001, SGS, and AS2047.
8. What is the warranty period?
Sunshine provides a warranty for over 5 years.
The wooden frames of our casement doors are a symbol of timeless elegance. They are crafted from carefully selected hardwoods or softwoods, depending on your preference. The wood is treated with a special process to enhance its strength and durability, and it can be stained or painted in a variety of colors to match your decor. The uPVC frames are designed with a focus on both style and functionality. They are available in different profiles, including traditional and contemporary styles, and can be made to look like wood or other materials, giving you the flexibility to choose the perfect door for your property.
The sashes of the casement doors are designed to provide a perfect balance between aesthetics and functionality. They are available in different sizes and shapes, and can be fitted with a variety of glass options. The glass panels can be clear, frosted, tinted, or patterned, depending on your needs for privacy, light control, and visual appeal. The doors can also be designed with side panels or transom windows to create a more elaborate and unique look.
Our casement doors are not only stylish but also highly functional. They are built to last, with features that ensure long-term durability and performance. The doors are made from high-quality materials that are resistant to wear and tear, weathering, and damage. The aluminum frames are lightweight yet strong, and they are resistant to corrosion, making them suitable for both indoor and outdoor use. The wooden frames are treated to prevent rot, warping, and insect infestation, and they can withstand the test of time with proper maintenance. The uPVC frames are highly durable and require minimal maintenance, making them a popular choice for busy homeowners and commercial property owners.
In addition to their durability, our casement doors offer excellent energy efficiency. The insulated glass and the tight seal around the door frame help to reduce heat transfer, keeping your home or building warm in the winter and cool in the summer. This can lead to significant energy savings over time. The doors also provide good security, with strong locking mechanisms and reinforced frames that make them difficult to break into.
Another great feature of our casement doors is their ease of operation. The smooth hinges and handles make it easy to open and close the door, and the doors can be adjusted for a perfect fit if needed.
Casement doors have a wide range of applications in different types of properties. In residential homes, they can be used as patio doors, connecting the living room or kitchen to the outdoor patio or garden. They can also be used as French doors, creating an elegant and spacious entrance to a room. In commercial buildings, such as offices, hotels, and restaurants, casement doors can be used as entrance doors, providing a welcoming and professional appearance. They can also be used as interior doors to separate different areas or to create a more open and airy environment.
In addition, casement doors are suitable for use in both new construction and renovation projects. They can be easily integrated into existing structures, and they can enhance the value and functionality of any property.
Q: What is the difference between a single and a double casement door?
A: A single casement door has one sash that opens, while a double casement door has two sashes that can both open. Double casement doors are often used when you need a wider opening or when you want to create a more symmetrical look. They also provide more ventilation options, as you can open one or both sashes depending on your needs.
Q: Can I install a casement door in a high-rise building?
A: Yes, our casement doors are designed to meet the requirements of high-rise buildings. They are engineered to withstand strong winds and other environmental factors, and they are tested to ensure their safety and performance. However, it's important to have the door installed by a professional installer who has experience working on high-rise buildings to ensure proper installation and compliance with building codes.
Q: How do I clean and maintain the glass panels of my casement door?
A: To clean the glass panels of your casement door, use a mild glass cleaner and a soft cloth or sponge. Avoid using abrasive cleaners or tools that can scratch the glass. For stubborn stains, you can use a solution of water and vinegar. If your door has between-the-glass blinds or shades, follow the manufacturer's instructions for cleaning and maintenance.
