Galaxy 78 Double Casement Door
| Disposition | Standard Collocation Item | Additional Name | Addition Term | |
| Screen Window | No | Add Upgrade | High penetration network: brand/aperture/color | |
| Hardware | Hardware brand: Domestic/imported Grip: HOPPE grip / Screen handle: Transmission system: two point lock | Increase Equipment And Upgrade | Holding without base: Four-point lock: (Recommended for coastal areas, floors above 30 floors, fan superb 1800mm option) | |
| Opening Size And Maximum Load Bearing Capacity | Noto: Fan width: 370-1300mm Fan width: 530-2700mm Maximum load: 80kgMaximum opening Angle: 100 degrees /180 degrees | Silkia: Fan width: 500-1000mm Fan width: 550-2400mm Maximum load: 80kg Maximum opening Angle: 100 degrees /180 degrees | ||
| Glass | Frame: Glass groove width: Fan: Glass groove width: Standard plate width: Aluminum strip colo: | Add Upgrade | ||
| Surface Treatment | Surface treatment: fluorocarbon three coating Powder brand: Domestic/imported Monochrome/regular color | Increase Equipment And Upgrade | Two colors/custom colors | |
| Adhesive Strip | Brand: Doestic/imported | Add Upgrade | ||
| Wire Compression | Add Upgrade | Press cables throughout the frame | ||
| Process Configuration | Fan: whole welded, not filled Frame: whole welded, fillable | |||
| Process Characteristics | The whole circle rubber strip, the whole cavity filling, rounded corners, floor drain type reverse drainage, isotherm structure | |||
Parameter Value

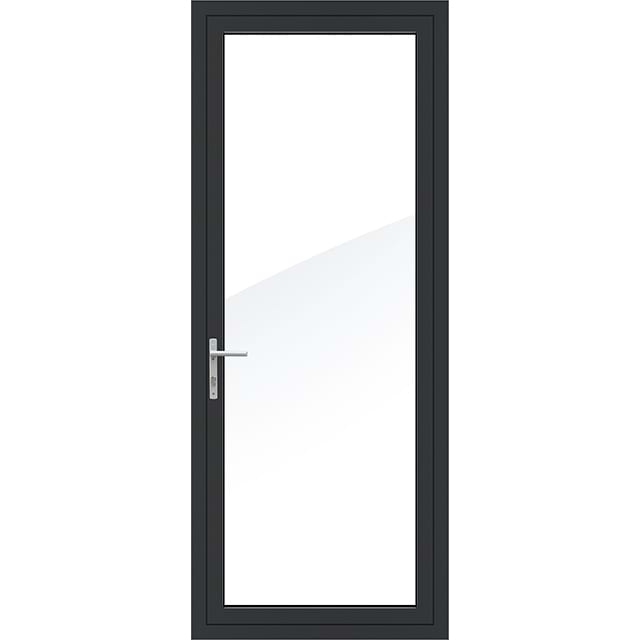

Product Name: Galaxy 78 Inwards Casement Door
Indoor Frame Visible Surface: 33.1mm
Outdoor Frame Visible Surface: 61.2mm
Indoor Fan Visible Surface: 98mm
Outdoor Fan Visible Surface: 69.9mm
Indoor Total Visible Surface: 131.1mm
Profile Frame Total Thickness: 78.3mm
Material & Wall Thickness: 6063-T5 Aluminum (≥ 2.0mm)
Insulation Strip Width: 25.3mm
Standard Screen: None (External Roller Blind Screen Optional)
Hardware Brand: Chinese Brand / Imported (Siegenia, GU)
Handle: Hopo Handle
Locking System: 3-Point Lock (Upgraded Intelligent Lock Available)
Max Load Capacity: 120kg
Max Opening Angle: 90 Degrees
Glass Channel Width (Fan): 47mm
Standard Glass: 5mm+27A+5mm
Spacer (Standard): Silver Aluminum
Surface Treatment: Fluorocarbon Triple Coating
Rubber Strip Brand: Chinese Brand / Imported (Wingkay, Haida Optional)
Line Pressing: Square Line Pressing
Process Features: Full Circle Rubber Strip, Rounded Corners, Hidden Anti-Backflow Drainage, Isotherm Structure
Material: Aluminum Alloy
Engineering Solutions: 3D Model Design, Total Solution, Cross Categories Consolidation, Graphic Design
Design Style: Modern
Warranty: Over 5 Years
Certifications: FSC, CE, ISO 9001, SGS, AS2047
Product Description

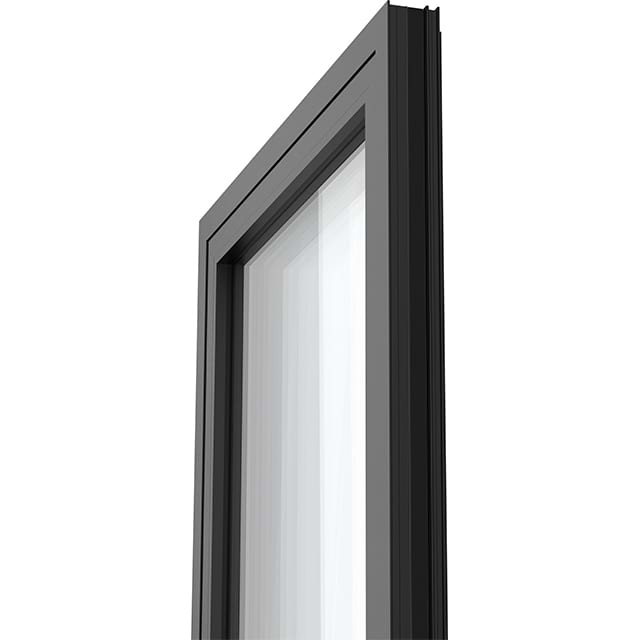

The Galaxy 78 Inwards Casement Door uses high-precision aluminum.
It is made from 6063-T5 aluminum profile.
The main material wall thickness is at least 2.0mm.
This ensures strong structural integrity.
The profile frame has a total thickness of 78.3mm.
It features a 25.3mm insulation strip.
This creates an isotherm structure.
It improves thermal performance.
The door offers a total indoor visible surface of 131.1mm.
This provides a slim and modern appearance.
Hardware options include imported brands.
Siegenia and GU are available.
The Hopo handle offers reliable operation.
A 3-point lock system secures the door.
An upgraded intelligent lock is optional.
The door supports a maximum load capacity of 120kg.
The fan width ranges from 800mm to 950mm.
The fan height ranges from 2000mm to 2700mm.
The opening angle reaches 90 degrees.
Glass channels have a width of 47mm.
Standard glass is 5mm+27A+5mm.
This provides insulation and sound reduction.
Upgraded black aluminum spacers are available.
The surface uses fluorocarbon triple coating.
This protects against the weather and UV rays.
Rubber strips come from Wingkay or Haida.

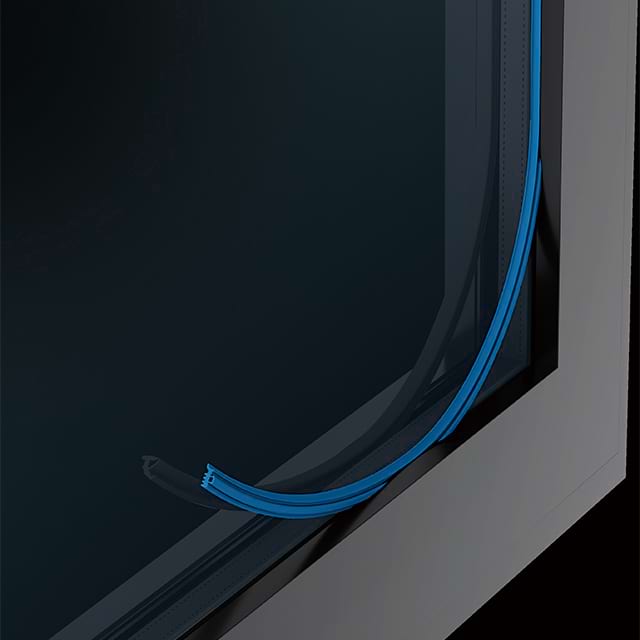

Full-circle rubber strips improve sealing.

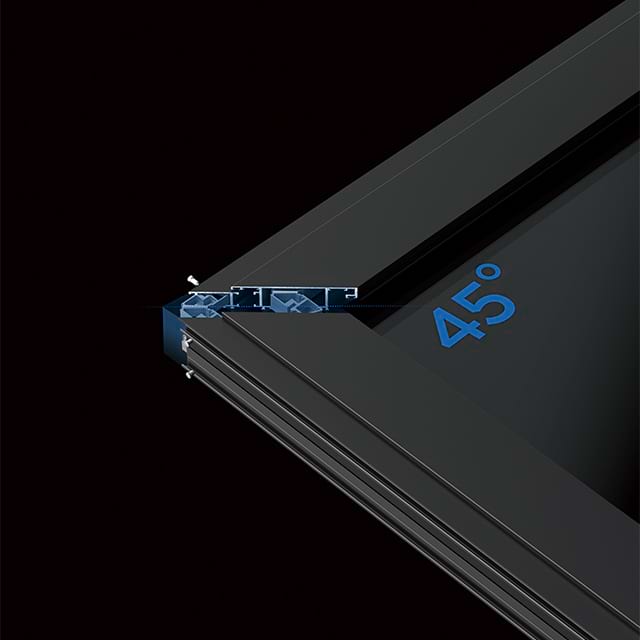

The design includes rounded corners.

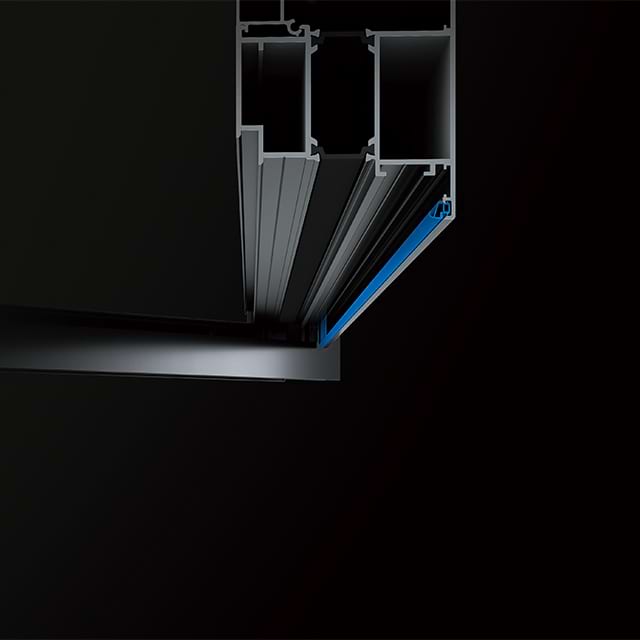

It features hidden anti-backflow drainage.
This prevents water from entering.
Product Features
High-Strength Aluminum Frame: Constructed from 6063-T5 aluminum. The wall thickness exceeds 2.0mm. This provides a durable and stable structure.
Thermal Break Insulation: Features a 25.3mm insulation strip. The isotherm structure reduces heat transfer. This improves energy efficiency.
High-Performance Glass: Standard glass is 5mm+27A+5mm. The wide glass channel accepts thicker options. This enhances sound and thermal insulation.
Secure Locking System: Equipped with a 3-point lock. An upgraded intelligent lock is available. This provides reliable security for entry points.
Weather-Resistant Design: Includes hidden anti-backflow drainage. Full circle rubber strips create a tight seal. This prevents water and air infiltration.
Durable Surface Finish: Uses fluorocarbon triple coating. This resists fading and weathering. It maintains its appearance over time.
Rounded Corner Safety: Features rounded corners on the frame. This reduces the risk of injury. It provides a smoother appearance.
Application Scenarios
Residential Homes: Suitable for villas and bedrooms. It offers security and thermal comfort.
Commercial Buildings: Ideal for hotels and offices. The modern design suits professional environments.
Living Spaces: Perfect for dining rooms and halls. It provides natural light and ventilation.
Industrial Applications: Functional for workshops and warehouses. The durable construction handles frequent use.

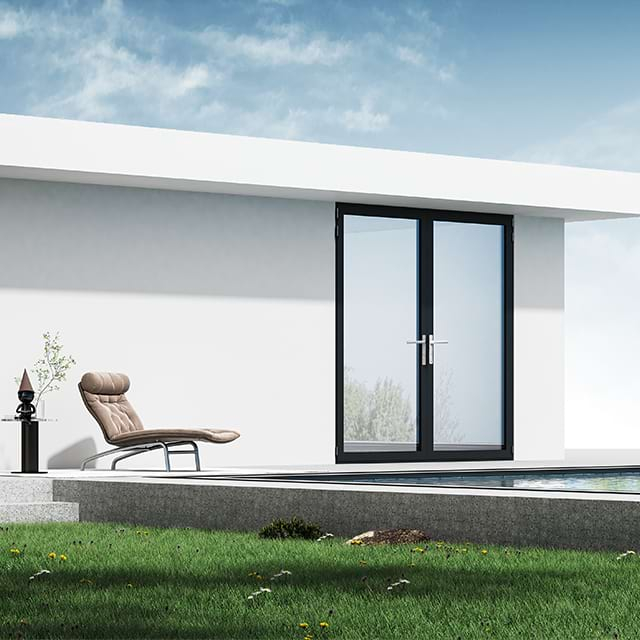

Outdoor Transitions: Designed for exterior walls. It connects indoor areas to patios or gardens.
FAQ
1. What materials are used for the Galaxy 78 door?
It uses 6063-T5 aluminum with a wall thickness of at least 2.0mm. The glass is 5mm+27A+5mm tempered glass.
2. What hardware brands are available?
We offer imported hardware from Siegenia and GU. The handle is from Hopo.
3. What is the maximum size and load capacity?
The door supports a fan width of 800-950mm and a height of 2000-2700mm. The maximum load capacity is 120kg.
4. Is the door energy efficient?
Yes. It has a 25.3mm insulation strip and an isotherm structure. The standard 5mm+27A+5mm glass provides thermal insulation.
5. How does the door handle water drainage?
It uses a hidden anti-backflow drainage system. This directs water away from the interior effectively.
6. What security features does it offer?
It includes a 3-point lock system. An upgraded intelligent lock is available as an option.
7. What certifications does this product hold?
It is certified with FSC, CE, ISO 9001, SGS, and AS2047.
8. What is the warranty period?
Sunshine provides a warranty for over 5 years.
| Indoor frame visible surface | 33.1mm |
| Outdoor frame visible surface | 61.2mm |
| Indoor fan visible surface | 98mm |
| Outdoor fan visible surface | 69.9mm |
| Indoor total visible surface | 131.1mm |
| The total thickness of the profile frame | 78.3mm |
| High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 2.0mm | |
| Insulation strip width | 25.3mm |
The wooden frames of our casement doors are a work of art. Handcrafted from the finest quality timber, they showcase the natural beauty of the wood in all its glory. The wood is carefully selected for its strength and durability, and the frames are finished with a protective coating that not only enhances the color but also provides long-lasting protection. The uPVC frames are designed with a multi-chambered structure, which not only improves thermal insulation but also gives the doors a more substantial and sturdy appearance.
The sashes of the casement doors are designed with attention to detail. They can be configured in different ways, such as single or double sashes, depending on your needs. The glass panels can be chosen from a wide range of options, including low-emissivity glass for enhanced energy efficiency, laminated glass for added security, or decorative glass for a unique touch. The doors can also be fitted with blinds or shades between the glass panes, providing privacy and light control without the need for additional window treatments.
Our premium casement doors come with a host of features that set them apart from the competition. Firstly, they offer outstanding sound insulation. The combination of the thick frames and the high-quality glass helps to reduce external noise, creating a quiet and peaceful environment inside. This is especially important in busy urban areas or near noisy roads.
Secondly, the doors are highly resistant to corrosion. The aluminum frames are treated with a special coating to prevent rust and corrosion, while the wooden frames are treated to resist decay and insect damage. The uPVC frames are inherently resistant to weathering and do not require much maintenance.
The energy efficiency of our casement doors is also remarkable. The insulated glass and the airtight seal around the door frame help to keep the heat in during the winter and the cool air in during the summer, reducing your energy consumption and carbon footprint.
In addition, the doors are designed to be easy to operate and maintain. The smooth opening and closing mechanism ensures that the door can be used with ease, and the materials used are easy to clean and maintain, saving you time and effort in the long run.
Casement doors are suitable for a wide variety of applications. In residential settings, they can be used as front doors, providing a grand entrance to your home. They can also be used as interior doors to separate different rooms or to create a sense of privacy. In commercial buildings, such as art galleries, museums, and high-end retail stores, casement doors can add a touch of elegance and sophistication to the space. They can be used to showcase products or to create a visually appealing entrance for customers.
In addition, casement doors are a popular choice for renovation projects. They can easily replace old and worn-out doors, transforming the look of a property while also improving its functionality and energy efficiency.
Q: Can I choose a different color for the frame and the sash of my casement door?
A: Yes, we offer a wide range of color options for both the frames and the sashes of our casement doors. You can choose a color that matches your building's exterior or interior decor, or you can opt for a contrasting color to create a unique look. Our sales team can provide you with color samples to help you make your decision.
Q: How long does it take to install a casement door?
A: The installation time for a casement door depends on several factors, such as the size of the door, the complexity of the installation, and the condition of the opening. On average, it takes about 1 to 2 days to install a single casement door, but this can vary. Our professional installers will provide you with a more accurate estimate based on your specific situation.
Q: Are your casement doors compliant with building codes?
A: Yes, our casement doors are designed and manufactured to meet or exceed all relevant building codes and standards. We ensure that our products are safe, durable, and energy-efficient, and we provide all the necessary documentation to support this. However, it's important to note that local building codes may vary, so it's always a good idea to check with your local building department before installation.
