Galaxy 78 Casement Door
| Disposition | Standard Collocation Item | Additional Name | Addition Term | |
| Screen Window | No | Add Upgrade | High penetration network: brand/aperture/color | |
| Hardware | Hardware brand: Domestic/imported Grip: HOPPE grip / Screen handle: Transmission system: two point lock | Increase Equipment And Upgrade | Holding without base: Four-point lock: (Recommended for coastal areas, floors above 30 floors, fan superb 1800mm option) | |
| Opening Size And Maximum Load Bearing Capacity | Noto: Fan width: 370-1300mm Fan width: 530-2700mm Maximum load: 80kg Maximum opening Angle: 100 degrees /180 degrees | Silkia: Fan width: 500-1000mm Fan width: 550-2400mm Maximum load: 80kg Maximum opening Angle: 100 degrees /180 degrees | ||
| Glass | Frame: Glass groove width: Fan: Glass groove width: Standard plate width: Aluminum strip color: | Add Upgrade | ||
| Surface Treatment | Surface treatment: fluorocarbon three coating Powder brand: Domestic/imported Monochrome/regular color | Increase Equipment And Upgrade | Two colors/custom colors | |
| Adhesive Strip | Brand: Domestic/imported | Add Upgrade | ||
| Wire Compression | Add Upgrade | Press cables throughout the frame | ||
| Process Configuratio | Fan: whole welded, not filled Frame: whole welded, fillable | |||
| Process Characteristics | The whole circle rubber strip, the whole cavity filling, rounded corners, floor drain type reverse drainage, isotherm structure | |||
Parameter Value

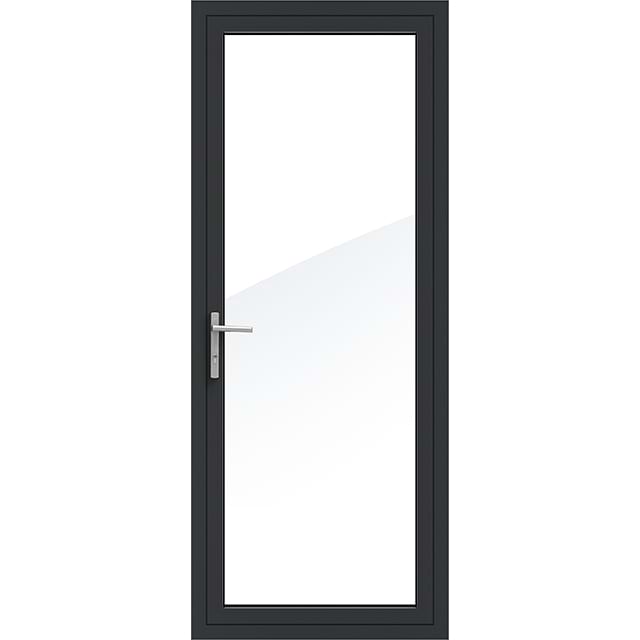

Product Name: Galaxy 78 Casement Door
Indoor Frame Visible Surface: 33.1mm
Outdoor Frame Visible Surface: 61.2mm
Indoor Fan Visible Surface: 98mm
Outdoor Fan Visible Surface: 69.9mm
Indoor Total Visible Surface: 131.1mm
Profile Frame Total Thickness: 78.3mm
Material & Wall Thickness: 6063-T5 Aluminum (≥ 2.0mm)
Insulation Strip Width: 25.3mm
Standard Screen: None (External Roller Blind Screen Optional)
Hardware Brand: Chinese Brand / Imported (Siegenia, GU)
Handle: Hopo Handle
Locking System: 3-Point Lock (Upgraded Intelligent Lock Available)
Fan Width Range: 800 – 950mm
Fan Height Range: 2000 – 2700mm
Maximum Load Capacity: 120kg
Maximum Opening Angle: 90 Degrees
Glass Channel Width (Fan): 47mm
Standard Glass: 5mm+27A+5mm
Spacer (Standard): Silver Aluminum
Surface Treatment: Fluorocarbon Triple Coating
Powder Brand: Chinese Brand / Imported Monochrome / Regular Color
Rubber Strip Brand: Chinese Brand / Imported (Wingkay, Haida Optional)
Line Pressing: Square Line Pressing
Process Features: Full Circle Rubber Strip, Rounded Corners, Hidden Anti-Backflow Drainage, Isotherm Structure
Material: Aluminum Alloy
Engineering Solutions: 3D Model Design, Total Solution, Cross Categories Consolidation, Graphic Design
Design Style: Modern
Warranty: Over 5 Years
Certifications: FSC, CE, ISO 9001, SGS, AS2047
Product Description
The Galaxy 78 Casement Door uses high-precision aluminum.
It is made from 6063-T5 aluminum profile.
The main material wall thickness is at least 2.0mm.
This ensures strong structural stability.

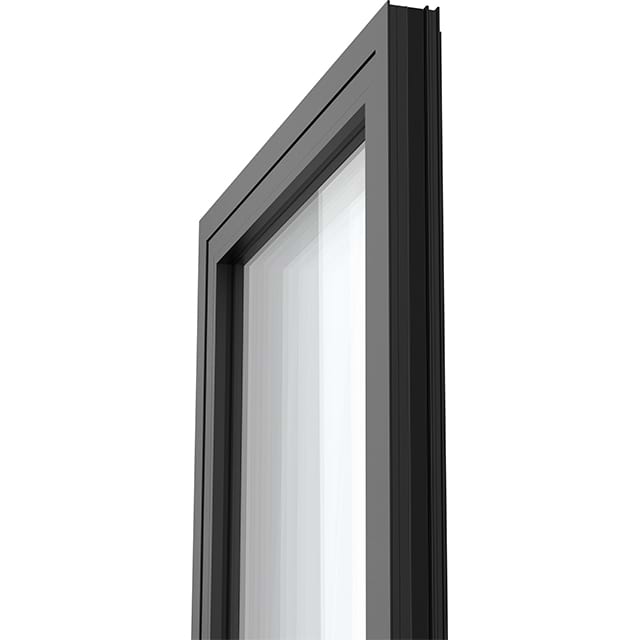

The profile frame has a total thickness of 78.3mm.
It features a 25.3mm insulation strip.
This creates an isotherm structure.
It improves thermal performance.
The door offers a total indoor visible surface of 131.1mm.
This provides a slim and modern appearance.
Hardware options include imported brands.
Siegenia and GU are available.
The Hopo handle offers reliable operation.
A 3-point lock system secures the door.
An upgraded intelligent lock is optional.
The door supports a maximum load capacity of 120kg.
The fan width ranges from 800mm to 950mm.
The fan height ranges from 2000mm to 2700mm.
The opening angle reaches 90 degrees.
Glass channels have a width of 47mm.
Standard glass is 5mm+27A+5mm.
This provides insulation and sound reduction.
Upgraded black aluminum spacers are available.
The surface uses fluorocarbon triple coating.
This protects against weather and UV rays.
Rubber strips come from Wingkay or Haida.
Full circle rubber strips improve sealing.
The design includes rounded corners.
It features hidden anti-backflow drainage.
This prevents water from entering.
Product Features
High-Strength Aluminum Frame: Constructed from 6063-T5 aluminum. The wall thickness exceeds 2.0mm. This provides a durable and stable structure.

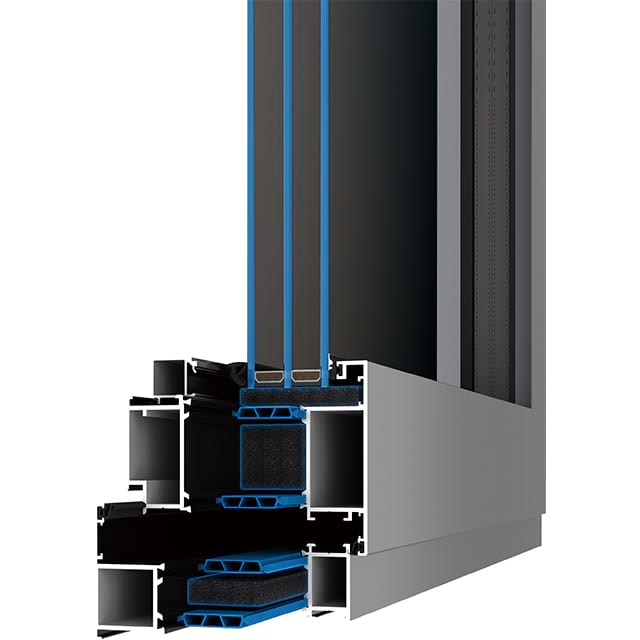

Thermal Break Insulation: Features a 25.3mm insulation strip. The isotherm structure reduces heat transfer. This improves energy efficiency.
High-Performance Glass: Standard glass is 5mm+27A+5mm. The wide glass channel accepts thicker options. This enhances sound and thermal insulation.
Secure Locking System: Equipped with a 3-point lock. An upgraded intelligent lock is available. This provides reliable security for entry points.
Weather-Resistant Design: Includes hidden anti-backflow drainage. Full circle rubber strips create a tight seal. This prevents water and air infiltration.
Durable Surface Finish: Uses fluorocarbon triple coating. This resists fading and weathering. It maintains appearance over time.
Rounded Corner Safety: Features rounded corners on the frame. This reduces the risk of injury. It provides a smoother appearance.
Application Scenarios

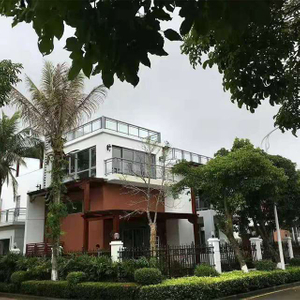

Residential Homes: Suitable for villas and bedrooms. It offers security and thermal comfort.
Commercial Buildings: Ideal for hotels and offices. The modern design suits professional environments.
Living Spaces: Perfect for dining rooms and halls. It provides natural light and ventilation.
Industrial Applications: Functional for workshops and warehouses. The durable construction handles frequent use.

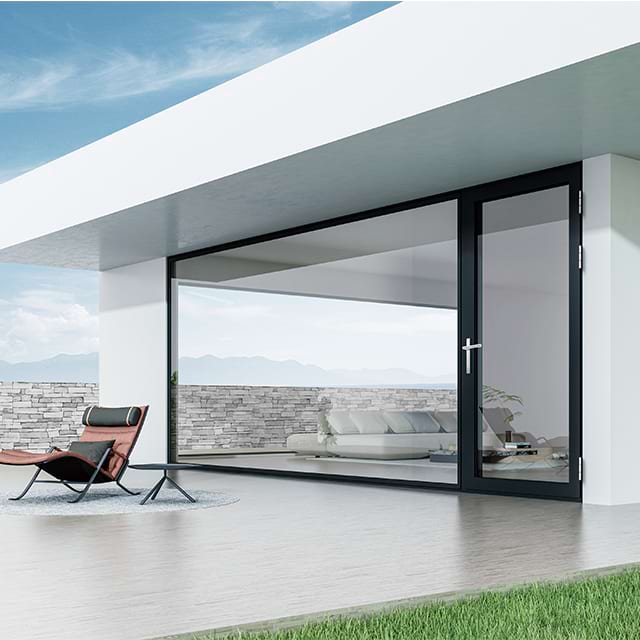

Outdoor Transitions: Designed for exterior walls. It connects indoor areas to patios or gardens.
FAQ
1. What materials are used for the Galaxy 78 door?
It uses 6063-T5 aluminum with a wall thickness of at least 2.0mm. The glass is 5mm+27A+5mm tempered glass.
2. What hardware brands are available?
We offer imported hardware from Siegenia and GU. The handle is from Hopo.
3. What is the maximum size and load capacity?
The door supports a fan width of 800-950mm and height of 2000-2700mm. The maximum load capacity is 120kg.
4. Is the door energy efficient?
Yes. It has a 25.3mm insulation strip and an isotherm structure. The standard 5mm+27A+5mm glass provides thermal insulation.
5. How does the door handle water drainage?
It uses a hidden anti-backflow drainage system. This directs water away from the interior effectively.
6. What security features does it offer?
It includes a 3-point lock system. An upgraded intelligent lock is available as an option.
7. What certifications does this product hold?
It is certified with FSC, CE, ISO 9001, SGS, and AS2047.
8. What is the warranty period?
Sunshine provides a warranty for over 5 years.
| Indoor frame visible surface | 26.5mm |
| Outdoor frame visible surface | 63mm |
| Indoor fan visible surface | 63.5mm |
| Outdoor fan visible surface | 27mm |
| Indoor total visible surface | 90mm |
| The total thickness of the profile frame | 78.3mm |
| High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 2.0mm | |
| Insulation strip width | 25.3mm |
If you prefer a more traditional or rustic charm, our wooden frames are sourced from high-quality, sustainable timber. These frames can be stained or painted to match your interior or exterior decor, highlighting the natural grain of the wood and bringing warmth to the space. The uPVC frames, on the other hand, offer a cost-effective and low-maintenance alternative. They are designed to mimic the appearance of wood or other materials while providing enhanced durability and resistance to weathering.
The sashes of our casement doors are designed to open outward, allowing for unobstructed views and maximum ventilation. They can be customized in size and shape, including rectangular, arched, or even custom geometric designs, to fit your specific architectural requirements. Additionally, the doors can be fitted with decorative glass panels, ranging from clear and frosted to intricately patterned, adding a touch of individuality and privacy.
One of the standout features of our casement doors is their exceptional energy efficiency. The tight seal created when the door is closed, combined with the use of insulated glass, helps to prevent air leakage. This not only keeps your indoor environment comfortable but also significantly reduces energy consumption, lowering your heating and cooling costs. Whether it's the sweltering summer heat or the cold winter chill, our casement doors act as a barrier, maintaining a consistent temperature inside.
Security is also a top priority. Our casement doors are equipped with state-of-the-art locking mechanisms, including multi-point locks that provide multiple points of contact for enhanced security. The frames are reinforced to resist forced entry, giving you peace of mind knowing that your property is well-protected. Moreover, the doors are highly resistant to weather elements such as wind, rain, and snow. The materials used are carefully selected to withstand harsh conditions, ensuring long-lasting performance without warping, cracking, or fading.

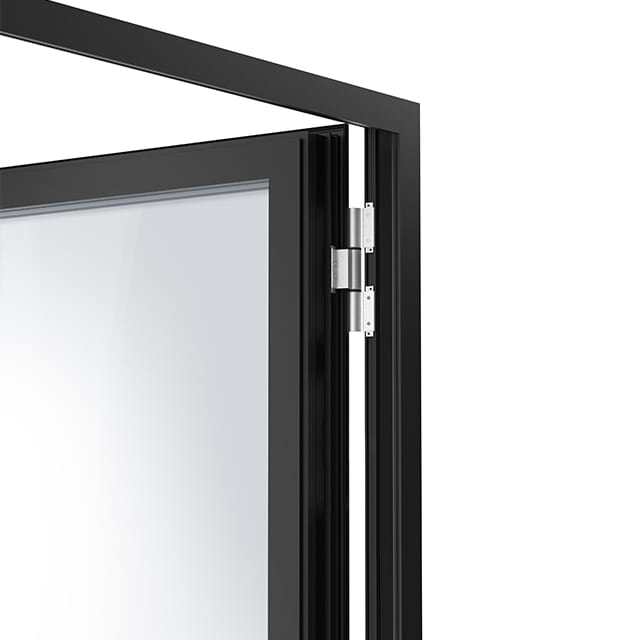

In terms of operation, our casement doors are designed for smooth and effortless use. The hinges are robust and durable, allowing the door to open and close quietly and smoothly. The handles are ergonomically designed for a comfortable grip, making it easy for anyone to operate the door, regardless of age or physical ability.
Casement doors have a wide range of applications in both residential and commercial settings. In residential homes, they are a popular choice for connecting indoor living spaces with outdoor areas such as patios, gardens, or balconies. They can create a seamless transition between the indoors and outdoors, allowing you to enjoy the fresh air and beautiful views while expanding your living space. In the bedroom, a casement door can provide a private entrance to a balcony, offering a peaceful retreat and a connection to nature.
In commercial buildings, such as cafes, restaurants, and hotels, casement doors can enhance the customer experience. They can be used to create an inviting entrance or to open up dining areas to outdoor seating, providing a pleasant and airy atmosphere. In offices, they can be used as partition doors to separate different workspaces while still allowing natural light to flow through.
Q: How do I maintain the finish of my casement door?
A: The maintenance of the finish depends on the material of your casement door. For aluminum doors, simply clean them with a mild detergent and water regularly to remove dirt and grime. Avoid using abrasive cleaners that can scratch the surface. For wooden doors, periodic staining or painting is recommended to protect the wood from moisture and UV rays. uPVC doors are relatively low maintenance and can be cleaned with a damp cloth.
Q: Can I install a screen on my casement door?
A: Yes, we offer a variety of screen options that can be easily installed on our casement doors. These screens are designed to keep insects out while still allowing fresh air to flow through. They can be removed for cleaning and are available in different styles to match the design of your door.
Q: What is the maximum size of a casement door that you can provide?
A: The maximum size of our casement doors can vary depending on the material and design. Generally, we can provide doors up to a certain width and height. However, for custom projects, we can work with you to determine the feasibility of larger sizes. It's best to contact our sales team with your specific requirements for more accurate information.
