Improper door installation causes perimeter water ingress, thermal bridging, and premature hardware failure in residential and commercial builds. Wood and fiberglass units offer some flexibility during framing. Metal frames demand absolute precision. Aluminum frames provide superior durability and structural integrity. However, they require strict adherence to rough opening tolerances and specific mitigation strategies against galvanic corrosion. Failing to manage moisture at the sill or ignoring chemical reactions between dissimilar materials guarantees rapid structural decay. This guide breaks down the technical requirements, material selection, and step-by-step execution necessary to Install Aluminum Doors correctly. We cover rough opening preparation, flashing membrane application, and frame securing techniques. You will learn how to prevent distortion and maintain long-term performance, warranty compliance, and structural security.
Flashing is Non-Negotiable: Proper sill pan installation and perimeter flashing are critical best practices to prevent leaks, moisture damage, and costly callbacks.
Galvanic Isolation is Required: Direct contact between aluminum frames and treated wood or dissimilar metals will cause rapid corrosion; isolation membranes are mandatory.
Tolerance Strictness: Aluminum frames lack the flexibility of wood; rough openings must be perfectly plumb, level, and square before installation begins.
Thermal Sealing Dictates Performance: Accurate application of low-expansion foam and weather stripping is required to maintain the door’s energy efficiency rating and prevent air leakage.
Table of Contents

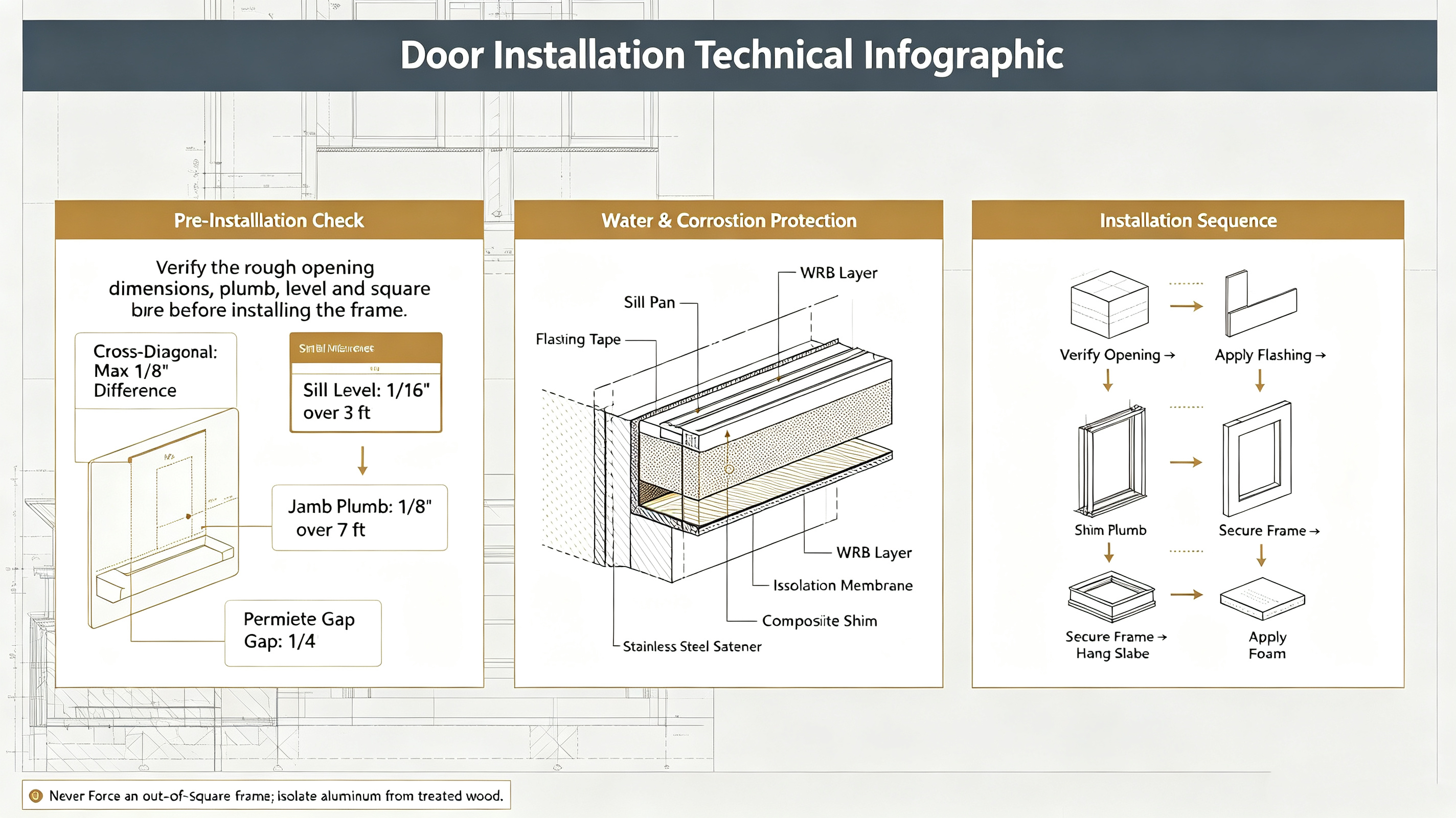

The success of any exterior door installation relies entirely on the preparation of the rough opening. Failing to verify dimensions leads to racked frames, binding hinges, and compromised security. Metal frames do not bend or forgive poor framing. You must correct framing anomalies before the door unit ever leaves the delivery truck. A frame forced into an out-of-square opening will permanently distort the aluminum extrusion.
Begin by measuring cross-diagonals to ensure the opening is perfectly square. Measure from the top left corner to the bottom right, and then from the top right to the bottom left. The maximum allowable deviation between these two measurements is 1/8 inch. If the difference exceeds this tolerance, you must adjust the framing. This usually requires sistering new jack studs to the existing framing and shimming them plumb.
Check the sill for level using a 78-inch box beam level or a rotary laser level. An unlevel sill means the heavy aluminum slab will swing open or closed independently, placing severe stress on the hinges. If the subfloor is out of level, use a self-leveling cementitious underlayment or specialized tapered composite shims to create a perfectly flat base. Confirm the rough opening dimensions against the manufacturer's specified clearances. Most manufacturers require the rough opening to be exactly 1/2 inch wider and 1/2 inch taller than the net frame size. This provides a 1/4-inch gap on all sides to accommodate shims, backer rod, and thermal sealants.
Measurement Area | Tool Required | Maximum Allowable Tolerance | Correction Method if Out of Spec |
|---|---|---|---|
Cross-Diagonals (Square) | Steel Tape Measure | 1/8 inch difference | Sister new jack studs; adjust header height. |
Sill (Level) | 78" Box Beam / Laser Level | 1/16 inch over 3 feet | Self-leveling underlayment or tapered shims. |
Jambs (Plumb) | 78" Box Beam Level | 1/8 inch over 7 feet | Pack out framing with structural wood shims. |
Rough Opening Width/Height | Steel Tape Measure | +1/2 inch over net frame size | Modify framing to achieve exact 1/4" perimeter gap. |
Installing aluminum directly against pressure-treated lumber causes a destructive chemical reaction known as galvanic corrosion. Modern pressure-treated wood contains high levels of copper-based preservatives, such as copper azole or alkaline copper quaternary. When moisture acts as an electrolyte between the copper in the wood and the aluminum frame, the aluminum rapidly corrodes. The metal will pit, oxidize, and eventually fail structurally.
You must mitigate this risk by completely isolating the metal from the wood. Apply self-adhering flashing tape or a liquid-applied waterproofing membrane over the entire rough opening. This creates a permanent, impermeable barrier between the aluminum frame and the structural framing. Pay special attention to the sill and the lower 12 inches of the jambs. Moisture accumulation is most likely in these zones. Never skip this isolation step, even in dry climates, as ambient humidity can trigger the galvanic reaction over time.
Historic renovations and non-standard rough openings often present unique challenges. Masonry openings in older buildings are rarely plumb or square. Leverage 3D-printed drill guides and custom jigs to ensure precise hinge and strike plate alignment. These custom tools prevent drill bit wandering on smooth metal surfaces. They ensure fasteners seat perfectly flush, preventing screw heads from binding against the door slab during operation.
If you are working with obsolete architectural hardware on a retrofit project, source rapid-manufactured 3D-printed metal or high-strength plastic replacement parts prior to beginning the installation. Having these components ready eliminates project delays. It ensures you can secure the door immediately after setting the frame, rather than leaving the building vulnerable while waiting for custom parts to be machined.
Selecting the right materials dictates the longevity of the installation. Sub-standard sealants or incorrect fasteners will void manufacturer warranties and lead to structural failure. You must match your consumables to the specific demands of heavy metal extrusions and exterior weather exposure. Do not attempt this installation with standard interior carpentry tools.
Standard drywall screws or uncoated steel fasteners have no place in exterior door installations. You must use 300-series stainless steel or specialized exterior-coated screws to prevent rust and galvanic reactions. The fasteners must be long enough to penetrate through the aluminum frame, the shim space, and at least 1.5 inches into the solid structural framing. For masonry openings, use heavy-duty concrete anchors rated for dynamic loads.
High-impact composite or horseshoe shims are preferred over traditional wood shims. Wood compresses, shrinks, and rots under the immense weight of Aluminum Doors. Composite shims provide stable, non-compressible support. They interlock around the fastener, preventing them from vibrating loose over time. For highly irregular gaps in masonry, custom 3D-printed plastic spacers can provide exact structural support. This prevents the frame from twisting when fasteners are torqued down.
Use high-quality polyurethane or 100% silicone sealants rated for exterior metal-to-wood or metal-to-masonry adhesion. Avoid cheap acrylic latex caulks. Acrylic lacks the flexibility needed to handle the thermal expansion and contraction of metal frames. Polyurethane provides superior adhesion and remains elastomeric for decades.
78-Inch Box Beam Level: Required for checking the full length of the jambs without bridging gaps.
Rotary Laser Level: Best for establishing a perfectly level sill line across wide double-door openings.
Clutch-Enabled Impact Driver: Prevents over-torquing fasteners and crushing the aluminum extrusion.
Heavy-Duty Suction Cups: Mandatory for safely lifting and positioning heavy glass sidelites and door slabs.
High-Thrust Caulking Gun: Necessary for smoothly extruding thick polyurethane sealants in cold weather.
Evaluate flashing tapes carefully based on your climate. Butyl tapes offer superior adhesion and flexibility in cold weather compared to traditional asphaltic tapes. Butyl maintains compatibility with aluminum and most building envelope materials, ensuring long-term leak prevention. Verify that your chosen tape does not react negatively with your specific polyurethane sealant. Some sealants will dissolve the adhesive backing on cheaper tapes.
A rigid or formable sill pan is an absolute necessity. The sill pan manages bulk water egress. It captures any moisture that penetrates the primary exterior seal and directs it safely outward over the weather-resistant barrier. Without a sill pan, water will inevitably reach the sub-floor, causing extensive rot and structural damage. Pre-formed PVC sill pans are excellent for standard sizes, while flexible flashing tape can be used to create custom pans for non-standard openings.
Executing these steps in the correct sequence ensures the door operates smoothly, seals tightly, and meets structural wind-load ratings. Rushing the process or skipping weatherproofing steps will result in immediate operational issues and long-term water damage. Follow this sequence strictly.
Start by integrating the sill pan with the existing weather-resistant barrier (WRB). Cut the WRB in a modified I-pattern. Fold the side flaps inward and staple them to the interior of the jack studs. Fold the top flap up and tape it temporarily out of the way. Install the sill pan directly over the subfloor. Ensure the back dam is intact and the front lip extends over the exterior siding or WRB. Secure the pan using the manufacturer's recommended adhesive, avoiding mechanical fasteners through the bottom of the pan.
Apply flashing tape to the jambs and head. Always work in a shingle-lap fashion. Start at the bottom and work your way up. The jamb flashing must overlap the vertical legs of the sill pan. The head flashing must overlap the top of the jamb flashing. Finally, fold the top flap of the WRB down over the head flashing and tape the diagonal cuts. This gravity-fed layering ensures water is continuously directed outward, away from the interior framing.
Never apply sealant before confirming the frame fits. Insert the frame, without the heavy door slab, into the rough opening to verify clearances. You should have an even 1/4-inch gap around the entire perimeter. Use a helper to hold the frame steady while you check the fit.
Check for unexpected obstructions, protruding nail heads, or framing anomalies. Verify that the frame sits perfectly flush with the interior and exterior wall planes. Cross-plane racking occurs when one corner of the frame sticks out further than the others. This will cause the door to bind severely. Once you confirm the fit and mark your layout lines, remove the frame and prepare for the final installation.
Place the frame back into the opening. Begin by placing composite shims at the sill to establish a perfectly level base. Next, insert shims at the hinge locations and the strike plate. Do not use wedge shims in a way that leaves voids. Use pairs of wedge shims facing opposite directions to create a flat, solid bearing surface.
Shims must be placed exactly behind hinge attachment points. When you drive screws through the hinges, the frame will pull toward the rough opening. If there is a void behind the hinge, the aluminum extrusion will bow inward, binding the door slab. Place additional shims every 16 inches along the jambs and head to provide continuous support against wind loads.
Apply a continuous, generous 3/8-inch bead of polyurethane sealant along the sill pan and the blind stops before pressing the frame into its final position. This creates the primary barrier against wind-driven rain. Press the frame firmly into the sealant to ensure wet-out and full adhesion.
Drive your stainless steel fasteners through the pre-drilled holes in the aluminum frame. The fasteners must pass directly through the composite shims and anchor into the structural framing. Over-tightening fasteners can distort the aluminum extrusion. Use a clutch-enabled drill set to a low torque setting. Continuously verify plumb, level, and square with your box beam level as you tighten each screw. If the frame begins to bow, back the screw out and adjust your shims.
Mounting the aluminum door slab requires at least two people due to the significant weight of the glass and metal assembly. Use heavy-duty suction cups to maneuver the slab safely. Lift the slab onto the hinges and secure the hinge pins or mounting screws. Do not force the pins; if they do not drop in easily, the frame is out of alignment.
Test the swing immediately. The door should open and close without resistance. Check for a uniform reveal. The reveal is the visible gap between the door slab and the frame. The reveal should be identical from top to bottom and across the head. If the gap is uneven, make micro-adjustments to the adjustable hinges. If the hinges are fixed, you must slightly tweak the shim depth behind the frame until the alignment is perfect.
The final sealing steps determine the energy efficiency and acoustic performance of the installation. A perfectly plumb door will still fail energy codes if the perimeter is poorly insulated or the weather stripping is compromised. Pay close attention to the transition zones where different materials meet.
Inspect the metal trim and existing seals. Identify and repair wavy or poorly anchored metal trim before applying new weather stripping. Distorted trim prevents a tight seal and is a primary cause of severe air leakage. Use a rubber mallet and a block of wood to flatten minor bends. Replace the trim entirely if it is heavily damaged or kinked.
Ensure continuous contact between the weather stripping and the door slab. The seal must compress slightly when the door is latched, but it should not create excessive closing resistance. If you have to slam the door to engage the lock, the weather stripping is too thick or improperly positioned. For commercial applications, install a heavy-duty aluminum threshold with a replaceable neoprene bulb seal to block drafts at the floor level.
Inject closed-cell, low-expansion window and door foam into the shim space between the aluminum frame and the rough opening. Apply the foam from the interior, filling the cavity approximately halfway to allow for expansion. The foam provides critical thermal insulation, stops drafts, and adds structural rigidity to the frame assembly.
Never use high-expansion foam. Standard gap-filling foam exerts immense pressure as it cures. It will bow aluminum frames inward, causing the door to bind against the jambs. Once the low-expansion foam cures completely, trim the excess flush with the frame using a serrated knife. Do not push wet foam back into the gap, as this destroys its cellular structure and reduces its insulating value.
If your installation involves updating, retrofitting, or replacing sidelite window glass within the aluminum frames, handle the glazing beads with extreme care. Use a stiff putty knife or a specialized glazing tool to carefully pry the aluminum stops loose without scratching the anodized or painted finish. Clean the glazing channels thoroughly with a solvent before setting the new glass.
Always set heavy glass units on neoprene or EPDM setting blocks. Never allow the glass edge to contact the bare aluminum frame, as thermal expansion will cause the glass to crack. Consider applying security window film to prevent the glass from shattering upon impact. This upgrade helps standard tempered glass perform more like laminated safety glass. It significantly improves overall protection against forced entry, severe weather, and accidental impacts.
Determining whether internal teams or homeowners have the capacity to execute the installation depends heavily on the scale of the project. Aluminum units require specialized handling and precise execution that often exceeds standard carpentry skills. A poorly installed wood door can be planed down to fit; a poorly installed aluminum door must be completely removed and reset.
Many commercial and high-end residential aluminum doors require certified installation to maintain the manufacturer's warranty. Manufacturers will quickly void claims if they discover galvanic corrosion due to missing flashing or frame distortion caused by improper shimming. They require photographic evidence of the sill pan and flashing details before honoring warranty claims on water infiltration.
The cost of failure is high. Water damage, structural rot, and costly callbacks far exceed the cost of professional installation. A slow leak behind the siding can rot the subfloor and rim joist over several years before it becomes visible from the interior. By the time you see drywall damage, the structural repairs will cost thousands of dollars.
Project Variable | DIY Feasibility | Professional Requirement |
|---|---|---|
Standard Single Door Replacement | High (with proper research and tools) | Optional, but recommended for warranty. |
Double Doors with Sidelites | Low (requires multi-person crew) | Mandatory due to weight and alignment complexity. |
Masonry Rough Openings | Moderate (requires hammer drills, anchors) | Highly Recommended to ensure structural anchoring. |
Commercial Fire-Rated Doors | None (code violation) | Mandatory. Must be installed by certified technicians. |
Evaluate the tool acquisition costs before attempting a DIY installation. Professional installations require expensive equipment. You will need rotary laser levels, specialized suction cups for handling heavy glass sidelites, clutch-driven impact drills, and high-quality composite shims. Purchasing these tools for a single project often negates the labor savings of doing it yourself.
Consider the time investment and the physical requirements. The sheer weight of aluminum and glass assemblies mandates a multi-person crew. Attempting to lift and align a commercial-grade slab single-handedly is dangerous. It frequently results in damaged hinges, scratched extrusions, or shattered glass. Hiring a professional crew ensures the job is completed in a single day with guaranteed results.
Conduct a final water test on the exterior flashing using a low-pressure hose above the door head to verify water sheds outward correctly.
Install the final hardware components, including heavy-duty locksets, strike plates, and pneumatic closers, ensuring all machine screws are seated firmly.
Establish a routine maintenance schedule to lubricate hinges, inspect weather seals for wear, and clear debris from the sill track.
Apply interior casing and exterior trim, sealing all edges with exterior-grade polyurethane caulk to finalize the building envelope.
A: Yes. Use a carbide-tipped non-ferrous metal cutting blade on your miter saw or circular saw. Standard wood blades will catch, tear the metal, and create dangerous shrapnel. Always wear safety glasses and cut slowly to ensure a clean, burr-free edge.
A: Sweating is caused by high indoor humidity condensing on the cold metal frame. Ensure the door features a thermal break. Lower indoor humidity levels using an exhaust fan or dehumidifier. Verify that the perimeter shim space is fully insulated with low-expansion foam.
A: Yes, but you must completely isolate the aluminum from the wood framing to prevent galvanic corrosion. Apply a high-quality self-adhering flashing tape or liquid-applied membrane over the entire rough opening before setting the frame.
A: Use a high-quality, exterior-grade polyurethane or 100% silicone sealant. These sealants remain flexible after curing, allowing them to handle the thermal expansion and contraction of the metal frame without breaking the waterproof bond.
A: Most manufacturers require a 1/4-inch gap around the entire perimeter of the frame. The rough opening should be exactly 1/2 inch wider and 1/2 inch taller than the net size of the door frame to allow for proper shimming and thermal insulation.
A: Binding usually occurs when the frame is out of plumb or square, or if the frame was bowed inward during fastening. Verify that shims are placed directly behind the hinges and that the fasteners were not over-tightened, which distorts the aluminum extrusion.
