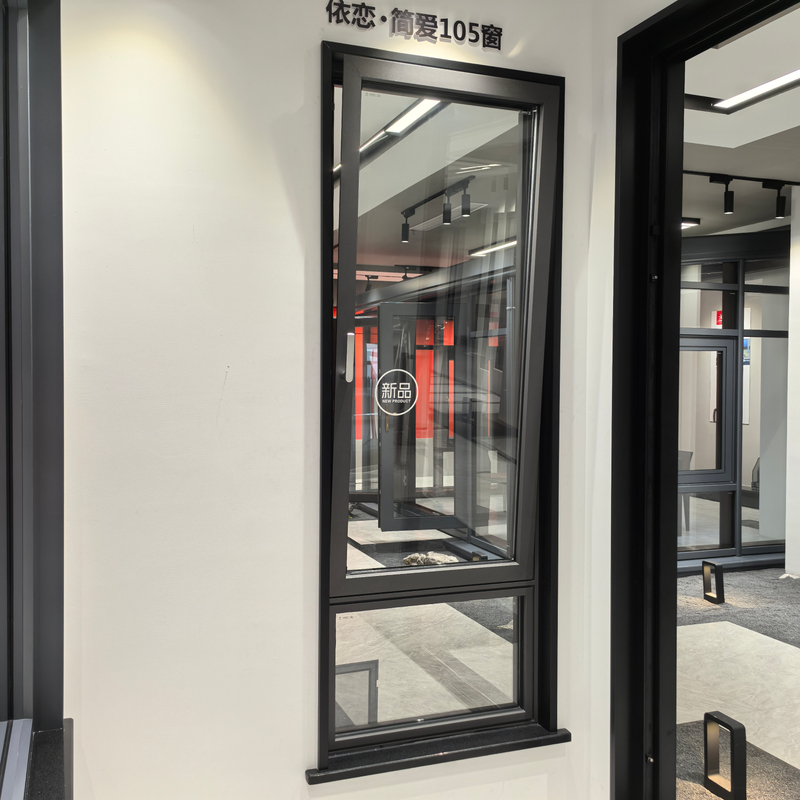

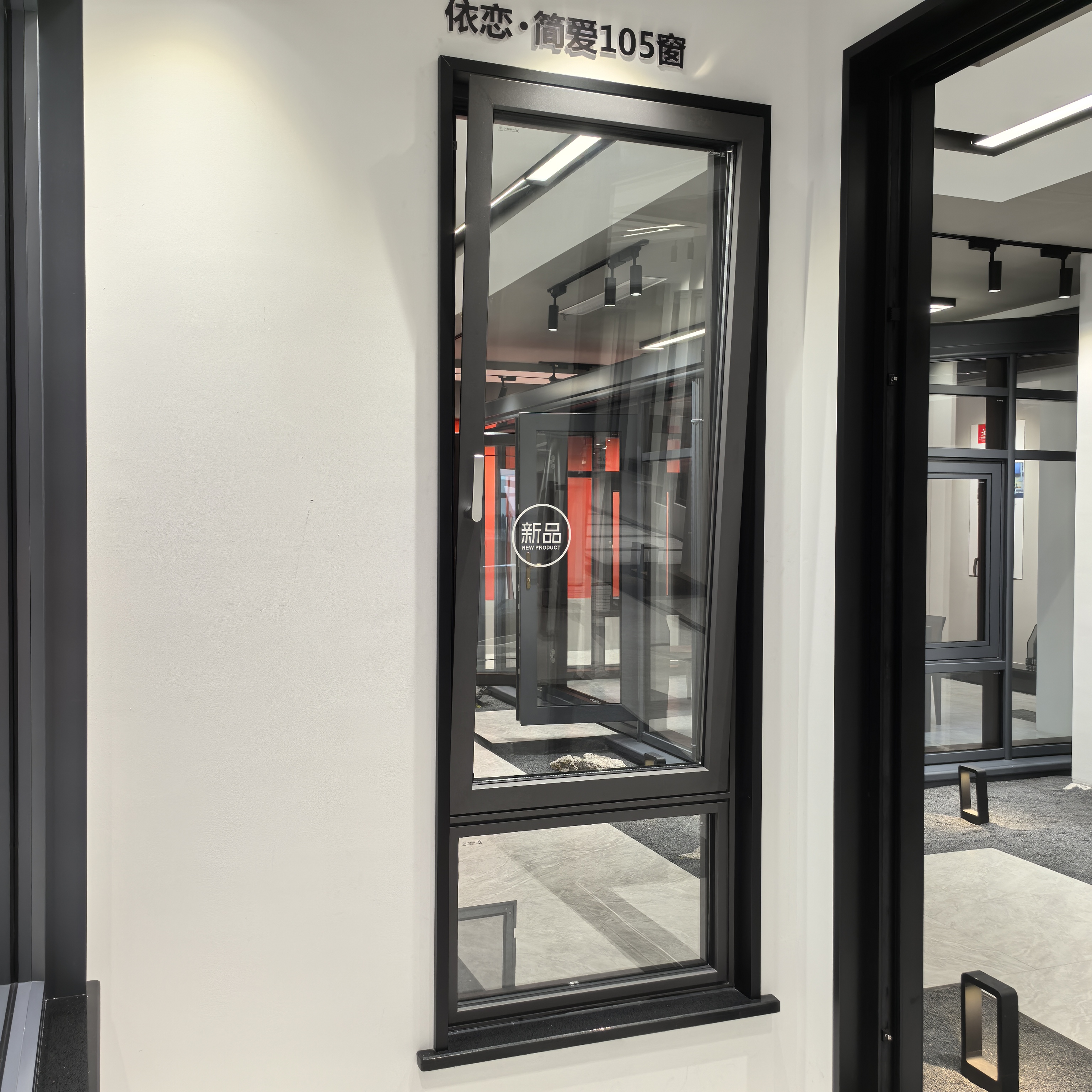

Exterior Tilt and Turn Window Inwards Casement Window -Simple Love 105

Concealed protective lock

CONCEALED GUARD LOCK

The gauze fan adopts a concealed protective lock, which is concealed and aesthetically pleasing, and enhances safety to prevent accidental scratches.

Window sash R corner protector to prevent accidental injury

SASH R CORNER PROTECTOR TO AVOIDACCIDENTAL INJURY

All series of window sashes come standard with R corner protectors, which greatly prevent accidental harm to the human body caused by sharp edges and corners, ensuring home safety from the details.

The assembly process of the European standard frame adopts "screw corner code+glue injection"

EUROPEAN STANDARD FRAMEASSEMBLY PROCESS

Frame assembly (European standard system window process): 45 ° assembly, using the "screw corner code+glue injection" process, and the corner code cavity adopts a rectangular closed cavity structure.

High connection strength and strong sealing.

T-SHAPE CORNER CONNECTOR

Further strengthening of the mullion structure

The mullion link adopts customized T-shaped connection corner codes, "screw corner codes+glue injection" category border corner codes, and guide vanes are set at the mullion connection position to improve the quality of glue injection sealing.

Opening method: inward opening, tilt & turn

Profile wall thickness 1.8mm

Outer frame thickness 105mm

Main frame structure 1.8mm

Window sash structure 1.8mm

Glass application

5mm+18A+5mm

Upgrade option: 22A

Hardware

standard configuration:Siegenlia&Roto

Optional Color

Outdoor: Fluorocarbon ash/Fluorocarbon coffee/Metal ash

Indoor: Fluorocarbon ash/Fluorocarbon coffee/Metal ash

Performance Parameters

THERMAL INSULATION

Level 6

SOUND INSULATION

Level 4

WATER TIGHTNESS

Level 6

AIRTIGHTNESS

Level 8

WIND LOAD RESISTANCE

Level 9

Simple Love 105 Inward-opening window

Minimalism: simplifying the complex

Perfect details, ultimate experience

Simplify and simplify, broad vision

Visually smooth, beautiful and elegant

Good sealing, durable and firm

Excellent configuration, safe and durable

Multi-cavity structure design

Three-line seal, multiple protection

Filled with refrigerator-grade polymer thermal insulation material in the cavity

Isothermal insulation process of broken bridge structure to improve thermal insulation

Water tightness level 7, air tightness level 8, thermal insulation level 6, wind pressure resistance level 5

Automotive-grade tempered float glass

Quieter and more comfortable

Equipped with hollow 5mm+18A+5mm tempered glass (upgradeable to 22A)

Minimize energy loss and soundproof

Adopting the process of "screw corner code+glue injection"

Can meet the requirements of the full adhesive process for the cavity. The steel sheet is made of customized adhesive steel sheet

The corresponding process can effectively improve the strength, flatness, and sealing of the corner assembly

T-type connection angle code

The atrium connection uses a customized T-type connection angle code, which is a border angle code

The atrium connection position is equipped with a guide plate to improve the quality of injection sealing and strong pressure resistance

Opening fan duckbill strip

Using full-circle welding technology

Improved appearance and can effectively ensure the sealing effect

Meets international level 6 (highest) watertight performance

45° whole frame pressing line

The inner and outer frame sashes are designed to be flush, with a uniform appearance. The fixed glass whole frame is 45° spliced with bevel pressing lines, which is three-dimensional and fashionable, with a strong visual effect and beautiful appearance. Simple lines and simple matching are used to show a simple but not simple design style, highlighting the three-dimensional layering of the whole window.

Concealed protection lock

The screen fan adopts a concealed protection lock to enhance safety and prevent scratches

It has a strong invisible effect, a strong decorative sense, does not affect the appearance, and is not easy to rust

External decorative strip design

In addition to the facade effect, it can also effectively improve water tightness

(concealed drainage, drainage channels can be added as needed)

Imported hardware system

Five-level standard ultra-high anti-corrosion grade

Maximum load-bearing capacity up to 150KG

International anti-theft grade RC2

German Roto, German Hopo, Siegenia
