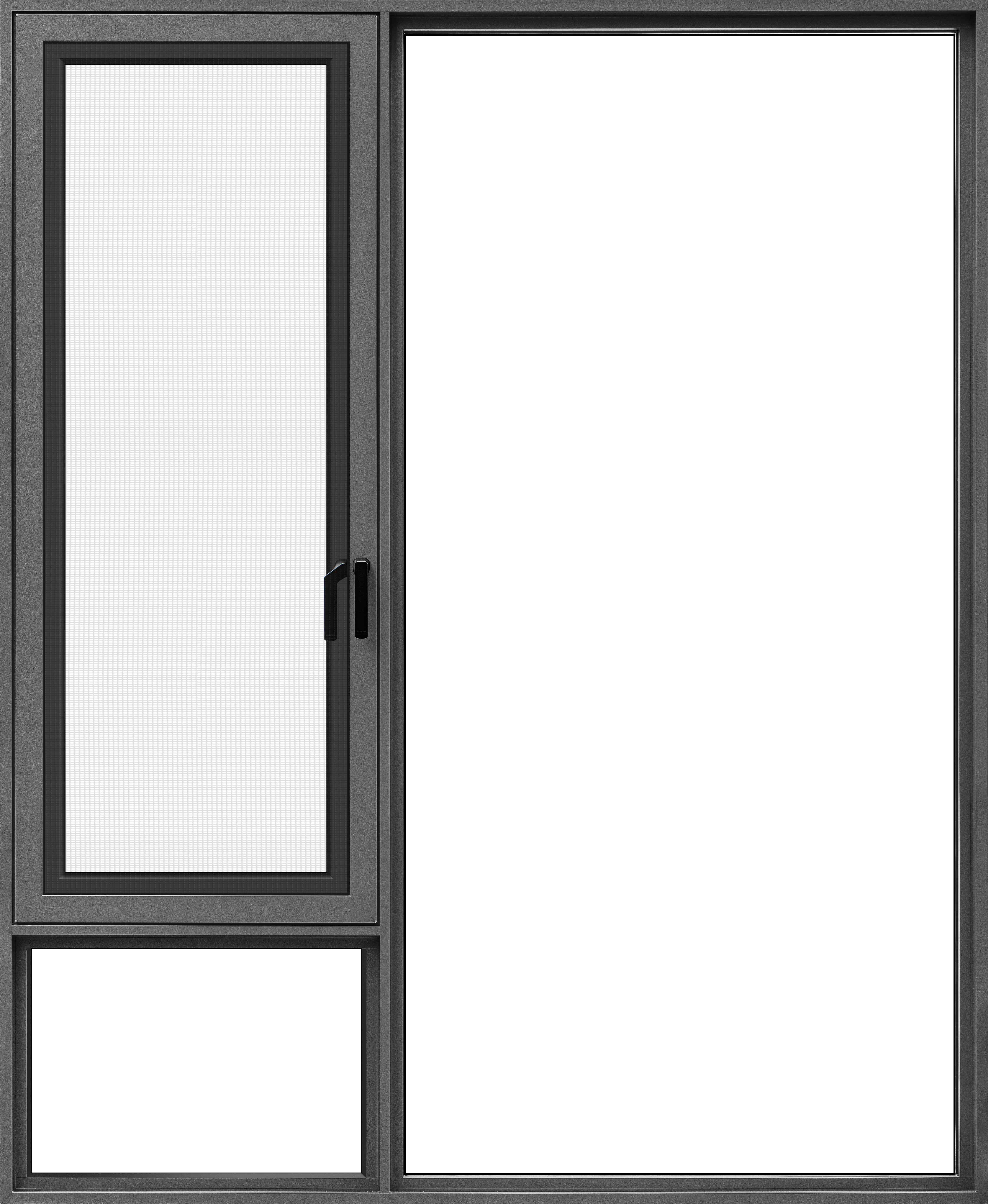

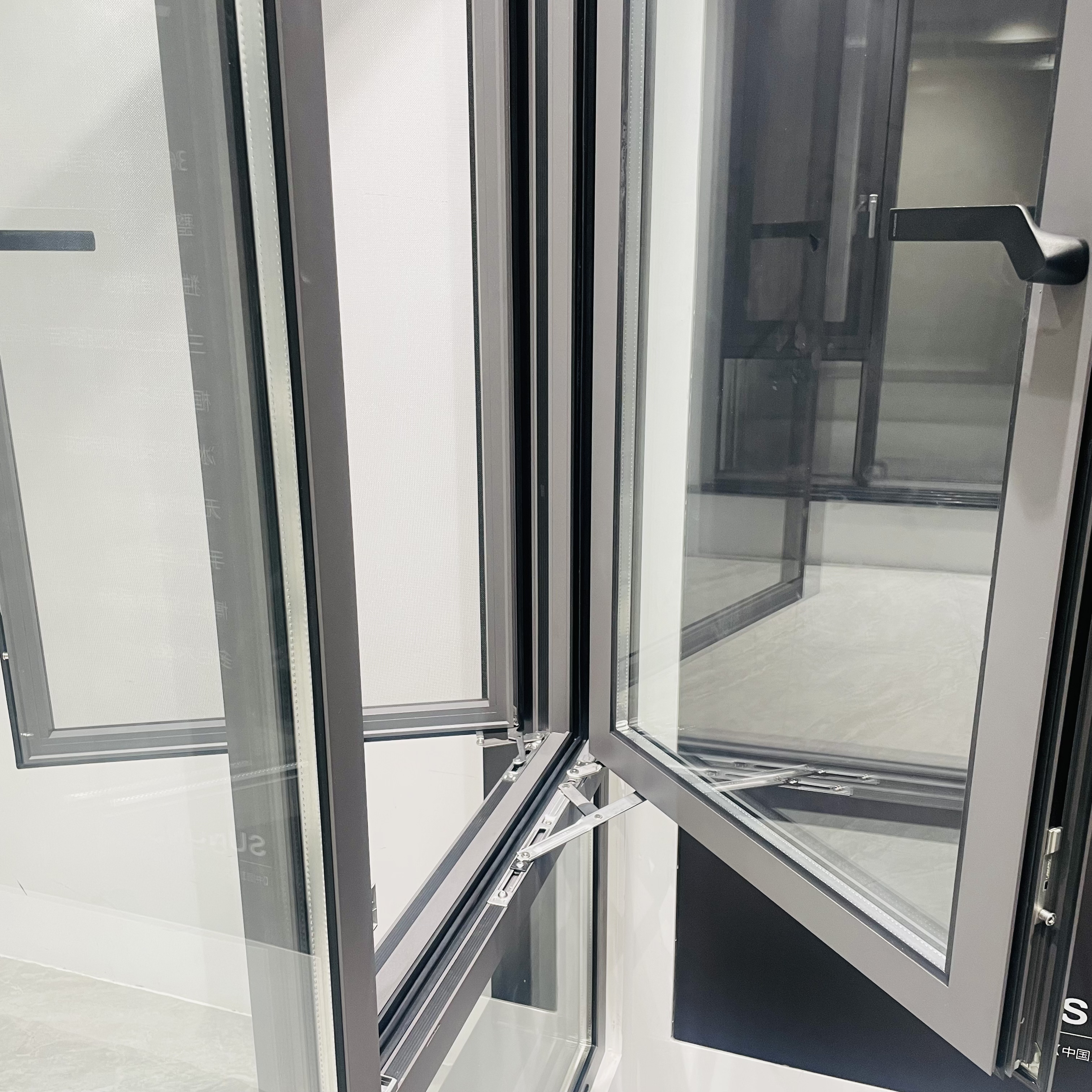

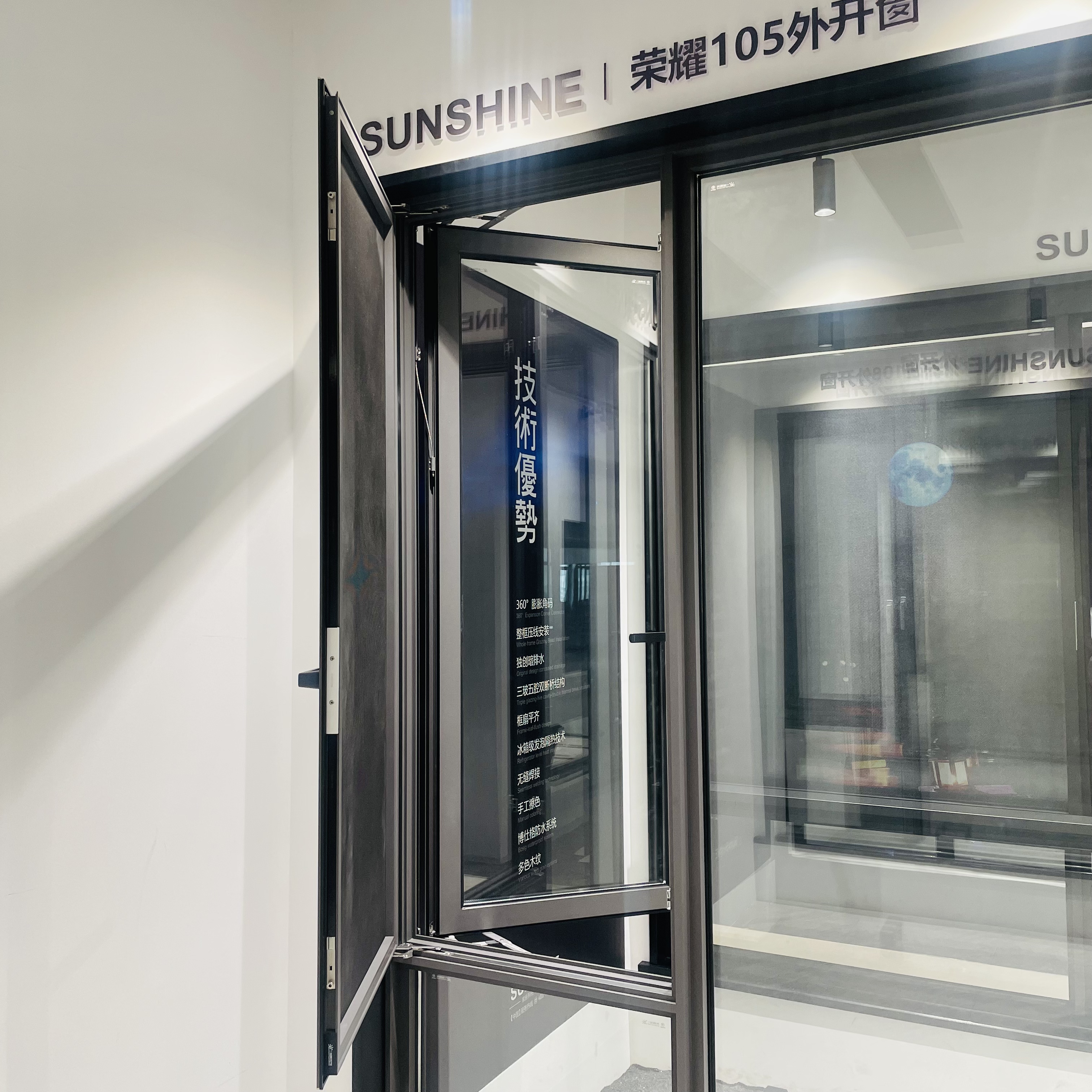

Honor 105 Outwards Casement Window
The innovative thermal break technology (24mm polyamide strips) combined with double-tempered glass (5mm + 16mm argon + 5mm) minimizes heat loss while enabling seamless corner installations without visible mullions.
Advanced Thermal Insulation:
Polyamide thermal breaks reduce conductive heat loss by 70%, achieving U-factors as low as 1.4 W/m²K (NFRC certified).
Double-glazed units with Low-E coating (SHGC 0.32) and warm-edge spacers (Sta-Lok®) enhance winter heating and summer cooling efficiency.
Cornerless Glazing Technology:

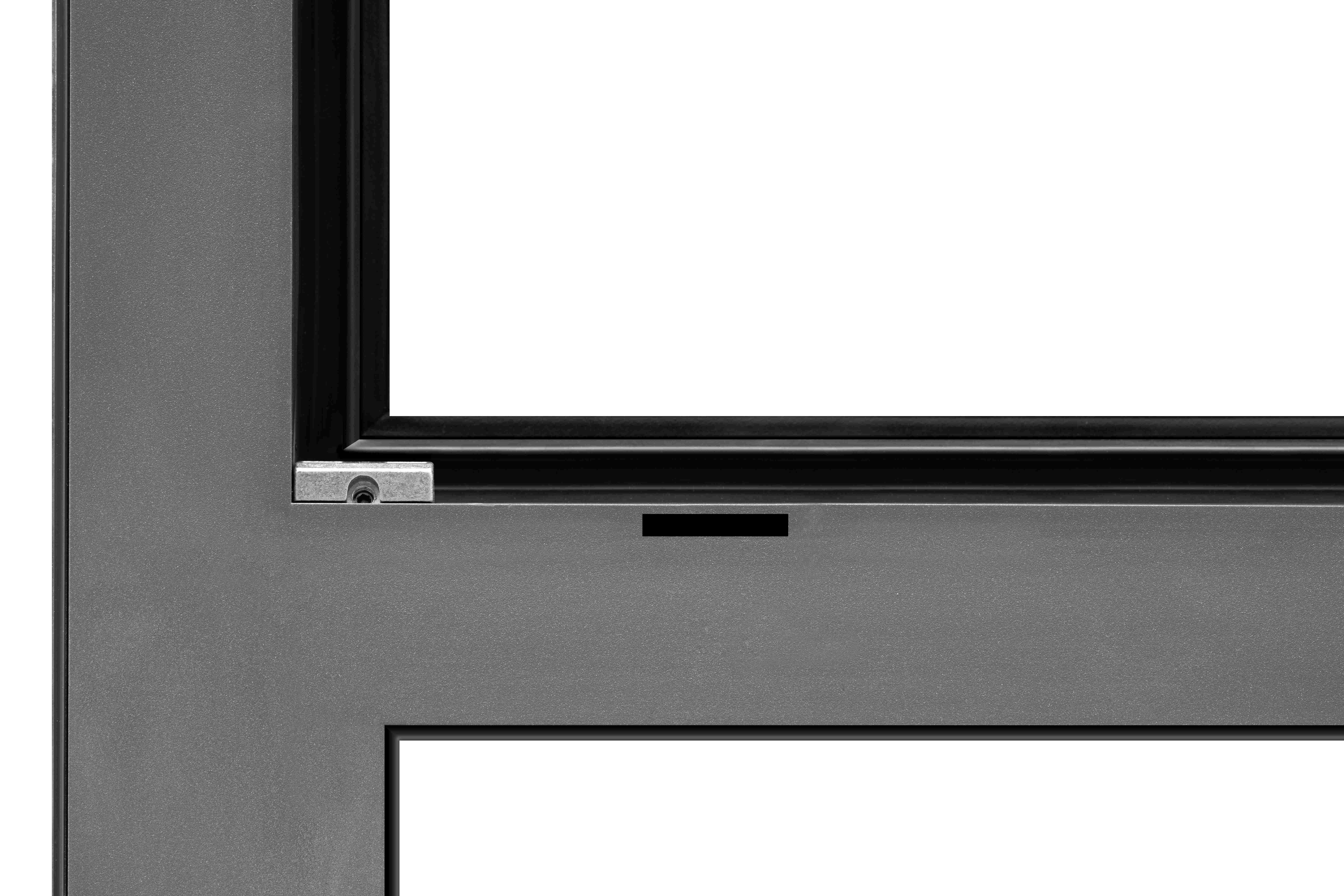

45° mitred aluminum frames with hidden stainless steel brackets create continuous corner glass panels, ideal for modern floor-to-ceiling designs.
Structural silicone bonding ensures watertight seals at corner junctions, passing cyclic pressure tests (±500Pa, 50 cycles).
High-Performance Materials:
6063-T6 aluminum alloy (Tensile strength ≥260MPa) with powder-coat finish (100μm thickness), resisting salt spray (1000h ASTM B117) and graffiti.
Tempered glass (EN 12150 compliant) with 4x the impact resistance of annealed glass, reducing risk of breakage during installation.
Precision Manufacturing:
CNC-machined corner joints (tolerance ±0.1mm) and laser-cut gaskets ensure airtight closures, meeting EN 12207:2000 air permeability Class 4.

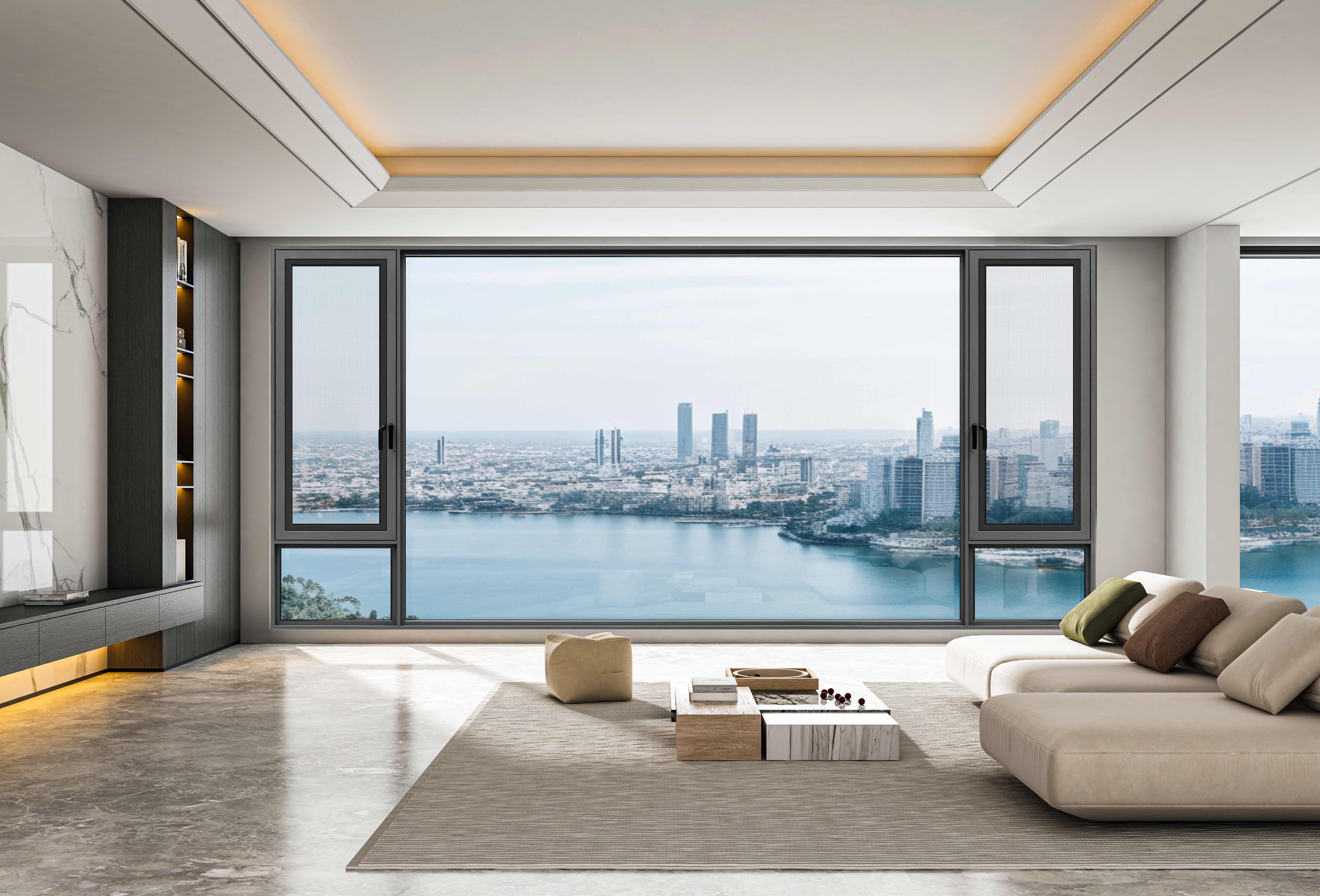

Commercial High-Rises: Enables iconic corner glazing in skyscrapers and office towers, combining energy efficiency with panoramic views.

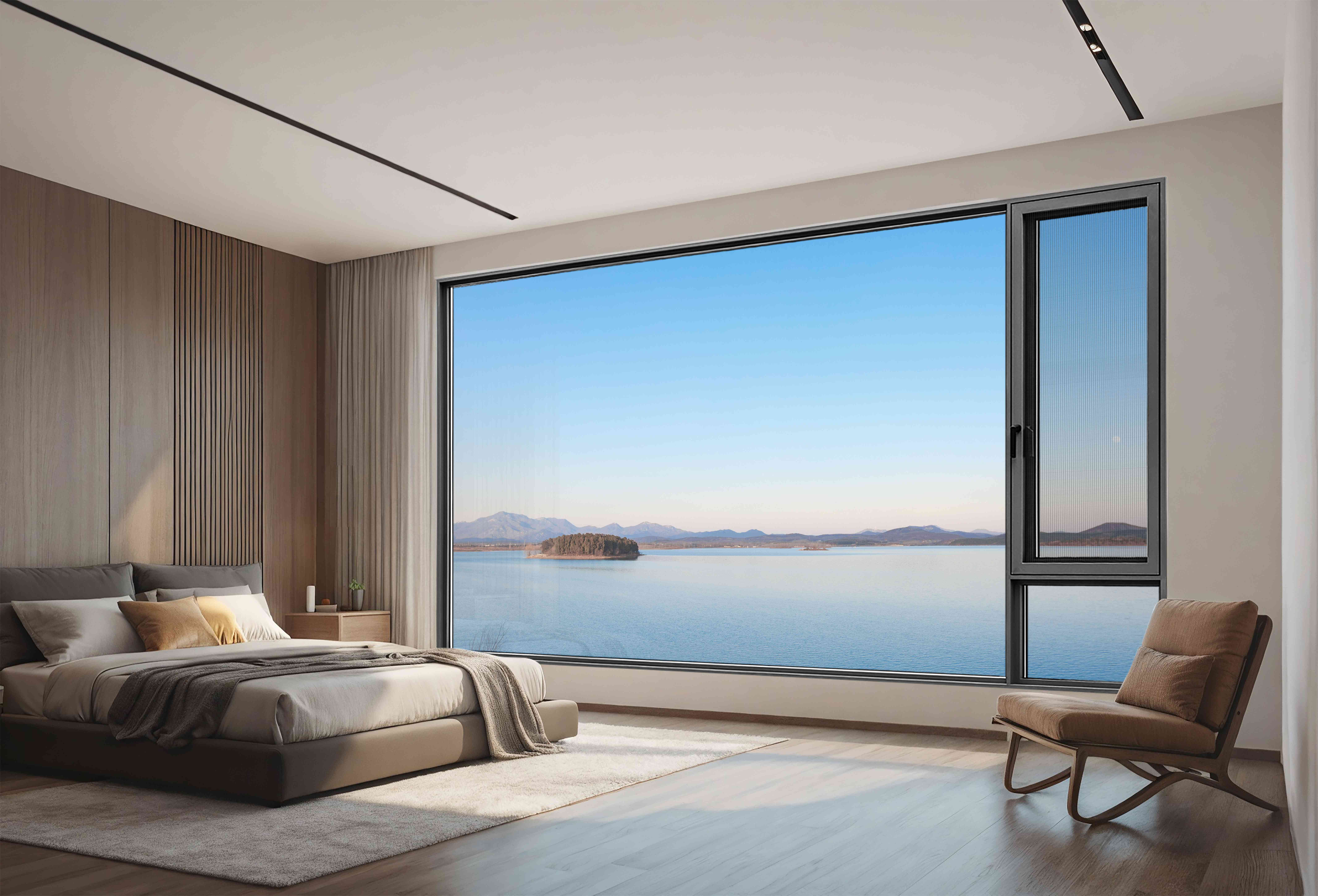

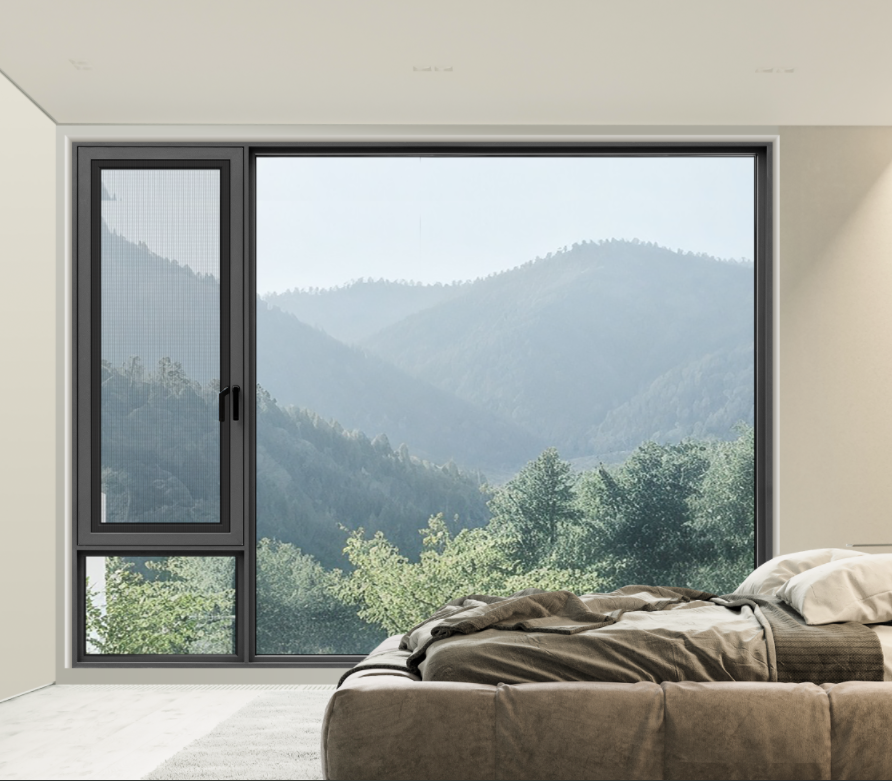

Residential Architects: Ideal for modern homes with angular designs, bay windows, and glass-enclosed balconies requiring structural integrity.
Institutional Buildings: Used in schools, hospitals, and museums for thermal comfort and noise reduction (32dB sound insulation), compliant with LEED v4.1.
Q: How are corner windows anchored to the building structure?
A: Through concealed stainless steel anchors and adjustable brackets, compatible with concrete, steel, and timber frames.
Q: Can these windows be fitted with automatic opening systems?
A: Yes, motorized actuators (24V DC) are available for remote-controlled ventilation, integrated with building management systems (BMS).
Q: What is the fire resistance rating of the glass?
A: Tempered glass provides 30 minutes of integrity in fire situations (EN 1365-1:2000), with optional fire-rated frames available for critical applications.
