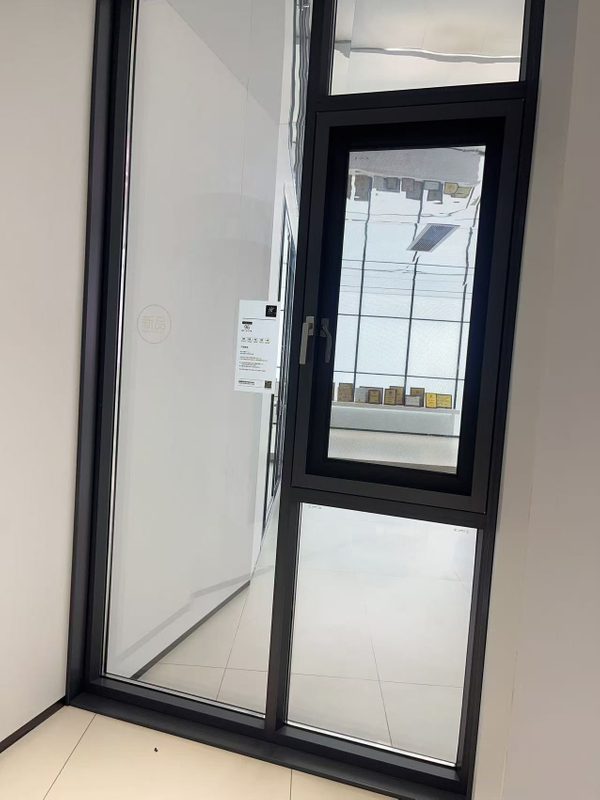

Vast Starry Sky 96 Outwards Casement Window
Engineered for ultimate comfort, our Soundproof Thermal Break Casement Windows for Luxury Villas combine advanced noise reduction with energy efficiency, ideal for high-end residential and commercial projects in noise-polluted areas. The thermal break aluminium frame (6063-T6) and double-glazed laminated glass deliver superior sound insulation, thermal performance, and security, setting a new standard for luxury fenestration.
Exceptional Soundproofing:
Laminated glass (6mm + PVB + 6mm) with varying thicknesses (total 12-20mm) achieves noise reduction up to 45dB, blocking traffic, aircraft, and industrial noise.
Mass-loaded vinyl gaskets and sealed interlayers target specific frequency ranges (100-4000Hz), customized for project needs.
Thermal Break Technology:
20mm polyamide strips with thermal barriers reduce U-factor to 1.0 W/m²K (NFRC certified), meeting passive house requirements for ultra-low energy consumption.
Low-E coating (SHGC 0.22) and argon gas fill minimize heat transfer, suitable for both hot summers and cold winters.
Bespoke Luxury Design:
Available in premium finishes (brushed aluminium, bronze anodized) and custom textures, with optional gold/silver leaf detailing for exclusive projects.
Slim sightlines (40mm frame width) maximize glass area for unobstructed views, combined with seamless corner glazing for modern architecture.
Commercial-Grade Durability:
Stainless steel hardware (AISI 316) with marine-grade plating resists corrosion in saltwater environments, backed by a 25-year hardware warranty.
Laser-cut gaskets and robotic glazing ensure airtight seals (air permeability ≤0.01 m³/m²h, EN 12207 Class 4).
Luxury Villas: Ideal for urban penthouses and rural estates, providing a quiet, comfortable living environment regardless of external noise.
High-End Offices: Used in executive suites and conference rooms for soundproofing and energy efficiency, compliant with LEED v4.1 standards.
Hospitality Projects: Enhances guest experience in hotels and resorts located near airports or busy streets, ensuring restful environments.
Q: What is the minimum noise reduction rating available?
A: Standard models achieve 35dB; custom laminated glass can reach up to 50dB for critical noise control applications.
Q: Can these windows be integrated with smart glass technology?
A: Yes, switchable smart glass (PDLC) is available as an upgrade, allowing adjustable transparency for privacy and light control.
Q: How is the thermal break tested for durability?
A: All frames undergo 1000+ cycles of thermal cycling (-20°C to 60°C) to ensure no dimensional change or gasket failure.
