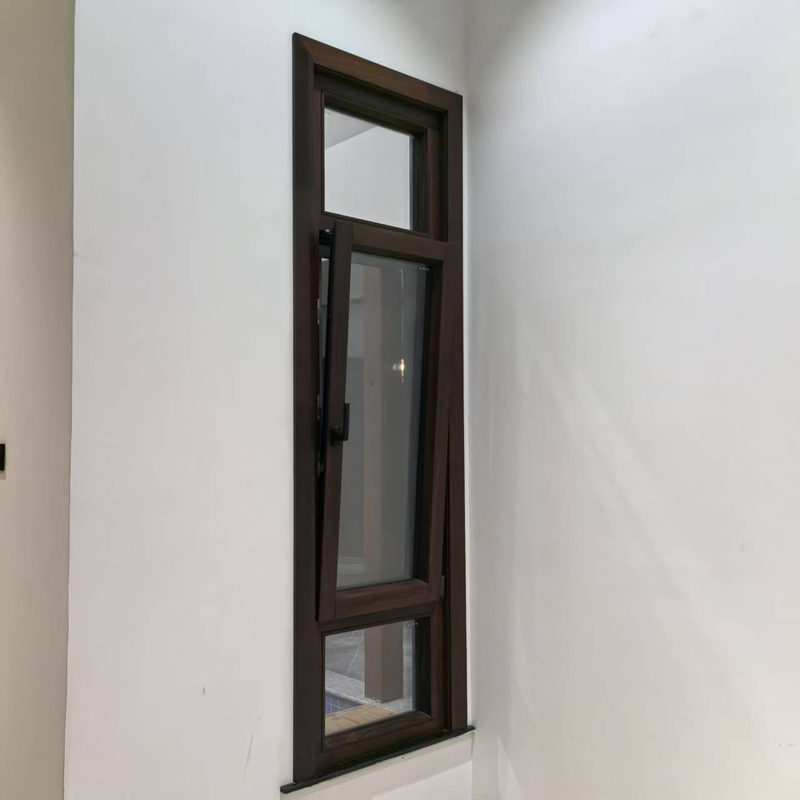

Tilt And Turn Windows And Doors Building Materials-Aluminum Clad Wood 120

Product parameters

Glass sash inward opening and tilting + inward opening screen window

Frame material solid wood width 62mm

Frame material solid wood height 81mm

Sash material solid wood thickness 78mm

Sash material solid wood height 81mm

Glass configuration standard 5+20A+5

Sash size

Inward opening: Sash width mm: 500≤W≤800 Sash height: 600≤W≤1650

Inward opening and tilting:

Sash width mm: 500≤W≤1200

Sash height: 500≤W≤2400

Color white, white oak, white rubbed gold, black rubbed gold, red sandalwood, teak, amber

Hardware

Glass sash-Haobo handle

Maco accessories

Sash-Weihagen concealed handle

Sliding support-Runas

Selected 100-year-old precious wood species (Australian red sandalwood) with stable fibers; spliced by finger jointing, offsetting internal stress and controlling wood deformation to the greatest extent

Other wood: Burmese teak, rosewood, American oak, etc.; (Solid wood finger jointing: also known as integrated wood, using multiple wooden boards with serrated interfaces on the end faces, similar to the cross-jointing of two fingers, and machine extrusion and gluing to form)

1. Main board surface: whole material, no finger jointing, the inner two layers of finger joints are glued and extruded with the main board surface (the three layers of solid wood are all Australian redwood);
