High-traffic commercial and architectural entrances take a massive beating daily. You need materials that balance structural resilience with precise aesthetic requirements. Material selection happens early in the design phase, and getting it wrong creates massive headaches later. Specifying the wrong entrance system leads to security vulnerabilities, thermal inefficiencies, and premature hardware failure. Facility managers end up dealing with inflated lifecycle maintenance demands simply because the initial specifications missed the mark.
This guide provides a technical framework for evaluating Aluminum Doors. We break down component anatomy, specification variables, and implementation realities from a field perspective. You will learn how to match stile widths to traffic volumes, verify hardware compatibility, and engineer proper thermal breaks. Proper planning prevents contractor rework and secures long-term performance. We focus on what actually works on the job site, skipping the theoretical fluff to give you actionable specification data for your next set of Aluminum Doors.
Application Fit: Aluminum doors offer the highest strength-to-weight ratio for commercial storefronts and architectural entrances, but require specific thermal break engineering in extreme climates.
Component Specification: Durability is dictated by the dimensions of stiles and rails; narrow stiles suit light traffic, while wide stiles are mandatory for heavy commercial use and advanced panic hardware.
Cost Drivers: Initial pricing is heavily influenced by alloy grade, custom finishes (anodized vs. PVDF), glazing selections, and the integration of electronic access control systems.
Installation Risk: Long-term performance relies entirely on precise frame alignment, structural anchoring, and proper weathersealing during the initial installation phase to avoid costly contractor rework.
Table of Contents
Extruded aluminum alloys deliver an exceptional strength-to-weight ratio. Manufacturers typically use 6063-T5 or 6061-T6 aluminum alloys for architectural applications. These materials support heavy insulated glass units without sagging under their own weight. The lightweight nature reduces stress on hinges and pivots. This extends the operational lifespan of the entire entrance system. When you hang a 250-pound glass door, every ounce of frame weight matters.
Security depends heavily on hardware compatibility. Aluminum frames easily integrate with advanced locking systems. You can install concealed vertical rod (CVR) panic devices directly inside the stiles. Magnetic locks and electric strikes mount seamlessly into the aluminum frame header and jambs. These integrations prevent forced entry in high-risk environments. We see this constantly in urban retail spaces where physical security remains a daily concern.
Impact resistance is another core advantage. High-traffic environments demand structural load capacities that withstand constant abuse. Heavy-wall extrusions resist denting from delivery carts and heavy foot traffic. Reinforced corner construction maintains frame squareness under heavy lateral loads. This structural rigidity directly prevents unauthorized access by keeping the door leaf perfectly aligned with the locking strikes.
Aluminum possesses a natural oxidation process. When exposed to air, it forms a microscopic aluminum oxide layer. This layer seals the metal surface. It prevents structural rusting entirely. Unlike hollow metal steel, aluminum will not degrade or flake when scratched by a passing delivery hand truck.
Maintenance requirements remain minimal over the product lifecycle. You only need routine cleaning and hardware lubrication. Alternative materials often require frequent repainting or rust mitigation. Aluminum retains its structural integrity without these intensive interventions. Facility teams save hundreds of hours annually by avoiding rust remediation.
Lifespan varies based on environmental conditions. Inland applications easily see decades of reliable service. Coastal environments expose materials to harsh saltwater spray. You must specify high-performance finishes for coastal projects. Proper coatings protect the aluminum from pitting and galvanic corrosion. If you install raw or poorly anodized aluminum within five miles of the ocean, the salt air will pit the surface within a year.
Standard aluminum exhibits high thermal conductivity. This creates thermal bridging vulnerabilities. Heat transfers easily through standard aluminum frames. Fiberglass offers superior natural insulation. You must specify thermally broken aluminum frames to match fiberglass performance in cold climates.
Aesthetics drive many architectural decisions. Hollow metal steel doors offer limited design flexibility. They look industrial and bulky, making them better suited for back-of-house service corridors. Aluminum extrusions allow for sleek, narrow sightlines. You can achieve massive glass-to-frame ratios. This maximizes natural daylighting in commercial spaces.
Fiberglass doors resist denting well. However, they lack the structural rigidity required for massive commercial storefronts. Aluminum spans larger openings without intermediate supports. It provides the necessary backbone for continuous curtain wall assemblies.
Material | Structural Rigidity | Sightlines | Corrosion Resistance |
|---|---|---|---|
Aluminum | High (Spans large openings) | Narrow and sleek | Excellent (Natural oxidation) |
Hollow Metal Steel | Very High (Heavy duty) | Bulky and industrial | Poor (Requires constant painting) |
Fiberglass | Moderate (Requires support) | Medium to bulky | Excellent (Impervious to rust) |

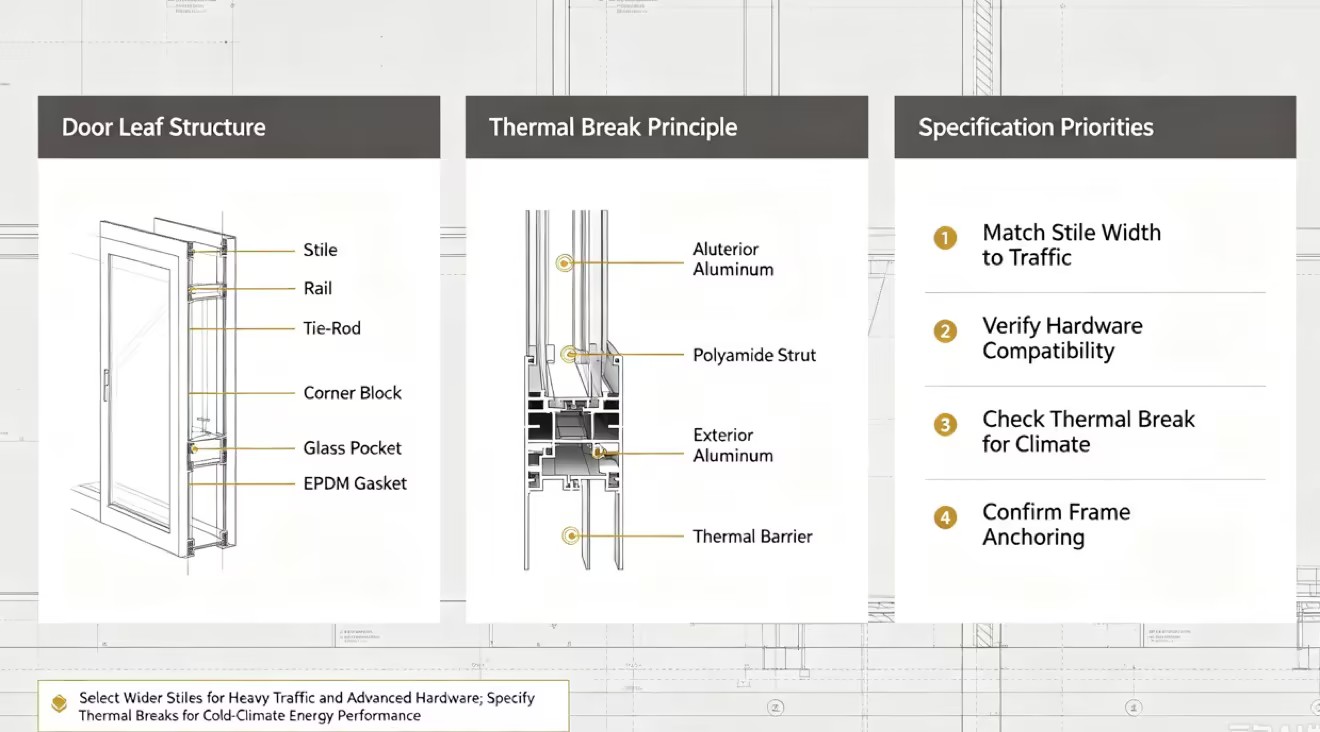

Vertical framing members are called stiles. Horizontal framing members are called rails. Together, they form the structural perimeter of the door leaf. The dimensions of these members dictate overall durability. You must select stile widths based on anticipated traffic and hardware requirements. Bottom rails also require attention; 10-inch bottom rails are standard for ADA compliance to resist wheelchair impact.
Stile Type | Width Dimension | Traffic Volume | Hardware Compatibility |
|---|---|---|---|
Narrow Stile | 2-1/8 inches | Light to Moderate | Standard push/pull, basic deadlocks |
Medium Stile | 3-1/2 inches | Heavy Commercial | Surface-mounted panic devices, heavy closers |
Wide Stile | 5 inches | Institutional / Extreme | Concealed vertical rods, advanced access control |
Door sag is a common failure point on job sites. Manufacturers prevent this using structural tie-rods. These steel rods run horizontally through the top and bottom rails. They bolt directly into the vertical stiles, pulling the entire assembly tight. Corner block construction adds further rigidity. Heavy aluminum shear blocks reinforce the internal joints. When a contractor hangs the door, these internal reinforcements keep the geometry perfectly square.
Center-glazed systems position the glass in the middle of the frame depth. This is the standard for most interior applications. Offset-glazed systems push the glass toward the exterior face. This improves water management on exterior walls by reducing the sill depth where water can pool. Flush-glazed systems align the glass perfectly with the frame face. This creates a seamless architectural aesthetic favored in modern office buildings.
Aluminum door frames integrate into larger assemblies. They snap into continuous storefront systems. They bolt into massive curtain wall grids. The frame must accommodate the expansion and contraction of these larger systems. Slip joints and expansion mullions handle this movement. Standard storefront tubes typically measure 1-3/4" x 4-1/2" or 2" x 4-1/2", providing a predictable grid for architects.
Wall substrates dictate structural frame requirements. Concrete walls require heavy-duty masonry anchors. Steel stud walls need internal wood blocking for screw retention. The aluminum frame must transfer the door weight into the building structure. Weak substrates lead to frame twisting and immediate hardware binding.
Glazing stops secure the glass panels inside the aluminum frame. They snap into the extrusion profile. Exterior stops pose a security risk. Intruders can pry them off to remove the glass. Always specify interior glazing stops for exterior entrances. This simple choice prevents easy forced entry. Installers use EPDM glazing gaskets to lock the stops tightly against the glass.
Glass weight requires careful distribution. Setting blocks sit at the bottom of the glazing pocket. They cushion the glass edge against the aluminum. Glazing jacks sit at the top corners. They transfer the glass weight diagonally across the door leaf. This prevents the door from sagging out of square. Anti-walk blocks keep the glass from shifting laterally during operation.
Aluminum frames accommodate various glazing thicknesses. Standard interior doors use 1/4-inch single glass. Exterior doors require 1-inch insulated glass units (IGUs). High-security facilities utilize impact-rated or ballistic glazing. The aluminum extrusion must feature a deep enough glazing pocket to accept these thicker panels.
Thermal bridging occurs when metal spans from exterior to interior. Cold outside air cools the exterior frame. The aluminum conducts this cold inside. This increases HVAC loads. It also causes interior condensation during winter months. Water drips onto the floor, creating slip hazards in retail lobbies.
Thermal break technologies solve this issue. Poured-and-debridged systems use liquid polyurethane. The manufacturer pours it into a frame channel. Once cured, they cut away the metal bridge. Polyamide struts offer a modern alternative. Two separate aluminum extrusions are crimped onto a rigid plastic strut. This significantly improves the U-factor of the entire entrance assembly.
Thermal breaks impact structural rigidity. Polyamide struts maintain excellent shear strength. They handle heavy wind loads without deflecting. Poured polyurethane can shrink over time. This sometimes causes the interior and exterior frame halves to shift. Specify polyamide struts for high-load applications.
Retail and low-to-mid-rise commercial buildings rely on storefront doors. They offer high visibility and reliable operation. These systems handle hundreds of daily cycles. You typically see them in strip malls, office lobbies, and standalone retail shops. They must meet ADA threshold requirements, keeping the bottom transition under 1/2-inch in height.
Hardware configurations vary by application. Center-hung doors pivot from the middle of the frame depth. They swing in both directions. Offset pivot doors swing in only one direction. They use hinges mounted flush with the door face. Offset pivots handle heavier door weights more effectively and allow for tighter weathersealing.
Storefront doors integrate with continuous aluminum framing. The door jambs act as the starting point for the window wall. Transom frames sit directly above the door. This continuous integration ensures consistent sightlines across the entire building facade.
Institutional and educational facilities demand heavy-duty entrances. Standard storefront doors fail rapidly in these environments. High school entrances endure severe daily abuse. Public buildings see thousands of cycles per day. You must specify architectural-grade systems here.
These doors require heavy-wall extrusions. The aluminum thickness is significantly increased. Standard walls might be 0.125 inches thick. Heavy-duty walls reach 0.188 inches or more. This extra material prevents the stiles from denting under impact. Continuous geared hinges replace standard pivots to distribute the massive weight evenly from top to bottom.
Reinforced corner construction is mandatory. Manufacturers use dual-welded corner blocks. They combine mechanical fasteners with structural epoxy. This ensures the door leaf never sags. It keeps the panic hardware aligned perfectly with the frame strikes.
High-end residential and hospitality environments utilize large operable walls. Sliding and bi-folding systems blur the line between indoor and outdoor spaces. Restaurants use them to open dining rooms to patios. Luxury homes use them to connect living rooms to pool decks. Flush sill options allow for seamless floor transitions.
Track systems dictate performance. Top-hung systems suspend the door weight from the header. This requires massive structural steel above the opening. Bottom-rolling systems place the weight on the floor track. This is easier to install but requires frequent track cleaning to prevent the rollers from binding.
Weather-stripping is critical for large operable walls. Multi-point locking systems compress the door panels against the frame. Heavy-duty EPDM gaskets seal the gaps. You must verify structural wind-load ratings. Large glass panels act like sails during severe storms, and the aluminum framing must resist extreme deflection.
Aluminum billet quality dictates base material performance. High-strength alloy grades like 6063-T5 provide optimal extrusion characteristics. They offer excellent surface finish quality. This alloy responds perfectly to anodizing and painting processes. Lower-grade alloys may show surface imperfections after finishing. Many manufacturers now use billets with high recycled content to help projects achieve LEED certification.
Standard profiles meet most commercial needs. They are readily available from manufacturers. Custom architectural extrusions allow unique sightlines. Architects design custom profiles to match historical building features. Custom dies require specialized manufacturing runs and extended planning.
Specialized glass selections significantly impact the final assembly. Low-E coatings improve thermal performance. Tinted glass reduces solar heat gain. Laminated glass provides acoustic dampening and security. The chosen glass weight directly influences the required hardware capacity.
Hardware selection defines the user experience. Continuous geared hinges distribute door weight evenly. They eliminate the concentrated stress points of butt hinges. Heavy-duty surface closers ensure controlled closing speeds. Exit devices provide safe egress during emergencies.
Electrified hardware requires factory preparation. You cannot easily drill aluminum frames in the field for complex wiring. Manufacturers must route wire chases through the stiles. They install power transfer hinges. They prep the frame for card readers, request-to-exit (RX) switches, and door position switches (DPS).
Access control integration demands precise coordination. The door manufacturer must know the exact hardware schedule. Magnetic locks require reinforced header brackets. Electric strikes require specific cutout dimensions in the jamb. Missing these details causes severe installation delays.
Anodizing alters the molecular structure of the aluminum surface through a multi-step process of cleaning, etching, and sealing. Class I anodizing provides a thicker protective layer than Class II. It offers superior wear resistance for high-traffic doors. Clear anodizing maintains the natural metallic look. Color anodizing introduces bronze or black tones.
PVDF architectural paints offer immense color flexibility. Kynar 500 is the industry standard, meeting AAMA 2605 specifications. These high-performance coatings resist UV fading. They withstand harsh chemical environments. You can match any custom corporate color using PVDF paints.
Warranty implications depend on the finish selection. Class I anodizing typically carries long-term warranties against peeling. PVDF coatings offer extended warranties against chalking and fading. Always specify finishes based on the specific environmental exposure of the building site.
Custom finishes extend manufacturing lead times. Standard clear anodized frames ship quickly. Custom PVDF colors require specialized batch runs. Factory hardware preparation also adds time to the production schedule. You must factor these timelines into the project critical path, including the time required for shop drawing approvals and field measuring.
Staging requires careful logistical planning. Frames usually arrive before the glass panels. The general contractor must store the aluminum components safely. Leaving unprotected frames on an active job site invites damage. Scratched anodized finishes are nearly impossible to repair perfectly in the field.
Coordination with glazing contractors prevents delays. The frame installer must leave the glazing pockets clean. The hardware installer must verify all electrical connections. Seamless communication ensures the entrance system functions exactly as specified upon handover.
Precise frame alignment dictates long-term success. The architectural aluminum door frame must be installed right the first time. The jambs must be perfectly plumb. The header must be perfectly level. The entire assembly must be perfectly square. Any deviation causes the door to bind against the frame.
Substrate evaluation determines the anchoring method. Concrete requires expansion anchors or masonry screws. Steel requires self-tapping fasteners. Wood studs require lag bolts. The anchors must penetrate deep into the structural substrate. Do not anchor into drywall or exterior sheathing.
Shimming prevents long-term shifting. Installers place high-density plastic horseshoe shims behind every anchor point. This fills the gap between the aluminum frame and the rough opening. It prevents the frame from bowing when the anchors are tightened. Proper shimming keeps the frame rigid.
Verify rough opening dimensions against approved shop drawings before unpacking frames.
Set the sill flashing pan in a continuous bed of high-grade silicone sealant.
Plumb the hinge jamb first, securing it with temporary shims and checking with a laser level.
Level the header and secure the strike jamb, ensuring the diagonal measurements match perfectly.
Drive permanent structural anchors through the shims to prevent frame distortion.
Water intrusion destroys interior finishes. Sill flashing is the first line of defense. The installer places a metal flashing pan under the door threshold. This pan catches any water that bypasses the primary seals. It directs the water back to the exterior.
Sweep gaskets seal the bottom of the door leaf. Perimeter sealants close the gap between the frame and the building facade. You must use high-quality silicone sealants over proper backer rods. Polyurethane sealants break down under UV exposure. Tool the sealant joints to shed water away from the frame.
Weep hole systems manage internal drainage. Water inevitably enters the glazing pockets. It travels down the vertical mullions. Weep holes at the base of the frame allow this water to escape. Ensure weep hole baffles are installed. They prevent wind-driven rain from blowing back inside.
Mismatching door weight with hinge capacity causes rapid failure. A heavy wide-stile door with 1-inch insulated glass requires continuous hinges or heavy-duty offset pivots. Standard butt hinges will bend under the weight. Always calculate total door weight before specifying hardware.
Failing to account for building settlement causes binding. The rough opening will shift over time. You must leave adequate clearance around the aluminum frame. Use flexible silicone sealants in the expansion joints. This allows the building to move without crushing the door frame.
Value-engineering thermal breaks out of exterior applications is a massive error. Removing polyamide struts compromises the entire building envelope. It leads to severe condensation issues. The resulting water damage far outweighs any initial material savings. Never compromise on thermal breaks in cold climates.
Audit your anticipated daily traffic volume to determine the correct stile width for your specific entrance.
Verify your local climate zone requirements to specify the appropriate thermal break technology.
Review your access control requirements and mandate factory preparation for all electrified hardware.
Coordinate directly with your commercial glazing contractor to confirm substrate anchoring methods and rough opening dimensions.
A: Commercial aluminum doors typically last 20 to 30 years or more. The extruded aluminum frame rarely fails. Hardware components like closers, pivots, and panic devices usually wear out first. Routine maintenance and hardware replacement keep the aluminum entrance functioning indefinitely.
A: Standard aluminum is highly conductive and not energy efficient. To achieve energy efficiency, you must specify thermally broken frames. These use polyamide struts to separate the interior and exterior metal. Combining thermal breaks with insulated glass units provides excellent energy performance.
A: Stile width dictates durability and hardware compatibility. Narrow stiles suit light retail traffic. Medium stiles handle heavy commercial use and standard panic hardware. Wide stiles are required for institutional environments and advanced concealed vertical rod exit devices.
A: Yes, they are typically finished in the factory using high-performance PVDF coatings or baked enamels. Field-painting anodized aluminum is highly discouraged. Paint struggles to adhere to the oxidized surface, leading to rapid peeling and flaking.
A: Standard mortise cylinders offer basic security. You can significantly upgrade security by specifying wide stiles, multi-point locking systems, and concealed vertical rods. Integrating electronic access control and using laminated impact-resistant glass further hardens the entrance against forced entry.
A: Sagging usually stems from worn pivots or hinges failing under heavy glass weight. It can also result from failed corner block joinery inside the door leaf. Improper initial installation, where the frame was not set perfectly plumb and square, is another common root cause.
