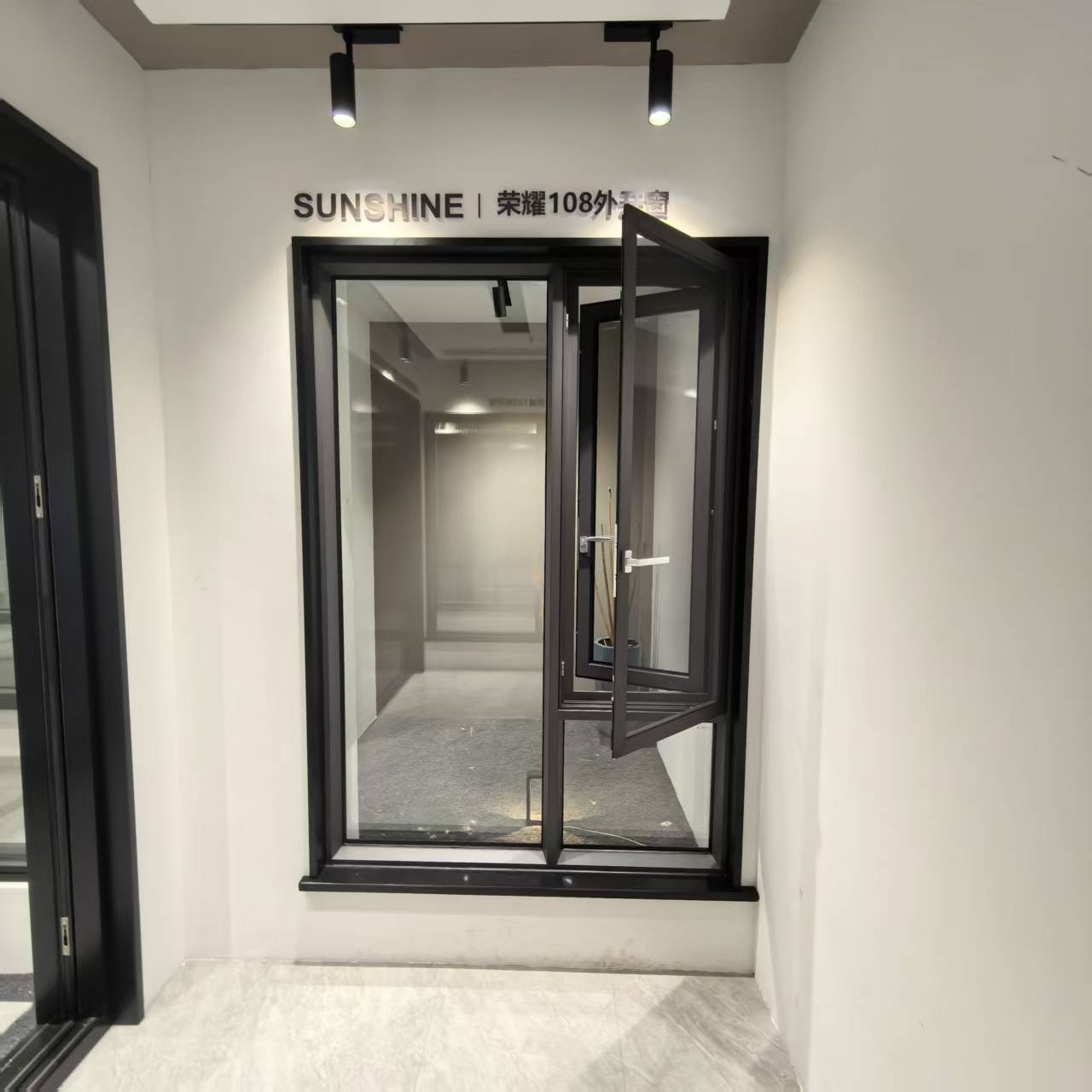

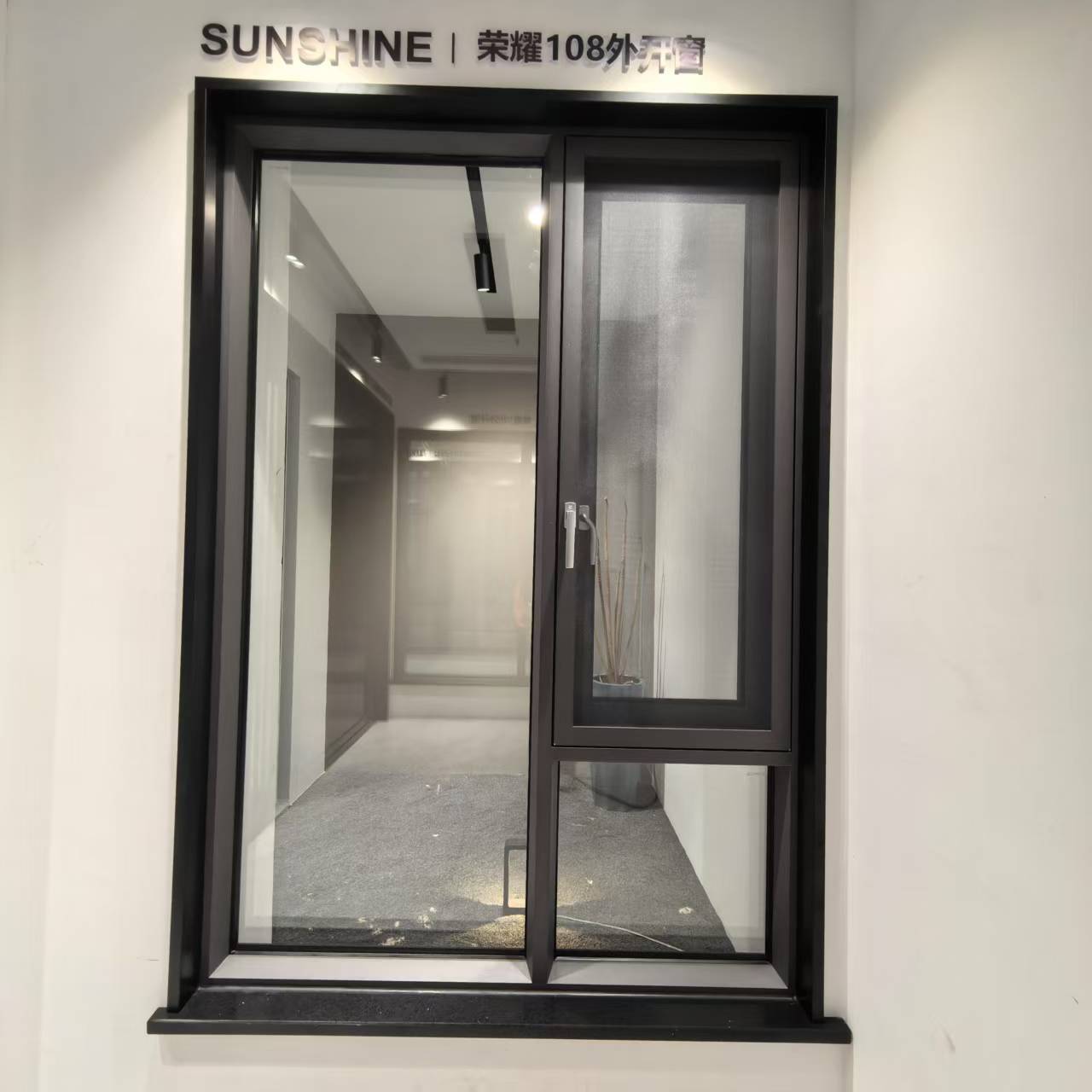

Honor 108 Outwards Casement Window
Honor 108 Outwards Casement Window
Product parameters:
Glass fan with external opening+Mesh with internal opening/external hanging window
Indoor frame visible surface 30.8mm
Outdoor frame visible surface 50.8mm
Indoor fan visible surface 97mm
Outdoor fan visible surface 77mm
Indoor total visible surface 127.8mm
The total thickness of the profile frame is 108mm
High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 1.8mm
Insulation strip width 20mm
Standard Configurations

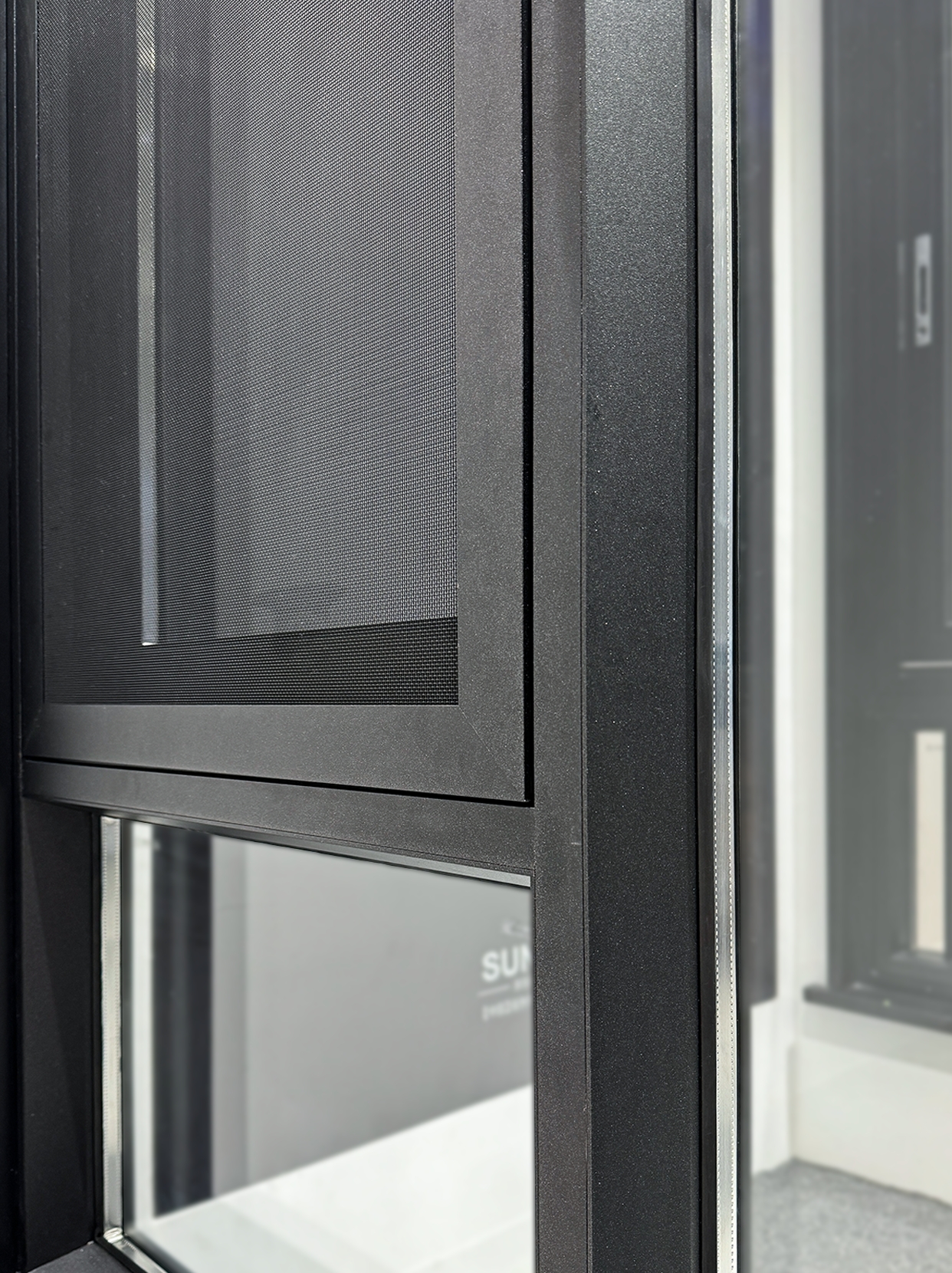

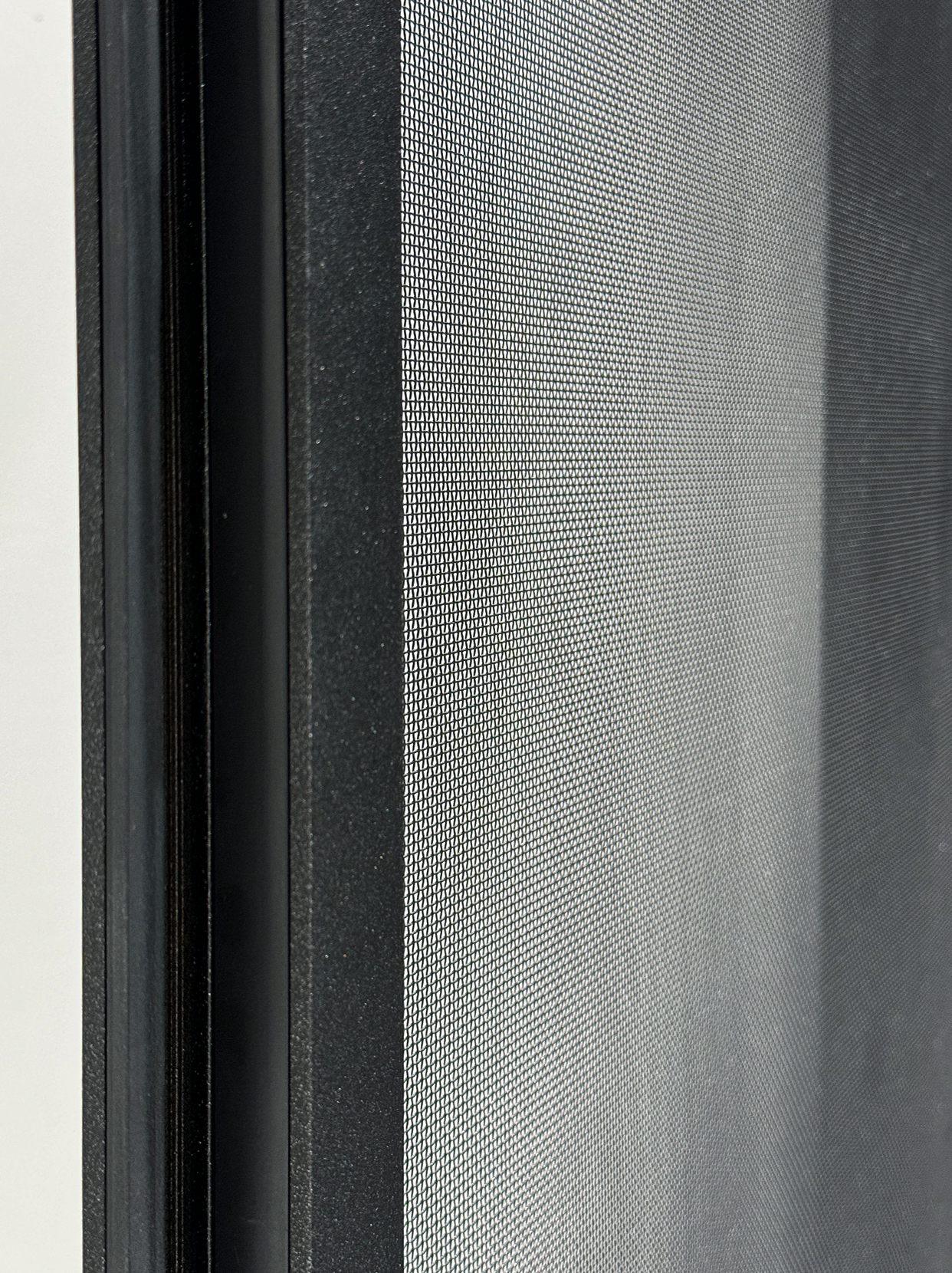

Mesh 0.3 black diamond mesh
Upgrade option: 0.6 Black Diamond Net
Hardware
Hardware brand: OAOSM

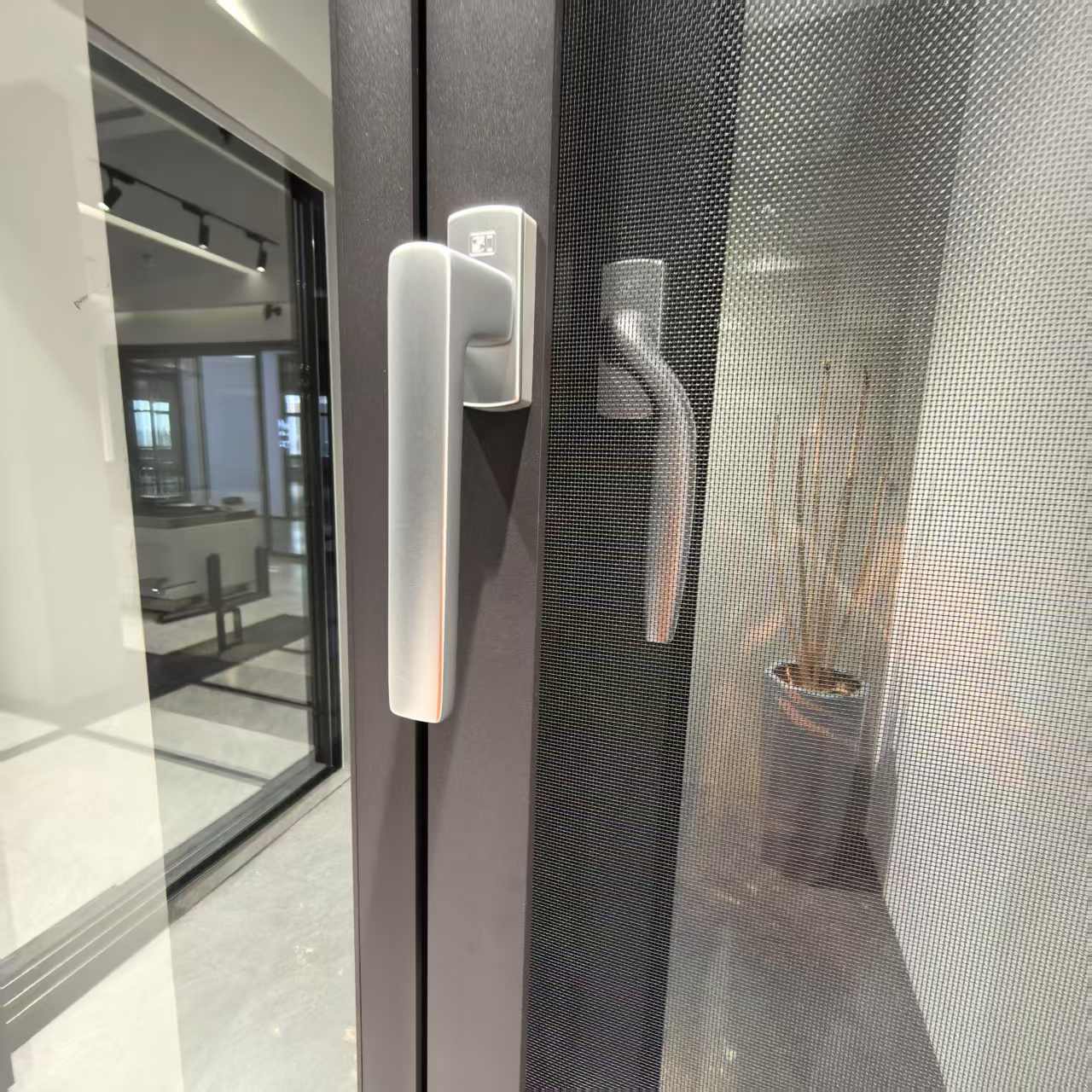

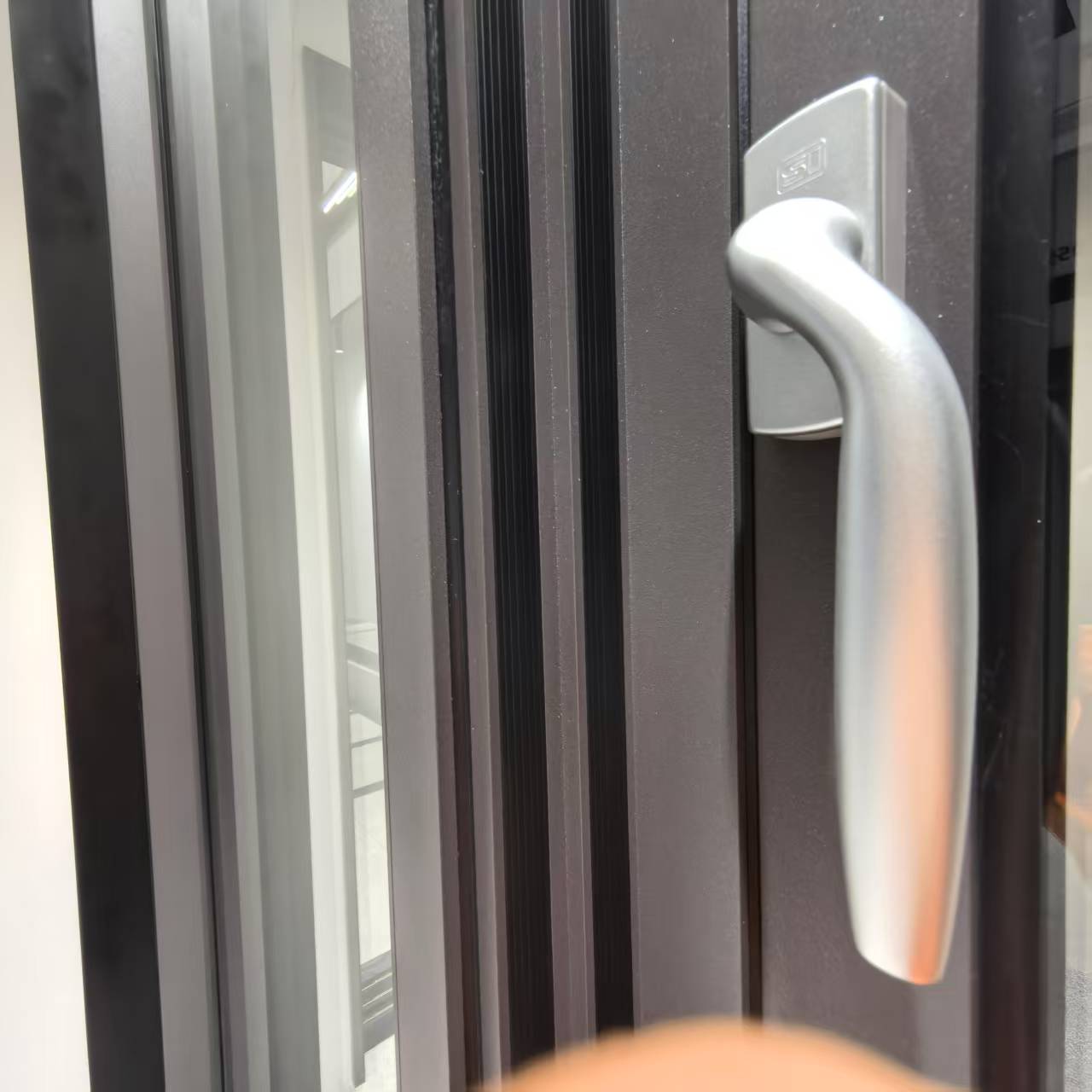

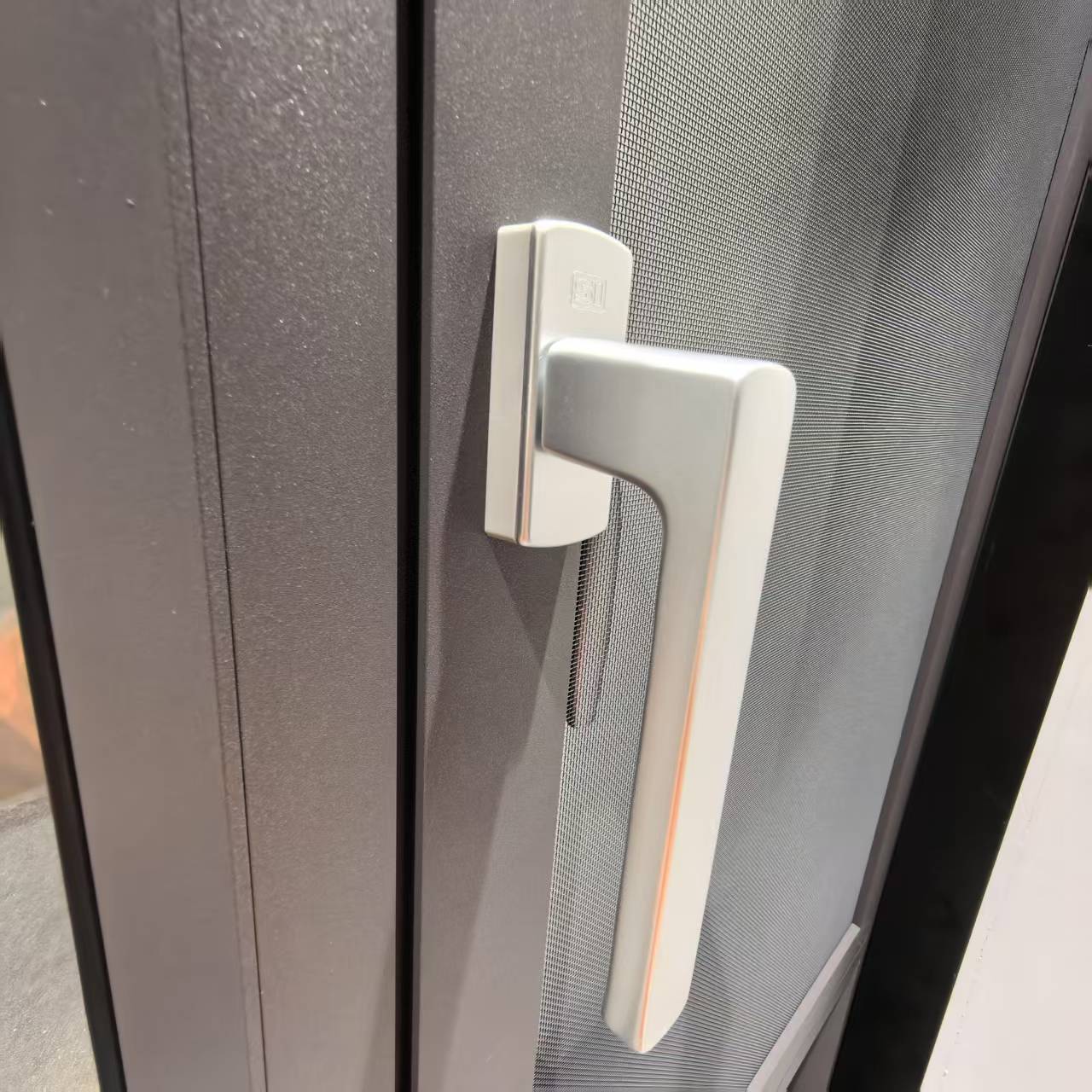

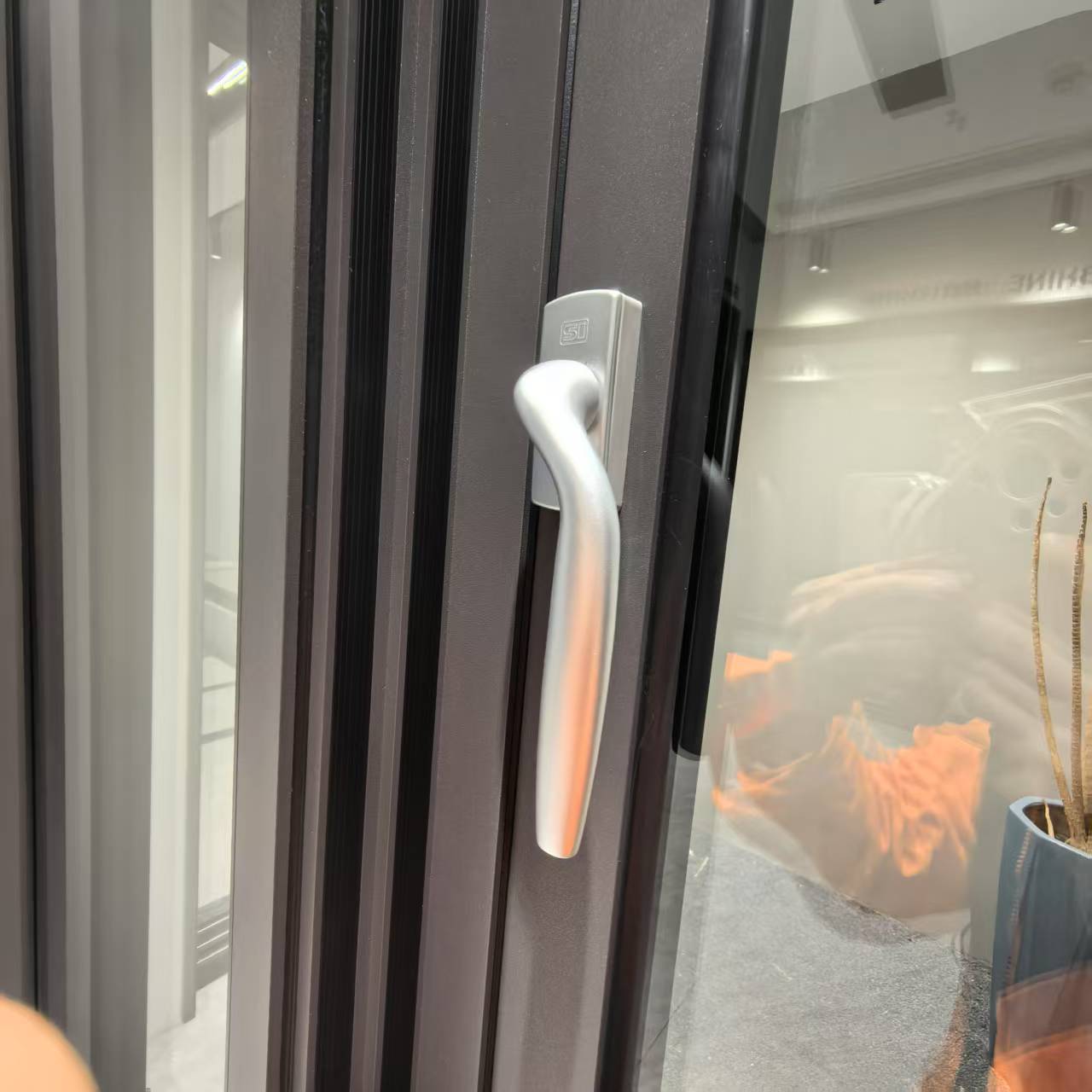

Handle: OAOSM
Window screen handle: OAOSM

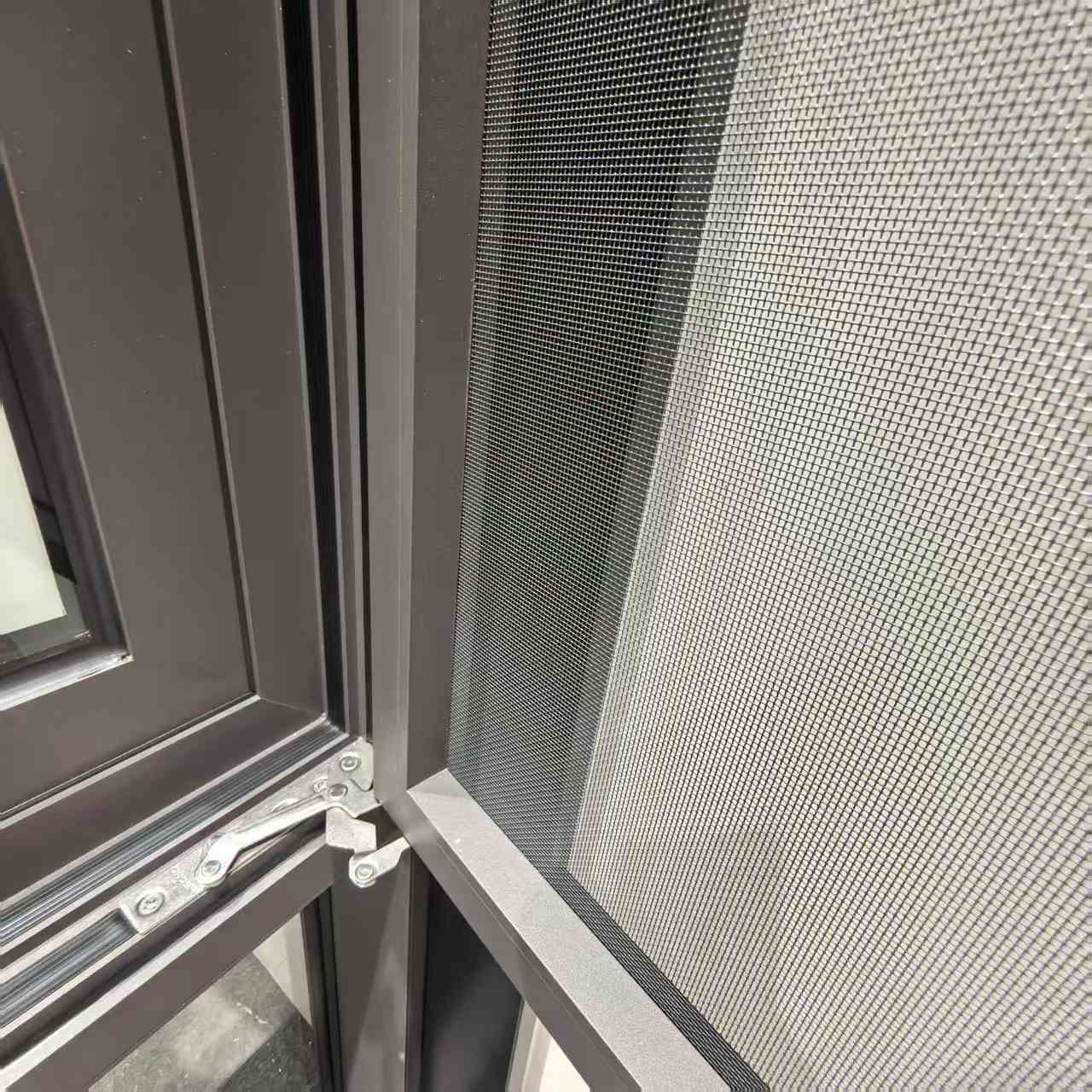

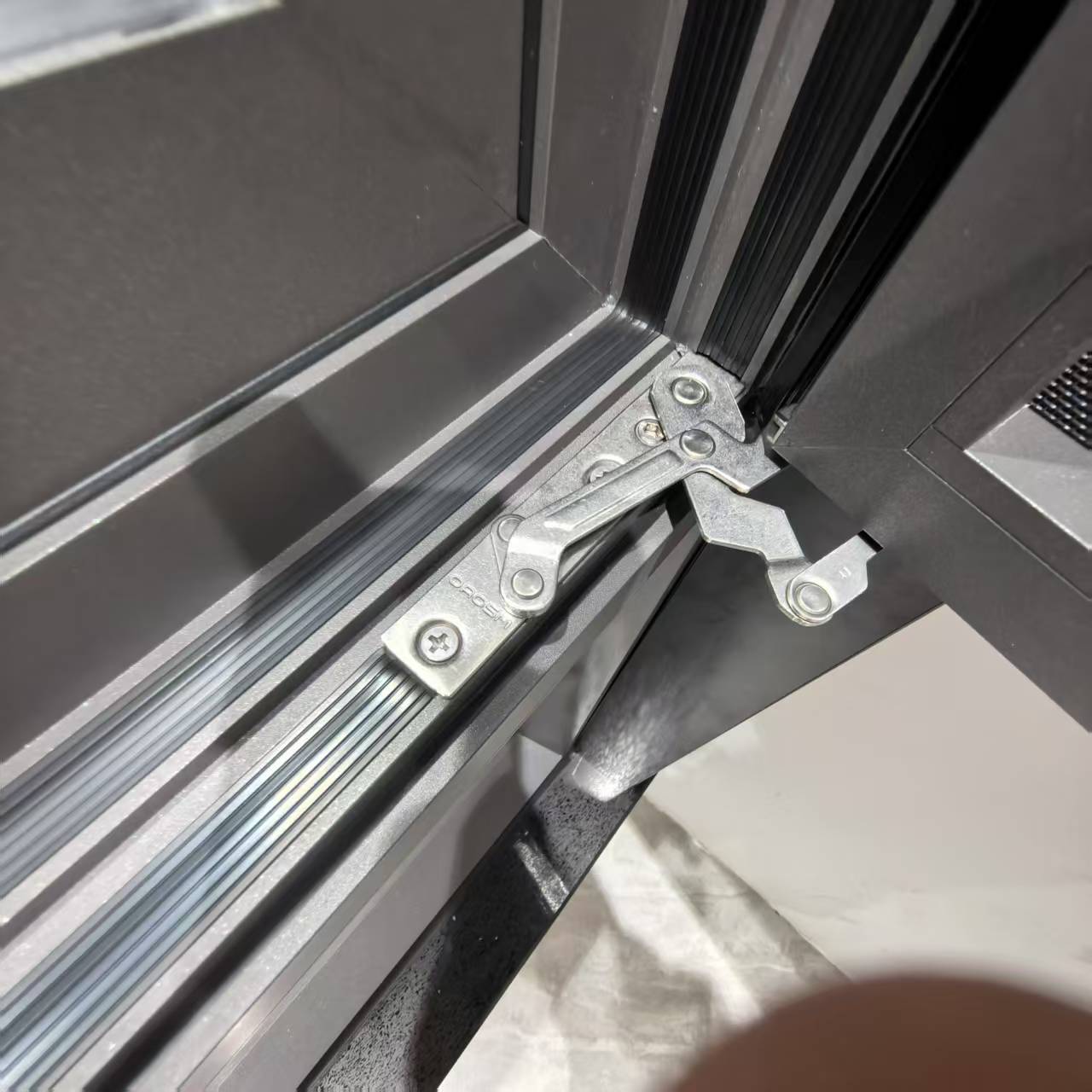

Transmission system: external opening, external suspension transmission
Add and upgrade handle: SI/Hopo

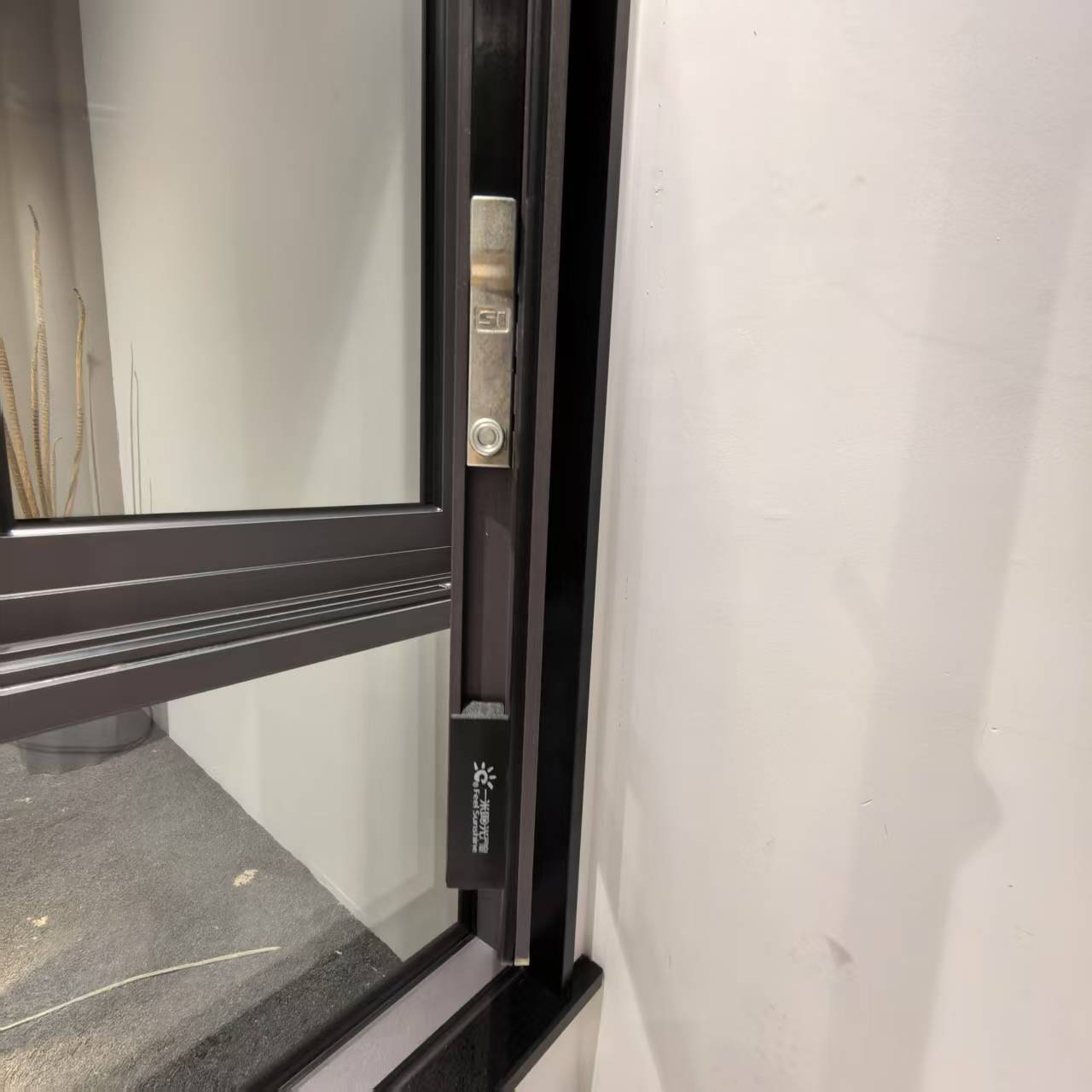

3-point lock: Fan height 1300mm (recommended for coastal areas, floors above 30th floor, and fan height 1300mm optional)
Open size and maximum load-bearing capacity: to be determined:
Fan width: 500-700mm
Fan height: 900-1500mm
Maximum load capacity: 50kg
Maximum opening angle: 87 degrees
SI： Fan width: 500-700mm Fan height: 900-1500mm Maximum load capacity: 50kg Maximum opening angle: 87 degrees
Glass
Frame: Glass channel width: 33.8
Fan: Glass channel width: 33
Standard version width: 33
Aluminum spacer color: Silver aluminum spacer
Upgrade Options:d fixed glass: 10mm+16A+10mm
Fixed glass: 6mm+18A+6mm
Fixed glass: 8mm+21A+8mm
Aluminum spacer color: black aluminum spacer
Fixed glass: 5mm+20A+5mm
Fan glass: 5mm+20A+5mm
Surface treatment
Surface treatment methods: fluorocarbon grey, fluorocarbon coffee, metal grey, starry black
Powder brand: Chinese Brand/imported monochrome/regular color
Upgrade Option: dual color/custom color
Brand of rubber strip: Chinese Brand/Imported: Rongji
Upgrade Options:
Line pressing: Square line pressing, oblique line pressing
Upgrade Options:d square pressure lines and diagonal pressure lines
Process configuration
Craft features: Adopting the German system window standard closed cavity structure; Frame assembly (European standard system window technology)
