Modern Exterior Main Gate Door Designs Front Iron Entry Doors Entrance Security Steel Door for House

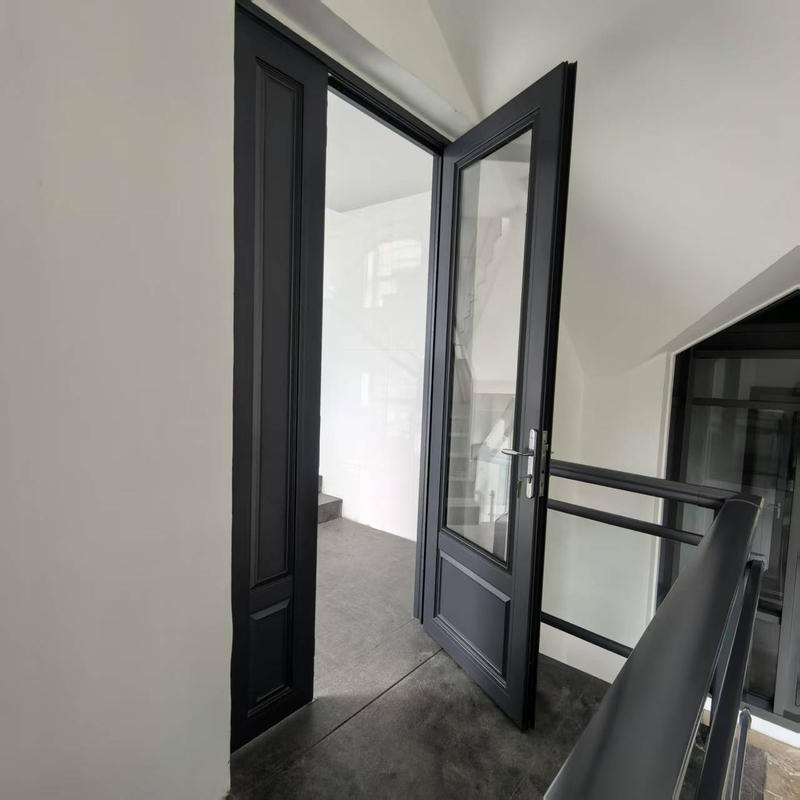

Triumph Entrance Door

Single hinge load-bearing capacity

130KG

Configure the number of hinges

3-4 pieces

130KG bearing capacity

Easy to open and close, safe and stable

THE BEARING CAPACITY OF A SINGLE HINGE REACHES 130KG

Pure imported hardware accessories from the German brand G-U, with a single hinge bearing capacity of over 130KG. Each door is equipped with a hinge (4 hinges can be configured if the door leaf is too high), which is extremely sturdy and permanently ensures the coaxiality of the door, allowing for easy opening and closing, and ensuring safety and stability.

Number of opening and closing cycles 20000 times

The minimalist design of the broken bridge aluminum handle is durable and long-lasting

THERMAL BREAK ALUMINUM HANDLE

Adopting a multi-point lock body, the locking is more secure, and both inside and outside can be opened with a key.

The indoor side has a reverse locking device for greater safety. The surface of the handle is treated with oxidation, providing a delicate touch

Continuous constant temperature, low-carbon and environmentally friendly profile of broken bridge structure

THERMAL BREAK STRUCTURE PROFILE

Select profiles with broken bridge structure

The thermal conductivity of non insulated aluminum alloy profile doors and windows is reduced by 40-70%, and the heat transfer coefficient K value is between 2.23-2.94w/㎡K, the energy-saving effect is significant, saving a lot of heating and cooling costs. Its air insulation reaches 30-40 dB, with better sound insulation effect.

Decreased thermal conductivity ratio

40~70%

Heat transfer coefficient K value

2.23-2.94 W/㎡∙-K

Sound insulation capability

30-40db

Technical parameters:

Wall thickness of profiles

2.0mm

Opening method

External opening and opposite opening

Fan width

102mm

Glass applications

Frame width

171mm

Hardware material selection

Grid house 5mm+18A+5mm

Optional Color

White, white oak, cherry wood, Brazilian rosewood, American golden oak, rosewood, rosewood, fluorocarbon ash, fluorocarbon champagne, teak

Performance Parameters

thermal insulating property

Level 6

Sound insulation performance

Level 6

Water tightness performance

Level 5

air tightness performance

Level 5

Wind Load Resistance Performance

Level 5
