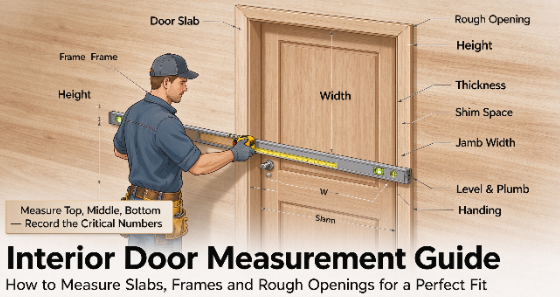

Ordering a replacement unit based on standard sizes is a recipe for drafts, sticking hinges, and costly returns. Over time, houses settle and frames shift. A frame is rarely perfectly square, meaning standard dimensions will not guarantee a tight fit. Whether you are upgrading a drafty Exterior door or swapping out interior panels, following a precise, step-by-step protocol to Measure a Door ensures a seamless, weather-tight installation. You need exact numbers to avoid binding against the jamb or leaving massive gaps at the threshold. We will walk through the exact methods carpenters use on the job site. You will learn how to assess existing frames, calculate rough openings, and order replacement units with absolute confidence. Grab your tape measure and let's get to work.
Table of Contents
Accurate door measurements require the right tools to prevent sizing errors and installation problems. Before measuring, prepare the following equipment to ensure consistent and reliable results.
Tool | Purpose |
|---|---|
25-Foot Steel Tape Measure | Measures door width, height, and thickness |
Notepad & Pencil | Records dimensions and sketches |
Step Ladder | Provides safe access to the upper door frame |
Utility Knife | Cuts caulk or paint around trim |
Flat Pry Bar | Removes casing to expose rough openings |
6-Foot Level | Checks frame alignment, plumb, and level |
Measurement Tip: Use a steel tape measure with an undamaged hook, keep the tape straight, and record all dimensions immediately to avoid ordering mistakes.
Before measuring, decide whether you need a door slab replacement or a prehung door unit. The replacement type determines which dimensions you need to measure.
Door Slab
Replaces only the door panel while keeping the existing frame and hinges.
Prehung Door
Replaces the door panel and frame as a complete assembly.
Feature | Slab Door | Prehung Door |
|---|---|---|
What You Keep | Existing frame and trim | Usually replaced |
What to Measure | Door panel dimensions | Rough opening dimensions |
Best For | Sound, square frames | Damaged frames or complete upgrades |
Installation | Requires precise fitting | Includes factory-fitted frame |
Selection Tip: Choose a slab replacement when the existing frame is in good condition. Consider a prehung unit for damaged, misaligned, or poorly sealed frames.
When replacing only the door slab, measure the existing panel carefully to ensure the replacement fits the frame and hardware.
Measure the door width at the top, middle, and bottom. Record all three measurements and identify any differences caused by warping or previous trimming.
Measure the height along both the left and right edges, from the top to the bottom of the slab. Different measurements may indicate an angled bottom edge or previous customization.
Measure the panel thickness directly at its edge. Common sizes include:
Door Type | Typical Thickness |
|---|---|
Interior Door | 1 3/8" (35 mm) |
Exterior Door | 1 3/4" (44 mm) |
Custom or Older Door | Varies by design |
Measure the distance from the top of the door to each hinge center, along with the doorknob bore location. Also record the hinge size, swing direction, and lock backset to ensure hardware compatibility.

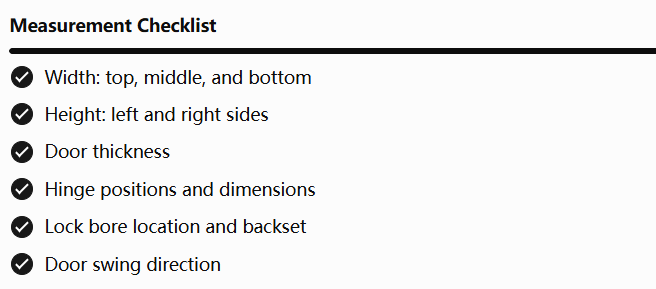

Key Takeaway: Accurate door measurements should include width, height, thickness, and hardware positions. Compare all measurements with the replacement manufacturer's sizing and trimming requirements before ordering.
Installing a prehung door requires measuring the rough opening, wall thickness, and frame dimensions rather than relying on the existing door slab size.
Remove the interior casing to expose the framing. Measure the distance between the wall studs at the top, middle, and bottom. Record the smallest width to ensure the new door frame fits without forcing it into place.
Measure from the subfloor to the underside of the header on both sides and at the center if necessary. Use the smallest measurement and account for any planned flooring changes.
Measure the total wall thickness, excluding decorative trim, to determine the correct jamb depth.
Wall Framing | Typical Jamb Width |
|---|---|
2×4 Wall | 4 9/16" |
2×6 Wall | 6 9/16" |
Custom or Older Wall | Measure individually |
For brick, stone, or stucco walls, measure the exterior masonry opening's width and height. Confirm the new door frame and brickmold fit within the available space.
A prehung door requires installation clearance between the frame and rough opening for shims, alignment, insulation, and adjustments. The required clearance varies by manufacturer and door design.
The new frame should be slightly smaller than the rough opening to allow proper leveling and alignment. Always follow the manufacturer's specified rough opening dimensions rather than relying on a universal deduction formula.
Consider the thickness of finished flooring, including hardwood, tile, or carpet. Ensure the door has sufficient bottom clearance and that the threshold aligns correctly with the finished floor.
The following examples show common nominal door slab sizes and illustrative rough opening dimensions.
Nominal Door Size | Example Rough Opening* |
|---|---|
32" × 80" | 34" × 82½" |
36" × 80" | 38" × 82½" |
42" × 80" | 44" × 82½" |
*Illustrative dimensions only. Actual rough openings depend on the complete prehung unit, jamb, threshold, and manufacturer requirements.
Measurement Tip: Before ordering, confirm both the nominal door size and the complete unit's actual outside-frame dimensions.
Incorrect measurements can lead to installation difficulties, uneven gaps, poor sealing, and costly replacements.
Measure the opening at multiple points and compare diagonal measurements. Significant differences may indicate an out-of-square frame requiring adjustment or replacement.
Always account for planned flooring thickness to prevent the new door from dragging or leaving excessive bottom clearance.
Confirm the hinge position and inswing or outswing direction before ordering. Follow the manufacturer's handing convention because terminology can vary.
The rough opening is larger than the complete door unit to provide installation clearance. Clearly label your measurements to avoid ordering the wrong size.
Incorrect jamb depth can prevent the frame and casing from sitting flush with the finished wall. Measure wall thickness carefully, especially in older buildings.
Key Takeaway: Accurate prehung door installation depends on correctly measuring the rough opening, jamb depth, floor height, and door swing. Always verify final dimensions against the manufacturer's installation specifications before purchasing.
Taking the time to accurately assess your framing, calculate clearances, and document structural settling eliminates the guesswork from home improvement. Precision at the measurement stage guarantees a smooth installation process and a final product that operates flawlessly.
Compile your final width, height, thickness, and jamb depth measurements into a single, clearly labeled document.
Verify the handing and swing direction from the exterior perspective using the butt-to-butt method.
Take your documented numbers to your local supplier to place your order, explicitly stating which numbers are rough openings.
Purchase the necessary composite shims, low-expansion foam, and heavy-duty fasteners for installation day.
A: If you are replacing just the slab, measure the physical door itself. If you are installing a prehung unit, remove the interior trim and measure the rough opening of the wall framing between the studs.
A: Measure the height on both the left and right sides of the opening. Use the shorter measurement to ensure the new unit clears the highest point of the floor. You may need to trim the bottom of the new slab to match the floor's slope.
A: The most common size for a residential front entryway is 36 inches wide by 80 inches tall, with a thickness of 1 3/4 inches. However, older homes frequently feature custom dimensions, so you must measure manually.
A: Yes, but only if the existing frame is completely square, plumb, and free of rot. If the jamb is warped, twisted, or damaged, installing a new slab will result in uneven gaps and poor weather sealing.
A: A slab should be 1/8 inch smaller than the frame width on each side, and 1/8 inch smaller at the top. The bottom clearance depends on your flooring but typically requires a 1/2-inch gap for proper airflow and swing clearance.
