Product parameters: fully concealed sliding window screen integrated
Indoor frame visible surface 48mm
Outdoor frame visible surface 48mm
The visible surface of the indoor fan is fully concealed within the frame hook, with a visible surface of 30
The visible surface of the outdoor fan is fully concealed within the frame hook, with a visible surface of 30
Indoor total visible surface 48mm
The total thickness of the profile frame is 127.4mm
High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 1.8mm
Insulation strip width 20mm
Standard Configurations Optional Configurations
Window screen soft and rigid mesh: brand/aperture/color, no increase upgrade 0.3 black diamond mesh
Hardware brand: Chinese Brand/imported
Handle: Oss
Window screen handle: Oss
Transmission system: Oss
Upgrade Options:
Open size and maximum load-bearing capacity
Oss:
Fan width: 450-2000mm
Fan width: 900-1800mm
Maximum load capacity: 80kg
Glass
Frame: Glass Slot Width: 33
Fan: Glass channel width: 26.6
Standard version width: 26.6
Aluminum spacer color: Silver aluminum spacer
Fixed glass: 5mm+15A+5mm
Fan glass: 5mm+15A+5mm
upgraded aluminum spacer color: black aluminum spacer
Surface treatment: Evening cloud gray
Powder brand: Chinese Brand/Imported Monochrome/Regular Color
Upgraded Option: Double Color/Customized Color
Rubber strip brand: Chinese Brand/imported: Wingkay
Upgrade Options:
Line pressing: square line pressing
Process configuration

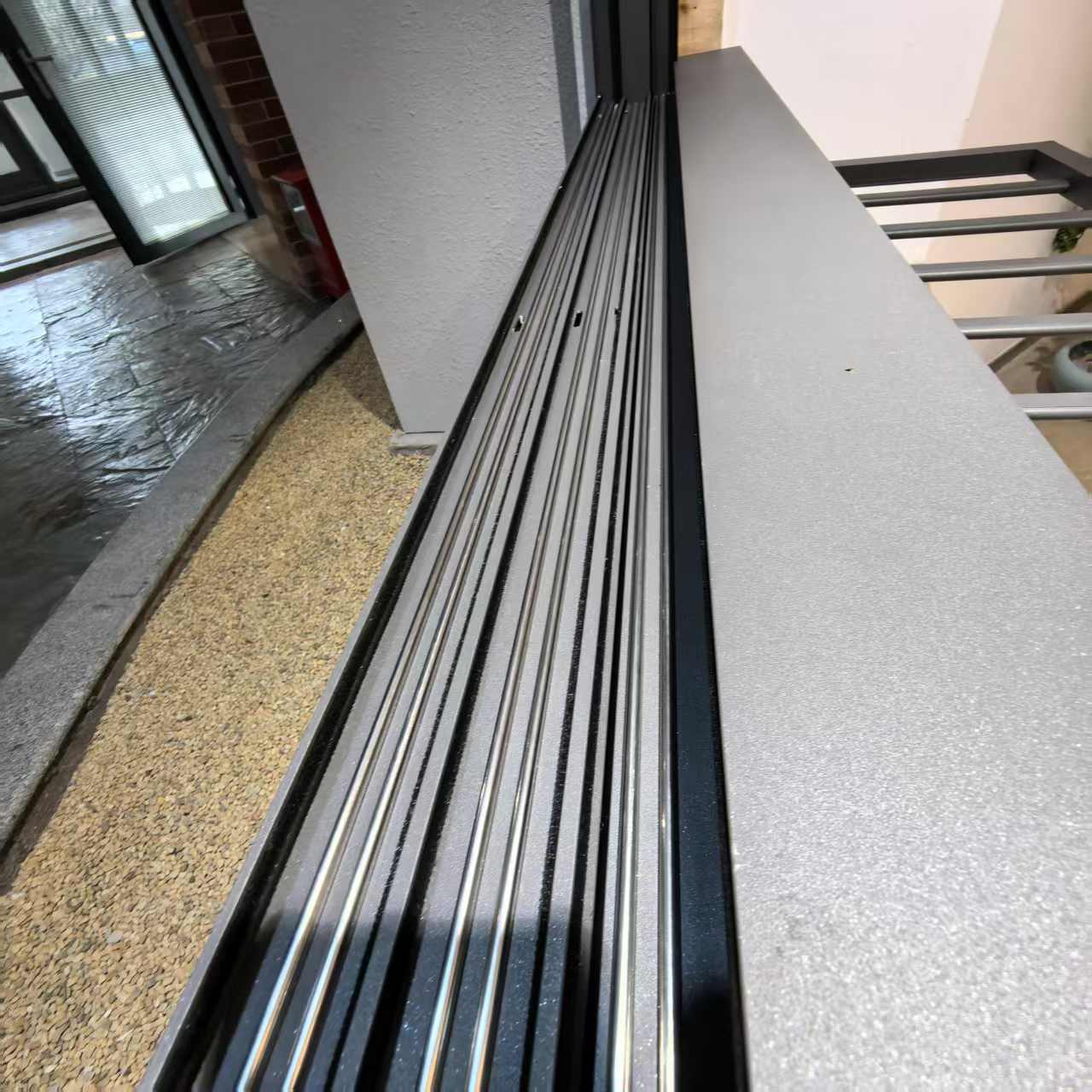

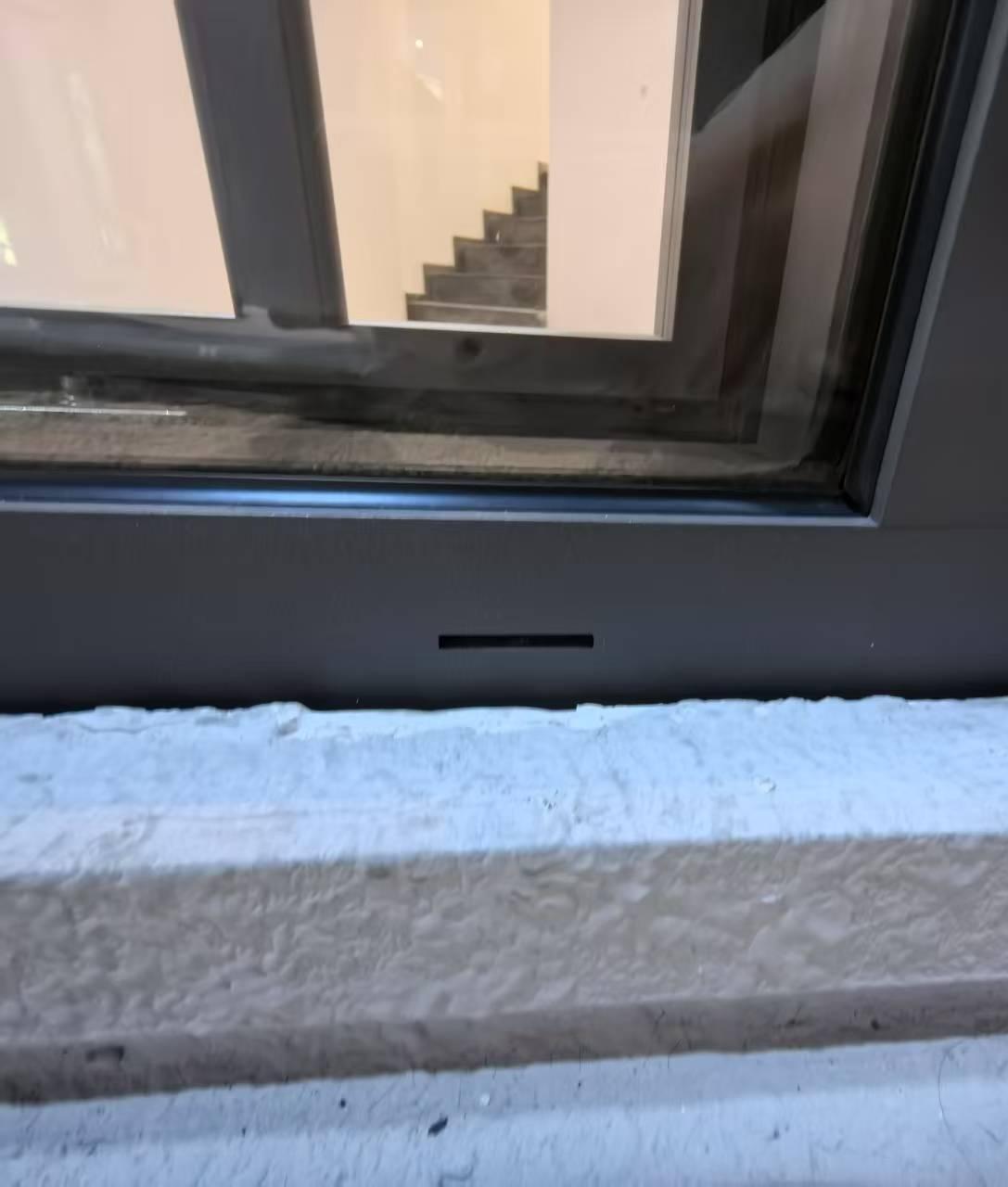

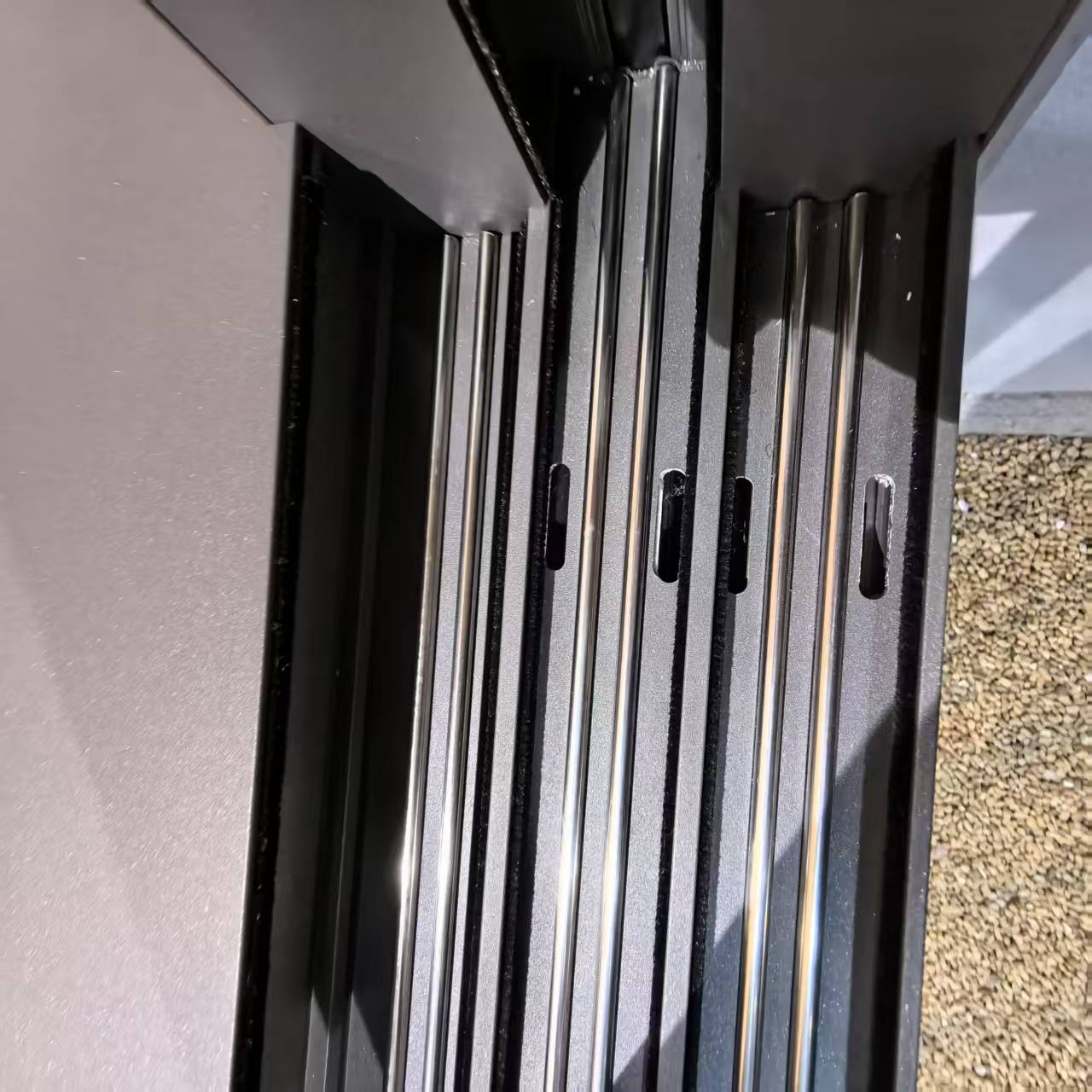

Craftsmanship features insulation and environmental protection, fully concealed frame fan design, concealed high and low rail drainage, concealed automatic locking
