Galaxy 78 Inwards Casement Window of Energy Efficient Low E Glass Aluminium Tilt And Turn Windows With Insulation

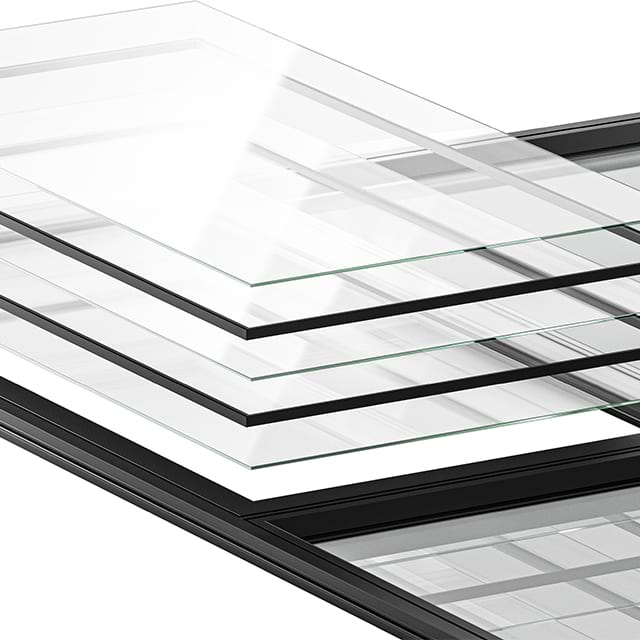

Narrow frame 78 series, equipped with 5mm+19A+5mm insulating glass, three-cavity two-line sealing. Frame/center support/sash equal cavity/isothermal line in the same position, enhanced heat insulation, sound reduction and noise reduction functions, and the balanced equal cavity stable structure design can enhance the strength requirements of important stress-bearing parts. Removable screen fan, external Aimeijie screen fan, high ventilation, high transparency without obstructing vision. Sealing design, continuous bending isobaric rubber strip + sealing guide overlapped with the fan body, no wind can jump.

Quantity:
Availability:





Inquire Add to Basket

Model:
GALAXY 78 INWARDS CASEMENT WINDOW

casement window inswing window swing window window with mesh sound proof window water proof window

Product Overview

OEM Services

Technical Specifications

2.casement-Windows

**Aluminum Tilt & Turn Windows**

Aluminum Tilt & Turn Windows offer versatile ventilation and enhanced security through their dual-opening function. The window can swing inward for easy cleaning and full ventilation or tilt inward at the top for safe, controlled air circulation, even in rain.

Built with robust aluminum profiles, they are highly durable, corrosion-resistant, and require minimal maintenance. When closed, they provide an exceptional seal, resulting in superior thermal insulation and effective noise reduction.

Ideal for modern homes and high-rise apartments, these windows are the perfect combination of intelligent design, energy efficiency, safety, and sleek aesthetics. Their space-saving inward operation makes them a practical and popular choice.

OEM Services

Disposition	Standard Collocation Item		Additional Name	Addition Term
Screen Window	No		Add Upgrade	High penetration network: brand/aperture/color

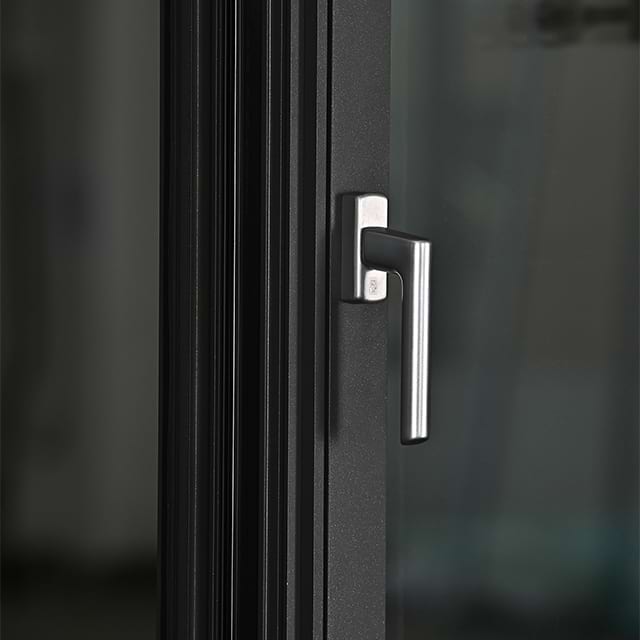

Hardware	Hardware brand: Domestic/imported Grip: HOPPE grip / Screen handle: Transmission system: two point lock		Increase Equipment And Upgrade	Holding without base: Four-point lock: (Recommended for coastal areas, floors above 30 floors, fan superb 1800mm option)
Opening Size And Maximum Load Bearing Capacity	Noto: Fan width: 370-1300mm Fan width: 530-2700mm Maximum load: 80kg Maximum opening Angle: 100 degrees /180 degrees	Silkia: Fan width: 500-1000mm Fan width: 550-2400mm Maximum load: 80kg Maximum opening Angle: 100 degrees /180 degrees
Glass	Frame: Glass groove width: Fan: Glass groove width: Standard plate width: Aluminum strip color:		Add Upgrade
Surface Treatment	Surface treatment: fluorocarbon three coating Powder brand: Domestic/imported Monochrome/regular color		Increase Equipment And Upgrade	Two colors/custom colors
Adhesive Strip	Brand: Domestic/imported		Add Upgrade
Wire Compression			Add Upgrade	Press cables throughout the frame
Process Configuration	Fan: whole welded, not filled Frame: whole welded, fillable

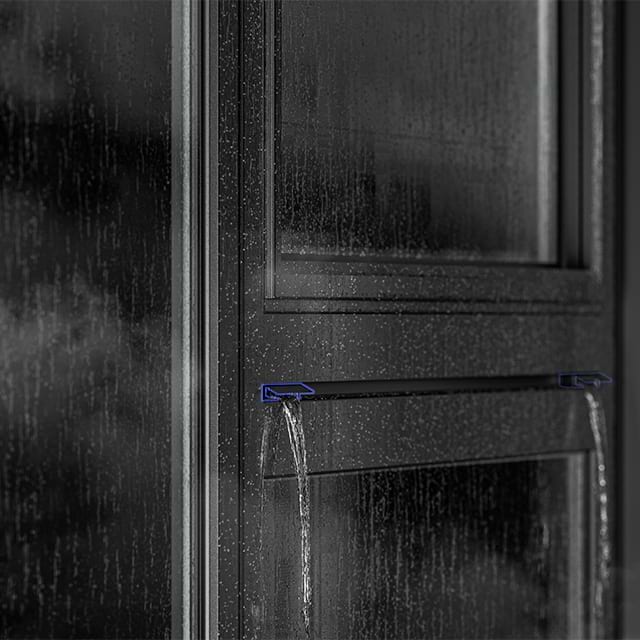

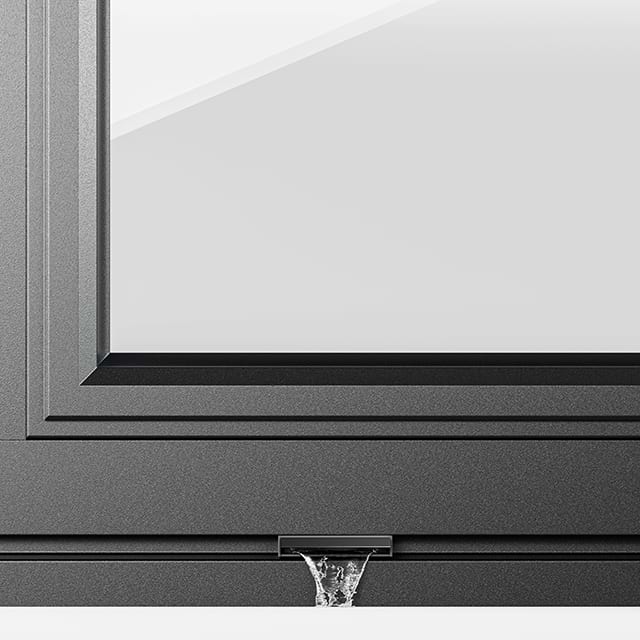

Process Characteristics	The whole circle rubber strip, the whole cavity filling, rounded corners, floor drain type reverse drainage, isotherm structure

Indoor frame visible surface	26.5mm
Outdoor frame visible surface	63mm
Indoor fan visible surface	63.5mm
Outdoor fan visible surface	27mm
Indoor total visible surface	90mm
The total thickness of the profile frame	78.3mm

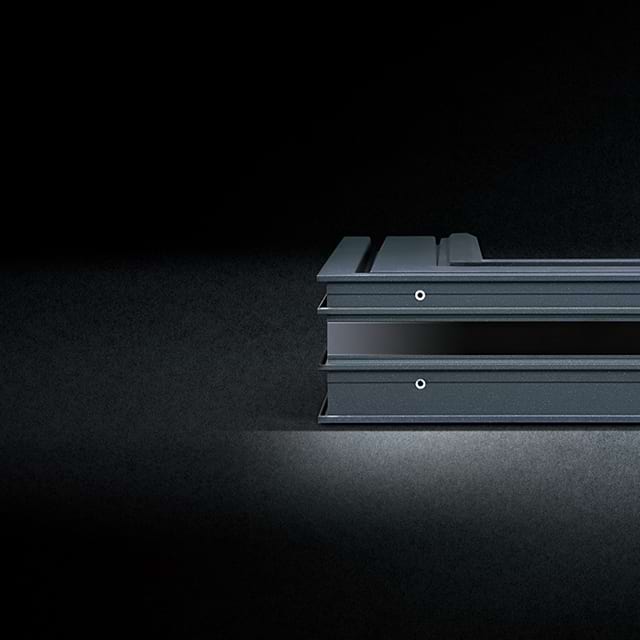

High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 1.4mm
Insulation strip width	25.3mm
