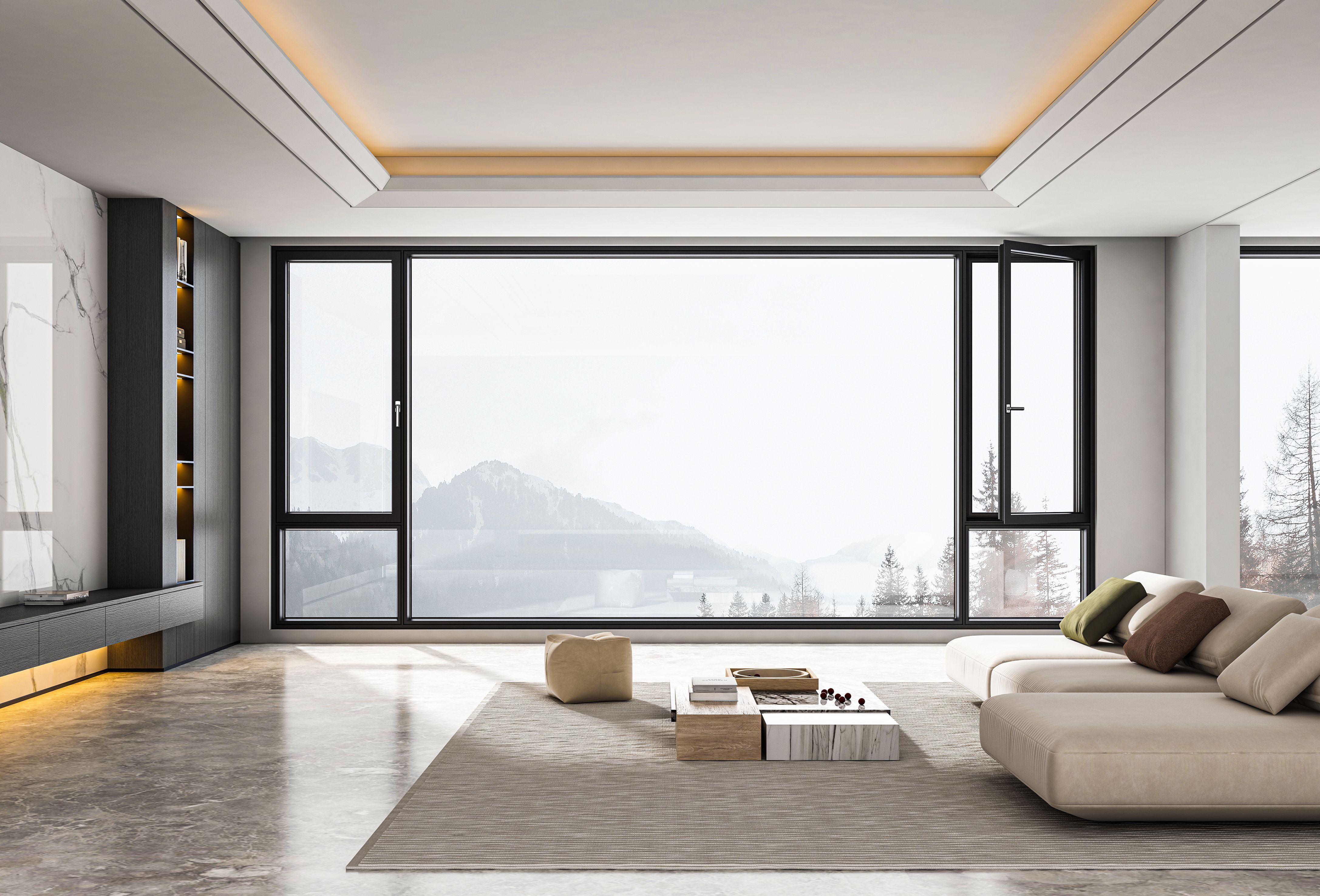

Galaxy 88 Inwards Casement Tilt and Turn Window
Product parameters:
Glass fan with external window opening
Indoor frame visible surface 90mm
Outdoor frame visible surface 63mm
Indoor fan visible surface 49mm
Outdoor fan visible surface 76mm
Indoor total visible surface 139mm
The total thickness of the profile frame is 88.3mm
High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 1.8mm
Insulation strip width 35.3mm
Standard Configurations
Upgraded Mesh with external roller shutter mesh
hardware
Hardware brand: Chinese Brand/Imported: Sigenia
Handle: Hopo handle/
Window screen handle: Hopo handle
Transmission system: 3-point lock
Upgrade Options:
Smart Lock: Sword Core
Open size and maximum load-bearing capacity
Roto:
Fan width: 800-950mm
Fan width: 2000-2700mm
Maximum load capacity: 120kg
Maximum opening angle: 90 degrees
Siegenia:
Fan width: 800-950mm
Fan width: 2000-2700mm
Maximum load capacity: 120kg
Maximum opening angle: 90 degrees
Glass
Frame: Glass channel width:
Fan: Glass channel width: 57
Standard version width: 57
Aluminum spacer color: Silver aluminum spacer
Fixed glass: 5mm+19A+5mm+12A+5mm
Fan glass: 5mm+19A+5mm+12A+5mm
Upgrade Options:
Aluminum spacer color: black aluminum spacer
Surface treatment
Surface treatment method: fluorocarbon triple coating
Powder brand: Chinese Brand/Imported Monochrome/Regular Color
Upgraded Option: Double Color/Customized Color
Rubber strip brand: Chinese Brand/imported: Wingkay
Upgrade Options: to Haida
Line pressing: square line pressing
Process configuration
Craftsmanship features: full circle rubber strip, rounded corners, hidden anti backflow drainage, isotherm structure
