Views: 0 Author: Site Editor Publish Time: 2026-09-14 Origin: Site
Architectural demand in 2026 heavily favors expansive glass systems that merge indoor and outdoor spaces while maintaining structural integrity, acoustic control, and thermal performance. Specifying a sliding door system is complex. You have to balance aesthetic requirements—like ultra-narrow sightlines—with strict local energy codes, wind load demands, smart home integration, and unpredictable procurement lead times. Choosing the wrong system leads to water intrusion, inoperable panels, or failed municipal energy compliance. This guide provides a vetted evaluation of the top Sliding Door Manufacturers. We categorized them by project suitability, material specialization, and objective performance metrics to streamline your vendor selection process for architects, builders, and homeowners.
Material Dictates Application: Aluminum and steel offer the narrowest sightlines for oversized openings, while clad-wood and fiberglass provide superior thermal breaks for extreme climates and traditional aesthetics.
Performance Over Aesthetics: Specification must prioritize Design Pressure (DP) ratings, U-factors, Solar Heat Gain Coefficients (SHGC), and Sound Transmission Class (STC) over visual appeal to ensure code compliance and occupant comfort.
Procurement Realities: Custom architectural sliding door systems currently require 16–24 week lead times; project schedules must account for track-and-sill pre-installation requirements and specialized glazing delivery.
Warranty Distinctions: The true value of sliding door manufacturers lies in their warranty exclusions—specifically regarding coastal environments, glass seal failure, and roller hardware longevity.
Table of Contents
Modern building codes mandate exceptional thermal performance. When evaluating an aluminum Sliding Door, you must verify the presence of advanced polyamide thermal breaks. These non-conductive structural insulators separate the interior and exterior aluminum extrusions, stopping thermal bridging dead in its tracks. Specification relies on verified National Fenestration Rating Council (NFRC) data. A lower U-Factor indicates superior insulation, which is required for cold climates. You must also select a precise Solar Heat Gain Coefficient (SHGC) based on the building's solar orientation to prevent excessive cooling loads in warmer regions.
Standard Energy Code Targets for Sliding Doors (2026 Baseline) | |||
Climate Zone | Target U-Factor | Target SHGC | Recommended Glazing |
|---|---|---|---|
Northern (Cold) | 0.25 or lower | 0.35 - 0.40 | Triple-pane, High Solar Gain Low-E, Argon fill |
Mixed (Moderate) | 0.28 - 0.30 | 0.25 - 0.30 | Double-pane, Moderate Solar Gain Low-E, Argon fill |
Southern (Hot) | 0.30 - 0.32 | 0.20 or lower | Double-pane, Low Solar Gain Low-E, Tinted/Reflective |
Passive House | 0.15 or lower | Project Specific | Triple-pane, Krypton fill, Thermally broken spacers |
Oversized glass panels act as massive sails under high wind conditions. Design Pressure (DP) ratings dictate a system's ability to withstand positive and negative wind loads, water infiltration, and structural deflection. For projects located in High-Velocity Hurricane Zones (HVHZ), systems must undergo rigorous missile-impact testing and cyclic pressure evaluations. Multi-panel configurations require robust structural mullions to prevent the framing from bowing under lateral loads. High-altitude applications introduce another layer of complexity. You must specify capillary tubes within the insulated glass units (IGUs) to equalize pressure and prevent the glass from shattering during transit or installation.
The glass package often constitutes over 85% of the total door area. High-performance projects frequently utilize triple-pane glazing, argon or krypton gas fills, and multi-layer Low-E coatings to optimize energy efficiency. Emerging dynamic or switchable glass technologies allow for instant privacy and glare control without mechanical shades. For urban residential and commercial developments, noise mitigation dictates the specification. Sound Transmission Class (STC) and Outside-Inside Transmission Class (OITC) ratings measure acoustic performance. Achieving high STC ratings requires asymmetrical glass pane thicknesses and acoustic PVB interlayers to disrupt sound wave transmission effectively.

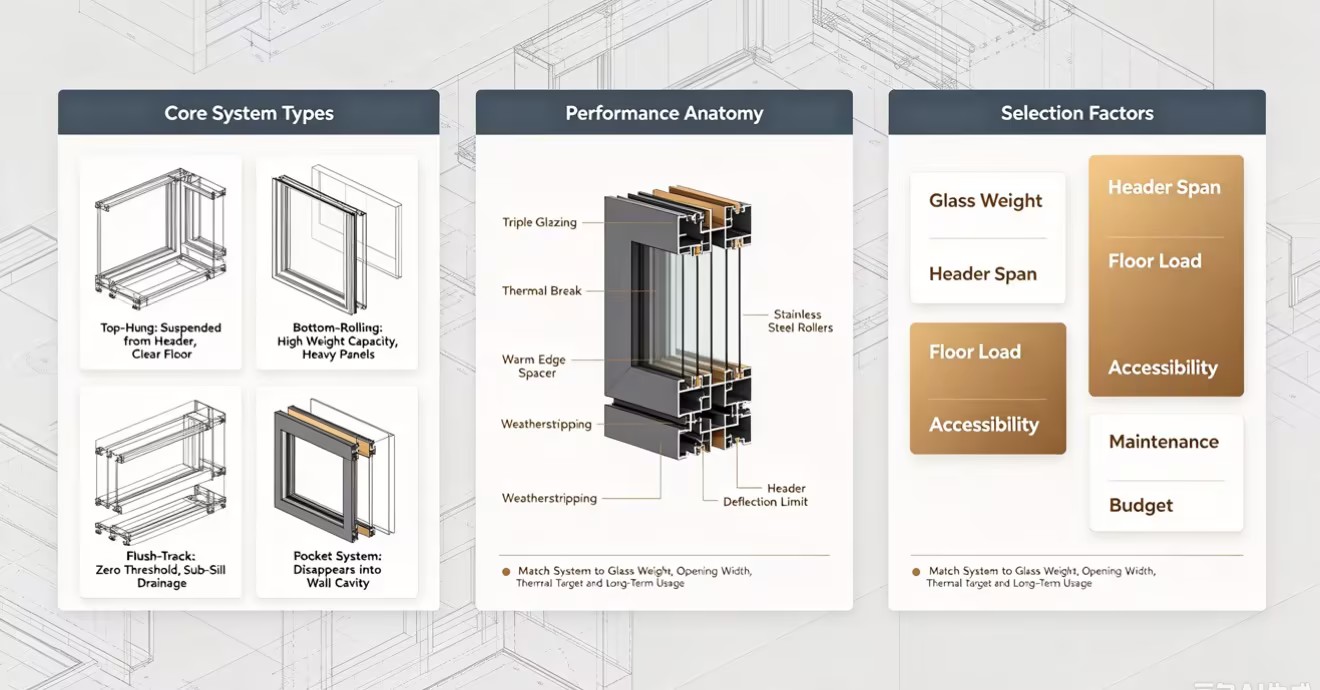

The operational feel of a massive glass panel depends entirely on the concealed hardware. Premium systems utilize precision-bearing stainless steel rollers, often in tandem or quad configurations, to distribute the immense weight of the glass evenly across the track. Multi-point locking mechanisms pull the active panels tightly against the weatherstripping to achieve air and water ratings. Flush-sill water management systems represent a significant engineering challenge. They must provide a flat transition between interior and exterior floor finishes while incorporating hidden weep holes and subsurface drainage channels to manage bulk water intrusion.
Environmental, Social, and Governance (ESG) criteria increasingly drive architectural specifications. Leading manufacturers demonstrate environmental responsibility through the use of high-recycled-content aluminum billets and Forest Stewardship Council (FSC) certified wood species. The manufacturing process itself is scrutinized for volatile organic compound (VOC) emissions during the finishing process. Specifying products from environmentally conscious manufacturers directly contributes to LEED v4.1 certification points, particularly in categories related to energy performance, materials and resources, and indoor environmental quality.
The most advanced fenestration system will fail without proper installation and ongoing support. Evaluating a manufacturer requires assessing their localized dealer network. Factory-trained technicians execute complex post-installation adjustments, troubleshoot low-voltage motorization systems, and manage warranty claims. A robust regional presence ensures that replacement parts, such as proprietary weatherstripping or specialized roller assemblies, are readily available. This minimizes downtime and maintains the building's security and weather envelope.
Fleetwood dominates the luxury modern architectural sector with its extreme-scale aluminum systems. Their Gen4 line represents the peak of minimalist design, offering ultra-narrow sightlines that maximize glass area. Engineered primarily for the high-end residential market, these systems boast superior structural ratings capable of handling massive, heavy glass expanses.
Requires highly specialized, factory-certified installation crews.
Zero tolerance for header deflection; structural steel headers are mandatory.
Track systems require deep block-outs in the concrete slab for flush transitions.
Western Window Systems excels in creating expansive multi-slide and pocketing aluminum doors. They have developed strong volume-builder programs and provide architects with highly streamlined specification tools. This makes them a favorite for large-scale luxury developments. While their standard aluminum lines are highly popular in temperate climates, projects in extreme cold regions must specify their Performance Line.
Performance Line incorporates advanced thermally broken extrusions to prevent interior condensation.
Pocketing systems require precise framing coordination to ensure the pocket walls remain plumb and square.
Excellent integration with standard wood framing dimensions.
Based in Europe, Reynaers Aluminium brings rigorous continental engineering standards to the global market. Their Hi-Finity system is known for industry-leading U-factors and the ability to support immense glass weights with virtually invisible framing. Reynaers is also at the forefront of automated fenestration, offering sophisticated motorized options with fully concealed drives.
North American projects must account for longer lead times associated with overseas manufacturing.
Highly complex specification process demands dedicated architectural support and precise detailing.
Motorized systems require early electrical rough-in coordination.
Panda Windows & Doors specializes in solving complex architectural challenges. They offer custom curved, pivot, and monumental sliding systems. Their engineering department provides deep customization capabilities, allowing architects to execute highly irregular geometric designs. Panda also manufactures robust coastal and hurricane-rated options that comply with strict HVHZ protocols.
High initial engineering costs per project due to bespoke manufacturing.
Extended design-approval phases before fabrication can begin.
Curved tracks require exact radius templates during the concrete pour phase.
LaCantina offers a cohesive aesthetic across their folding and sliding product lines. This allows architects to mix operational styles throughout a residence while maintaining consistent sightlines and hardware finishes. They provide versatile material options, including thermally controlled aluminum, aluminum-clad wood, and pure wood systems.
Maximum panel sizes are slightly smaller than the ultra-custom monumental systems.
Strong dealer network ensures reliable post-installation customer service.
Wood systems require strict adherence to exterior overhang requirements to maintain warranties.
Marvin maintains a strong reputation for premium residential fenestration, primarily through their Ultimate (extruded aluminum-clad wood) and Elevate/Essential (high-density fiberglass) collections. Their extruded aluminum cladding offers exceptional durability and superior finish warranties compared to standard roll-form cladding. Marvin excels in traditional and transitional aesthetics, providing warm wood interiors with robust exterior protection.
The structural requirements of wood and fiberglass mean sightlines are inherently heavier than pure architectural aluminum systems.
Fiberglass lines offer excellent dimensional stability in extreme temperature swings.
Extensive historical casing and panning options available for renovation projects.
Andersen provides massive scale and reliability through their Architectural Collection (E-Series and MultiGlide) and proprietary Fibrex composite systems. Their greatest strength lies in a highly reliable supply chain, predictable lead times, and an extensive local service network. Architects benefit from automated sizing tools and comprehensive BIM objects.
Relies heavily on pre-configured sizing matrices, limiting true custom architectural freedom for highly irregular openings.
MultiGlide systems offer excellent automated options with integrated safety sensors.
Fibrex material provides a strong middle ground between vinyl and fiberglass performance.
Pella offers a diverse portfolio encompassing wood, fiberglass, and vinyl sliding systems. Their Reserve series stands out for luxury builds, featuring strong energy efficiency ratings and innovative integrated technology. This includes hidden screens and between-the-glass blinds that reduce maintenance and improve indoor air quality.
Specification for high-end projects should strictly avoid their entry-level vinyl lines.
Focus entirely on the Reserve or Architect series to ensure structural integrity.
Between-the-glass blinds require specific IGU depths, which can impact overall door weight.
Milgard is a dominant force in the Western United States, known for their thermally improved aluminum and Ultra Series fiberglass sliding doors. They offer an excellent lifetime warranty for residential applications, supported by a strong regional market presence and dedicated service fleets. Their fiberglass systems provide exceptional stability in extreme temperature fluctuations.
Availability and direct service capabilities are limited in Eastern US markets.
Fewer monumental sizing options compared to top-tier architectural brands.
SmartTouch hardware offers excellent ergonomic operation for heavy panels.
Kolbe caters to highly customized residential and specialized commercial projects, particularly with their VistaLuxe Collection. They are recognized for exceptional historical replication capabilities, offering intricate custom divided lites and specialized wood species. Their clad-wood products achieve surprisingly narrow sightlines, bridging the gap between traditional materials and modern design.
Intense craftsmanship places Kolbe in a premium tier that overlaps with pure architectural aluminum systems.
Requires careful budget justification during the specification phase.
Excellent custom color matching capabilities for exterior cladding.
Arcadia Custom operates in a highly specialized niche, manufacturing thermal steel and luxury aluminum sliding systems. Their steel systems offer ultra-narrow sightlines, exceptional structural durability, and a timeless industrial aesthetic that cannot be replicated by aluminum. Steel's inherent strength allows for massive glass expanses with minimal framing.
Steel doors possess the highest weight per panel in the industry.
Installation requires significant structural header reinforcement and specialized heavy-lifting equipment.
Thermal break technology in steel frames is critical to prevent interior sweating in cold climates.
Weather Shield positions itself strongly in the premium market with its VUE Collection, an all-aluminum system designed for oversized multi-slide applications, alongside their established clad-wood lines. They offer highly competitive positioning for large-scale residential projects requiring excellent thermal performance and modern aesthetics.
National footprint for direct factory service is smaller compared to industry giants.
Local dealer vetting is a critical step in the procurement process.
VUE collection offers excellent modularity for complex multi-panel configurations.
YKK AP is a global leader in commercial-grade aluminum storefronts and high-rise sliding systems. Their products are engineered for extreme durability in high-traffic, multi-family, and institutional applications. YKK AP systems undergo rigorous testing standards for water penetration and air infiltration, ensuring performance in severe weather conditions.
Design language is decidedly utilitarian and robust.
Prioritizes structural integrity and lifecycle longevity over refined, minimalist aesthetics.
Excellent choice for mid-rise and high-rise balcony applications.
Quaker utilizes their proprietary OptiCore technology to deliver exceptional structural and thermal data for mixed-use and multi-family commercial projects. Their systems are highly scalable, making them ideal for mid-rise developments requiring consistent performance across hundreds of units.
Geared heavily toward commercial architectural specification rather than direct-to-consumer residential sales.
Focus on structural engineering and energy compliance makes them a reliable choice for developers.
Strong performance in acoustic mitigation for urban environments.
Origin Global built its reputation on bespoke aluminum bi-fold doors but has rapidly expanded its market share in the sliding door segment. They are distinguished by industry-leading manufacturing speed and a highly streamlined production process. Origin offers highly customizable powder-coat finishes and marine-grade hardware options suitable for harsh coastal environments.
Sliding configurations offer excellent value and rapid deployment for modern builds.
Marine-grade finishes require specific maintenance schedules to uphold warranties.
Track systems are engineered for quick assembly on site.
Specifying a flush-track system creates a flat transition between interior and exterior spaces, but it introduces severe water management risks. Without proper sub-sill preparation, interior water intrusion is inevitable. Construction documents must detail custom stainless steel or copper pan flashing beneath the entire track assembly. The system must integrate active drainage solutions, such as hidden weep systems and exterior trench drains, to rapidly move bulk water away from the building envelope during heavy rain events.
Oversized sliding glass panels require absolute structural stability from the building frame. The header above the door must be engineered for zero deflection. Typically, this requires heavy W-flange steel beams rather than standard engineered lumber. If the header sags even a fraction of an inch under the roof load, it will compress the door frame. This structural failure results in completely inoperable doors, crushed roller assemblies, and shattered insulated glass units due to sheer stress.
Integrating automated sliding doors requires coordination across multiple construction trades long before the drywall is hung. Architects must plan for early electrical rough-ins to deliver low-voltage power directly to the header or jamb. Space must be allocated for concealed motor housings and control panels. The motorized system must utilize open protocols or specific drivers to ensure compatibility with whole-home automation platforms, allowing for remote operation and climate-responsive automation.
The performance of a premium fenestration system relies entirely on the quality of the installation. Even the most highly engineered sliding door will fail if the frame is installed out of plumb, out of level, or out of square. Tolerances for multi-slide systems are often measured in millimeters. You must utilize manufacturer-certified installers. Attempting to reduce project costs by using uncertified framing crews routinely leads to operational failure, air leaks, and the immediate voiding of the manufacturer's warranty.
Verify rough opening dimensions with a laser level before ordering the door system.
Install the sill pan flashing and conduct a 24-hour standing water test prior to setting the track.
Shim the jambs and header precisely, ensuring fasteners do not penetrate the drainage channels.
Adjust the roller assemblies only after the building is fully loaded with drywall and roofing materials.
Finalize precise rough opening dimensions and verify all floor transition heights before initiating the procurement process.
Consult a licensed structural engineer to calculate header loads, ensure zero deflection limits, and design appropriate steel reinforcements.
Request detailed technical specification sheets from manufacturers, specifically verifying NFRC thermal data, AAMA structural ratings, and STC acoustic documentation.
Verify the credentials of local installation teams, ensuring they hold current, factory-direct certifications to protect the long-term product warranty.
A: A multi-slide door rolls directly on the track using its bottom rollers, requiring weatherstripping that constantly rubs against the frame. A lift-and-slide door uses specialized hardware that lifts the entire panel off the track when the handle is turned. This allows massive, heavy panels to roll effortlessly and drop down to create an airtight, watertight compression seal when closed.
A: Aluminum offers ultra-narrow sightlines, maximum structural strength for oversized glass, and a modern aesthetic. Clad-wood provides a warm, traditional interior aesthetic with superior natural thermal insulation. Choose aluminum for contemporary architecture and maximum glass area, and clad-wood for traditional designs or extreme cold climates where interior wood finishes are desired.
A: Flush sills are not inherently waterproof. They rely entirely on the architectural detailing beneath and around them. To prevent water intrusion, a flush sill must be installed over a continuous waterproof pan flashing and paired with an exterior trench drain system to quickly channel water away from the track.
A: A U-factor measures the rate of heat transfer. Lower numbers indicate better insulation. For standard energy compliance, a U-factor of 0.30 or lower is generally acceptable. For high-performance or Passive House projects, you should seek U-factors of 0.20 or lower, which typically requires thermally broken frames and triple-pane glazing.
A: Custom architectural doors are engineered and fabricated to order. The process involves precise extrusion cutting, custom glass tempering, specialized finishing, and complex hardware assembly. Global supply chain variables for specialized components, like European thermal breaks or precision rollers, further extend delivery schedules, often reaching 16 to 24 weeks.
A: Retrofitting is highly complex and often impractical. Motorized systems require specific track extrusions to conceal the drive belts, structural header space for the motor housing, and integrated low-voltage wiring. You must specify motorization during the initial architectural design phase rather than attempting an aftermarket modification.
