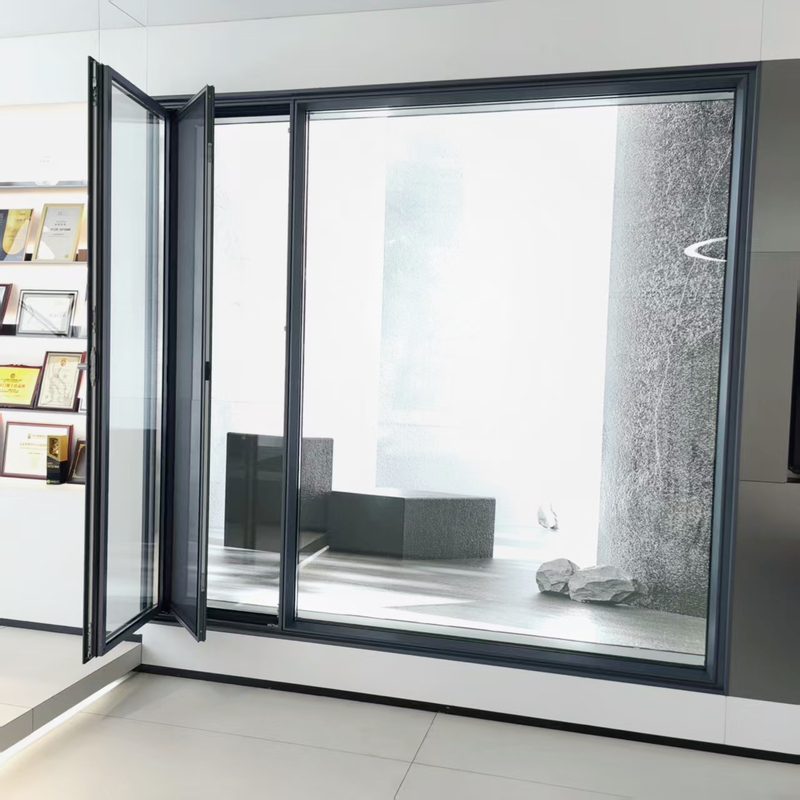

Galaxy 108 Inwards Casement Tilt and Turn Window
Product parameters:
Glass fan with inward opening and inward tilting+inward opening Mesh
Indoor frame visible surface 26.5mm
Outdoor frame visible surface 63mm
Indoor fan visible surface 63.5mm
Outdoor fan visible surface 27mm
Indoor total visible surface 90mm
The total thickness of the profile frame is 108mm
High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 1.8mm
Insulation strip width 25.3mm
Standard Configurations
Mesh 0.3 black diamond mesh optional: high transparency mesh: brand/aperture/color, AMJ woven mesh 28 mesh
Hardware
Hardware brand: Roto
Handle: Hopo Handle/Roto
Window screen handle: customized
Transmission system: two-point lock
Upgrade Options:
Hands without base: Roto, Siegenia
3-point lock: Fan height 1300mm (recommended for coastal areas, floors above 30th floor, and fan height 1300mm optional)
Open size and maximum load-bearing capacity
Roto:
Fan width: 370-1300mm
Fan Height: 530-2700mm
Maximum load capacity: 80kg
Maximum opening angle: 100 degrees/180 degrees
Siegenia:
Fan width: 500-1000mm
Fan Height: 550-2400mm
Maximum load capacity: 80kg
Maximum opening angle: 100 degrees/180 degrees
Glass
Frame: Glass channel width: 46.6
Fan: Glass channel width: 40
Standard version width: 40
Aluminum spacer color: Silver aluminum spacer
Fixed glass: 5mm+27A+5mm
Fan glass: 5mm+27A+5mm
upgraded aluminum spacer color: black aluminum spacer
Surface treatment
Surface treatment method: fluorocarbon triple coating
Powder brand: Chinese Brand/Imported Monochrome/Regular Color
Upgraded Option: Double Color/Customized Color
Rubber strip brand: Chinese Brand/imported: Wingkay
Upgrade Options: to Haida
Line pressing, whole frame, line pressing
Process configuration
Craftsmanship features: full circle rubber strip, rounded corners, hidden anti backflow drainage, isotherm structure
