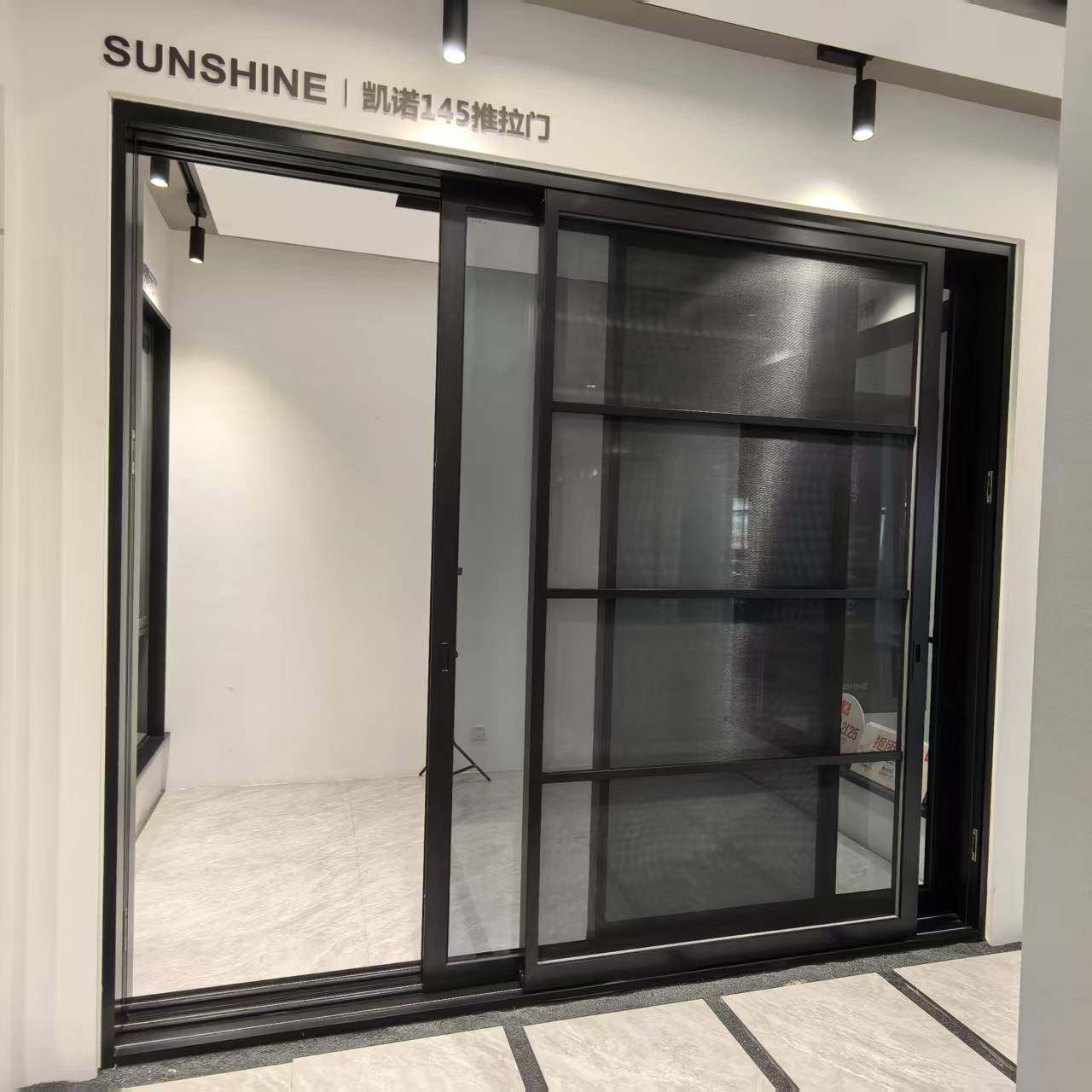

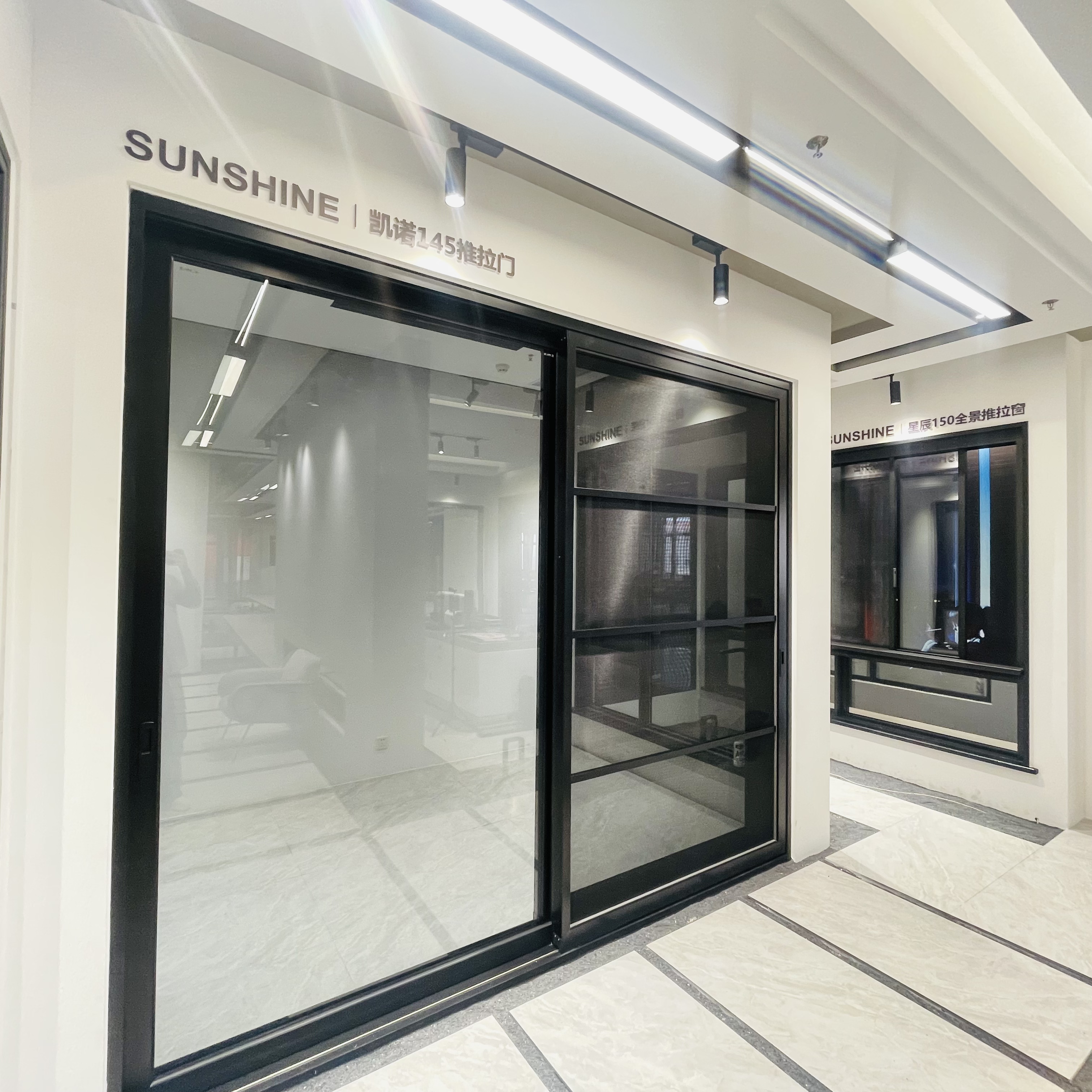

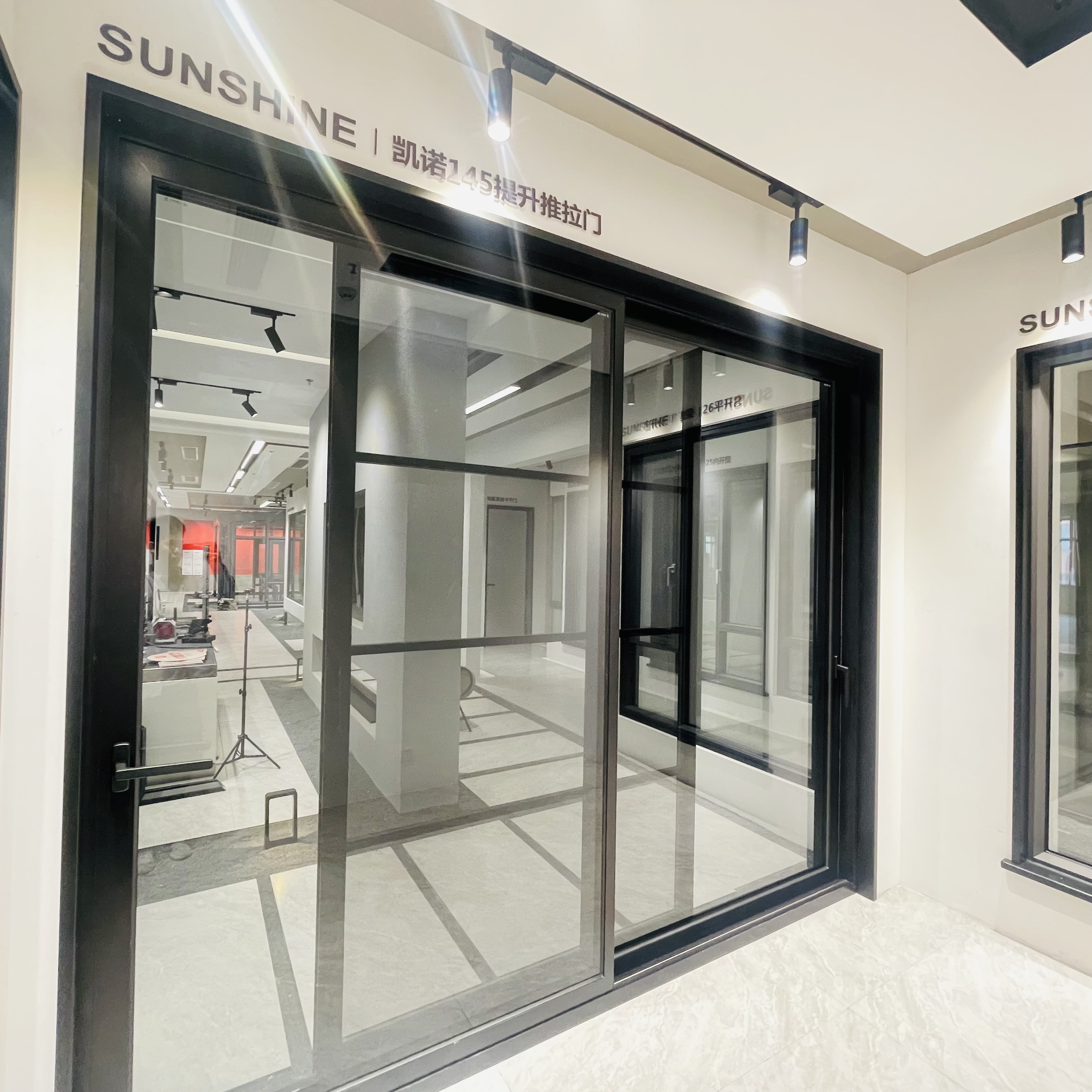

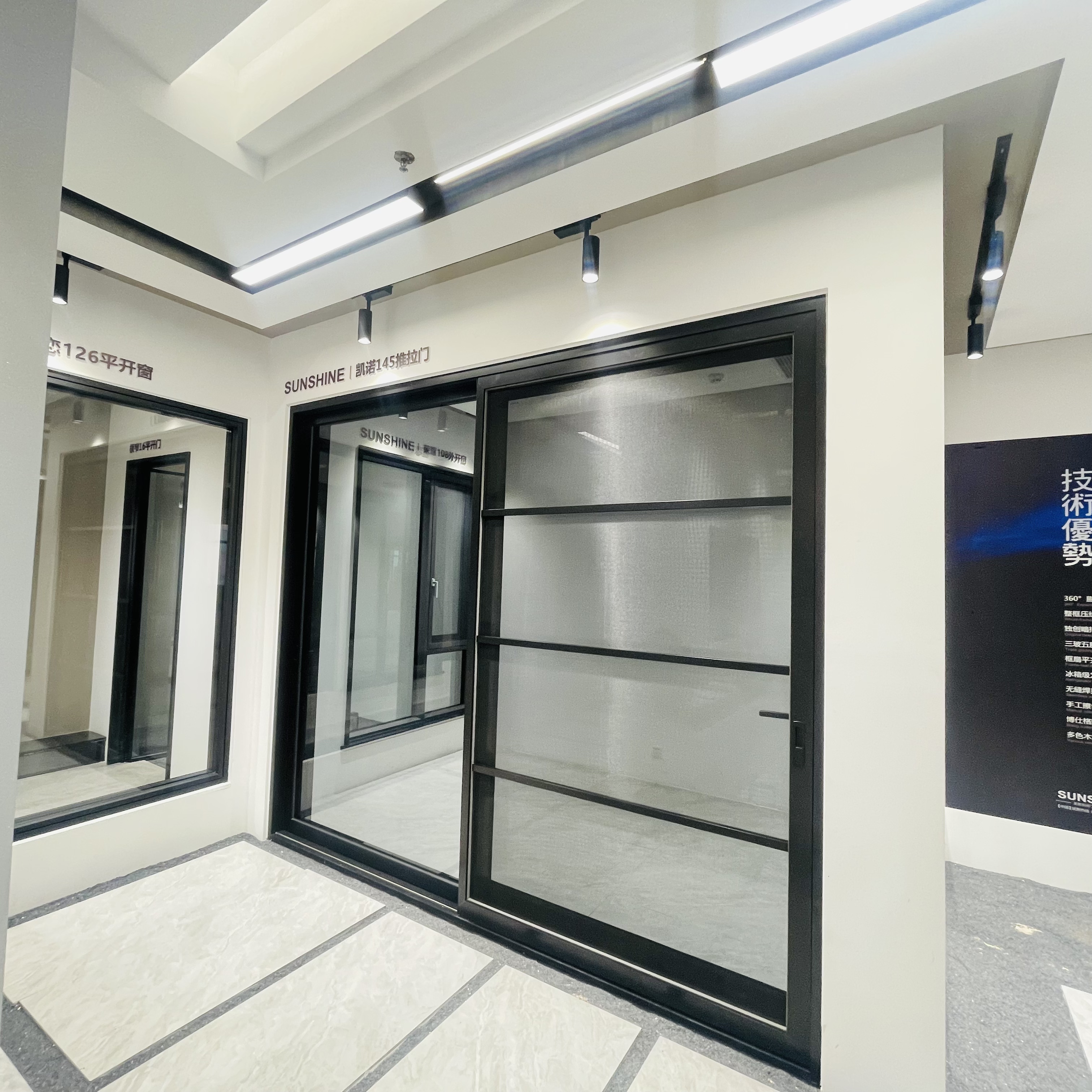

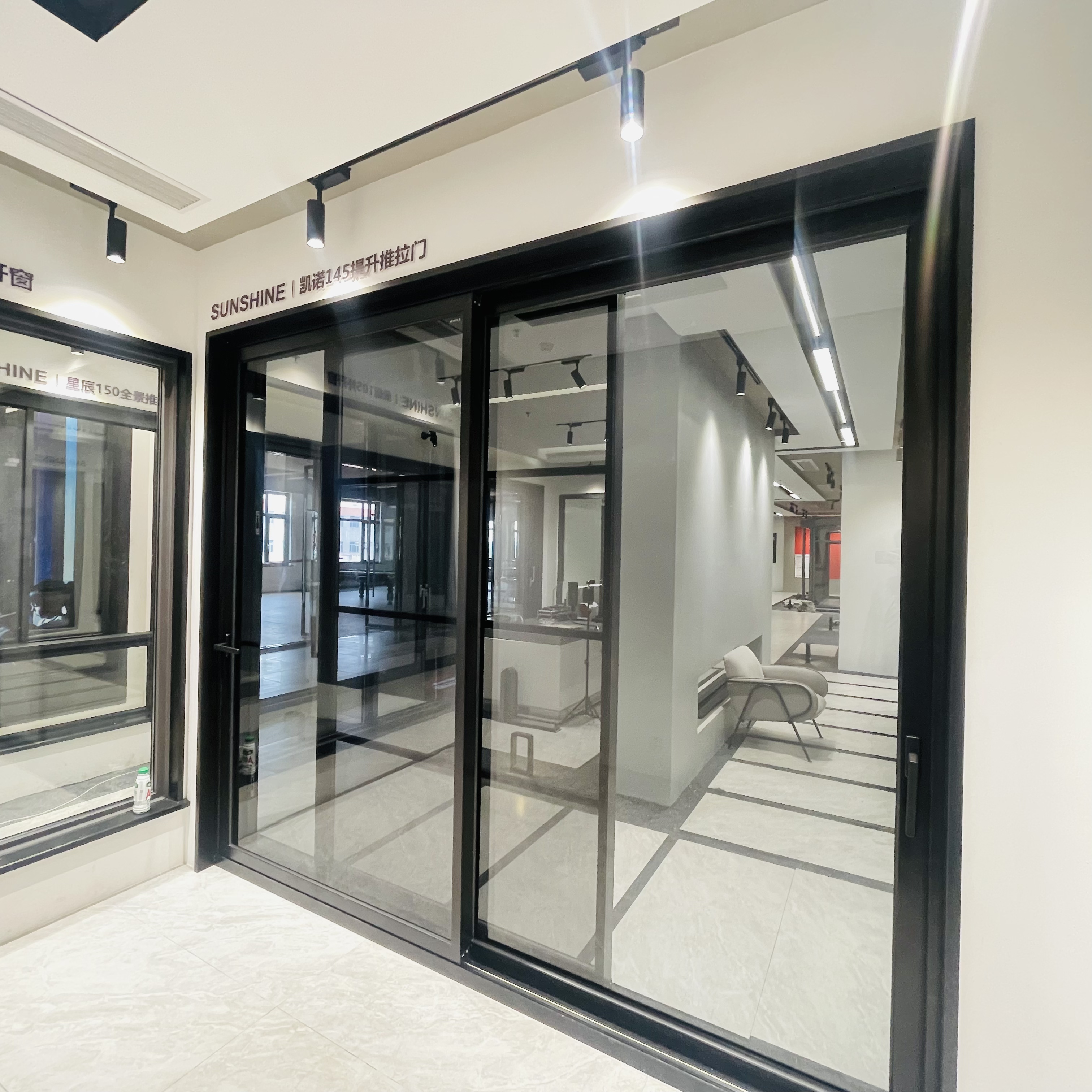

Gumption 145 Lift up Sliding Door
**Heavy-Duty Outdoor Sliding Door with Screen**

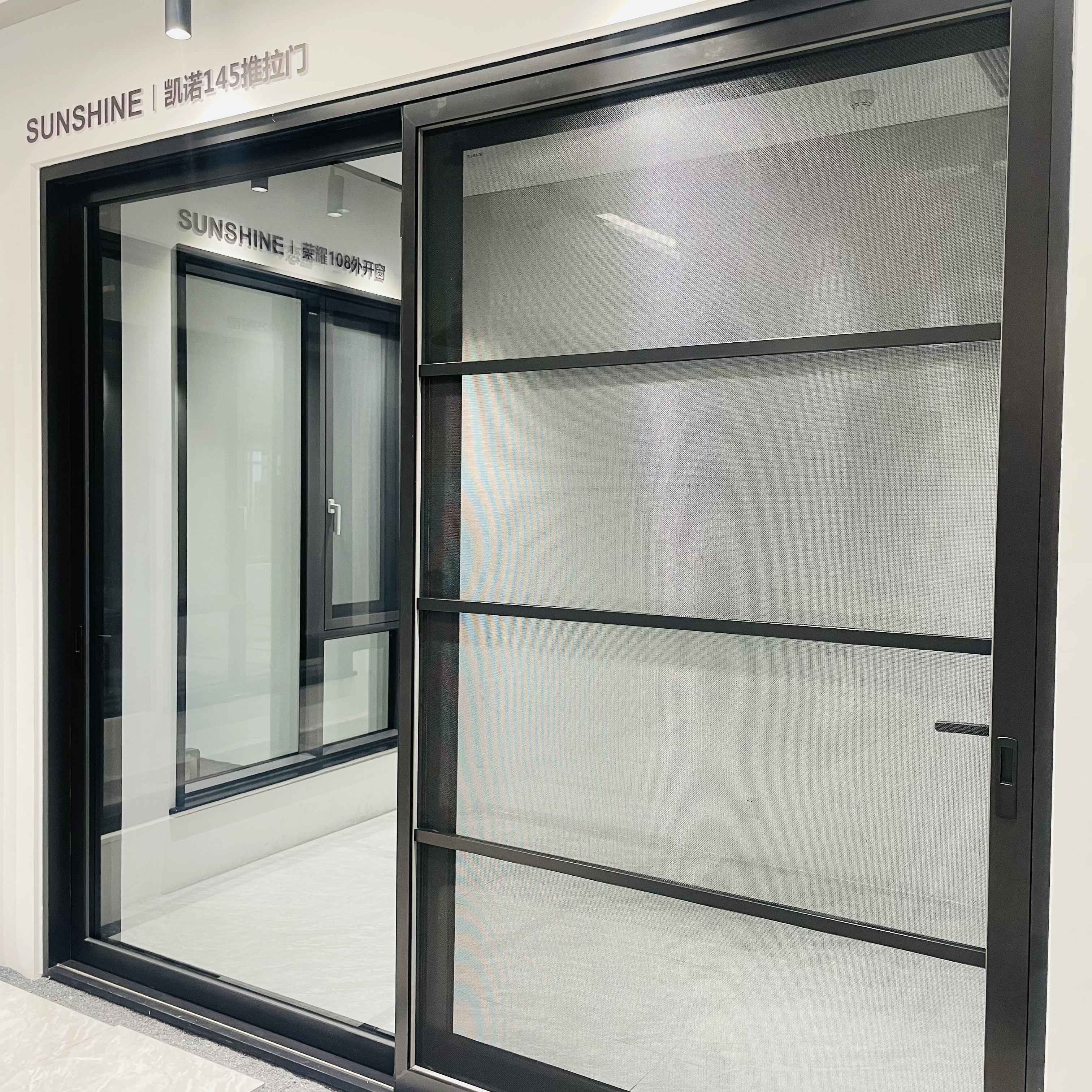

This robust sliding door system is engineered for exceptional performance in exterior applications. Constructed from high-grade, thick-walled aluminum alloy, it offers superior strength, durability, and weather resistance, standing up to harsh elements and demanding use. The door features integrated full-height retractable mesh screens, providing uninterrupted ventilation while effectively keeping insects and debris out.

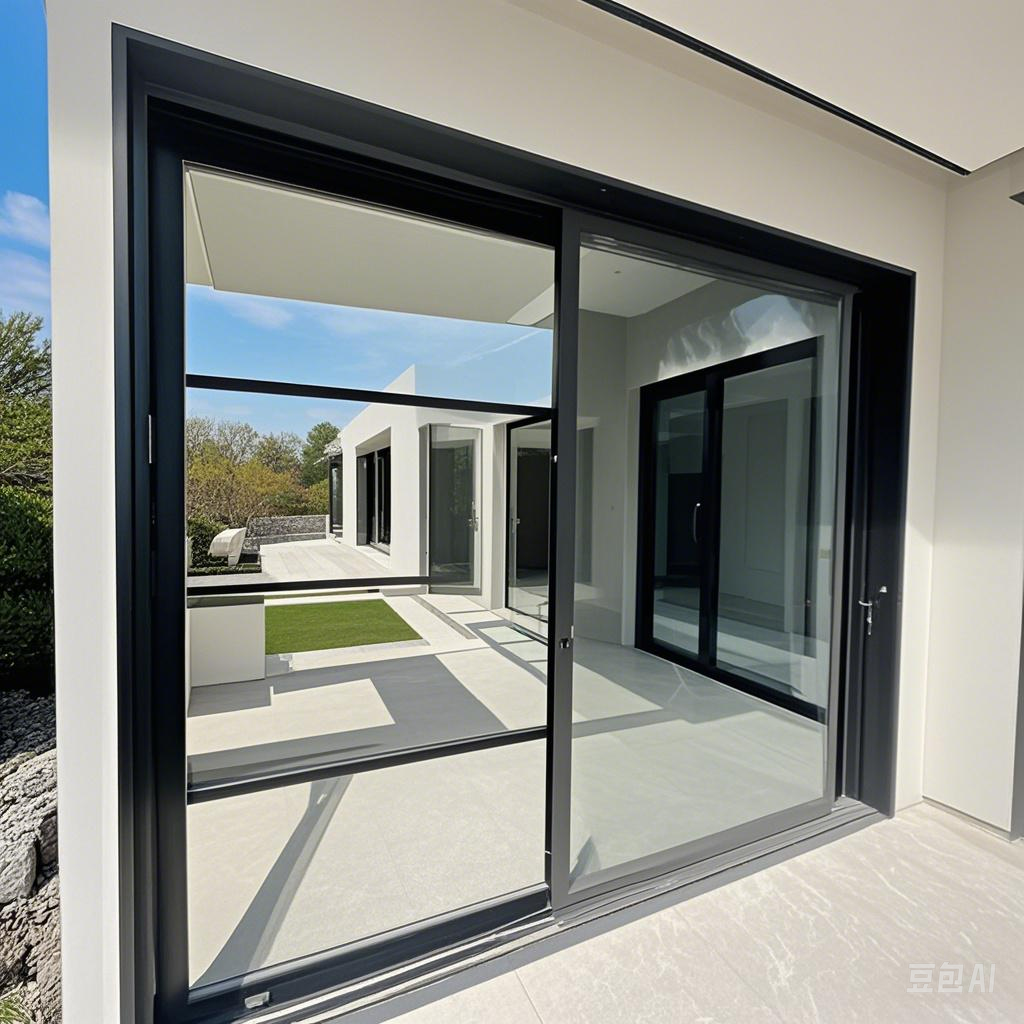

Its large, double-glazed panoramic panels maximize natural light and offer stunning views, complemented by excellent thermal and acoustic insulation for enhanced energy efficiency and indoor comfort. Ideal for patios, terraces, and garden access in both homes and commercial spaces, this door seamlessly combines heavy-duty security, effortless operation, and a sleek, modern aesthetic.
Squeezing seal
Sitting at home without fear of wind and rain
COMPRESSION SEAL
SITTING AT HOME WTHOUT FEAR OFWIND AND RAIN

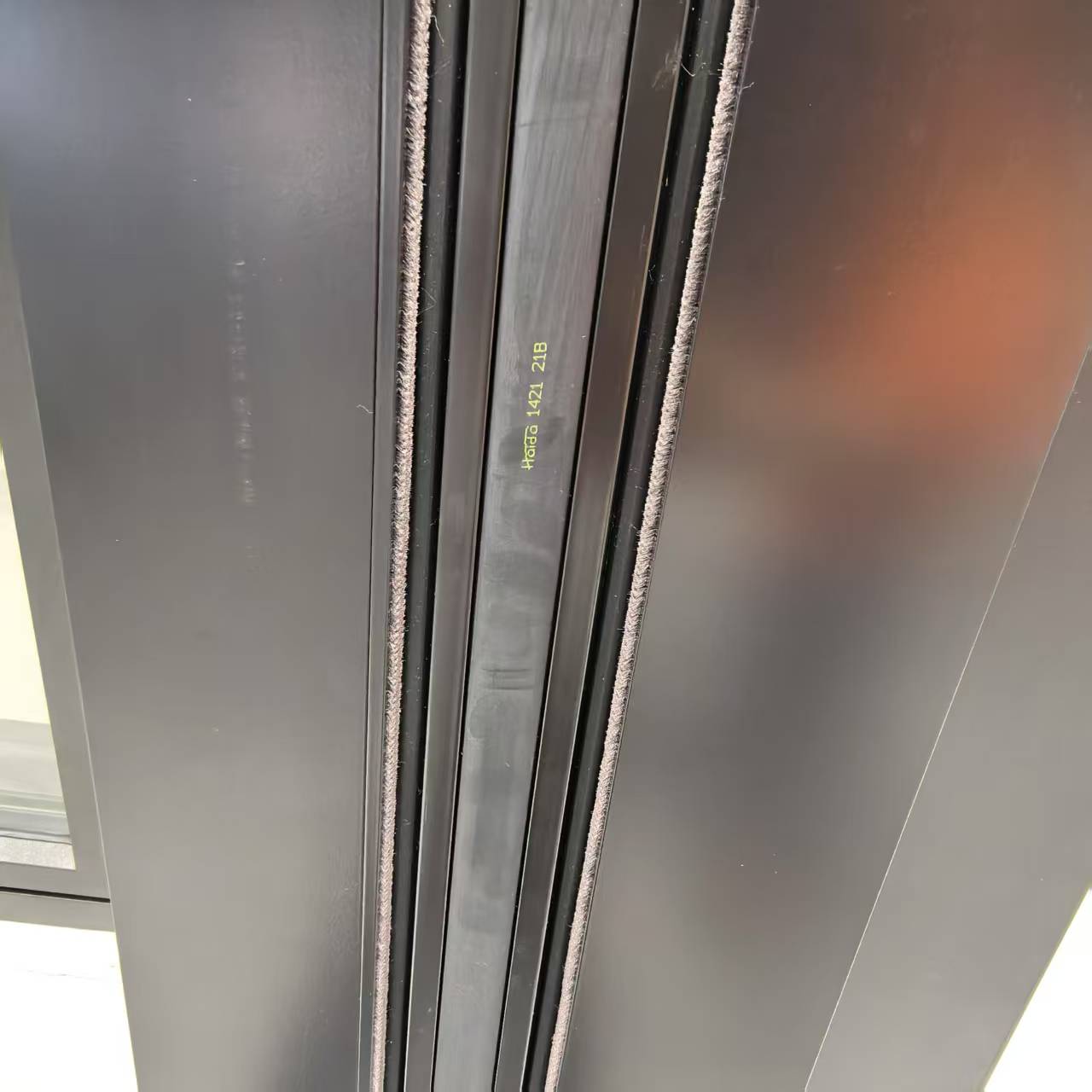

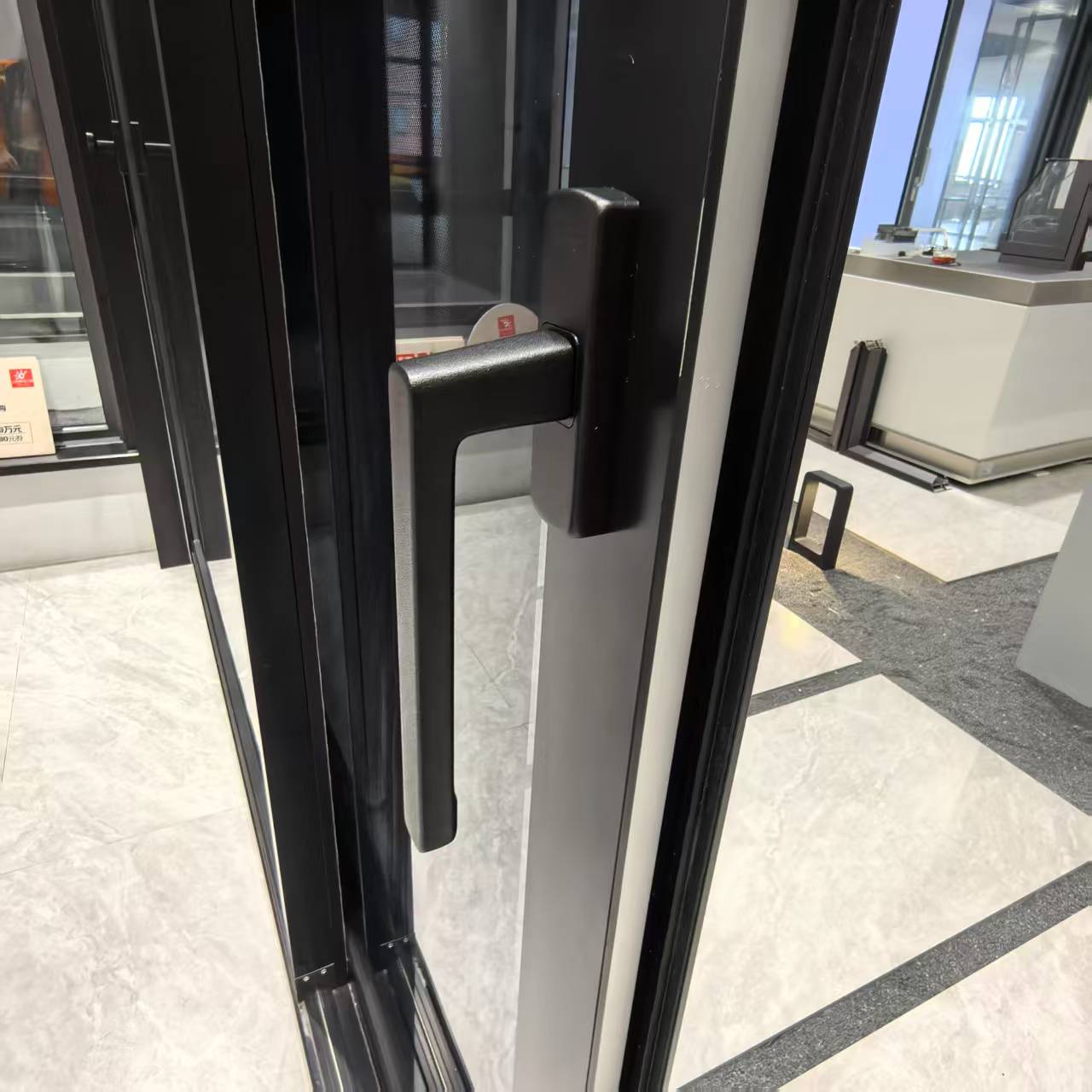

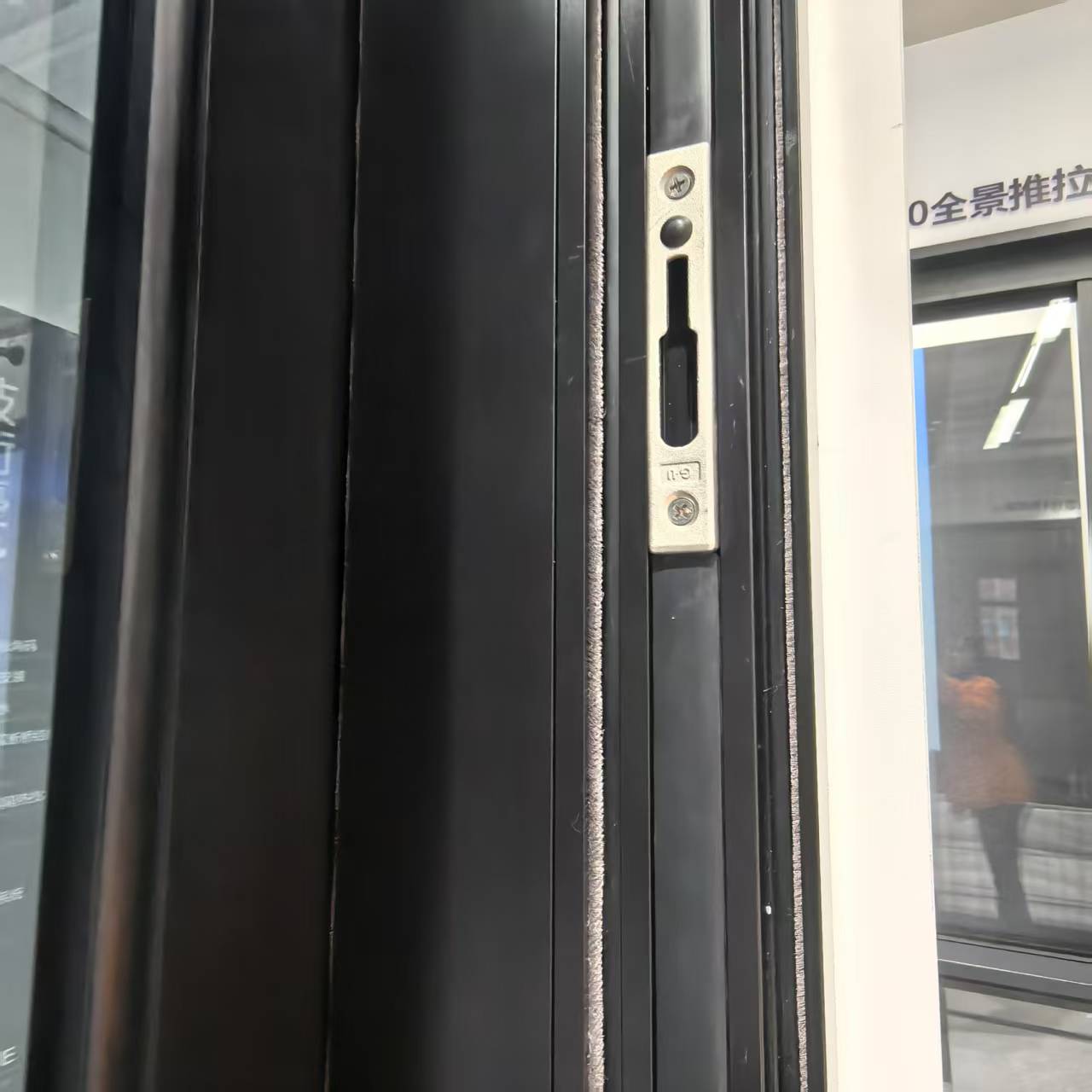

The handle is closely linked with multiple hardware components. By rotating the handle and tightly pressing the rubber strip, multiple seals are formed to prevent dust, air, and water leakage. Each overlap between the frame and the fan is equipped with three or more seals.
Rotation angle
180°
Salt spray resistance test
2000h
Opening and closing test
50000 times
Door frame 41.7mm
Mullion 72MM
Medium narrow structural design
Expand your horizons
MEDILM NARROW STRLCTURE DESIGNEXPANDS YOUR HCRIZONS
A brand new structural design, with a door frame of 72mm and a visible surface of 41,7mm in the middle frame, not only provides ample transparent space to expand your field of view, but also has strong power
The stable structure allows the door leaf to be made larger.
Maximum load-bearing capacity
300KG

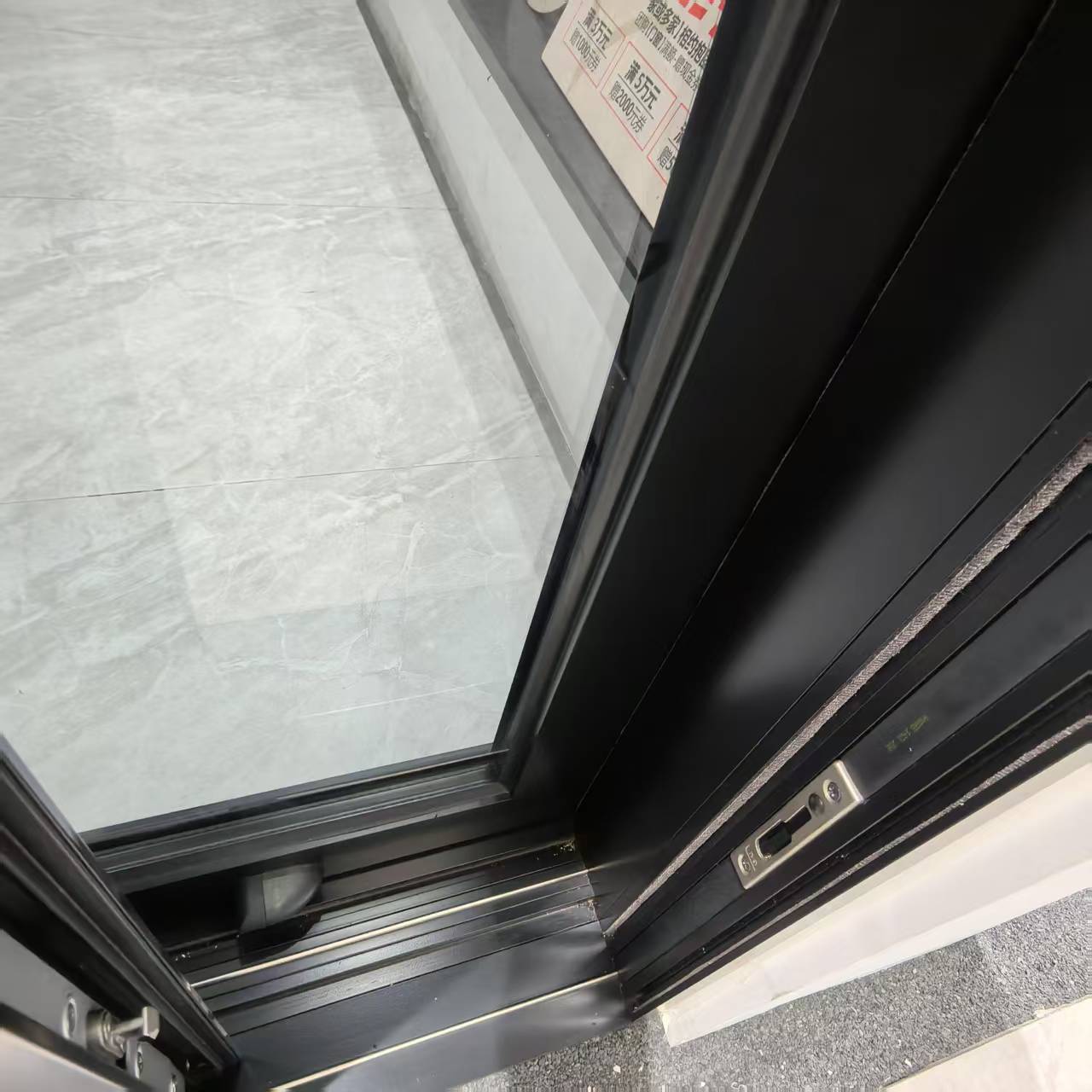

High load-bearing pulley system
Positioning anywhere, sliding as white as
Optional G-U 300Kg high load-bearing lifting system, positioned anywhere, providing high performance with a wide field of view
Easy interaction, smooth sliding, diverse opening to adapt to different scene needs
LARGE LOAD-BEARING CAPACITY
PULLEY BLOCK
Product parameters: ordinary sliding door/lifting sliding door
Indoor frame visible surface 36mm
Outdoor frame visible surface 36mm
Indoor fan visible surface 62.3mm
Outdoor fan visible surface 62.3mm
Indoor total visible surface 98.3mm
The total thickness of the profile frame is 219.9mm
High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 2.0mm
Insulation strip width 14.8mm
Standard Configurations Optional Configurations
Mesh 0.3 black diamond mesh

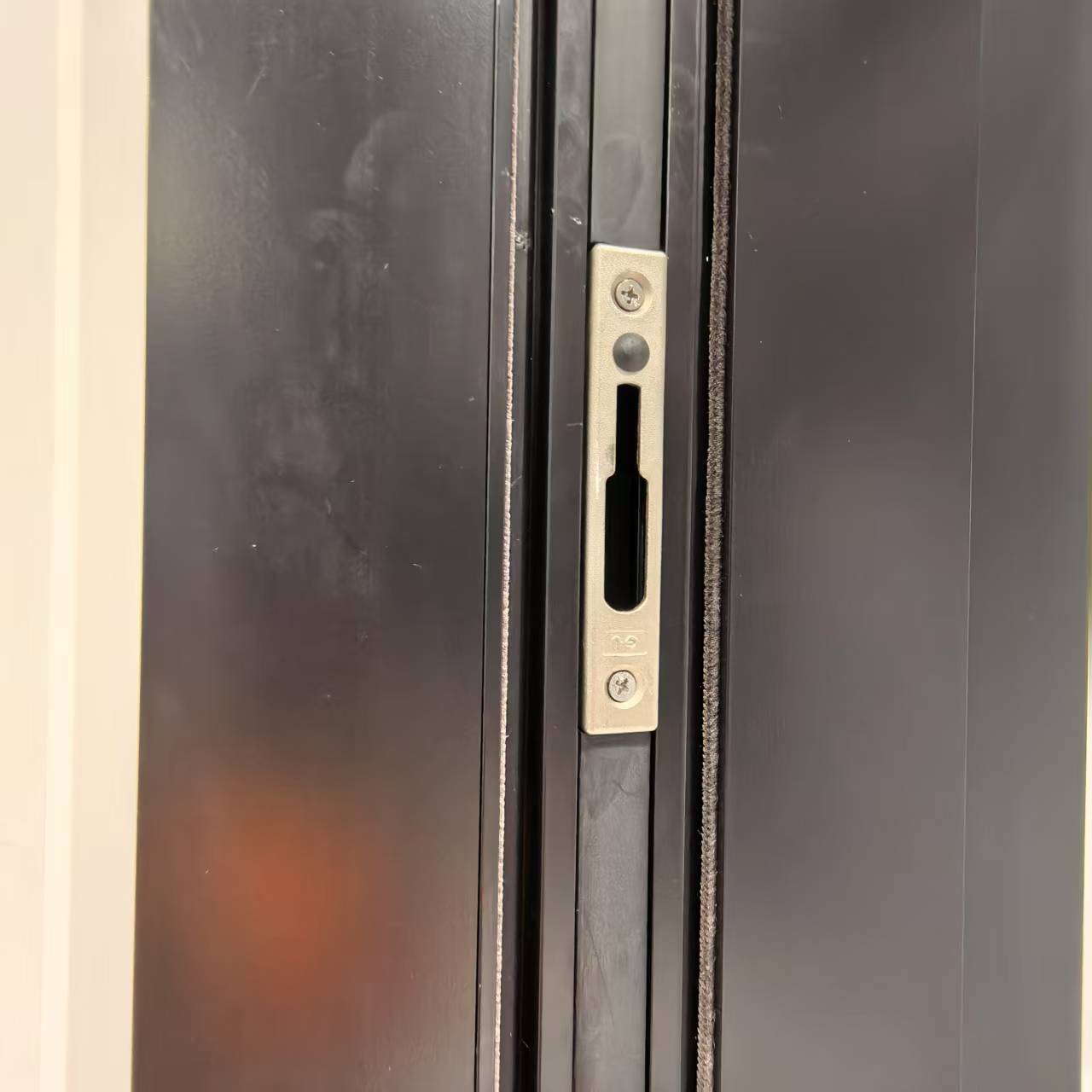

hardware
Hardware brand: Imported: GU
Handle: GU

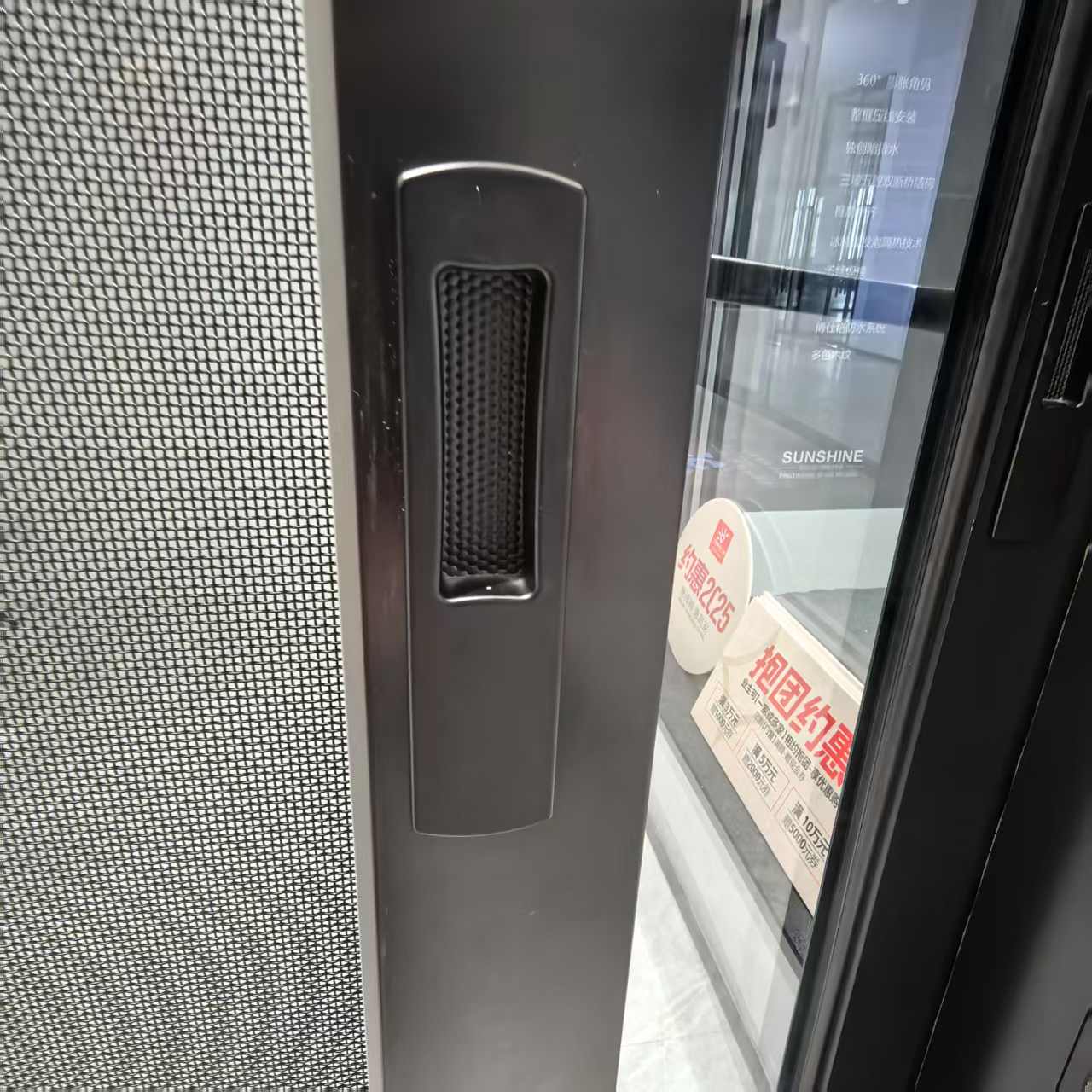

Window screen handle:
Transmission system: GU lifting
Upgrade Options:
Open size and maximum load-bearing capacity
GU:
Fan width: 700-1600mm
Fan height: 1795-2295mm
Maximum load capacity: 150kg
Glass
Frame: Glass groove width:
Fan: Glass groove width: 30
Standard version width: 30
Aluminum spacer color: Silver aluminum spacer
Fixed glass: 5mm+18A+5mm
Fan glass: 5mm+18A+5mm
Upgraded aluminum spacer color: black aluminum spacer
Surface treatment
Surface treatment method: fluorocarbon triple coating
Powder brand: Chinese Brand/Imported Monochrome/Regular Color
Upgraded Option: Double Color/Customized Color
Rubber strip brand: Chinese Brand/imported: Wingkay increases upgrade to Haida
Pressure line
Process configuration

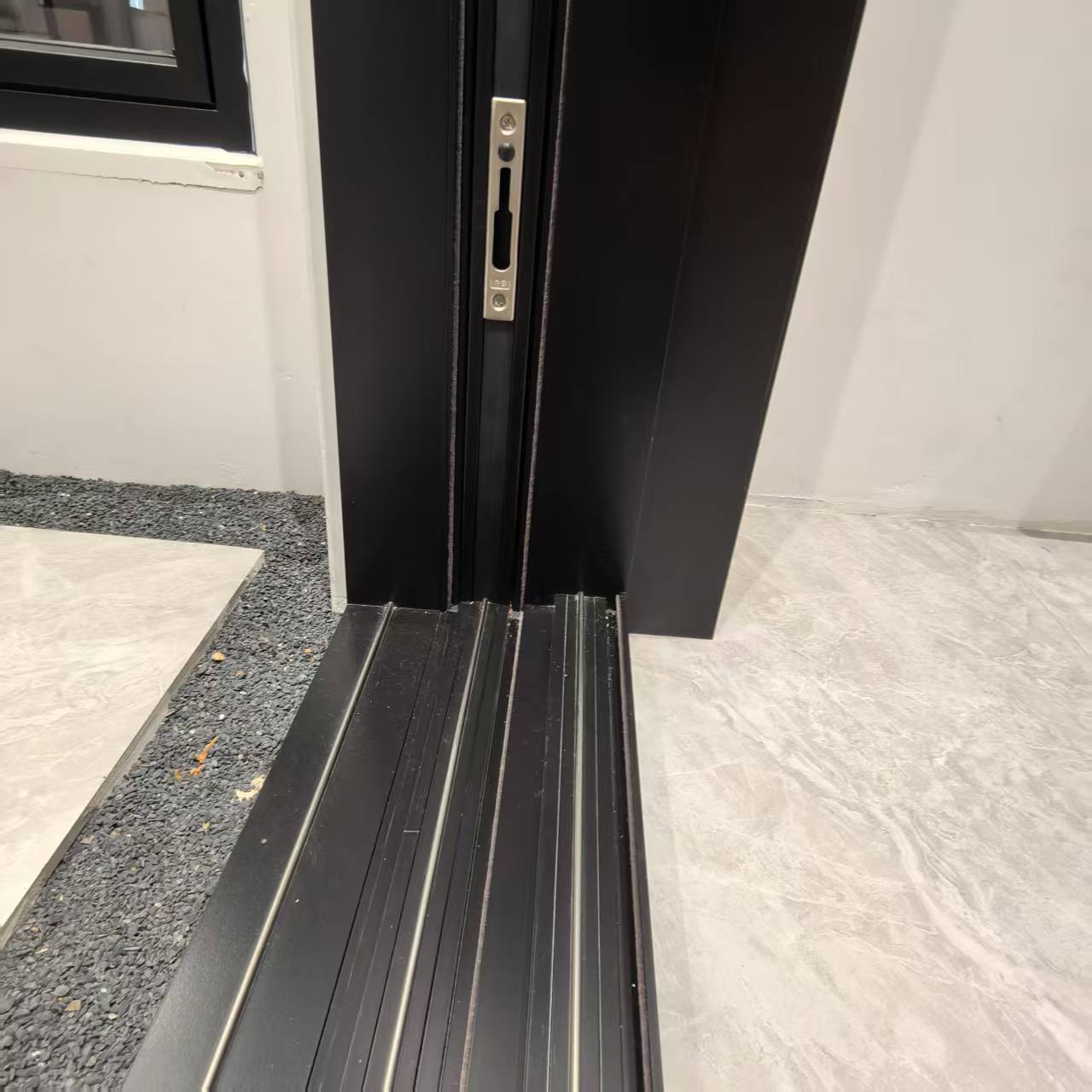

Craftsmanship features: full circle rubber strip, rounded corners, hidden anti backflow drainage, isotherm structure
