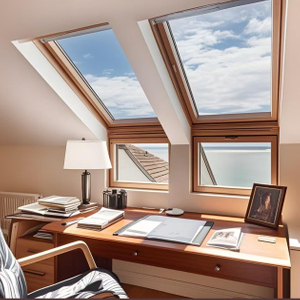

Top Selling High Strength Aluminum Alloy Skylight Roofing with Fluorocarbon Coated

Product Parameters Skylight

Indoor frame visible surface 46.5mm

Outdoor frame visible surface 81.5mm

Indoor fan visible surface 121.5mm

Outdoor fan visible surface 87mm

Indoor total visible surface 173mm

The total thickness of the profile frame is 95mm

High precision 6063-T6 aluminum profile with a main material wall thickness of ≥ 3.0mm

Width of insulation strip

Standard Configure

Screen window

0.8 Black Diamond Mesh (Fixed) Upgraded to Aimeijie Weaving Mesh 28 Mesh (Fixed)

Hardware

German Dunkenmotoren Push Rod Motor

Open size and maximum load-bearing capacity

The maximum length is 3000mm,

Width (motor installation) 660mm-3000mm, area cannot exceed 4 square meters

Width (with motor installed) between 660mm-699mm, using a 100 stroke motor with an opening angle of 27 degrees

Width (with motor installed) between 700mm-749mm, using a 150 stroke motor with an opening angle of 44 degrees

Width (with motor installed) between 750mm-779mm, using a 150 stroke motor with an opening angle of 37 degrees

Width (with motor installed) between 780mm and 3000mm, using a 200 stroke motor with an opening angle of 52-7 degrees

(In general, the larger the width, the smaller the opening angle)



Glass

Box:

Glass groove width:

Fan:

Glass groove width: 40

Standard version width: 39

Aluminum spacer color: Silver aluminum spacer

Add upgraded aluminum spacer color: black aluminum spacer

Fan glass: 5+1.14PVB+5+21A+6LOW-E

Surface Treatment

Surface treatment method: fluorocarbon triple coating

Pink brand: domestic/imported monochrome/regular color

Add and upgrade dual color/custom color

Rubber strip brand: domestic/imported:  Wingkay ，can be upgraded to Haida

Crimping

Process configuration includes rainwater sensor, smart home wireless voice control, backup power supply, remote control, manual buttons

Craft Features

1) Selection of profiles: High quality aluminum profiles 6063-T6 from well-known manufacturers are used to ensure their bending strength.

2) . 45 degree splicing angle: Adopting the method of corner gluing, inject Antai waterproof corner glue into the slot.

3) Waterproof sealing device: equipped with two layers of sealant

Using high-quality sealing strips of Haida EPDM (automotive grade),

Enduring harsh weather conditions ranging from -50 ℃ to 120 ℃,

Use for 30 years without labor, ensuring waterproof sealing of the sunroof.

Adhesive: Made with German Defender (specialized adhesive for adhesive strips)

Ensure no water seepage.

4). Twisting device: no hinge, made of stainless steel parts, reinforced with force
