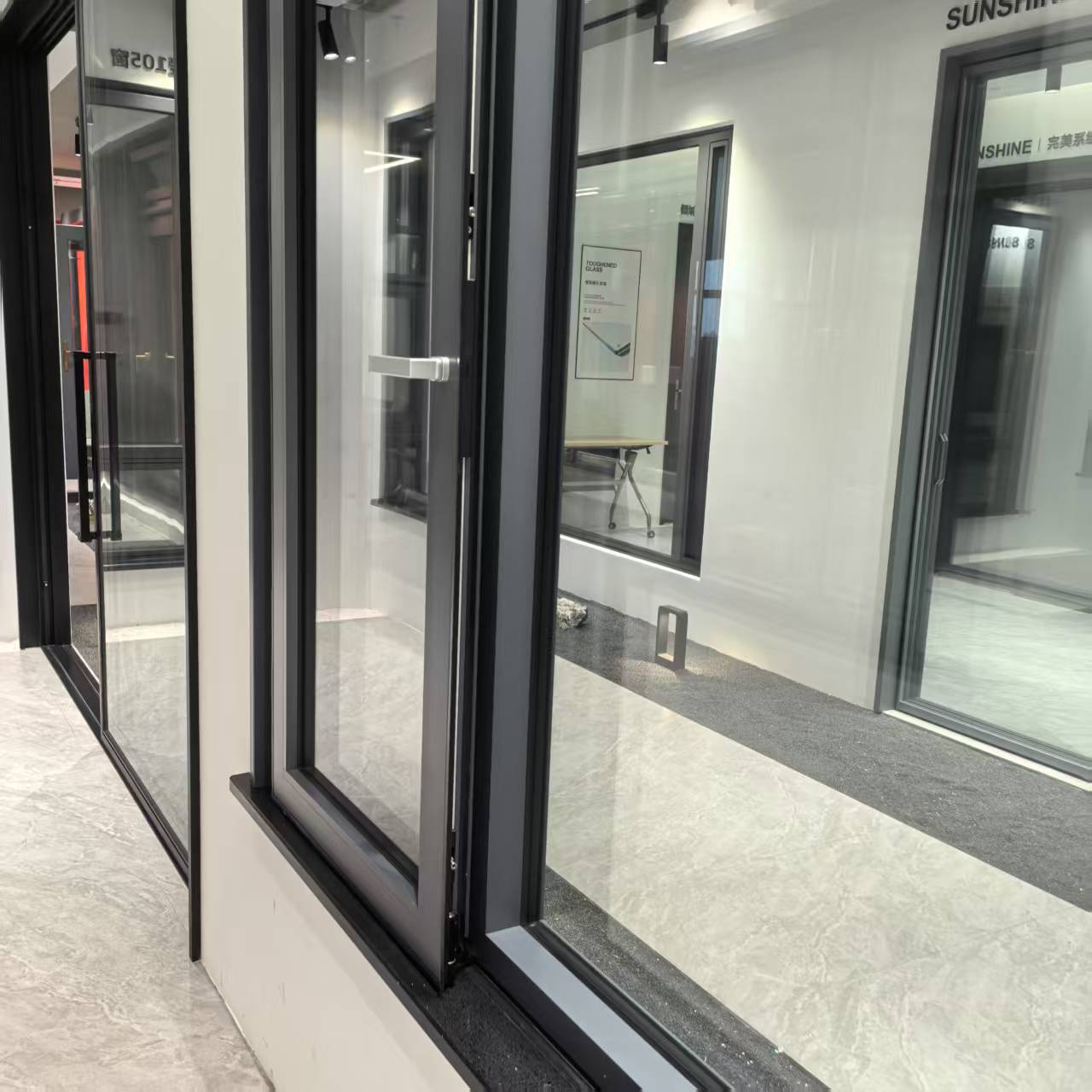

Star 100 Sliding Window
Star 100 Sliding Window
Standard Configurations
Mesh 0.18 black diamond mesh with upgraded mesh: brand/aperture/color, no
Hardware
Hardware brand: imported
Handle: Wehag
Window screen handle: customized
Transmission system: multi-point lock
Upgrade Options:
Open size and maximum load-bearing capacity
Wehag:
Fan width: 600-1700mm
Fan height: 800-2500mm
Maximum load capacity: 100kg
Glass
Frame: Glass channel width: 38.2
Fan: Glass channel width: 38.5
Standard version width: 38.5
Aluminum spacer color: Silver aluminum spacer
Fixed glass: 5mm+20A+5mm
Fan glass: 5mm+20A+5mm
Upgrade to 6mm+18A+6mm
8mm+16A+8mm
Aluminum spacer color: black aluminum spacer
Surface treatment
Surface treatment methods: fluorocarbon grey, metal grey, fluorocarbon coffee
Powder brand: Chinese Brand/Imported Monochrome/Regular Color
Upgraded Option: Double Color/Customized Color
Rubber strip brand: Chinese Brand/imported: Wingkay
Upgrade Options:
Line pressing square line pressing (whole frame line pressing)
Process configuration
Process features: Multi axis mobile variable track window sash opening system, internal self-locking protection hardware, double-sided misoperation design for safety protection, and large safety ventilation design
304 stainless steel mesh/ woven mesh
Product Parameters:

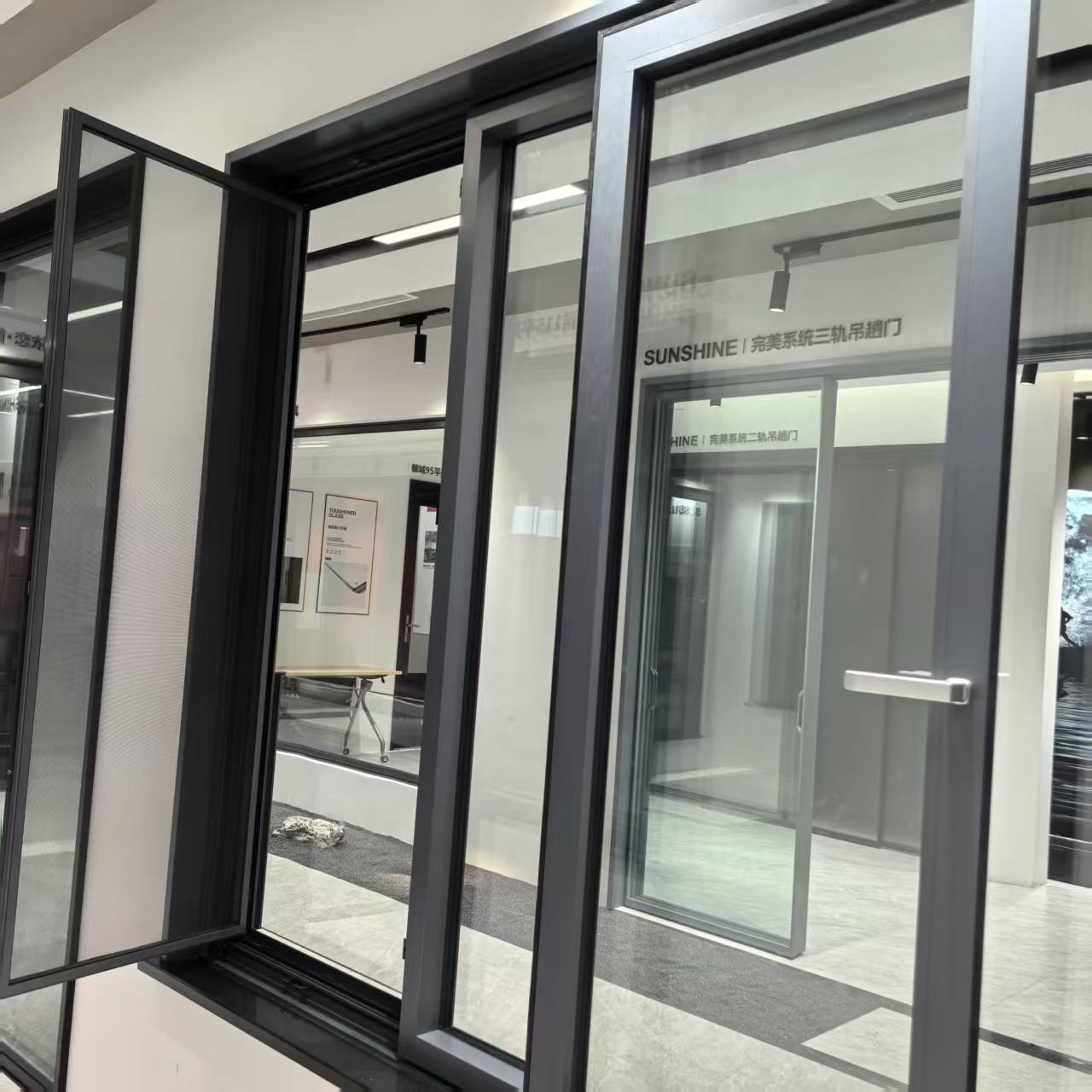

Glass Fan Sliding Window/Inner Inverted+Yarn Fan Inner Flat Window
Indoor frame visible surface 23.7mm
Outdoor frame visible surface 83.5mm
Indoor fan visible surface 83.6mm
Outdoor fan visible surface 20.8mm
Indoor total visible surface 100mm
The total thickness of the profile frame is 107.6mm
High precision 6063-T5 aluminum profile with a main material wall thickness of ≥ 1.9mm
Insulation strip width 25.3mm

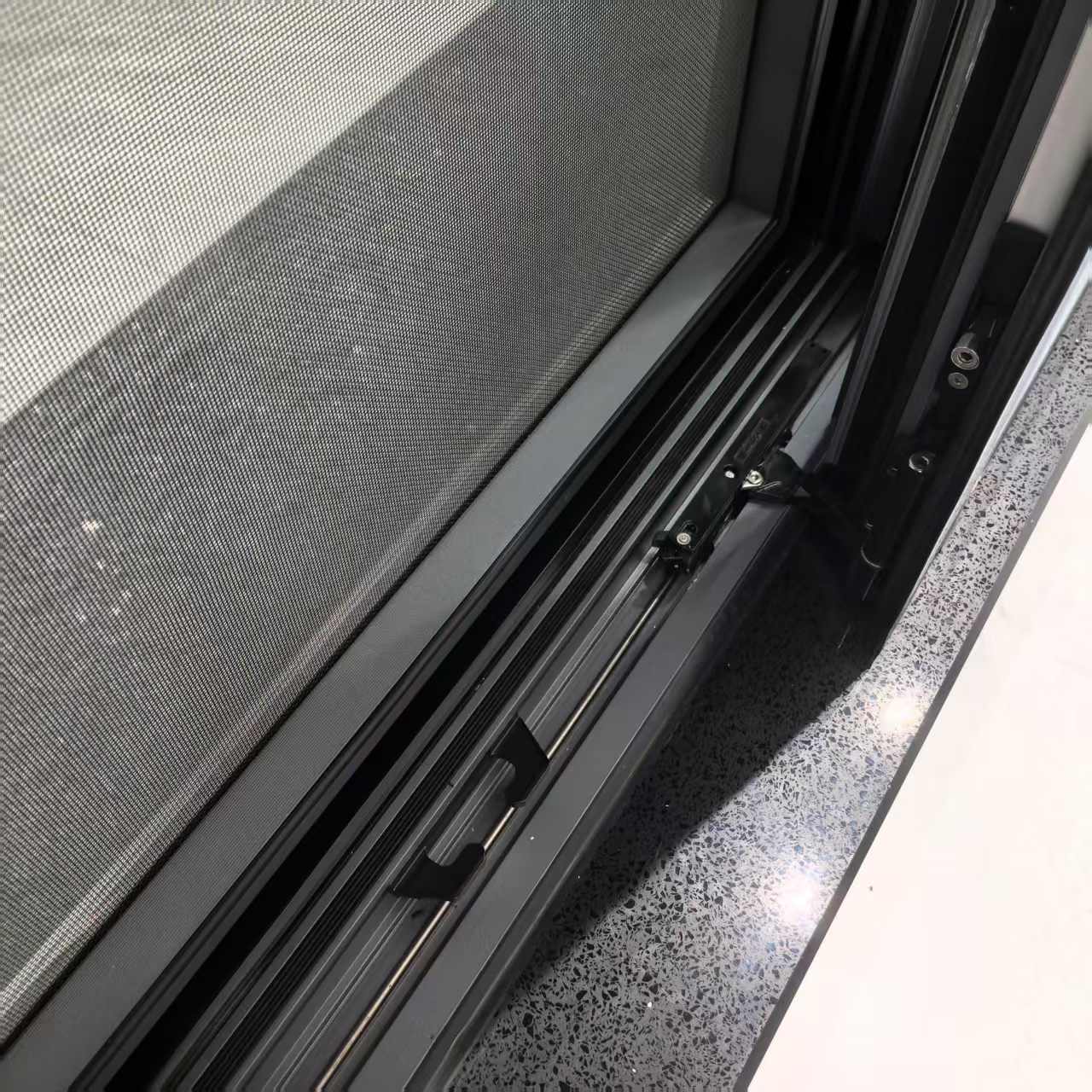

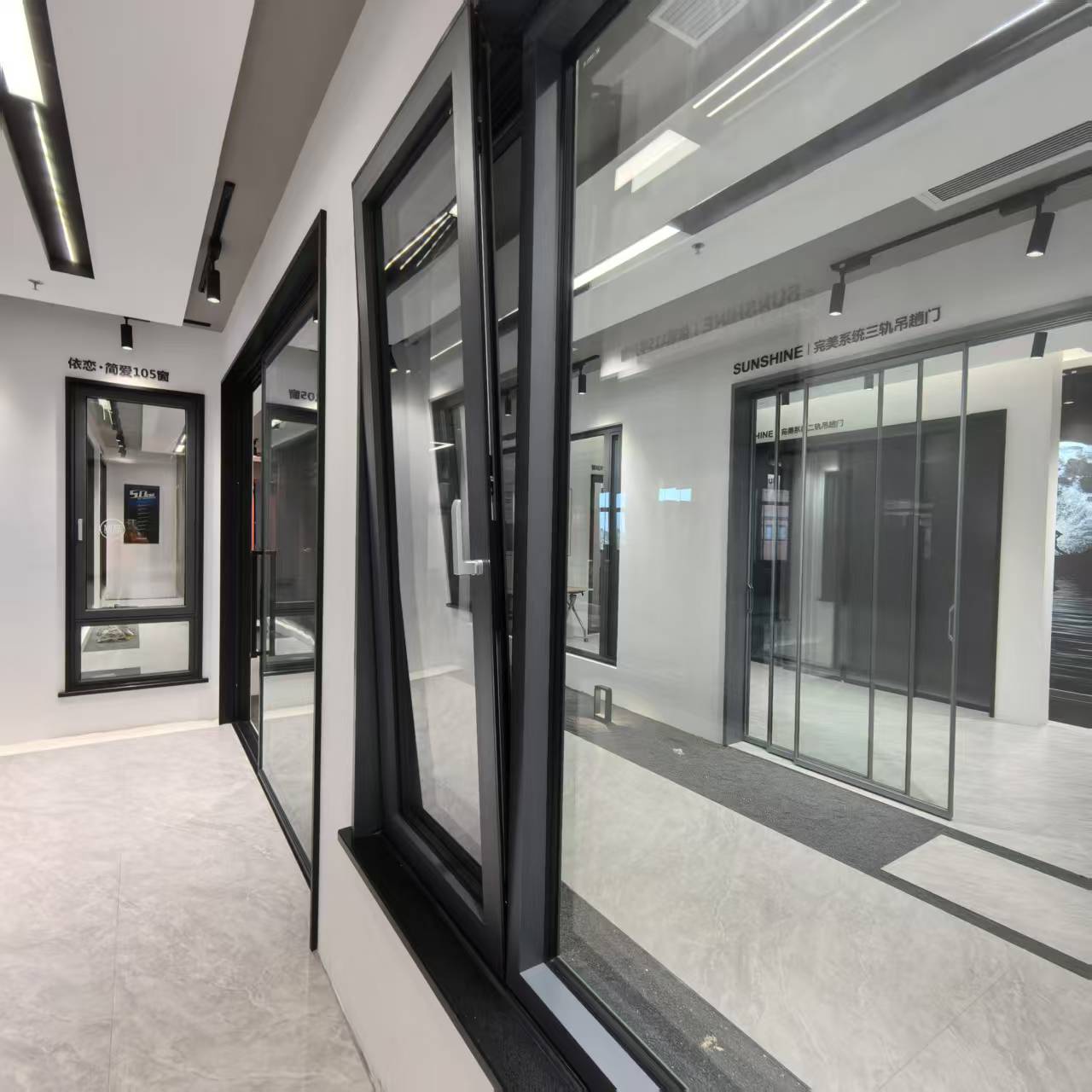

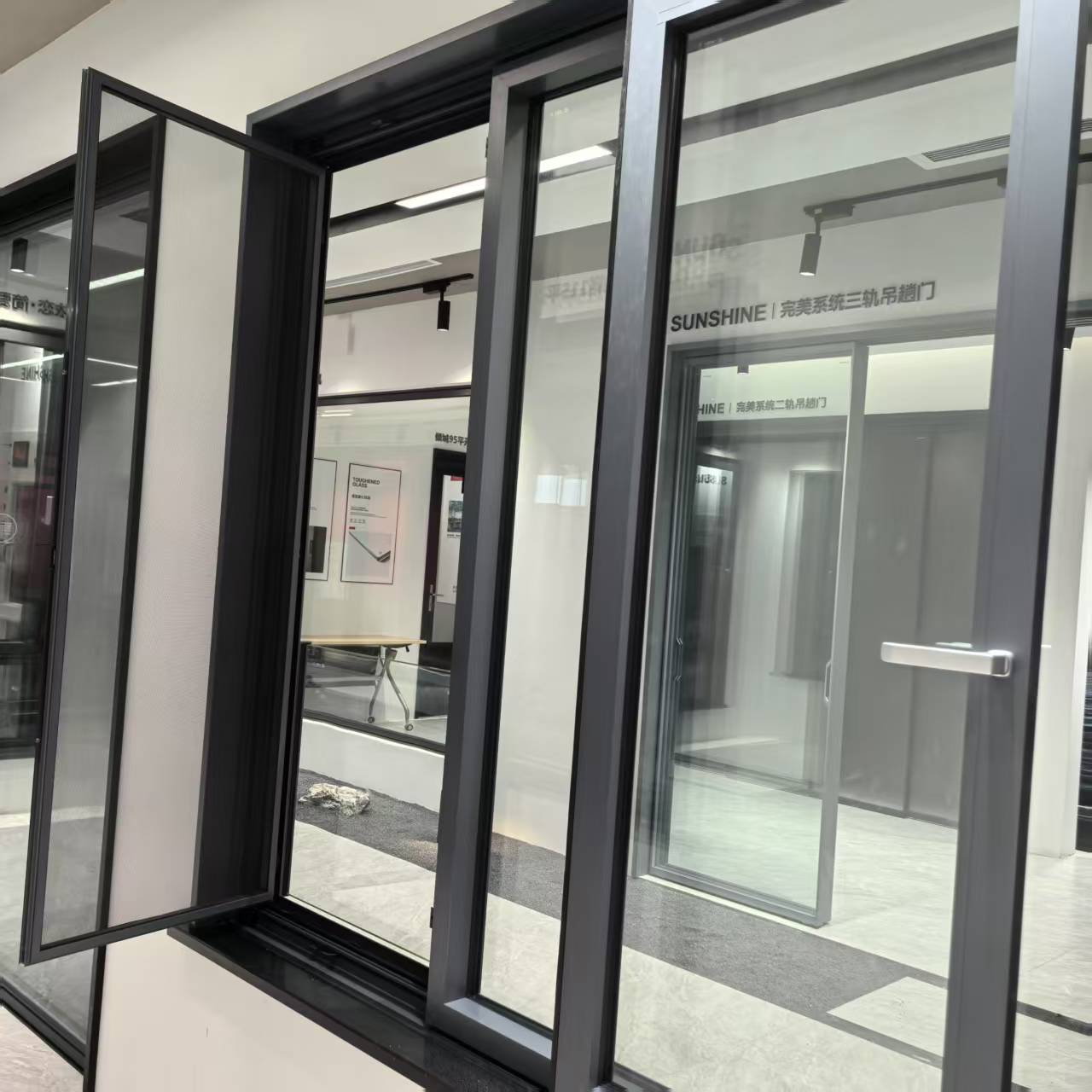

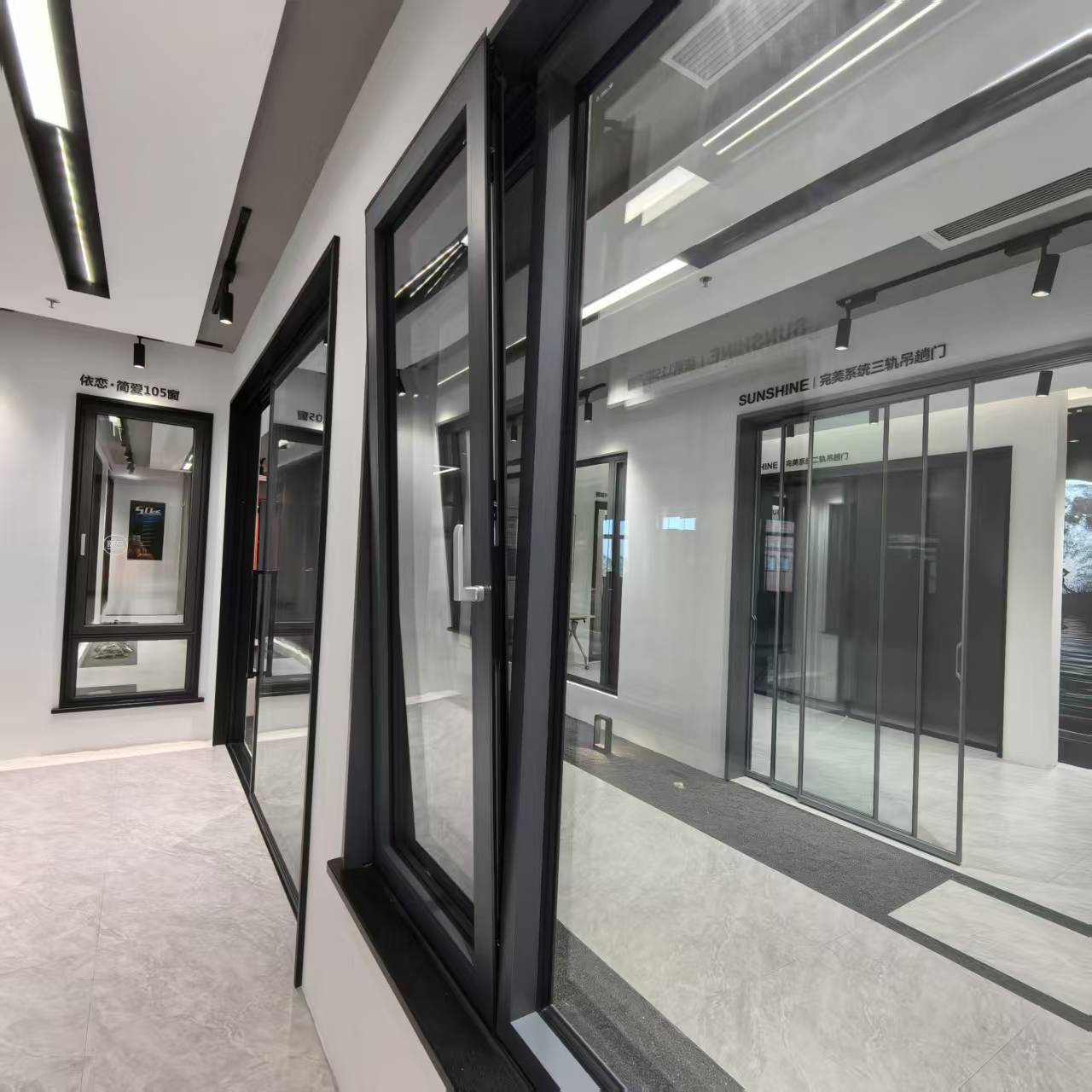

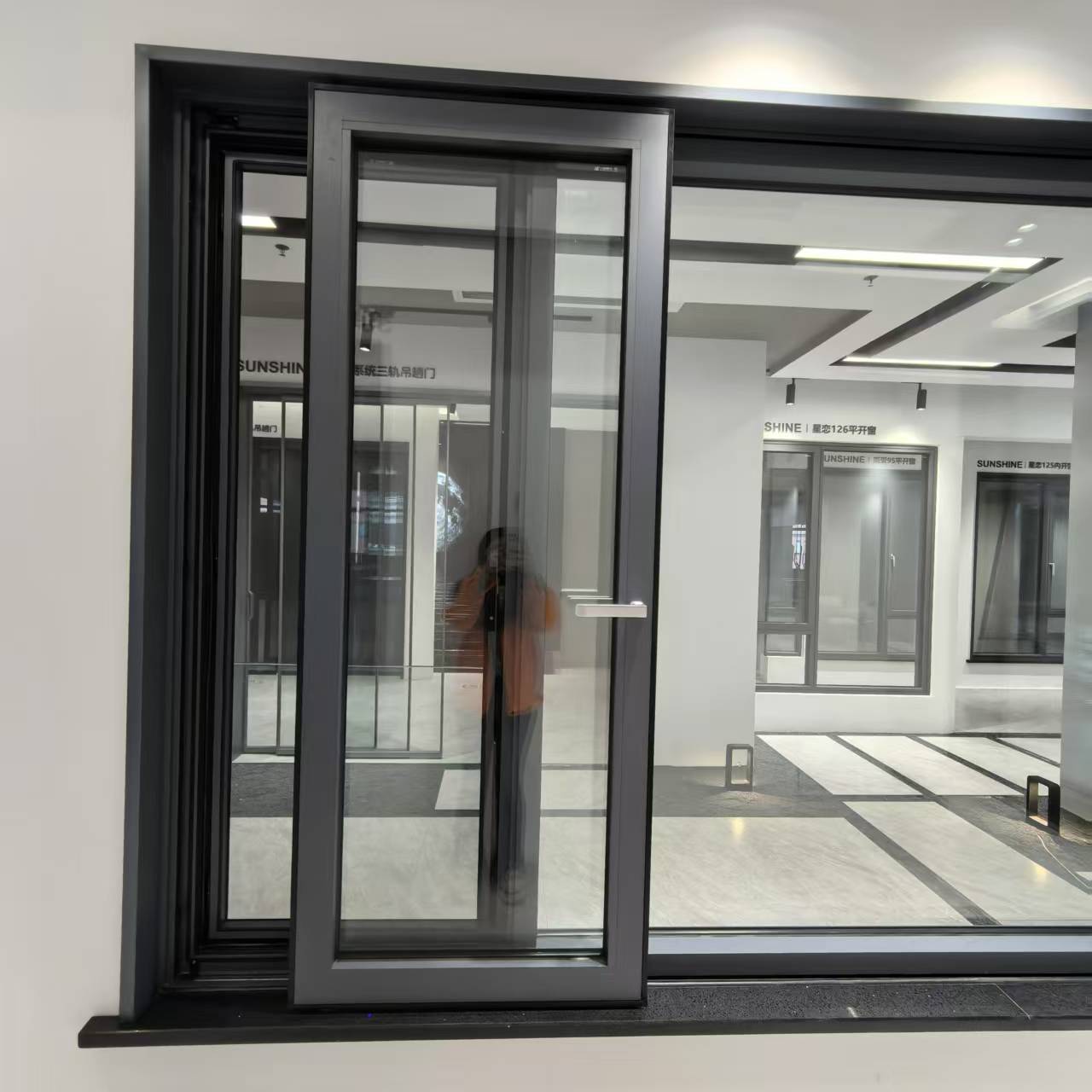

open as awning window

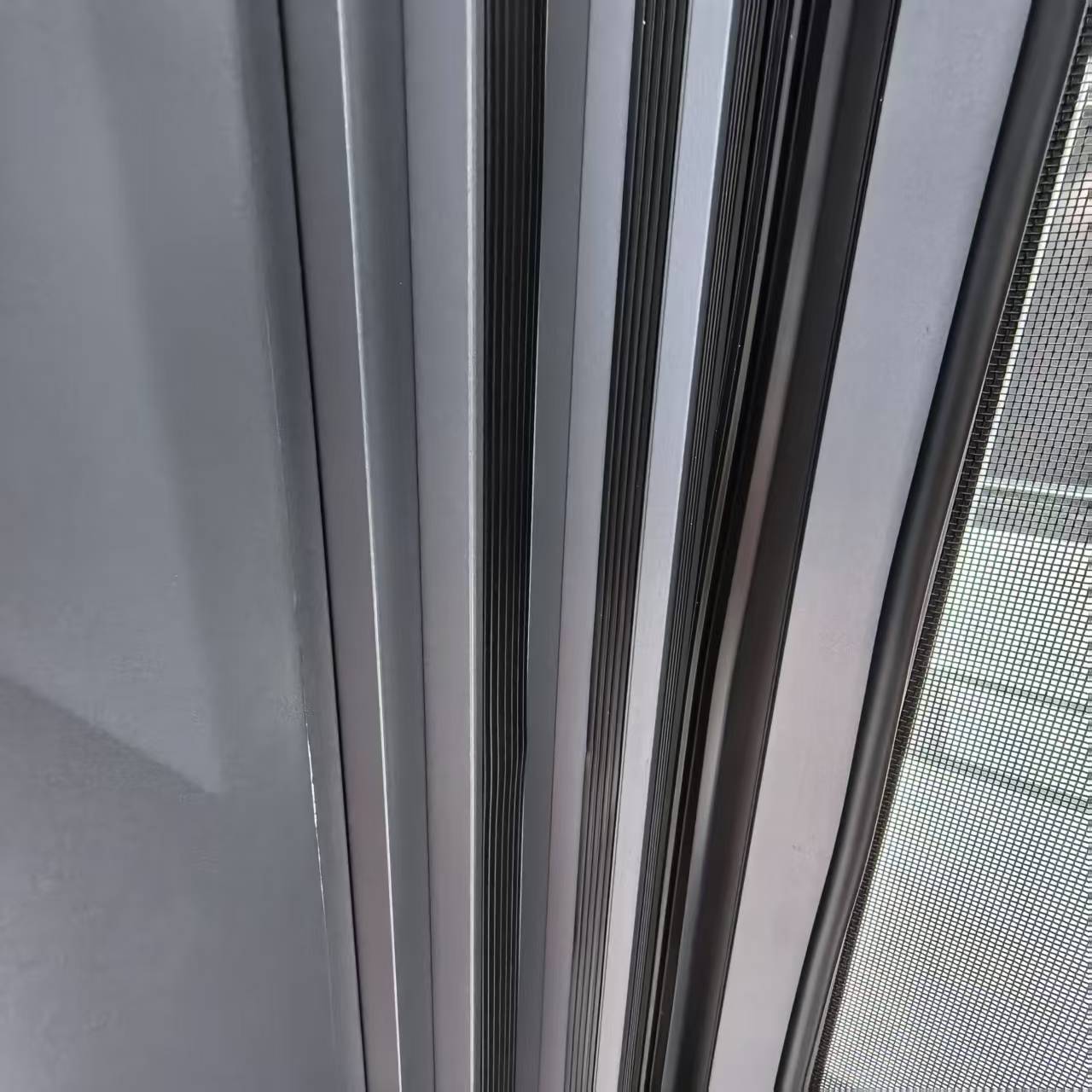

durable long service time rubber strips

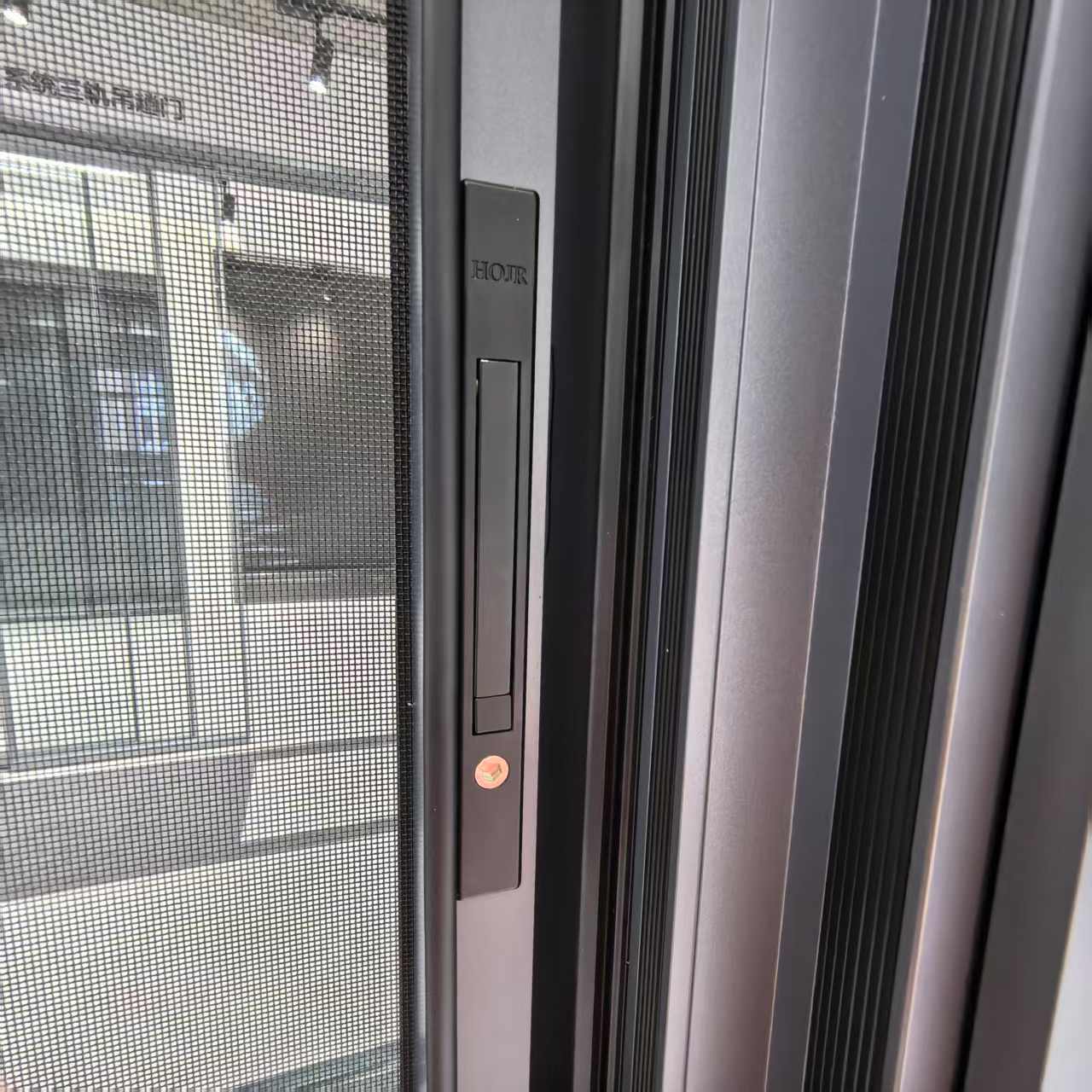

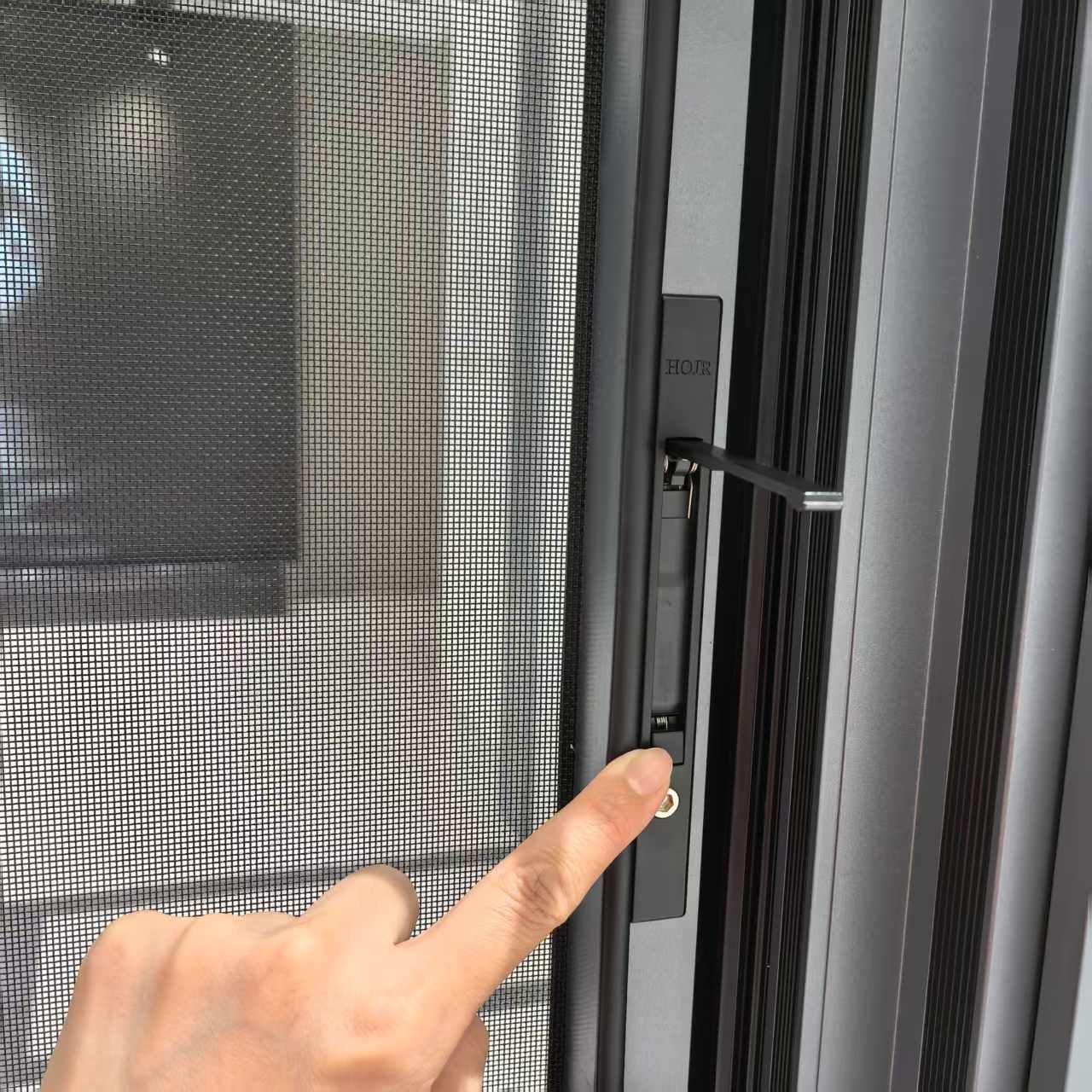

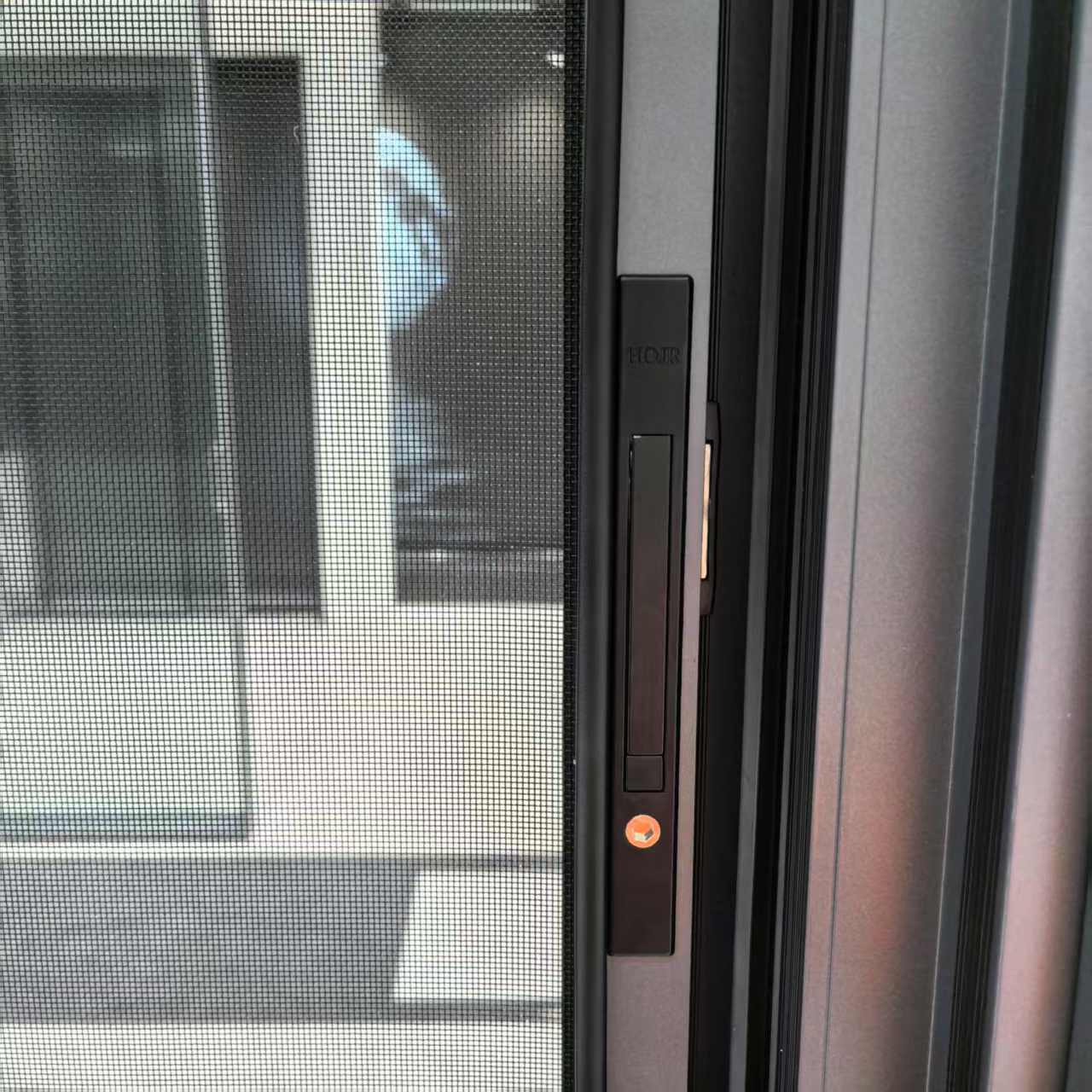

hidden mesh handle

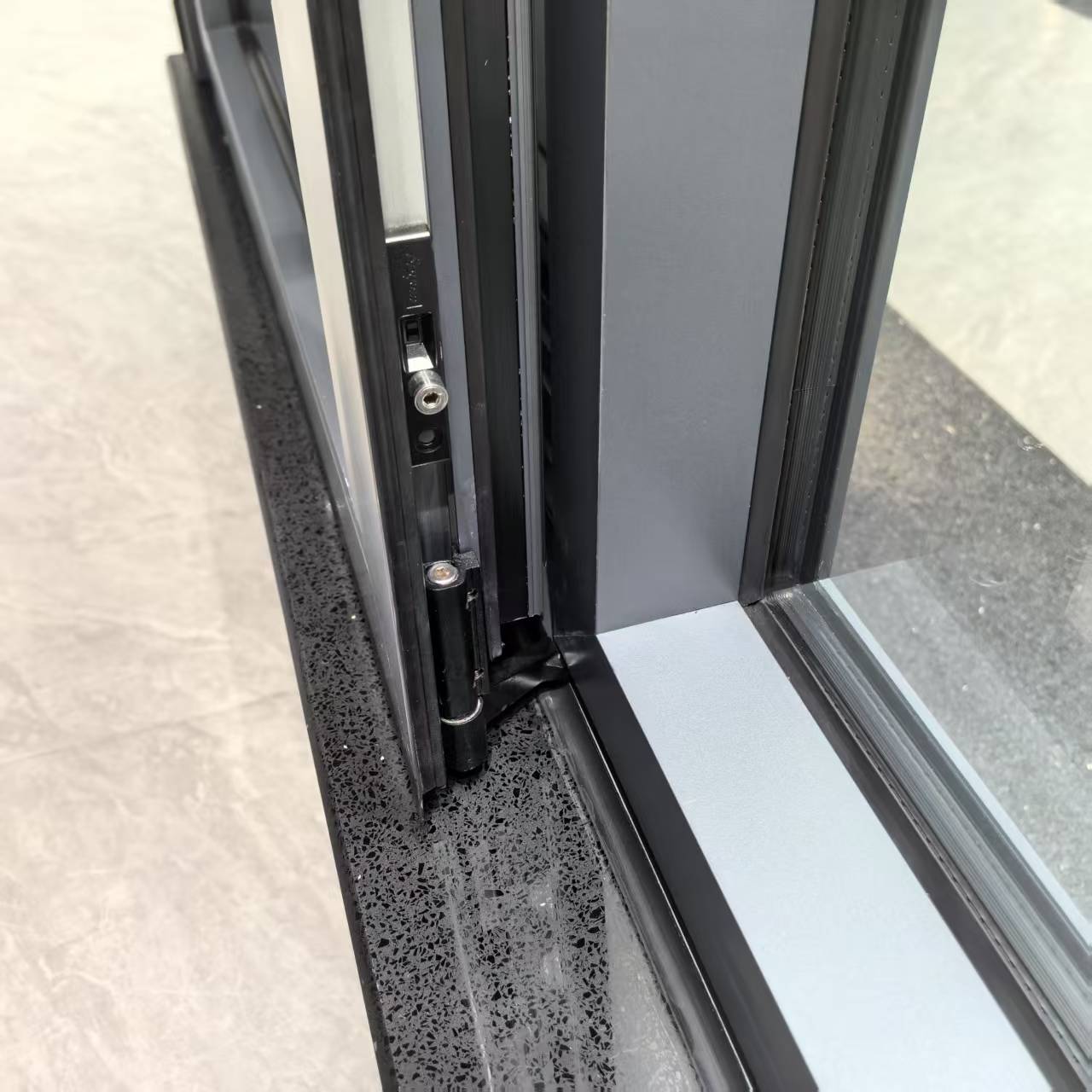

heavy duty hardware

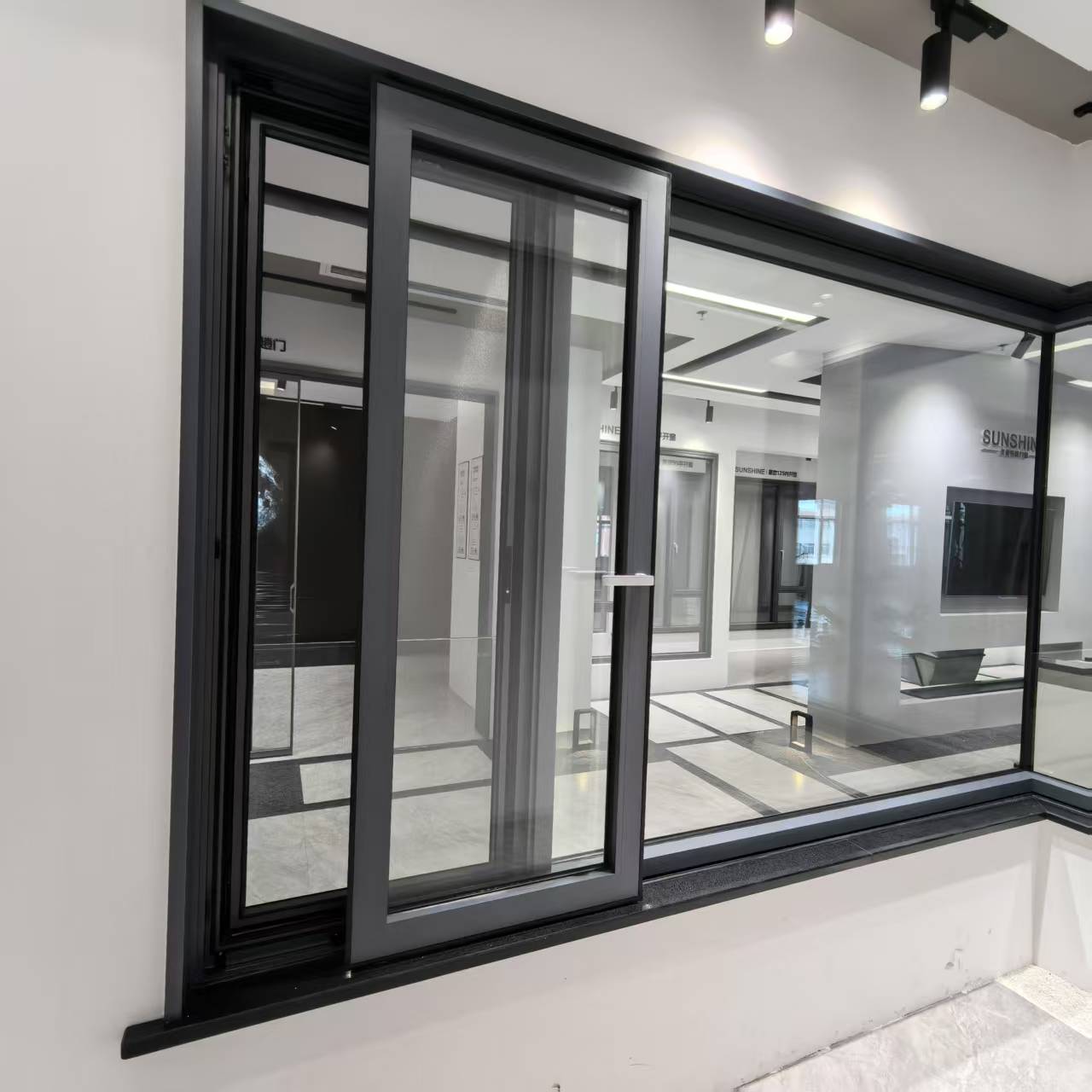

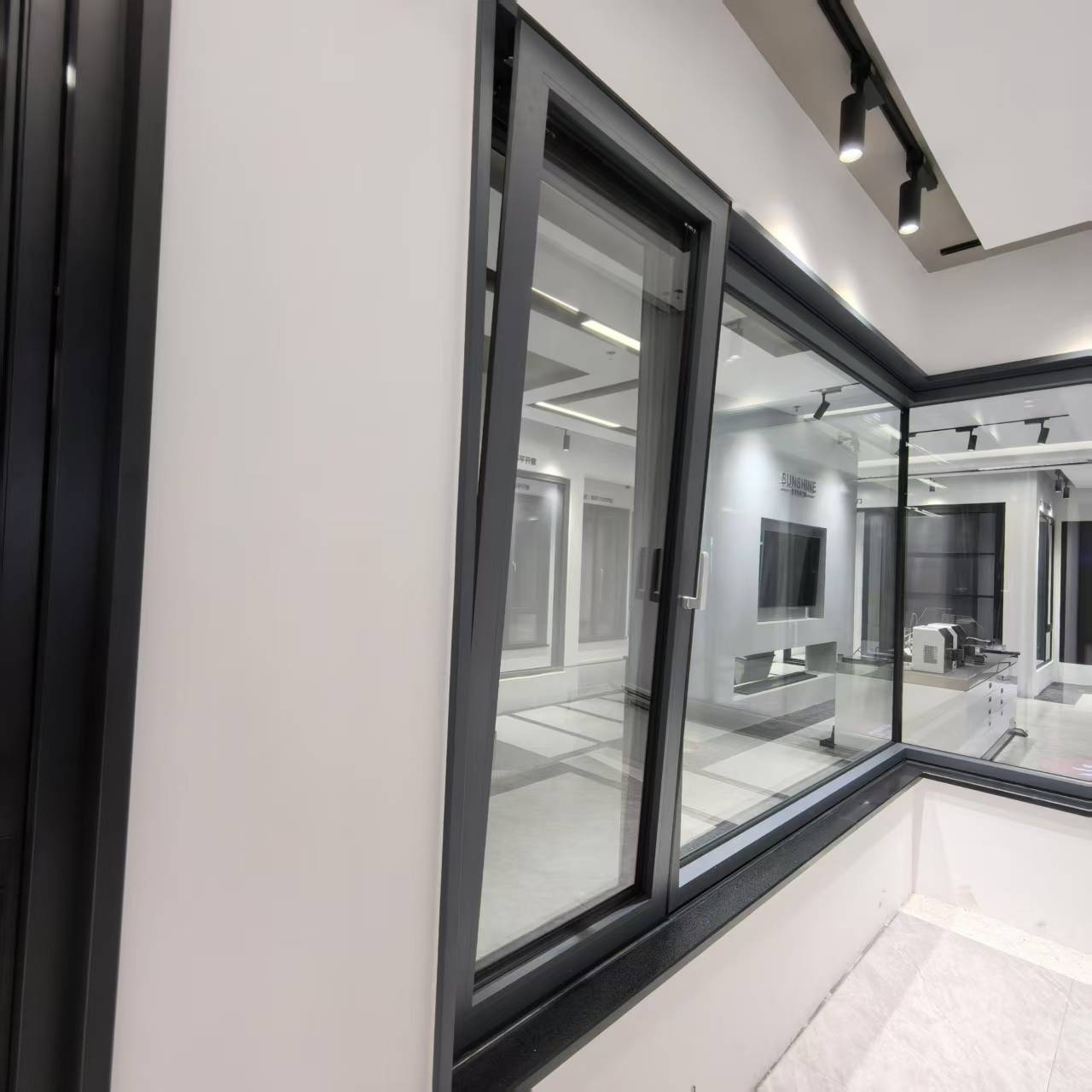

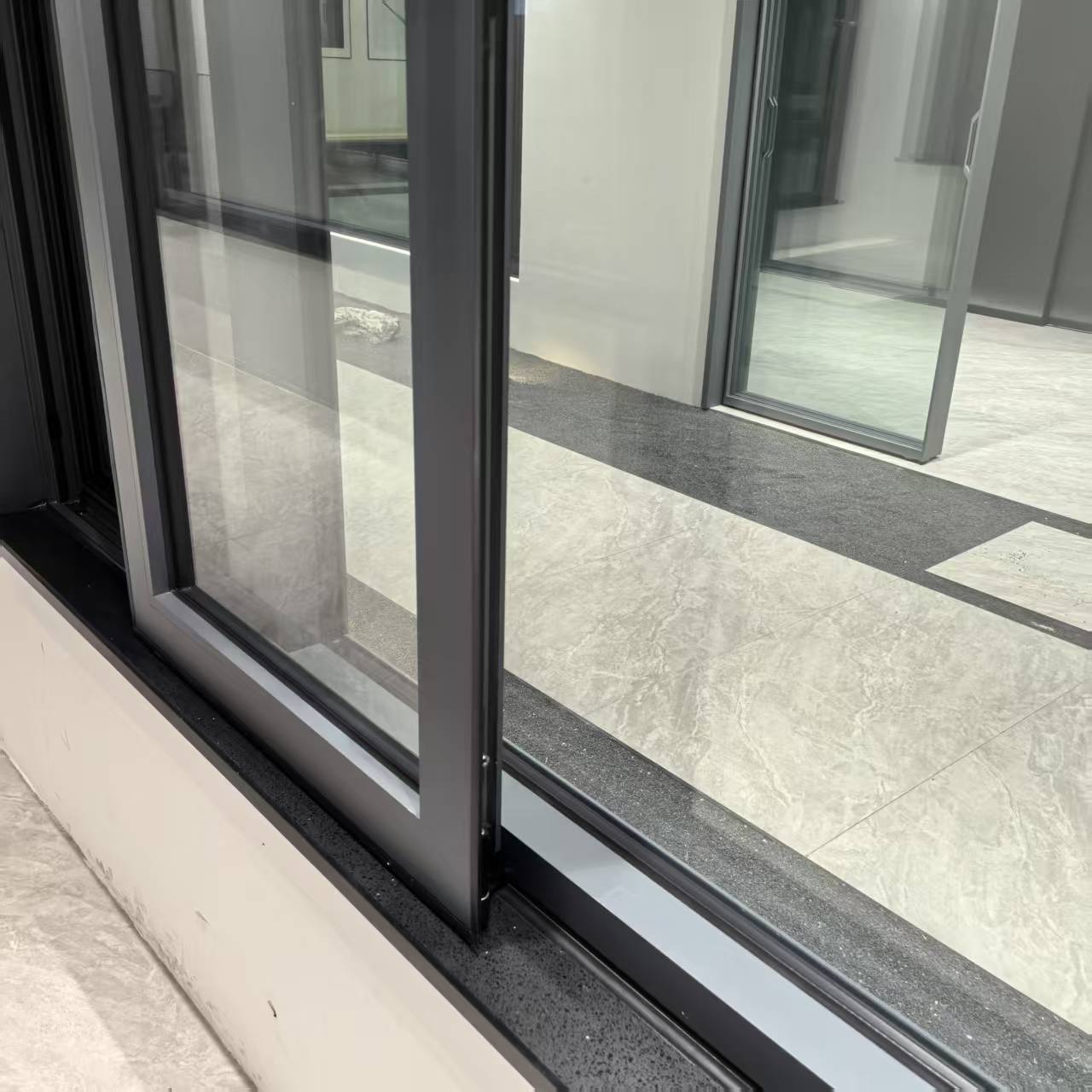

Smooth Sliding

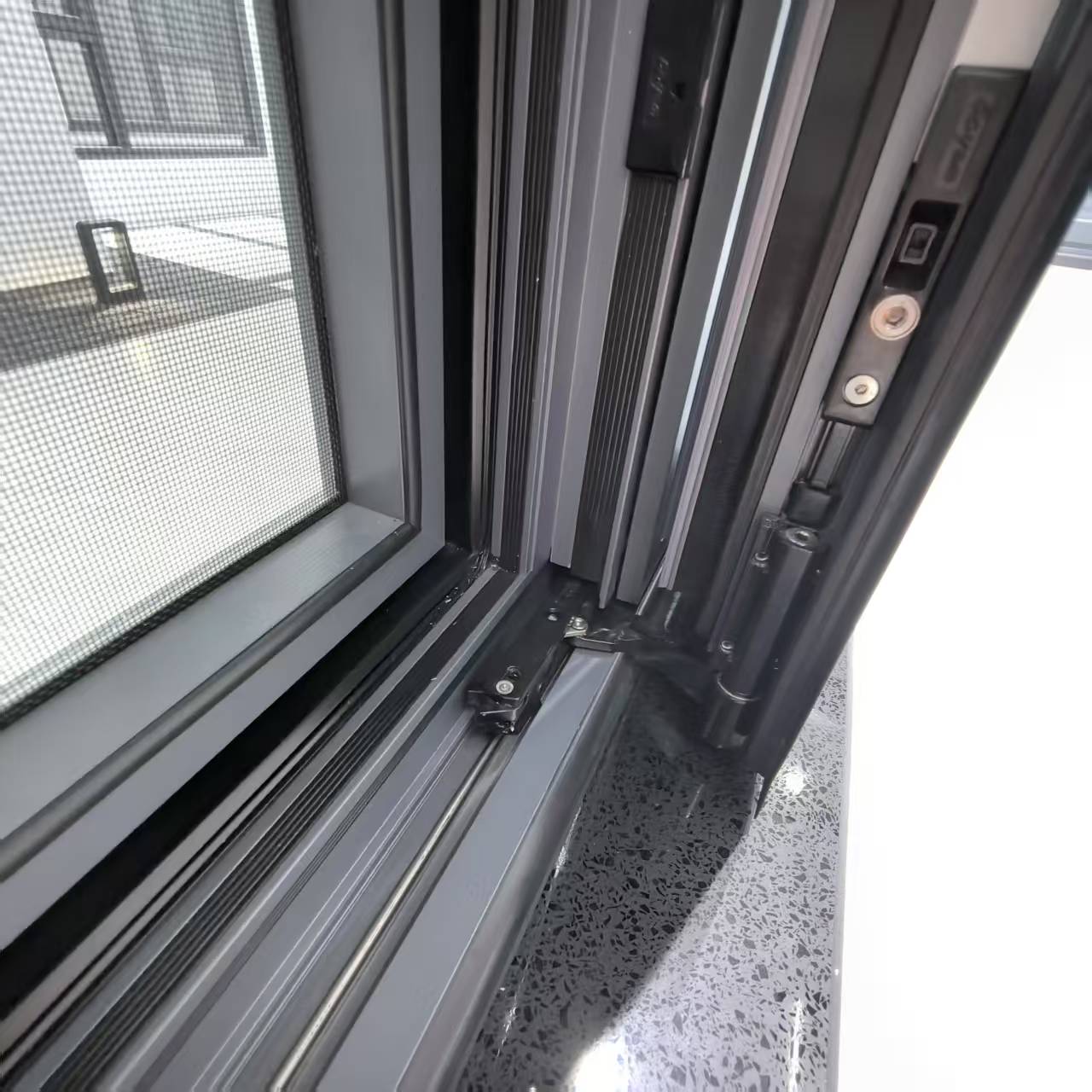

OPK Hardware

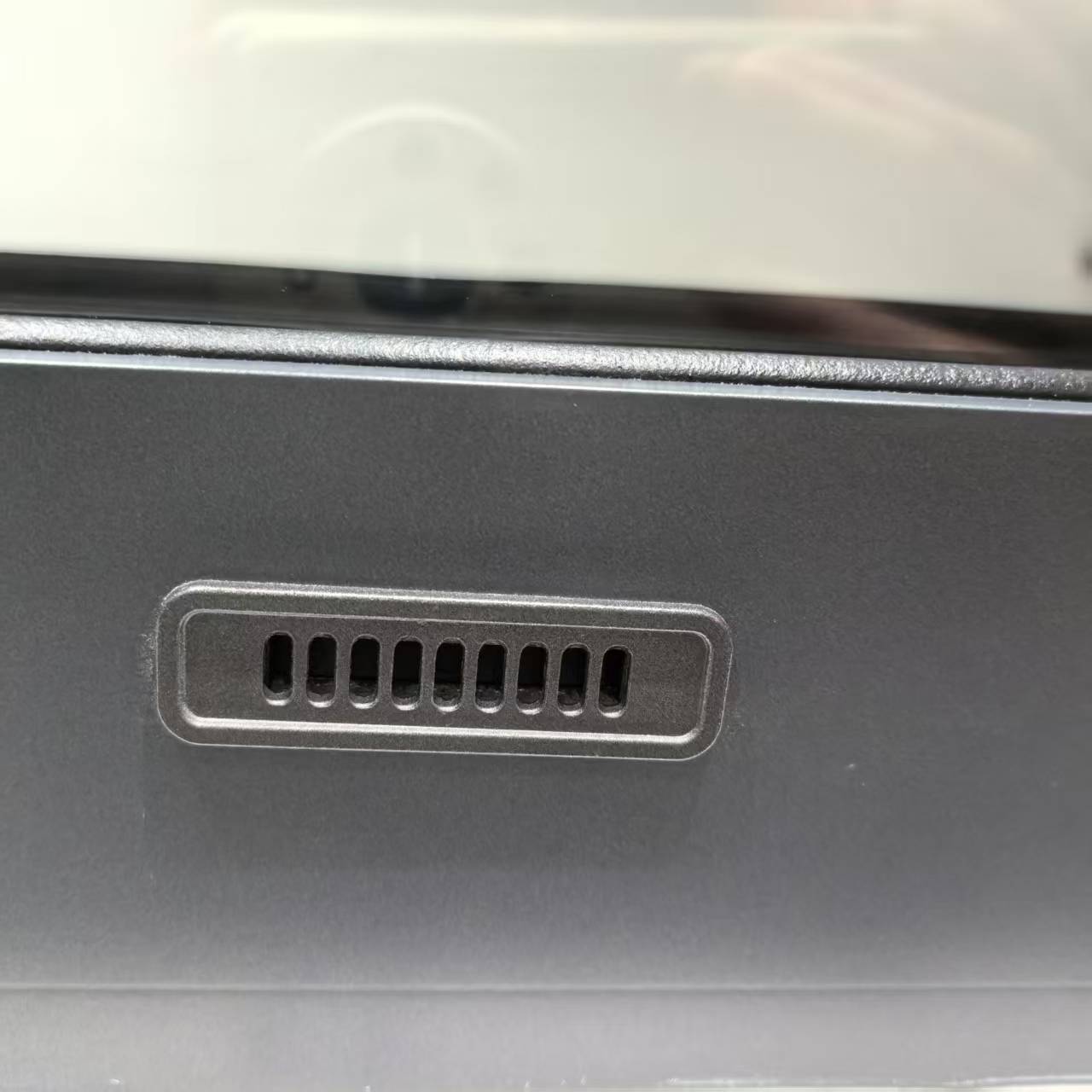

hidden drainage to keep away rain water come into interior

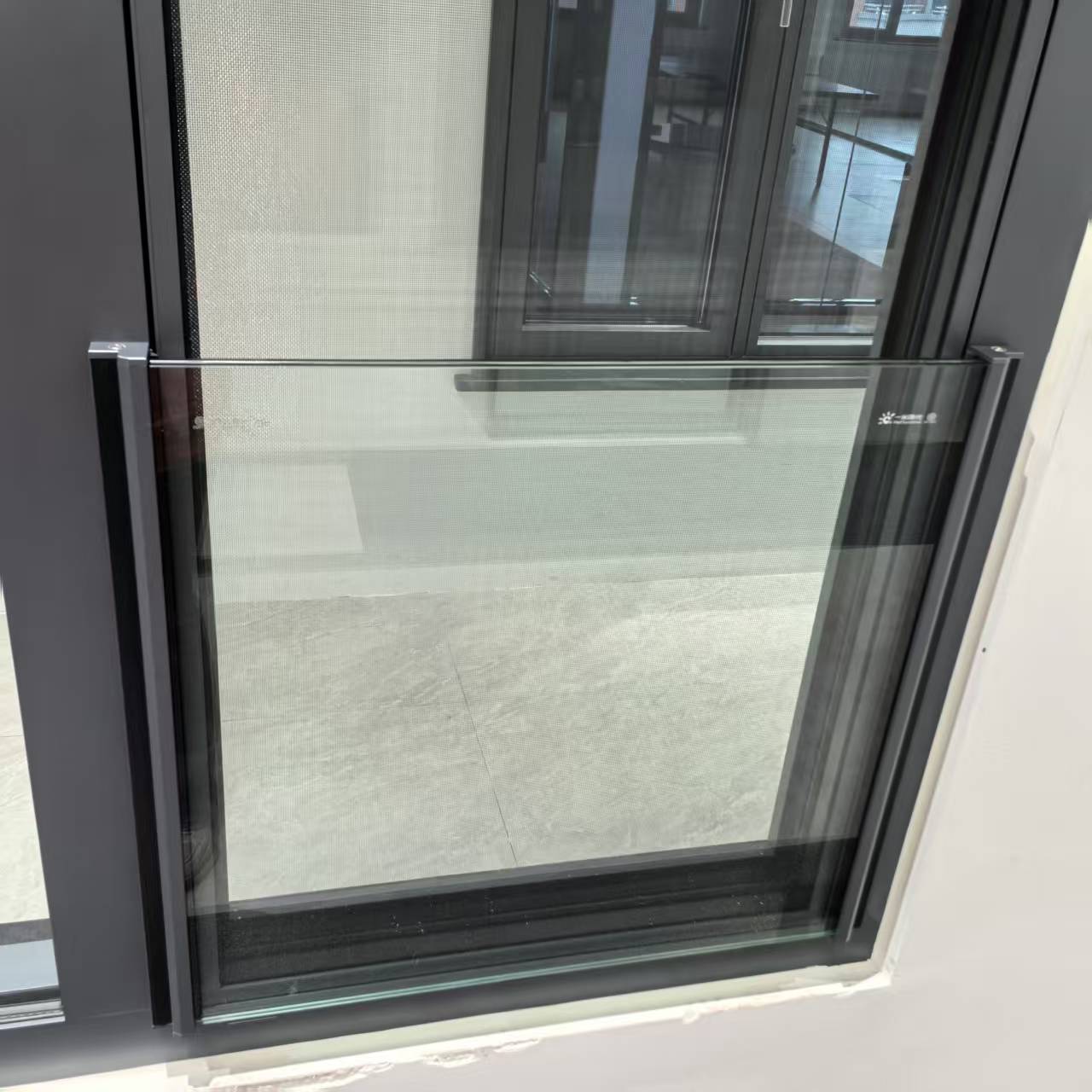

Optional Double Laminated Glass to Protect Children
