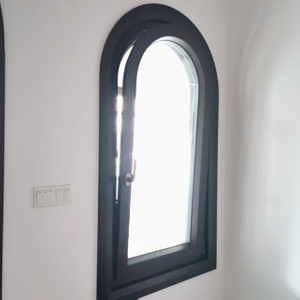

Aluminum Clad Wood 78 Arched Window
When you choose an arched window, you are not just buying a frame; you are investing in the structural integrity of your home’s facade. The Aluminum Clad Wood 78 series was born out of a simple obsession: to create a window that defies the elements outside while offering absolute natural purity inside.
By merging 100-year-old timber with aerospace-grade aluminum, we have created a window system that sets a new benchmark for luxury fenestration. Let’s look at the material science behind it.
The "No-Warp" Splicing Structure
Wood arches are prone to natural tension, which can cause warping. To solve this, we use a sophisticated three-layer lamination process:
The Surface: A continuous, single piece of premium Australian Redwood (zero finger-joints) for an uninterrupted aesthetic.
The Core: The inner two layers are finger-jointed to offset internal stress.
This multi-layered engineering, combined with traditional Mortise and Tenon joinery, guarantees the arch remains perfectly true for decades.
Food-Grade Wood Wax Oil Protection
We reject harsh chemical varnishes. The interior timber undergoes a 5-layer coating of natural wood wax oil (refined linseed and palm wax). The pigments are so pure they meet food-grade standards. This non-toxic, odorless finish deeply penetrates the wood, offering waterproof, anti-cracking, and insect-proof protection.
German CNC Machining
Using imported HOMAG CNC machining centers, Leitz tools, and KLAES 3D software, our machining tolerance is an incredible 0.01mm. This ensures that the variable cross-section profiles—extending seamlessly from the fixed window to the opening sash—fit together perfectly without a single gap.
The 16-Degree Inclined Surface
Breaking away from flat frames, we introduced a 16° inclined surface based on the scientific golden ratio. It adds a striking 3D visual depth to the arch and naturally deflects dust, making cleaning effortless.
Austrian MACO & German RUNAS Systems
Hardware: Equipped with MACO's advanced 4mm and 12mm notch systems. (The 4mm notch is a leading technology in the industry).
Handles: German HOPO handles as standard; upgrades to G-U or Wehag are available.
Screen Sash: German RUNAS hardware ensures your insect screens glide smoothly.
RC2/RC3 Anti-Theft Standard
Security is not an afterthought. This window comes standard with an RC2 anti-theft system (mushroom-head lock points). For maximum security, it can be upgraded to the RC3 standard, integrating up to 20 anti-theft locking points into the frame.
Automotive-Grade Sealing
We use EPDM sealing strips (the same material used in car doors) for extreme resistance to UV, ozone, and aging. Combined with our concealed anti-backflow drainage system, the window remains completely watertight and airtight in severe storms.
Imported Aimejie 48-Mesh PET Screen
Blocks 400-micron insects while offering high transparency. The Nafitec technology repels dust and makes wiping away oily stains incredibly easy.
| Parameter | Specification |
|---|---|
| Frame Dimensions | Wood Width: 62mm / Wood Height: 81mm |
| Sash Dimensions | Wood Thickness: 78mm / Wood Height: 81mm |
| Standard Glass | 5mm + 20A + 5mm (Double Glazing) |
| Opening Modes | Inward Casement / Tilt & Turn + Integrated Screen |
| Max Sash Size (Inward) | Width: 500–800mm / Height: 600–1650mm |
| Max Sash Size (Tilt) | Width: 500–1200mm / Height: 500–2400mm |
| Hardware System | MACO accessories / HOPO handles / RUNAS screen support |
| Custom Wood Colors | White, White Oak, White Rubbed Gold, Black Rubbed Gold, Red Sandalwood, Teak, Amber |
Historical or European Revival Estates: The arched design seamlessly matches classic architectural styles.
Coastal Homes: The German CNC-cut aluminum cladding and EPDM seals resist saltwater corrosion and extreme humidity.
High-Security Villas: The RC2/RC3 locking upgrades provide absolute peace of mind for ground-floor entries.
Eco-Conscious Projects: 100% Australian redwood and non-toxic, food-grade wax oil finishes.
1. Will the wood crack or warp under the sun?
No. Our three-layer solid wood construction (one solid surface piece + two finger-jointed inner layers) relieves internal tension. It is then sealed with 5 layers of natural wood wax oil, which locks in moisture and prevents UV damage.
2. What does "food-grade pigment" mean?
It means the coloring applied to the wood is entirely non-toxic and safe, ensuring the highest indoor air quality for your family.
3. What is the benefit of the MACO 4mm notch?
The 4mm hardware notch system offers a more precise, tighter fit for the locking mechanism compared to standard sizes, resulting in smoother operation and better security.
4. Can this window be ordered with a triple-glazed option?
Yes. While the standard configuration is 5+20A+5 double glazing, we can customize the glass channel to accommodate triple glazing for extreme noise reduction or passive-house requirements.
