Features
Tpes Of Solid Wood:

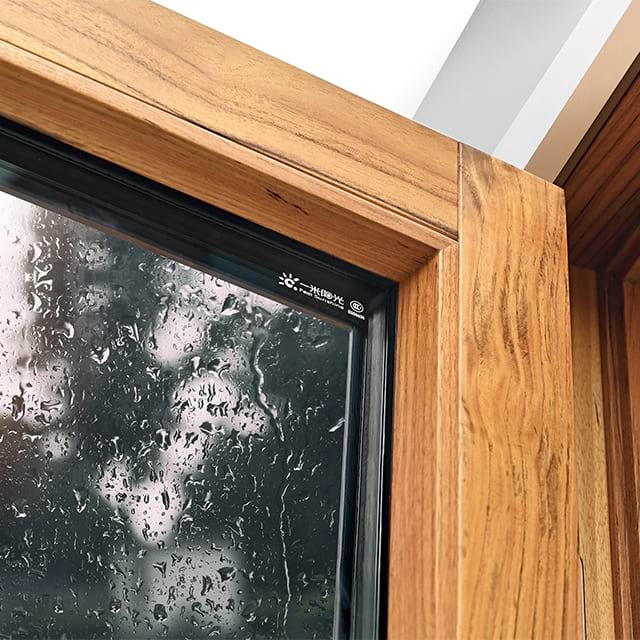

Selected 100-year-old precious wood species (Australian red sandalwood) with stable fibers; spliced by finger jointing, offsetting internal stress and controlling wood deformation to the greatest extent
Other wood: Burmese teak, rosewood, American oak, etc.; (Solid wood finger jointing: also known as integrated wood, using multiple wooden boards with serrated interfaces on the end faces, similar to the cross-jointing of two fingers, and machine extrusion and gluing to form)
1. Main board surface: whole material, no finger jointing, the inner two layers of finger joints are glued and extruded with the main board surface (the three layers of solid wood are all Australian redwood);
2. Treatment of solid wood surface (wood wax oil) 5-degree coating 5-layer protection: wood wax oil is the common name of vegetable oil wax coating in China: it is a natural wood coating, the raw materials are mainly refined linseed oil, palm wax and other natural vegetable oils and vegetable waxes combined with other natural ingredients, and even the pigments used for color matching have reached food grade.
Production equipment:
Homai CNC machining center imported from Germany, equipped with Leitz tools and KLAES 3D software; the machining accuracy reaches 0.01mm, and the horizontal and vertical materials are very flat and seamless when spliced.
Product splicing method: Mortise and tenon structure
Variable section technology:
Hardware accessories:
Hopo handles from Germany; optional hardware accessories include G-U imported from Germany, MACO from Austria, and RUNAS from Germany;
1. Standard for all series: two hardware notch systems from MACO of Austria, 4mm and 12mm (especially the 4mm hardware notch technology, which is in a leading position in China).
2. Full range of screen fans: German Runas hardware system + Wehag concealed handle.
3. All series of locks: standard with international RC2 anti-theft level hardware system (mushroom head lock point), the highest level of customization can reach the international RC3 anti-theft standard.
Concealed drainage: Concealed drainage system, unique diversion structure design, perfect combination of functionality and aesthetics, is both technology and art.

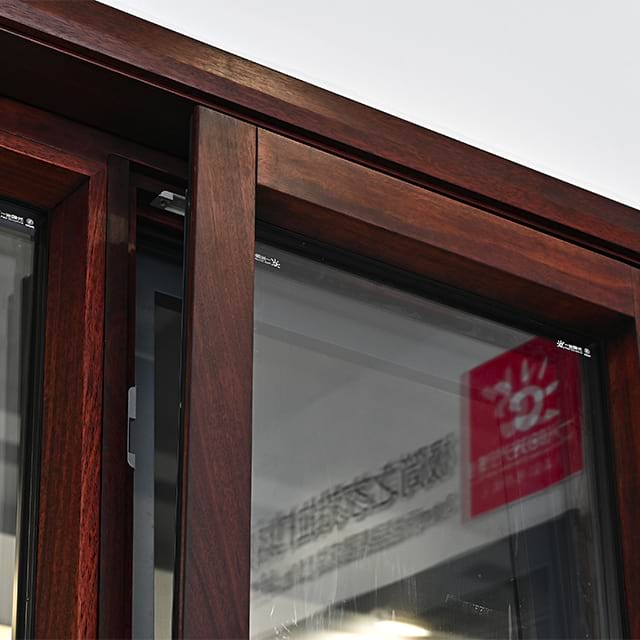

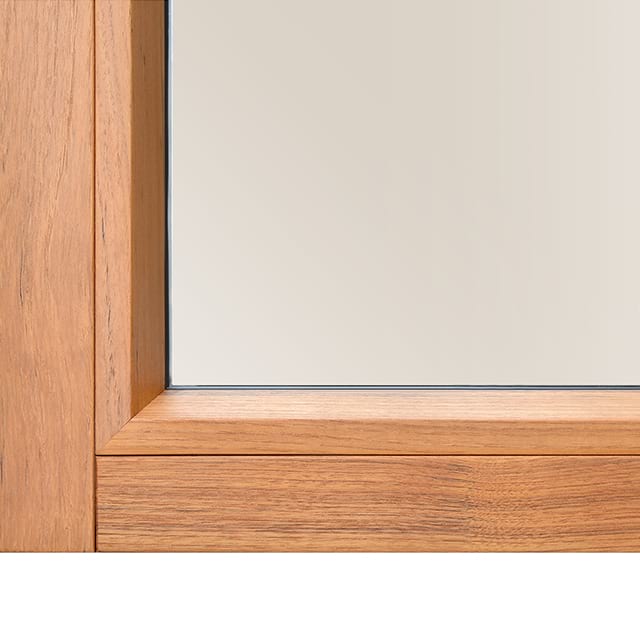

Seamless welding: The aluminum alloy is welded and polished after 45-degree splicing to form a whole, with no traces on the surface.
High-transparency Mesh (imported Aimejie 48-mesh PET multifunctional screen): The 48-mesh multifunctional screen has a mesh size of 400 microns, which can effectively prevent the entry of mosquitoes; it also belongs to the Nafitec technology series, has the function of being dust-proof and easy to clean dirty and oily stains; it has good ventilation and high visibility.
Sealing accessories (strips): The aluminum-clad wood series all use EPDM sealing strips, which are very good in ozone resistance, UV resistance, weather resistance and aging resistance, ranking first among general rubbers. The strips used in automobiles, refrigerators, etc. are all EPDM.

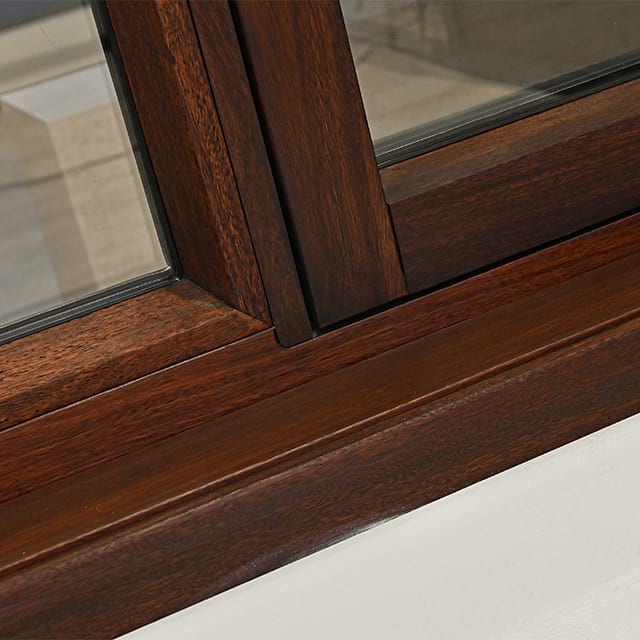

Product Design: 16-degree inclined surface design: Breaking through the traditional flat design of window frames, the scientific golden ratio enhances the visual three-dimensional sense of doors and windows. It is not easy to accumulate dust, and it simplifies cleaning and maintenance in one step.
We select the highest quality Australian redwood, which has few knots, poor base color, heavy material, high hardness, strength and toughness, corrosion resistance, insect resistance, durability, stability and earthquake resistance.
The high-hardness wood wax oil derived from Australian pure natural plant essence is non-toxic and odorless, insect-proof, anti-corrosion, waterproof, anti-discoloration, and non-cracking.
Fully automatic seamless splicing technology and one-time molding welding further improve the sealing of doors and windows. performance.
Multi-locking point design structure, built-in multi-locking point structure, can install up to twenty anti-theft lock points, the rolling design and adaptive function of the lock points ensure anti-theft while maintaining a smooth opening and closing feel.
